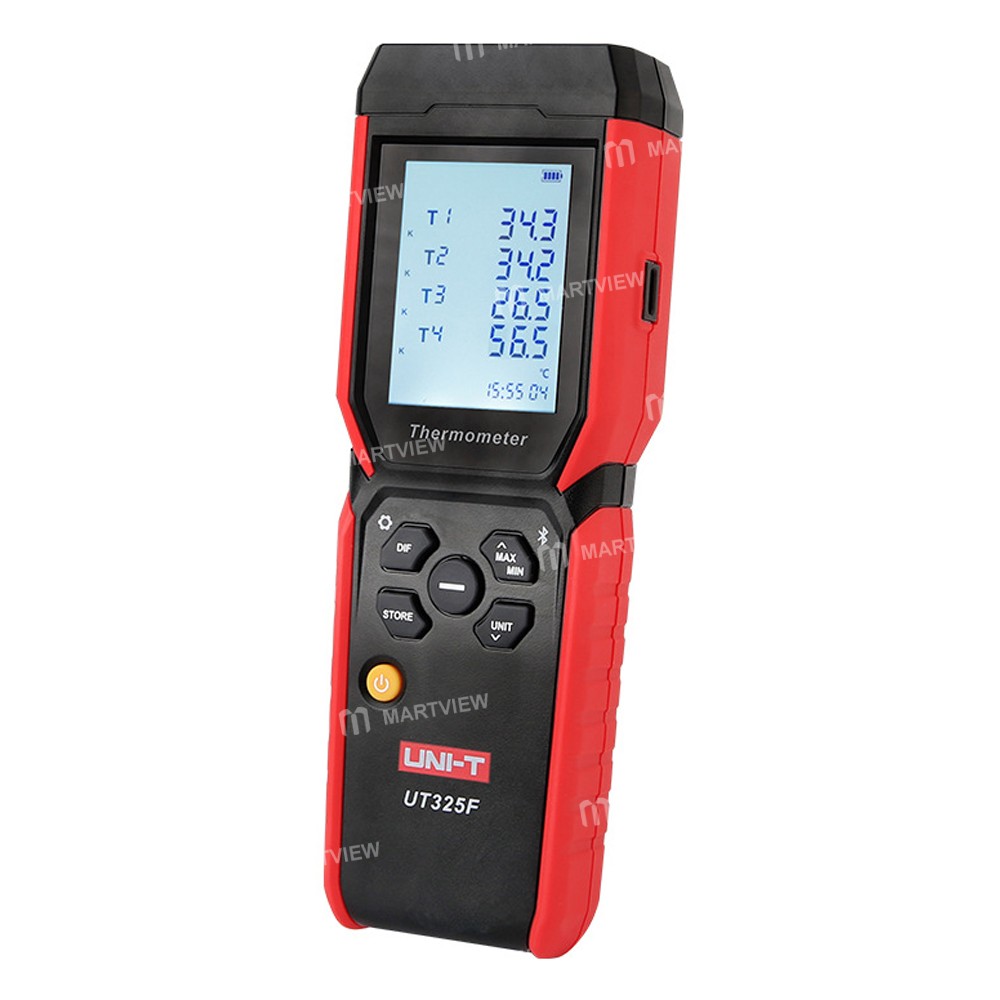

UNI-T UT325F High Precision Digital Display Four-Channel Thermocouple Thermometer

UNI-T UT325F High Precision Digital Display Four-Channel Thermocouple Thermometer
Note: Standard 4 K-type thermocouples temperature measurement range: -40 ~ 260℃

Overview:

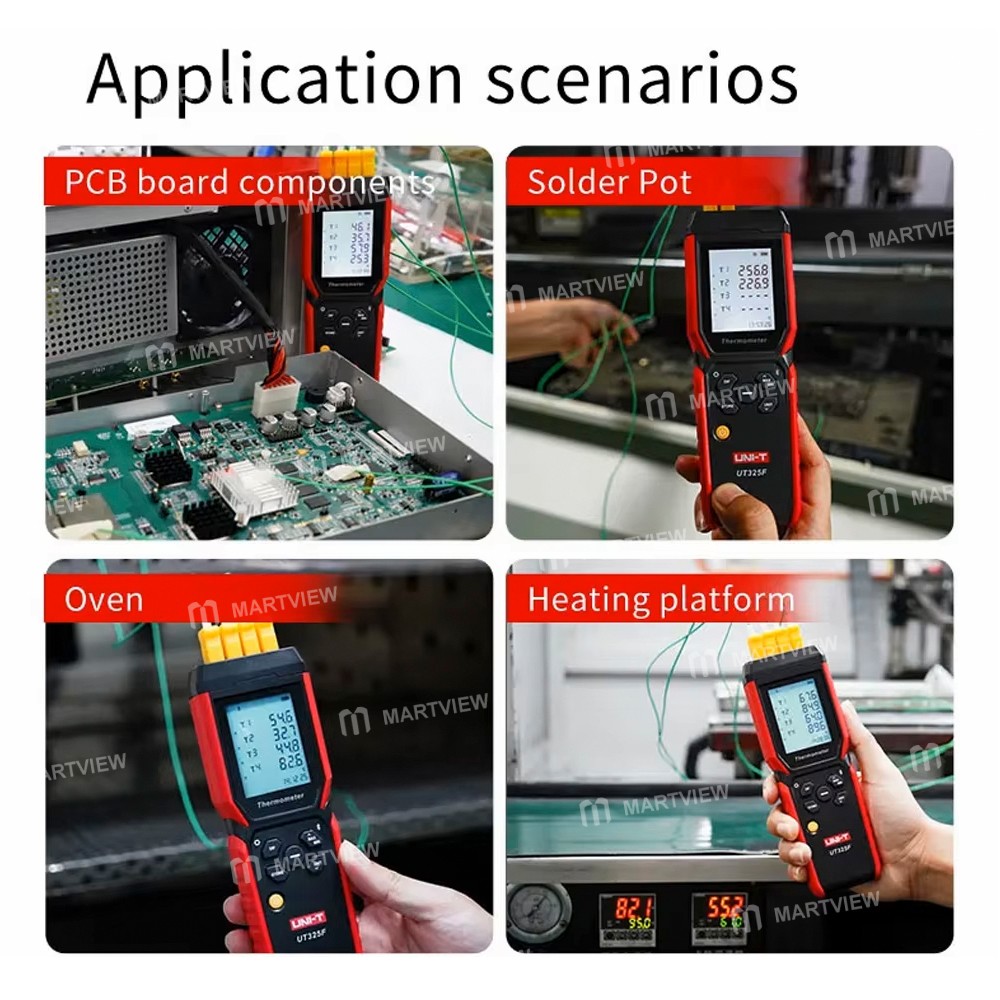

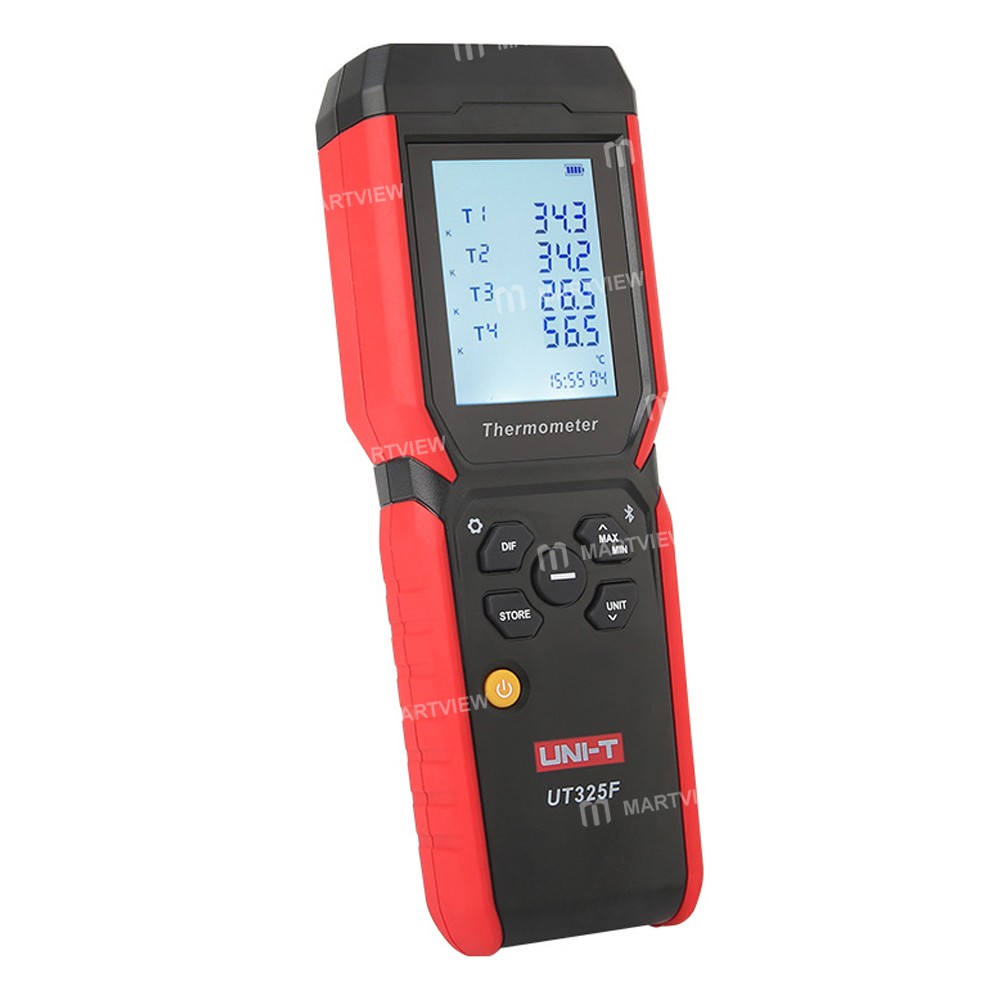

UT325F four-channel thermocouple pyrometer, standard with four K-type thermocouples, supports four-channel simultaneous measurement, can be used for multi-point temperature comparison or temperature difference measurement, high accuracy, stable and reliable readings. Compatible with a variety of temperature probes (K, J, T, E, R, S, and N type thermocouples), but also has a powerful data logging function and analysis software, through the USB connection to the PC or Bluetooth connection App for data download and analysis, suitable for steel, metalworking, plastics processing, papermaking, electronics, textiles and other industries of temperature detection and recording.

Features:

• Applicable to type K, J, T, E, R, S and N thermocouples

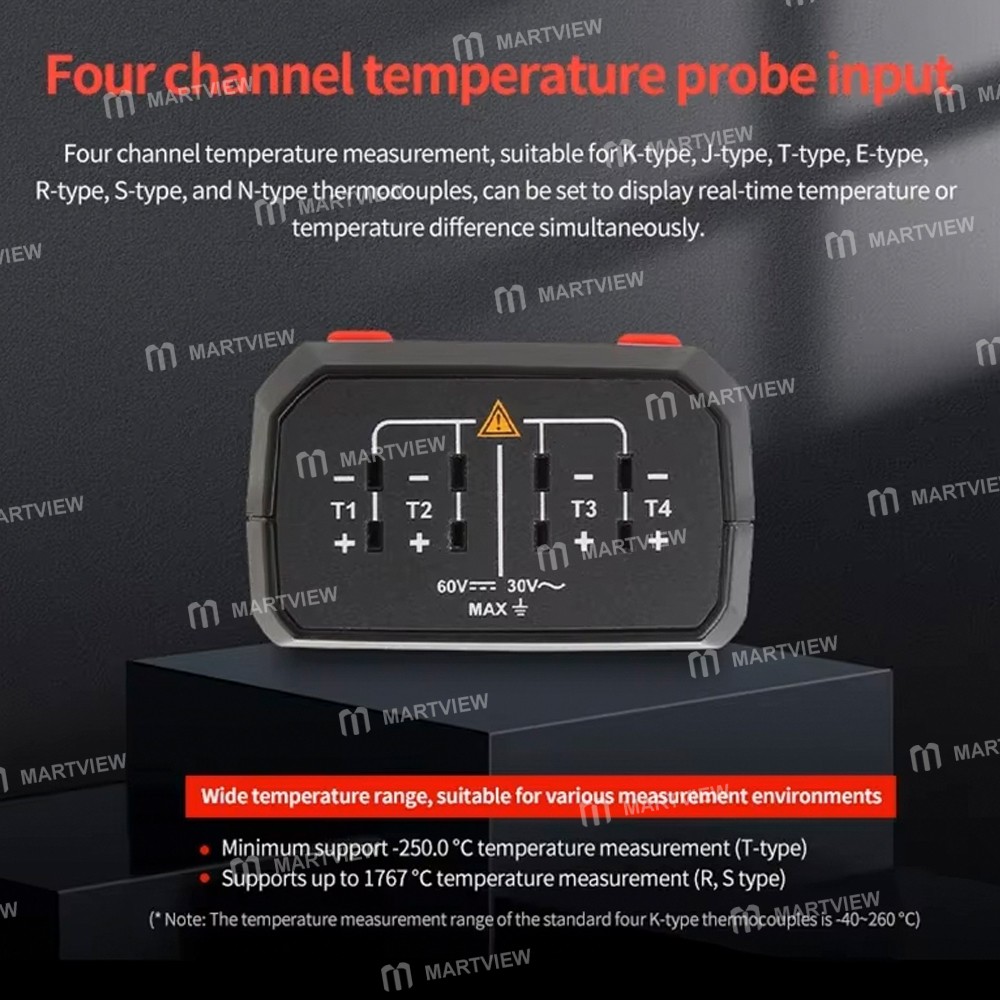

• Four-channel temperature measurement can display the temperature difference

• Wide temperature range, applicable to a variety of measurement environments, the lowest support -250.0℃ temperature measurement (T type), the highest support 1767℃ temperature measurement (R, S type)

• Time intervals can be set to record data automatically

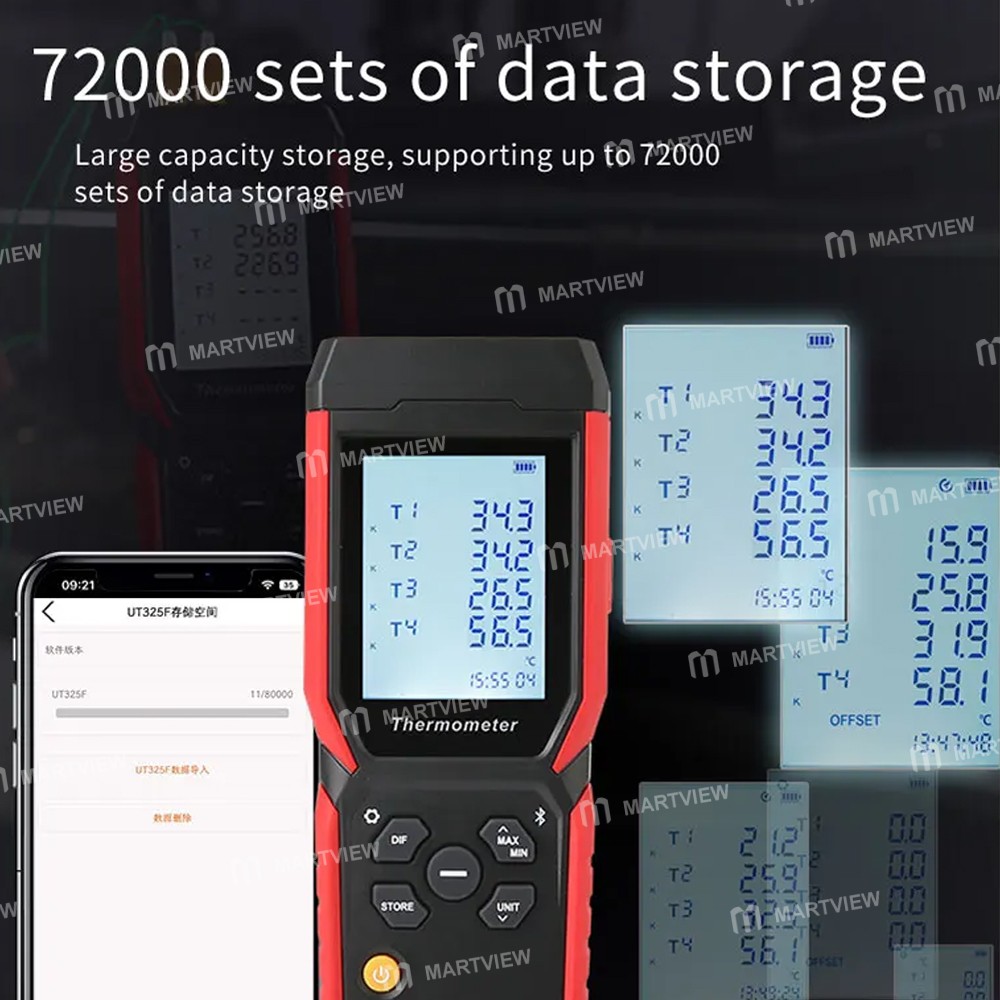

• Large-capacity storage, supporting a maximum of 72,000 groups of data storage, to meet the demand for storing long-time automatic measurement data

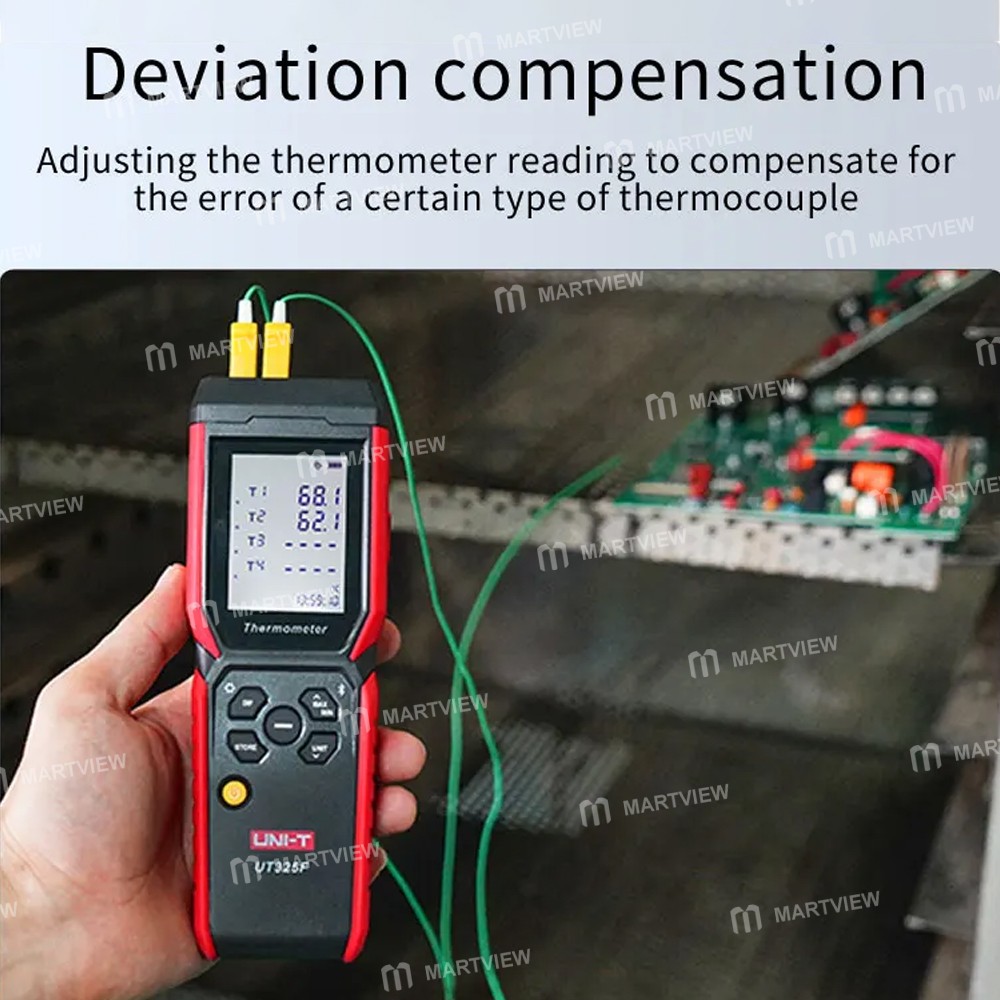

• Compensation for deviation values can be set

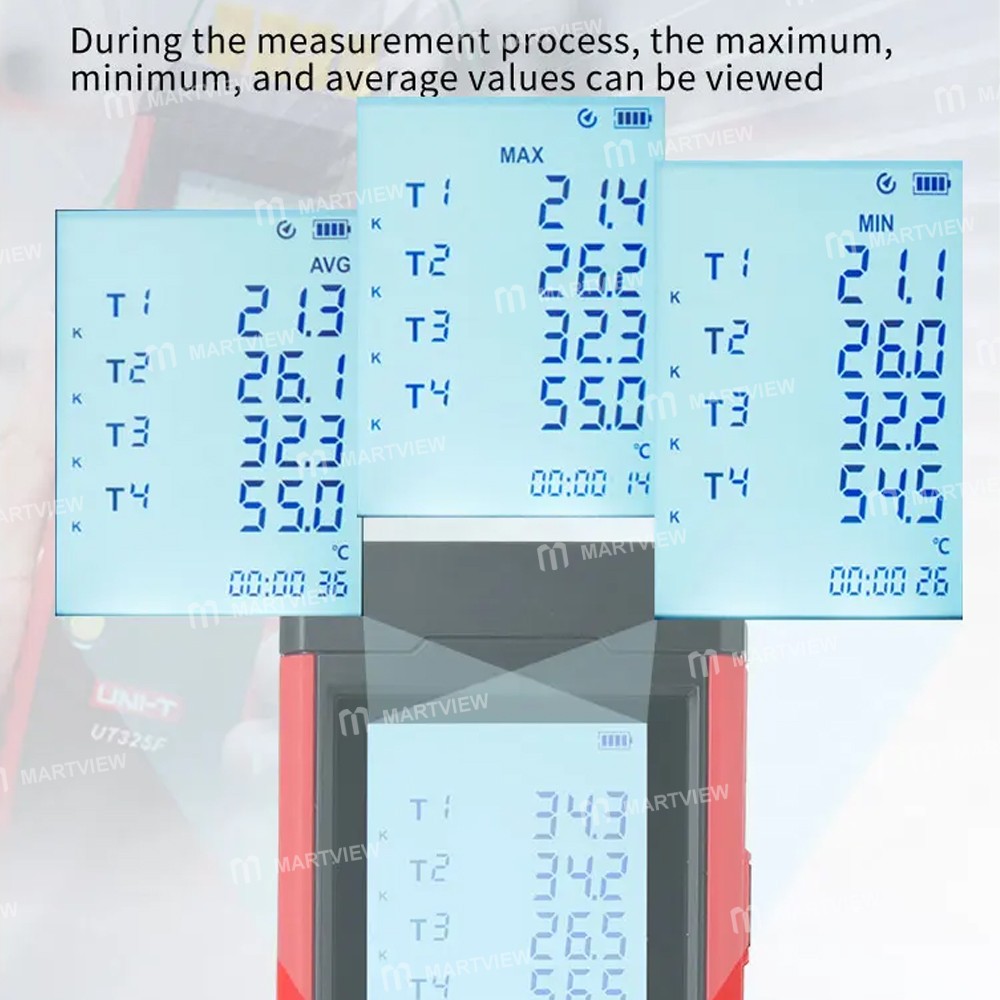

• In timing measurement mode, you can view the maximum value, minimum value, and average value during the measurement

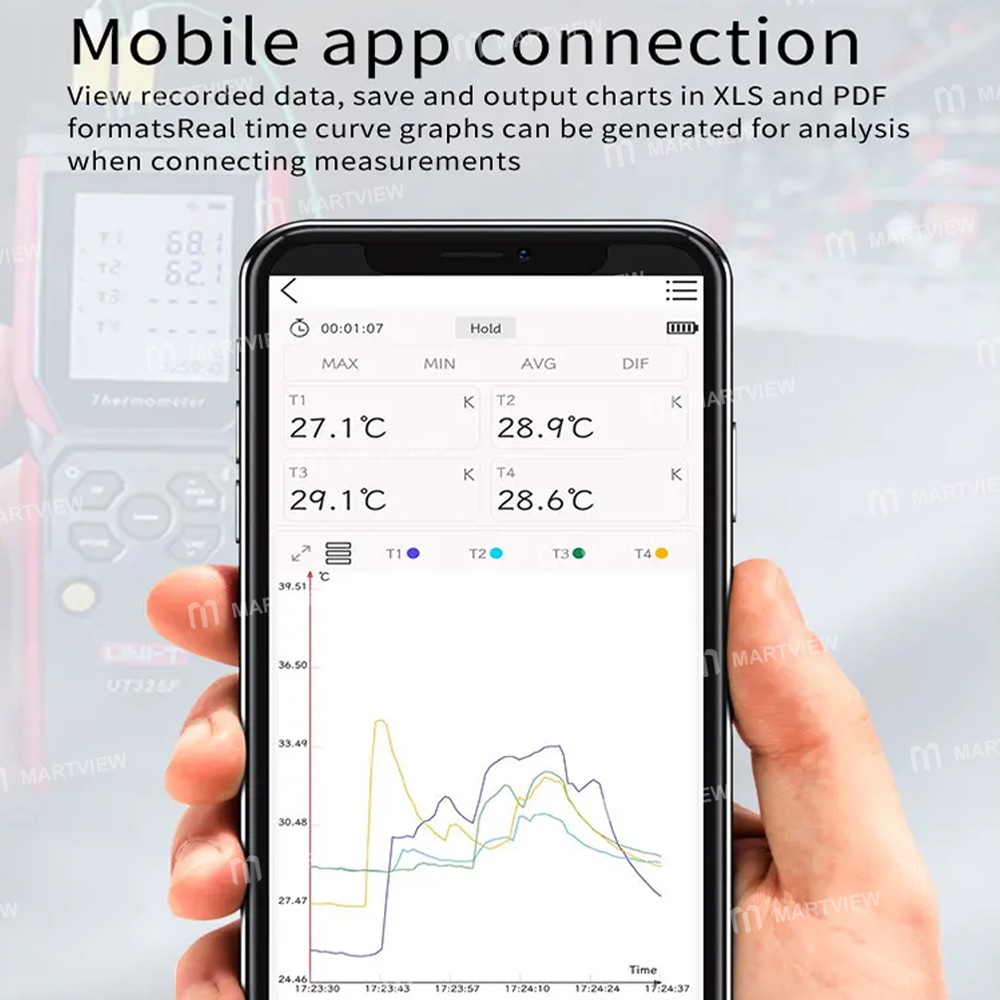

• Bluetooth connection to Android, iOS, APP control, view recorded data, save and output charts

• USB connection to PC software control, view recorded data, save and output charts

Specification:

Model	UT325F
Thermocouple types	Type K, J, T, E, R, S and N
Measuring range	Type K thermocouple	-200.0℃~1372℃ (-328.0℉~2501℉)
	Type J thermocouple	-210.0℃~1200℃(-346.0℉~2192℉)
	Type T thermocouple	-250.0℃~400.0℃(-418.0℉~752.0℉)
	Type E thermocouple	-150.0℃~1000℃(-238.0℉~1832℉)
	Type R thermocouple	0℃~1767℃(32℉~3212℉)
	Type S thermocouple	0℃~1767℃ (32℉~3212℉)
	Type N thermocouple	-200.0℃~1300℃(-328.0℉～2372℉)
Display resolution	0.1℃/℉/K (<1000)
	1.0℃/℉/K (≥1000)
Accuracy	±(0.2%+0.5℃)	Below -10℃: The original basis + 0.5℃; Below -200℃: The original basis + 2℃; Type T below -200℃: For reference only
	±(0.2%+0.9℉)
	The accuracy is applicable to the ambient temperature of 18℃ to 28℃, and it does not include the error of the thermocouple
Repeatability accuracy	±0.1%+0.3℃
Response time	About 500ms
Measurement functions	Unit selection	℃/℉/K
	Data hold	√
	Auto power off	√
	Measurement modes	MIN/MAX/AVG
	Difference	View temperature difference between any two channels
	Timing measurement	The recording interval can be set for 1s-24h to record the measurement data periodically
System functions	Data recording	72000
	Backlight	Turn on/off
	Data transmission	Type-C USB, Bluetooth
	Battery status	√
Power frequency anti-interference	50/60Hz
Drop proof	1m
Operating time	﹥30h
Operating temperature	-10℃~50℃ (14℉~122℉)
Storage temperature	20℃~60.0℃ (-4℉~140℉)
Operating humidity	90%RH (non-condensing)
Characteristic
Power	3*AAA alkaline zinc-manganese battery(Not includes)
Product size	178×63×38mm

Package includes:

• 1 x Thermometer (without Battery)

• 4 x Thermocouples
