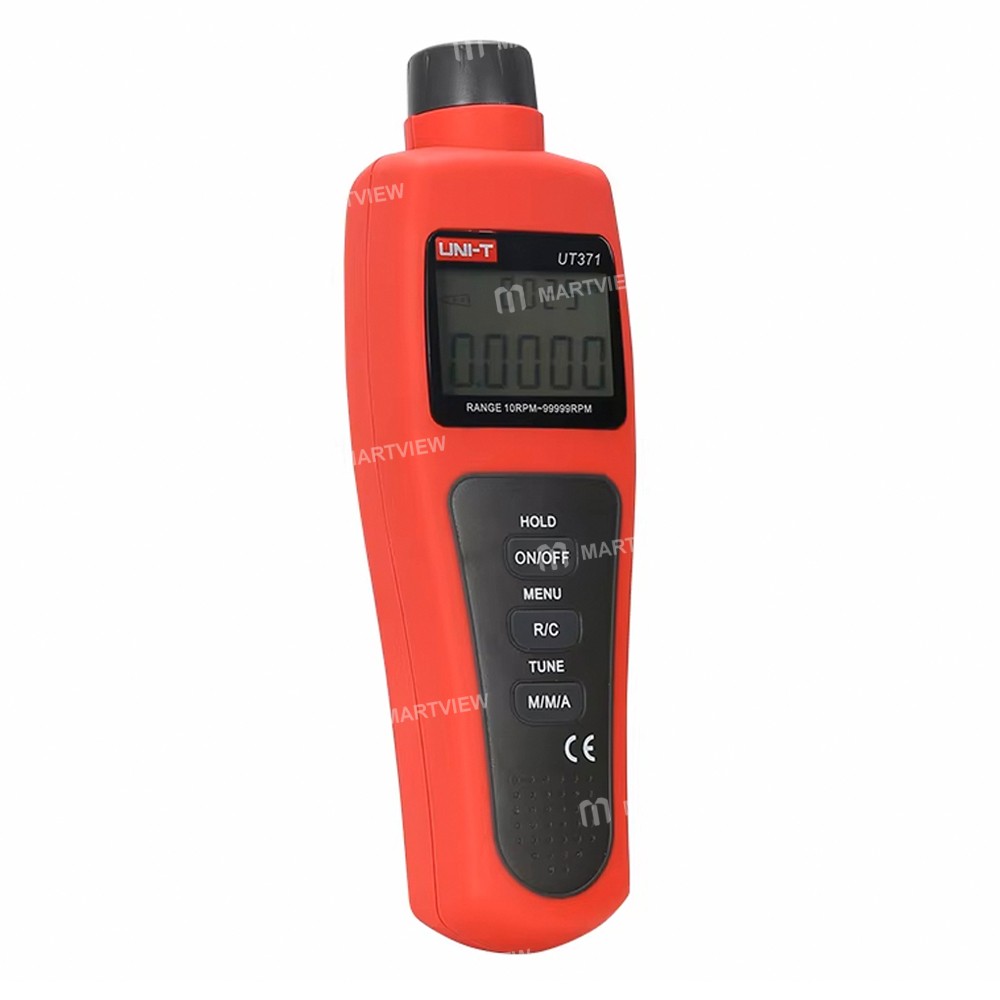

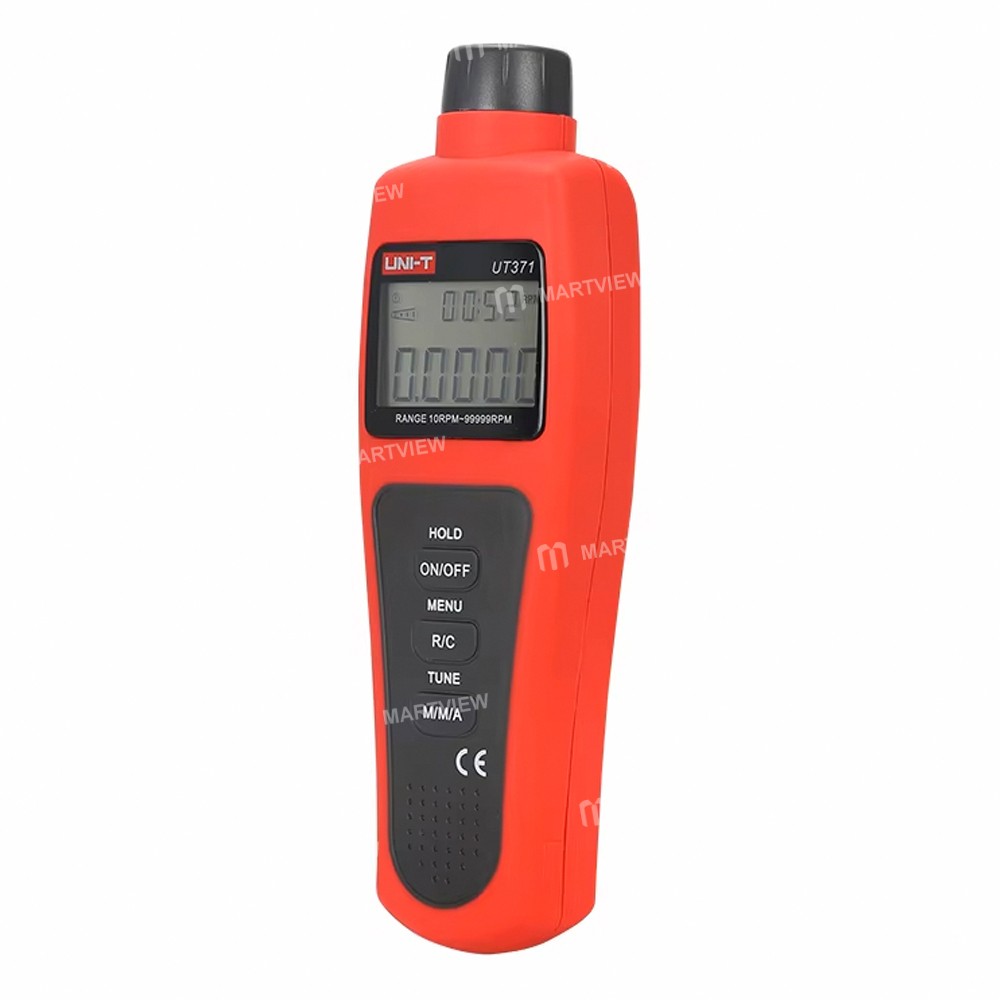

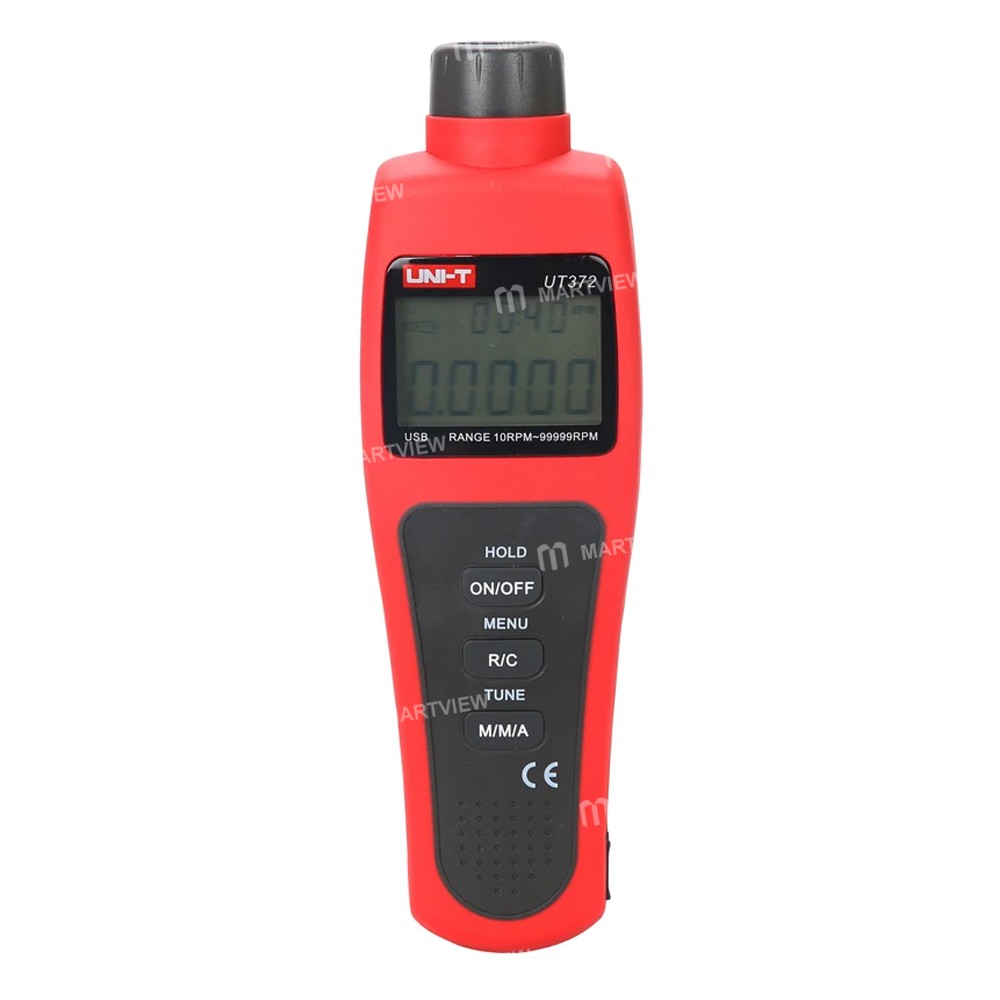

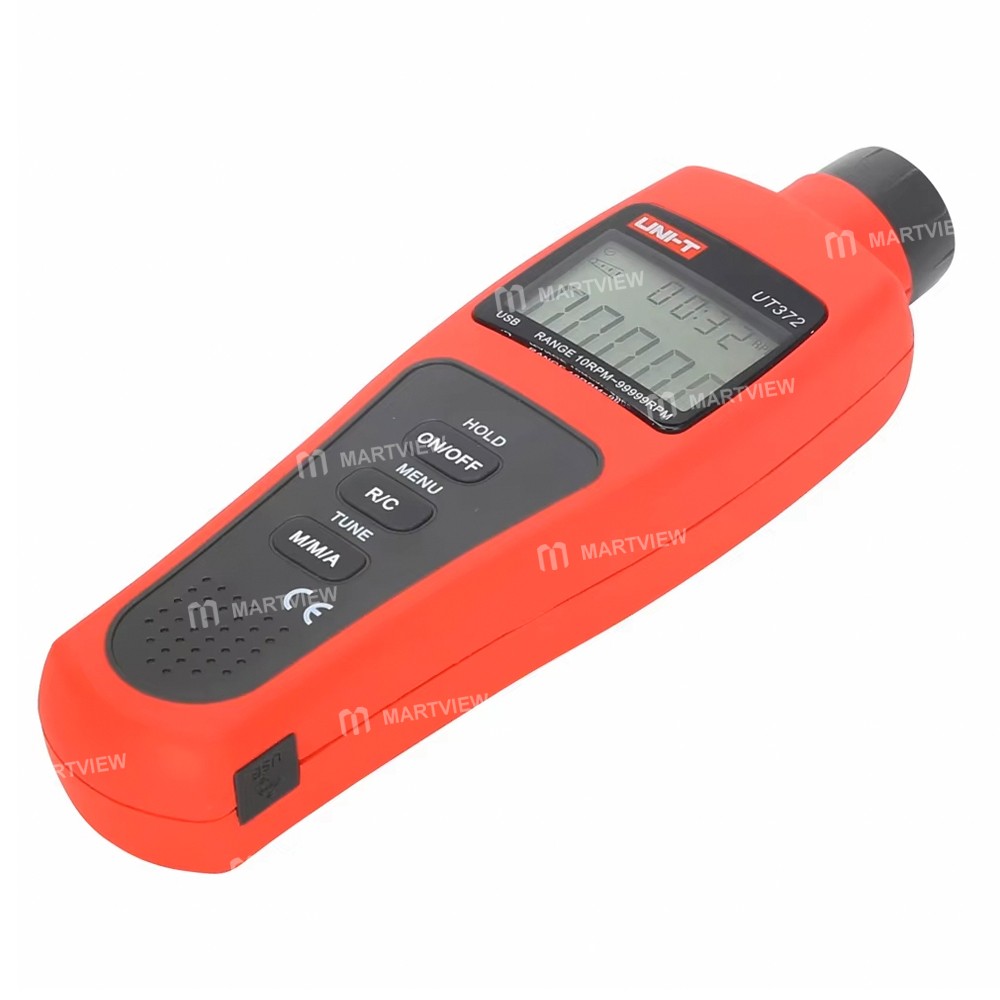

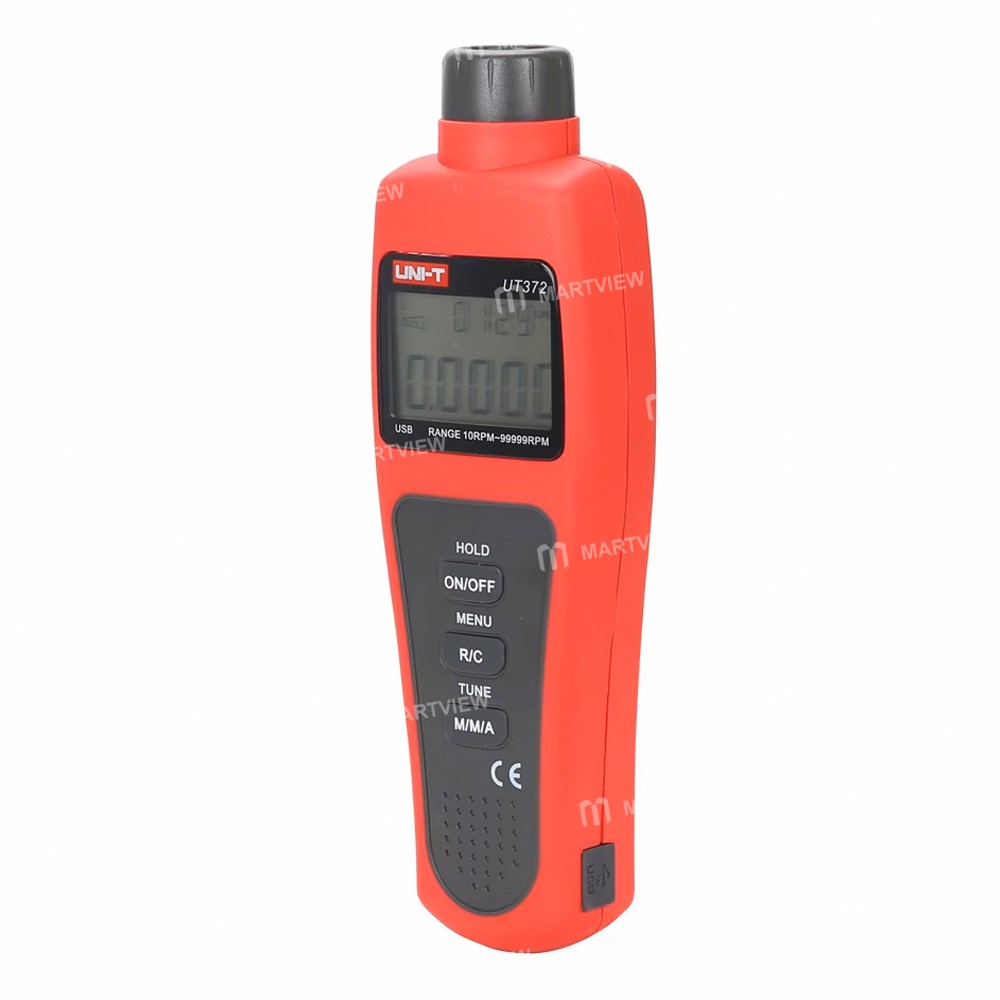

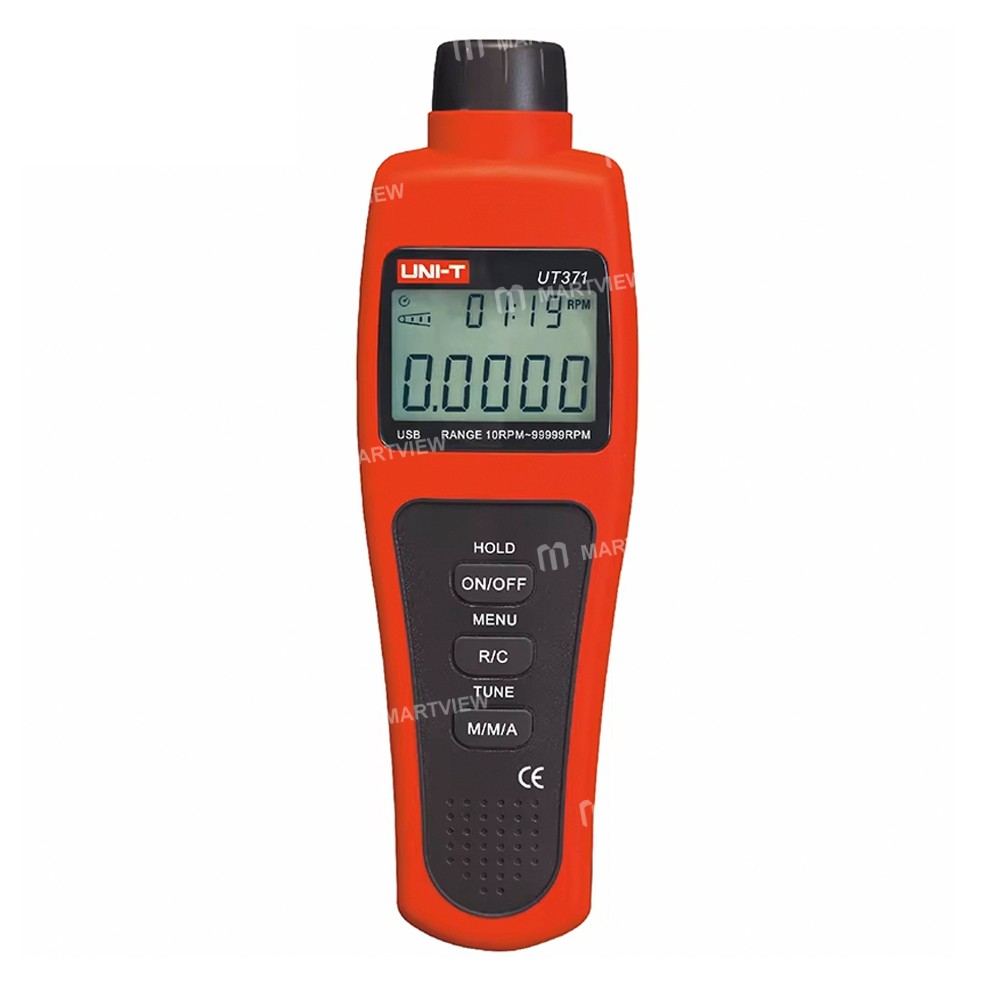

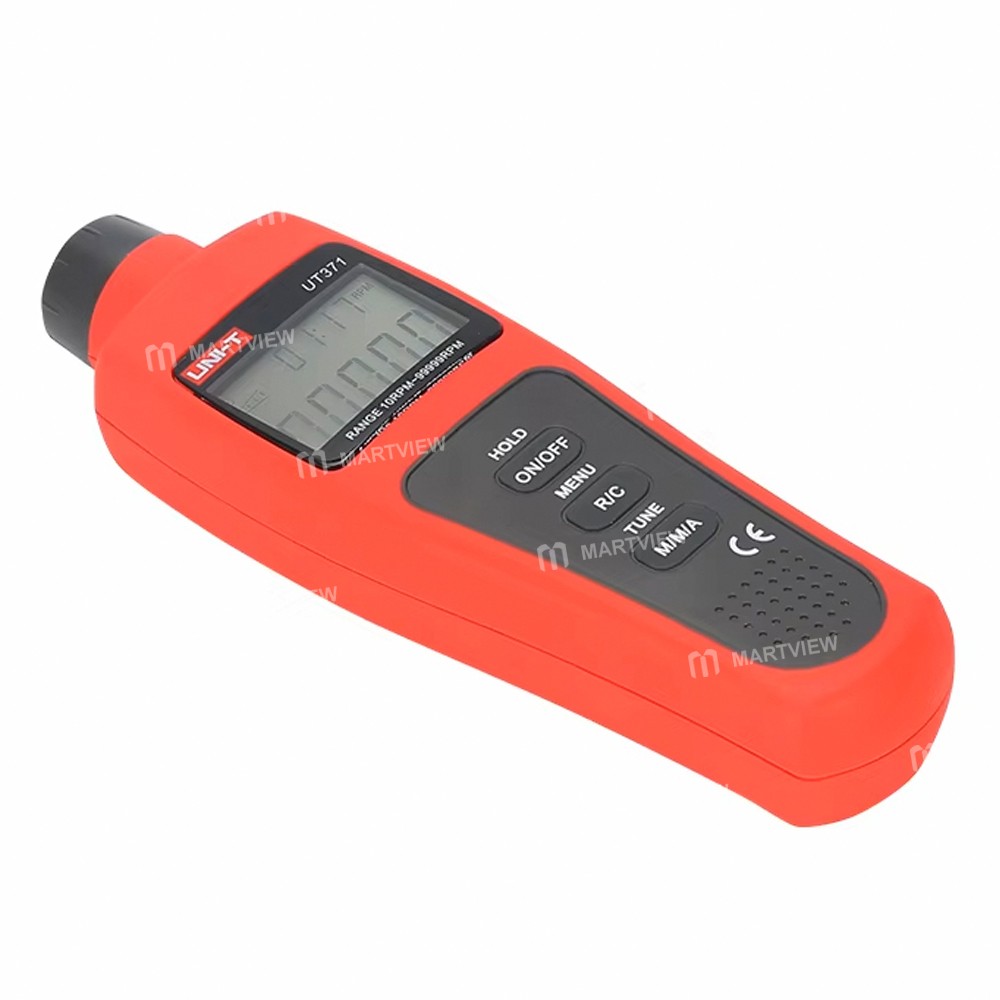

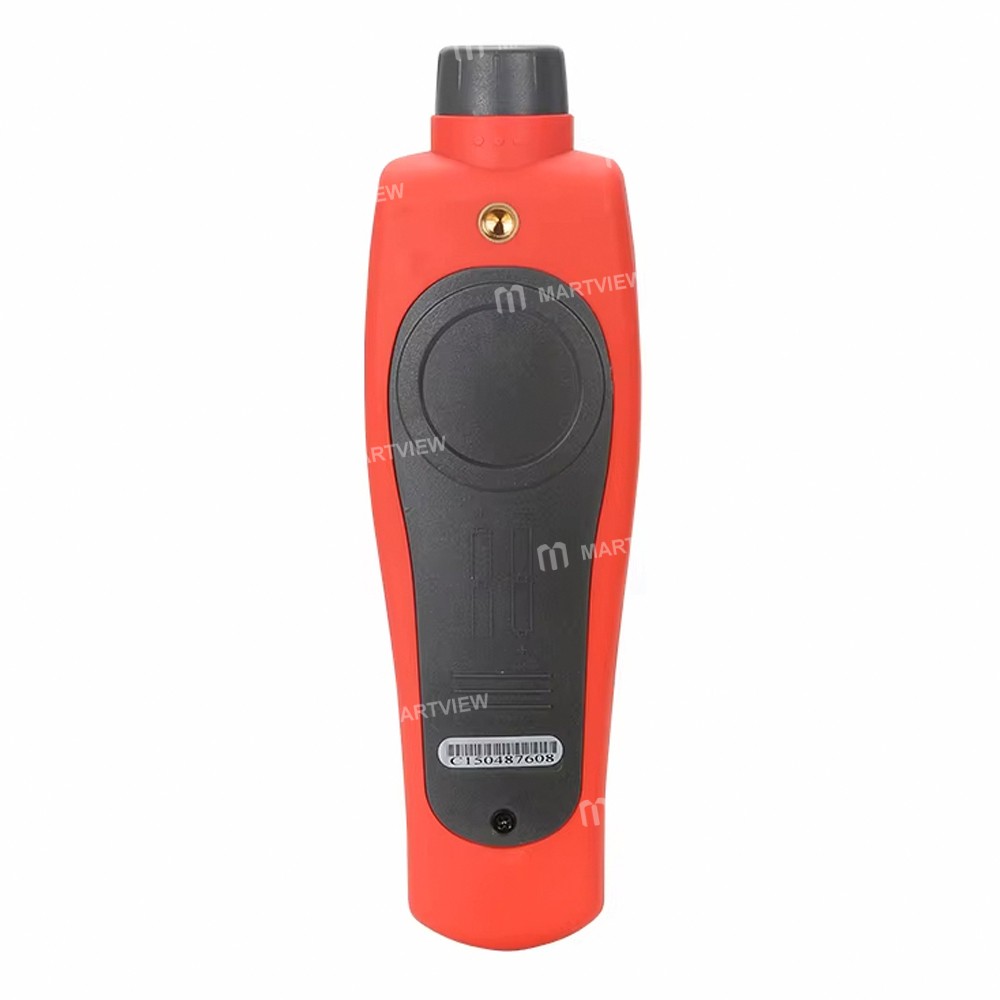

UNI-T UT371 / UT372 Non-Contact Digital Professional Tachometers

UNI-T UT371 / UT372 Non-Contact Digital Professional Tachometers

Overview:

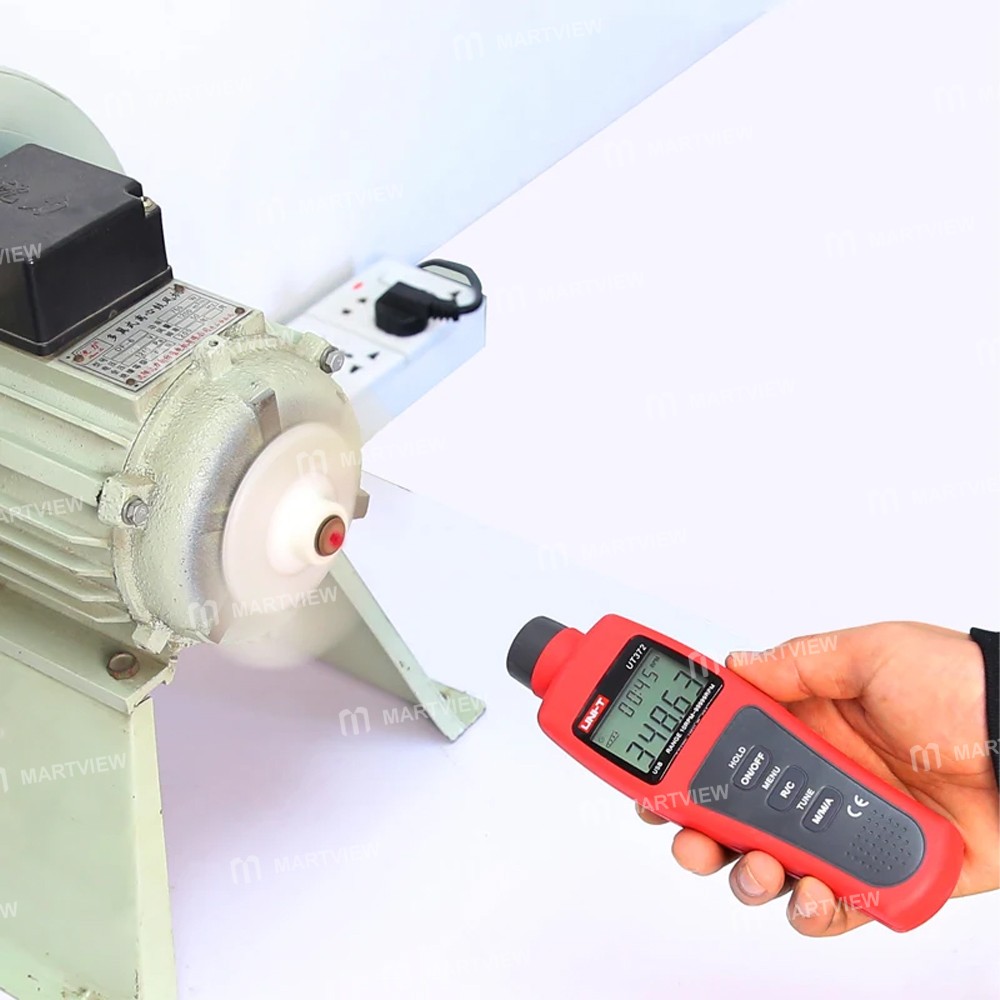

UT370 series non-contact tachometers measure the rotating speed of a shaft or disk with a point laser and reflective tape on the object being measured. These meters can output RPM or Count readouts without interfering with the equipment being measured

Features:

• 5 digits LCD screen, RPM/count, and time dual display

• MAX/MIN/AVG/normal modes

• Adjustable sampling rate (0.5~255s)

• Auto power off (cancelable)

• Optional (on/off) laser pointer

• Clock and time setting

• Data hold, low power consumption, continuous work for 40hrs

Specification:

	Range	UT371	UT372
RPM range	10RPM~99RPM	±(0.03%)	±(0.03%)
	100RPM~999RPM	±(0.04%＋2)	±(0.04%＋2)
	1000RPM~9999RPM	±(0.04%＋2)	±(0.04%＋2)
	10000RPM~99999RPM	±(0.04%＋2)	±(0.04%＋2)
Counts	Range: 0~99999	Yes	Yes
	Max. input frequency: 10kHz; bandwidth: 5%
Target distance	50mm~200mm	Yes	Yes
Features
Display count		100000	100000
Data hold		Yes	Yes
Auto power off	Around 15 minutes	Yes	Yes
Low battery indication	≤4.8V	Yes	Yes
MAX/MIN/AVG mode		Yes	Yes
USB interface			Yes
General Characterisitics
Power	1.5V battery (LR6) x 4 (without Battery)
Display	53mm x 41mm
Product color	Red and grey
Product net weight	100g
Product size	184mm x 56mm x 34mm
Standard accessories	Reflective tape, USB interface cable (UT372)

Package includes:

• 1 x Tachometers (without Battery)

• 1 x Reflective Tape

• 1 x USB Interface Cable (only UT372)
