UNI-T UT385 Infrared Semiconductor Laser Power Analyzer for Precision Power Measurement

UNI-T UT385 Infrared Semiconductor Laser Power Analyzer for Precision Power Measurement

Features:

• Precise laser sensor

• Split design with retractable spring wire

• LCD screen for clear readings

• Data storage function

• Selectable and customizable wavelengths

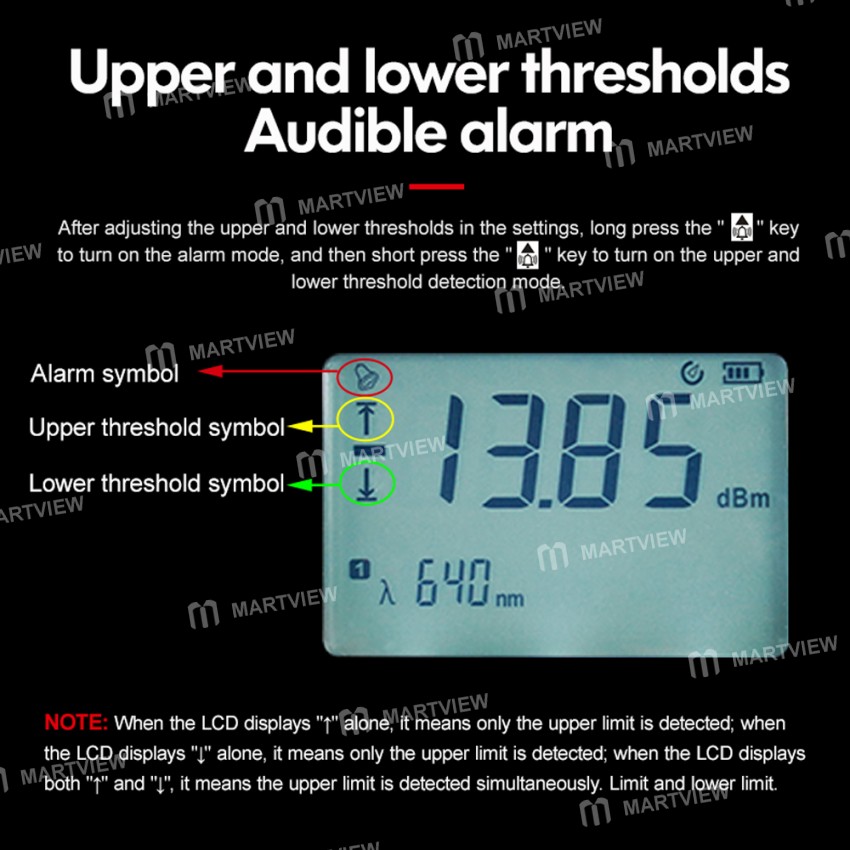

• Threshold alarm function

• Low power consumption

Specifications:

• Measuring range: 0uW~39.99mW

• Measurement accuracy: 0uW~10.0uW: ±(5%+0.3)

• 10.0uW~39.9mW: ±5%

• Laser wavelength measurement range: 400nm~1100nm

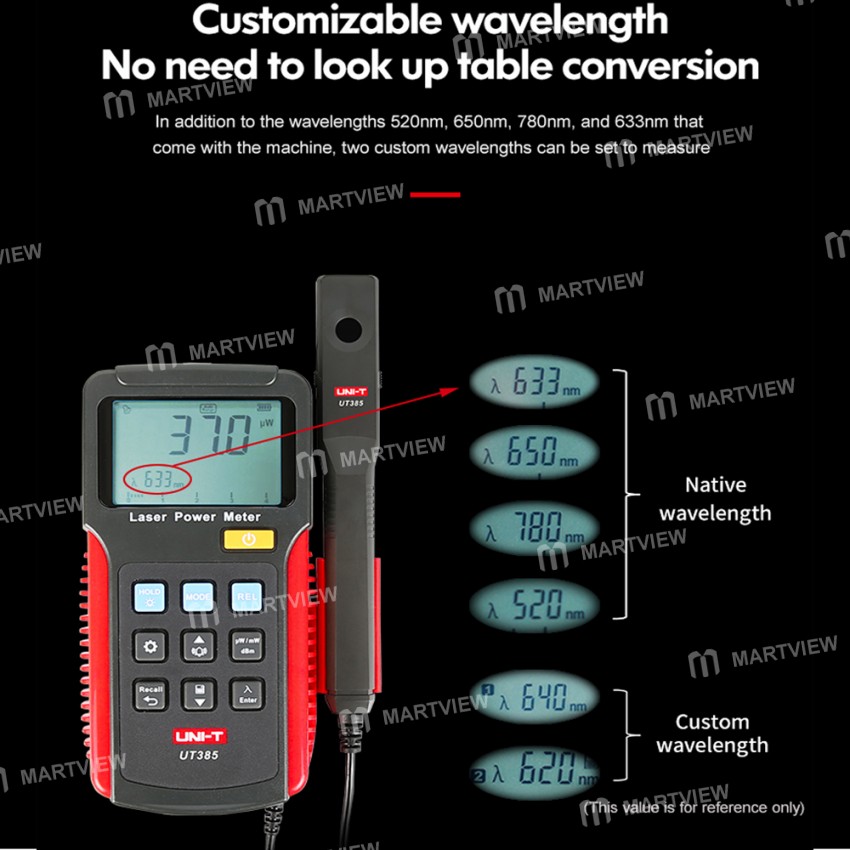

• The default switchable value of laser wavelength: 520nm, 633nm, 650nm, 780nm (customizable wavelength)

• LCD 4-digit LCD

• Sampling rate: 0.5 seconds

• Data storage: 199 groups

• Battery power indicator: 4-level power display

• LCD backlight off time: press the backlight key to turn off

• Automatic shutdown: automatic shut down after about 5 minutes of inactivity

• Sound alarm: Yes

• Date and time: Yes

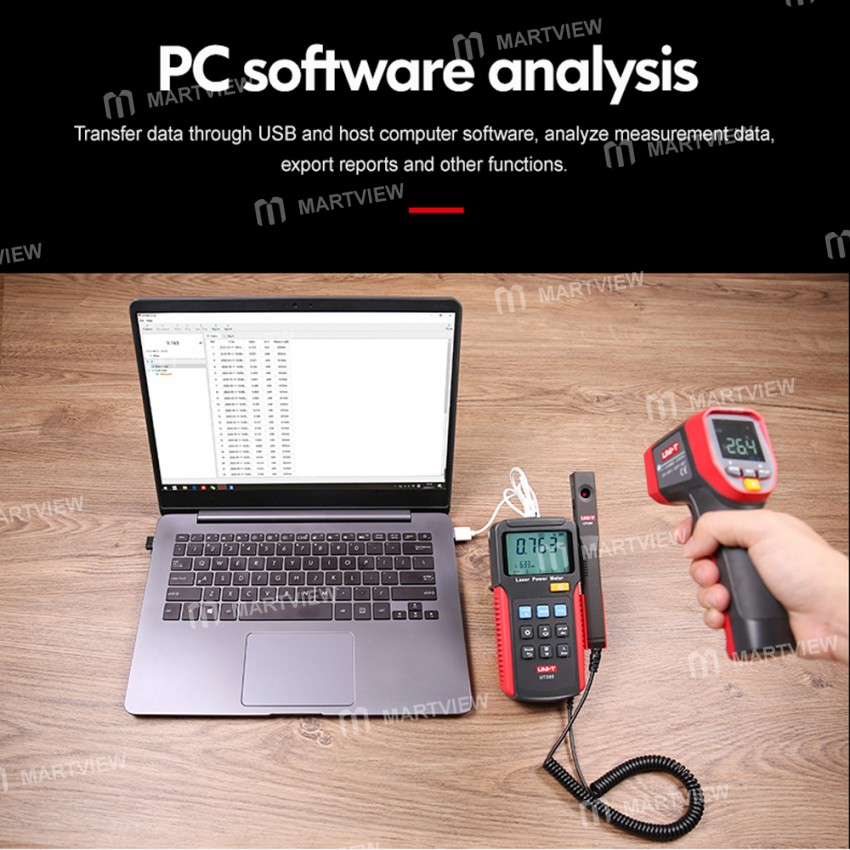

• USB data transmission: Yes

• Maximum value measurement: MAX/MIN/AVG

• Operating temperature range: 0~40°C

• Operating humidity range: 80%RH non-condensing

• Storage temperature range: -10C~50°C

• Power supply: 9V 6F22 (Does not included)

• LCD size: 57*37mm

• Bodyweight: 319g

• Body size: 198*104*35mm

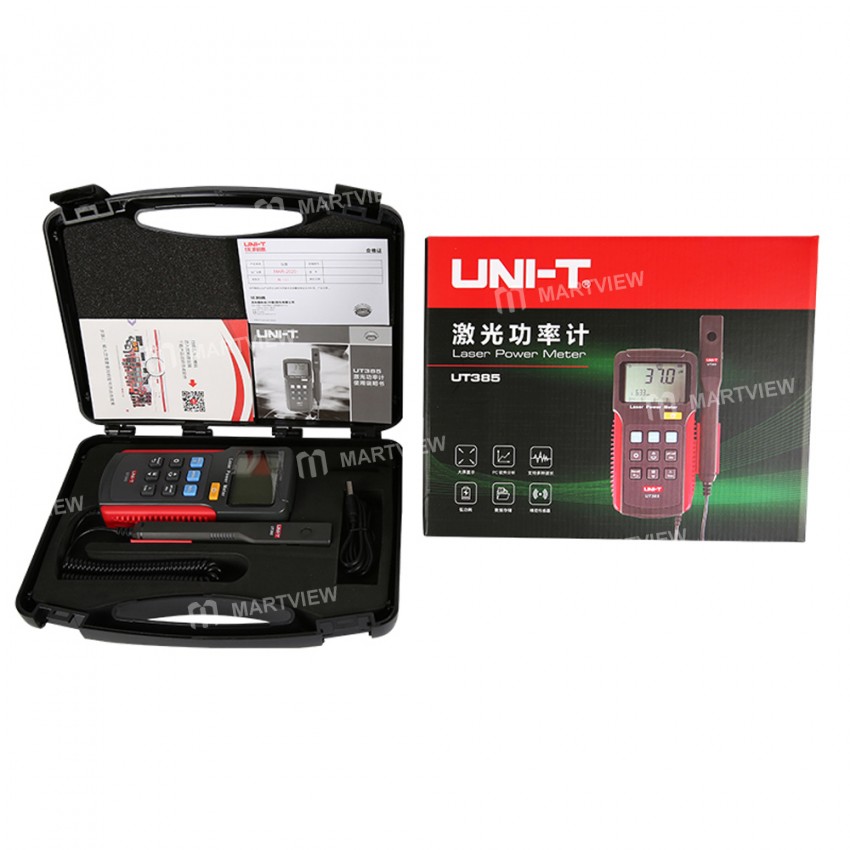

Package Includes:

• 1 x Host

• 1 x Probe handle
