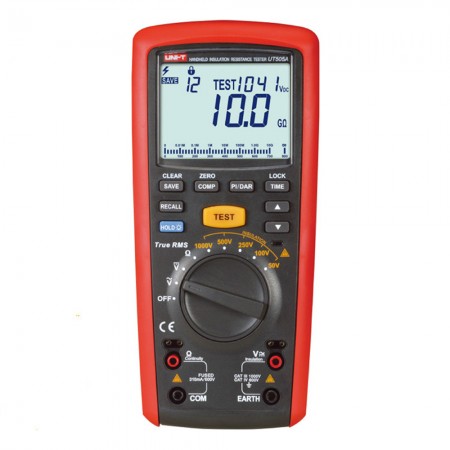

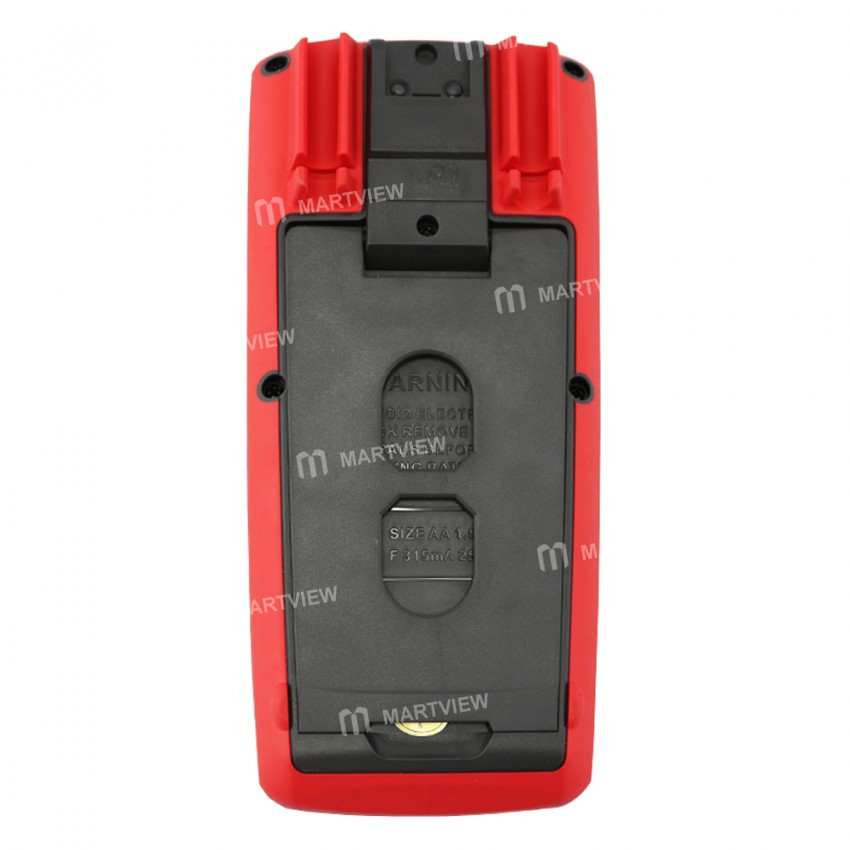

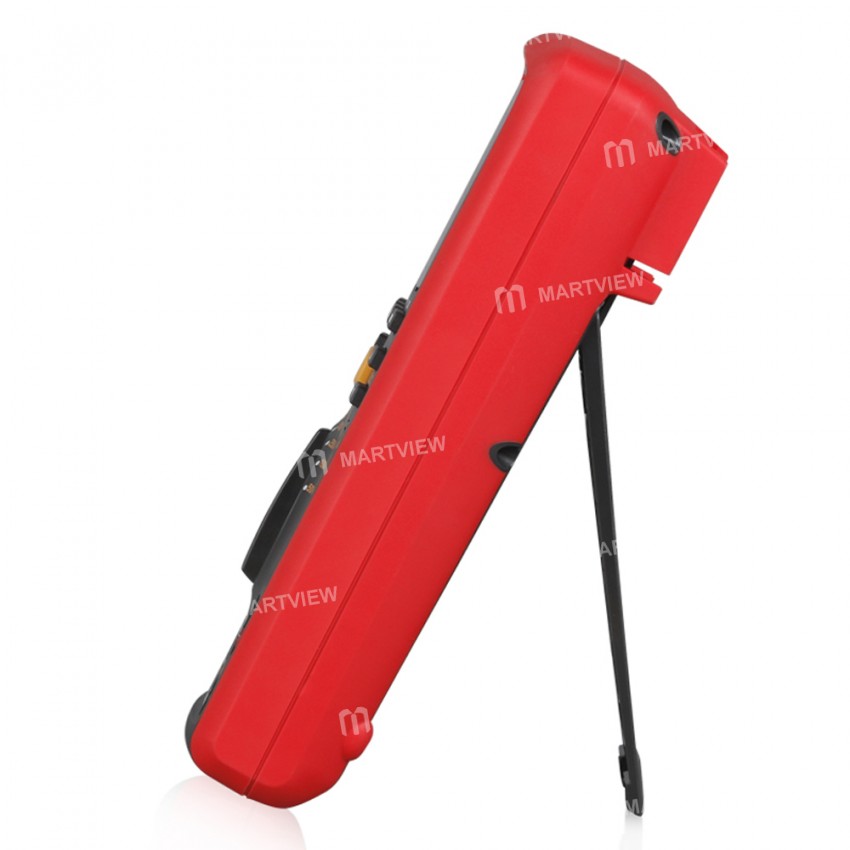

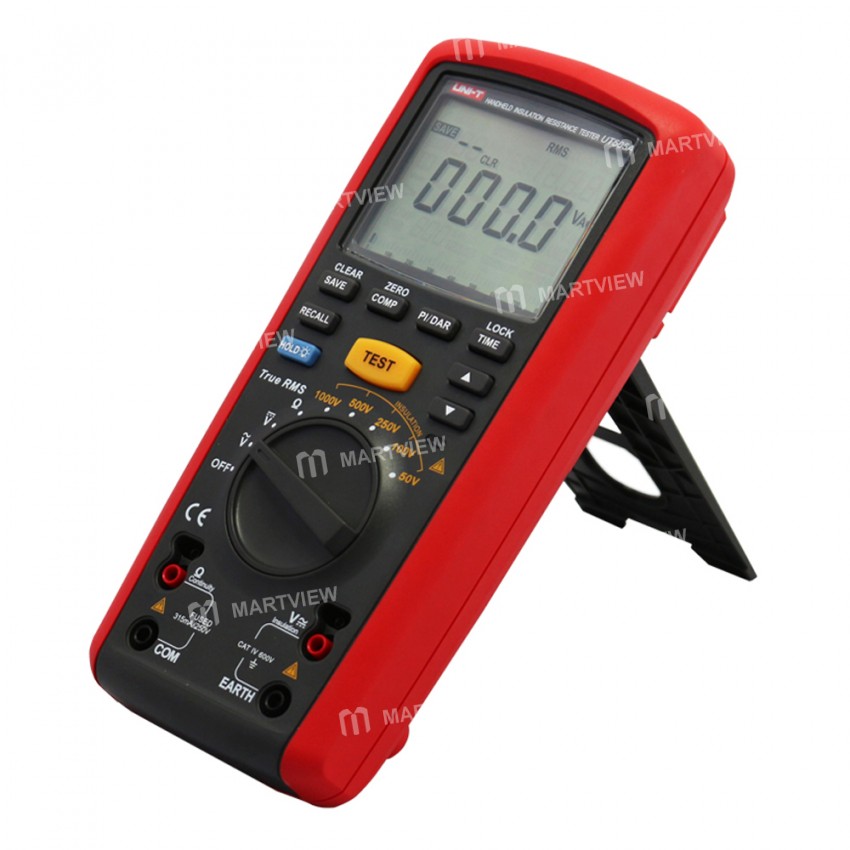

UNI-T UT505A 1000V Handheld High Precision True RMS Digital Resistance Meter
0 out of 5 stars
No review yetProduct details
Description
UNI-T UT505A 1000V Handheld High Precision True RMS Digital Resistance Meter

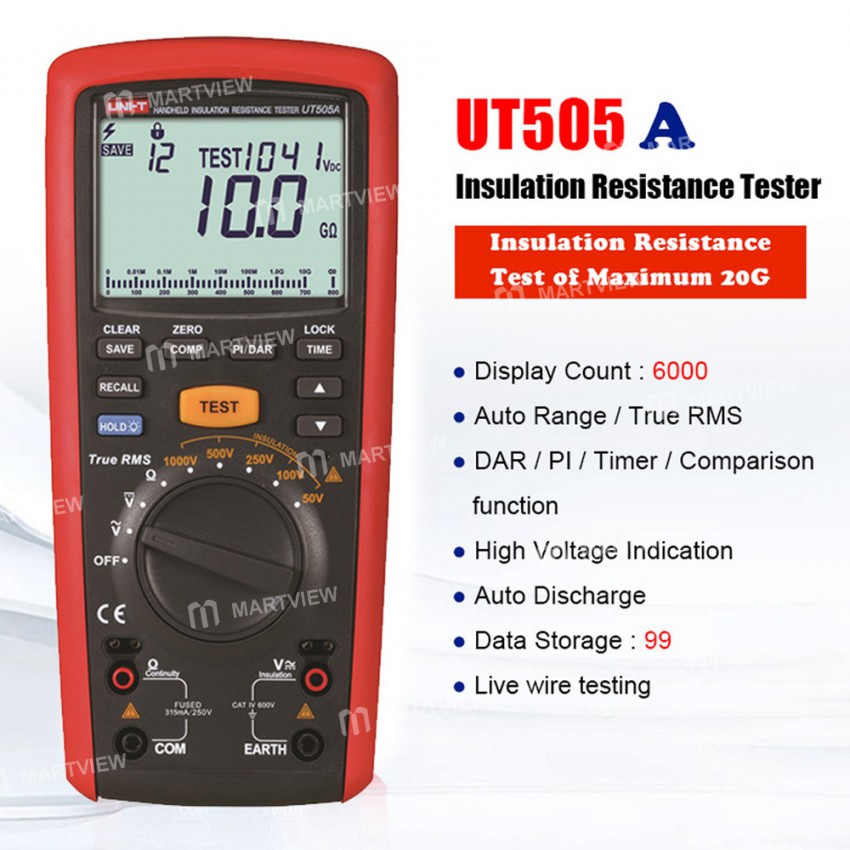

Features:
- UT505A is a kind of handled insulation resistance tester, which has the parameters such as insulation resistance, AC/DC voltage, etc
- This machine has high accuracy and stable
- It applies to maintaining, testing, and checking the transformers, electrical machines, cables, switches, electric appliances, and other electrical equipment as well as insulation resistance with insulation materials
- Show the actual value of insulation voltage 50V/100V/250V/500V/1000V
- Insulation resistance can be tested to 20GΩ
- Measured absorptance/polarization index, low –resistance test (20kΩ)
- Step voltage regulation, the function of remote detection test lead, and comparison
- 600V AC/DC voltage, 99 data logging
- Safety level: CAT III 1000V CAT IV 600V
- Brand-new design, portable, and easy to control
Specification:
Specifications |
| Range | UT505A |
Insulation resistance (Ω) | 50V | 50V/100V/250V/500V/1000V | 0%~10% |
0.01MΩ~50MΩ | ±(3%+5) | ||
100V | 0.01MΩ~100MΩ | ±(3%+5) | |
250V | 0.01MΩ~200MΩ | ±(1.5%+5) | |
500V | 0.01MΩ~500MΩ | ±(1.5%+5) | |
1000V | 0.1MΩ~2000MΩ | ±(1.5%+5) | |
2GΩ~9.9GΩ | ±(10%+3) | ||
10GΩ~20GΩ | ±(20%+10) | ||
Load current | 50V (R=50kΩ) 1mA | 0%~10% | |
100V (R=100kΩ) 1mA | 0%~10% | ||
250V (R=250kΩ) 1mA | 0%~10% | ||
500V (R=500kΩ) 1mA | 0%~10% | ||
1000V (R=1MΩ) 1mA | 0%~10% | ||
Short circuit current | <2mA | ||
Low resistance (Ω) | 0.01Ω~20kΩ (about 5V/>200mA) | ±(1.5%+3) | |
DC voltage (V) | 0V~600V | ±(2%+3) | |
AC voltage (V) | 0V~600V | ±(2%+3) | |
Features | |||
Display count |
| 6000 | |
Auto range/True RMS |
| √ | |
Step voltage | 10% steps at 50%~120% of range | √ | |
DAR | 60s/15s and 60s/30s | √ | |
PI/Timing measurement |
| √ | |
Auto discharge |
| √ | |
Analog bar graph |
| √ | |
Continuity buzzer |
| √ | |
Comparison measurement |
| √ | |
Low battery indication |
| √ | |
General Characterisitics | |||
Power | 1.5V battery (LR6) x 6 | ||
Display | 78mm x 59mm | ||
Product color | Red and grey | ||
Product net weight | 630g | ||
Product size | 103mm x 225mm x 59mm | ||
Standard accessories | No Batteries, test leads, test probes, alligator clips | ||
Package includes:
- 1 x Insulation Resistance Tester
- 1 x Pair Test Lead
- 1 x Pair Probe
- 1 x Pair Alligator Clip
