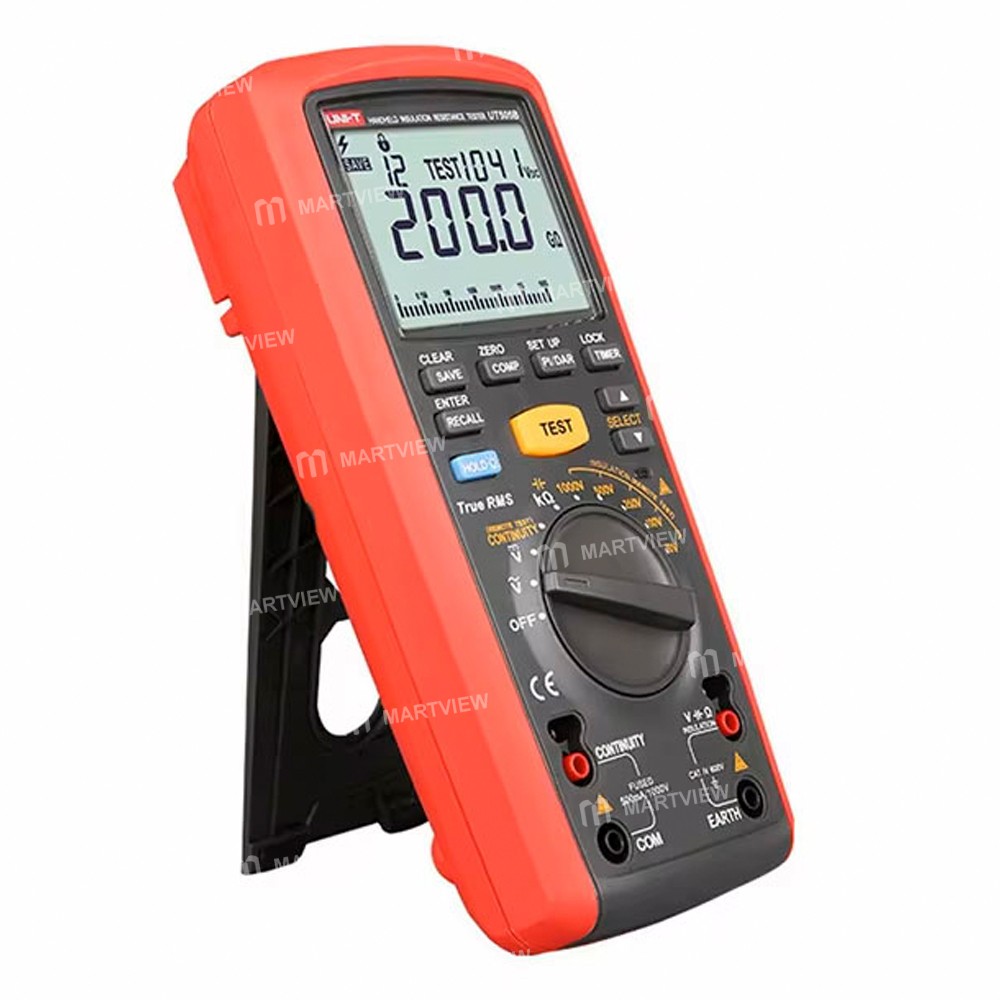

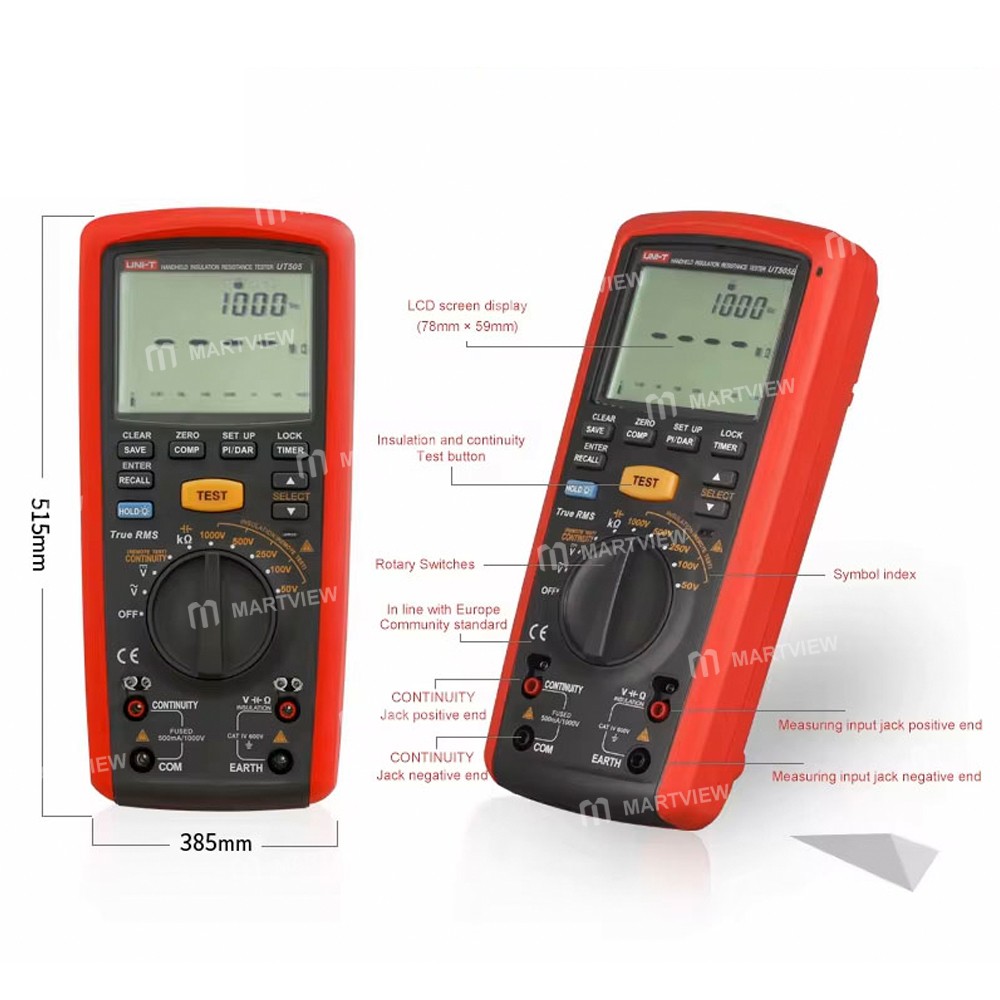

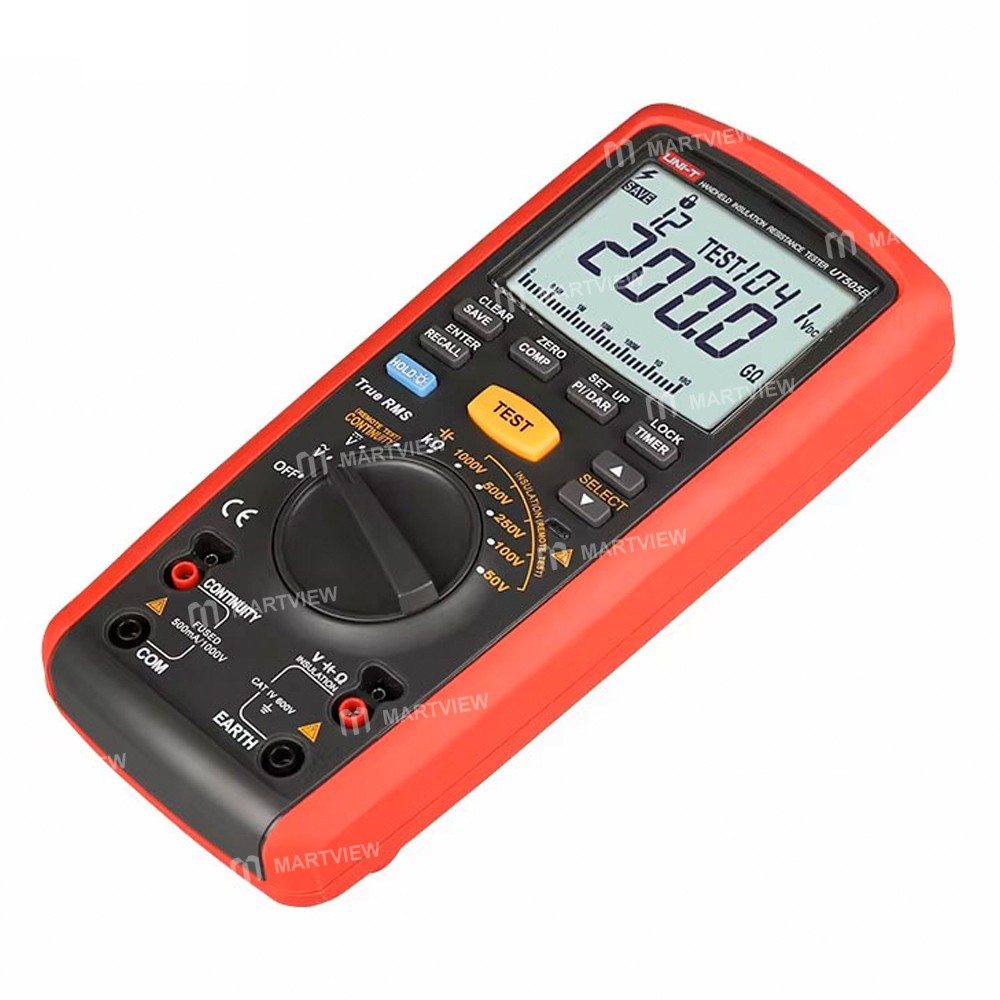

UNI-T UT505B 1000V 200GΩ Handheld True RMS Digital Insulation Resistance Tester

UNI-T UT505B 1000V 200GΩ Handheld True RMS Digital Insulation Resistance Tester

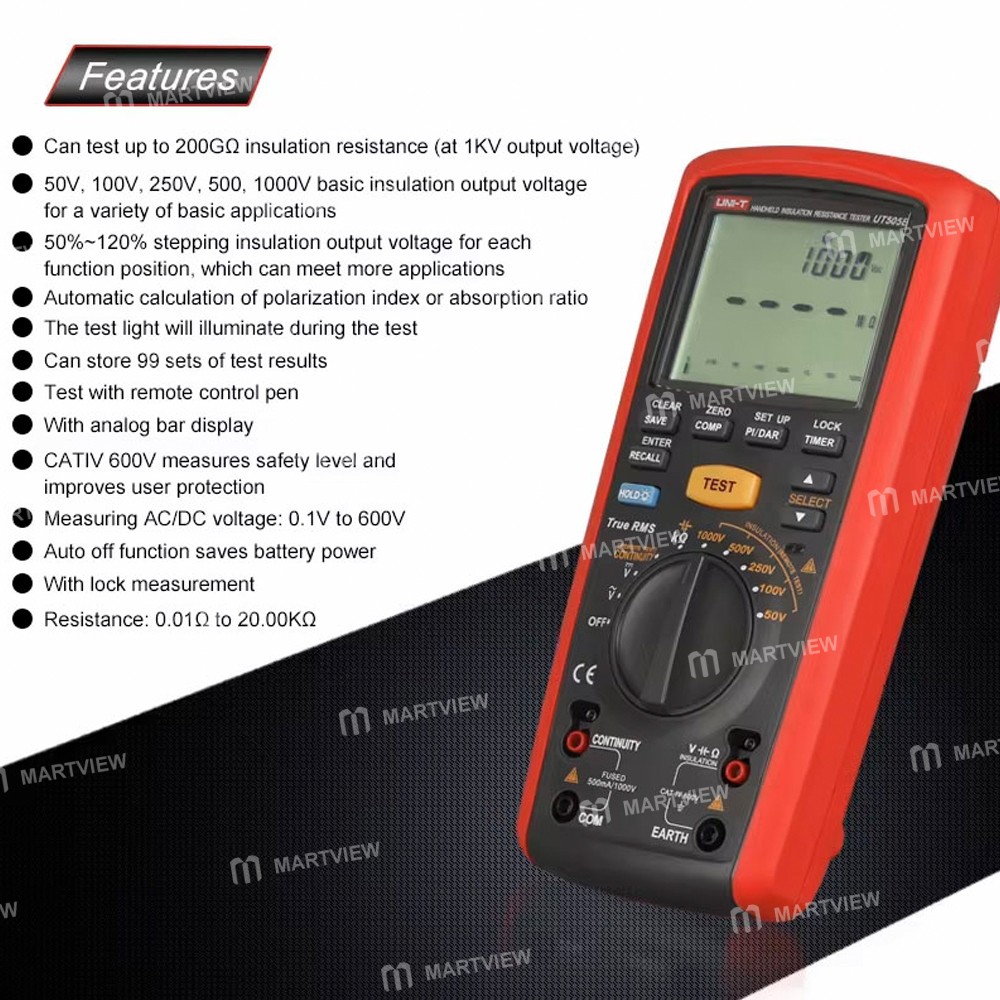

Features:

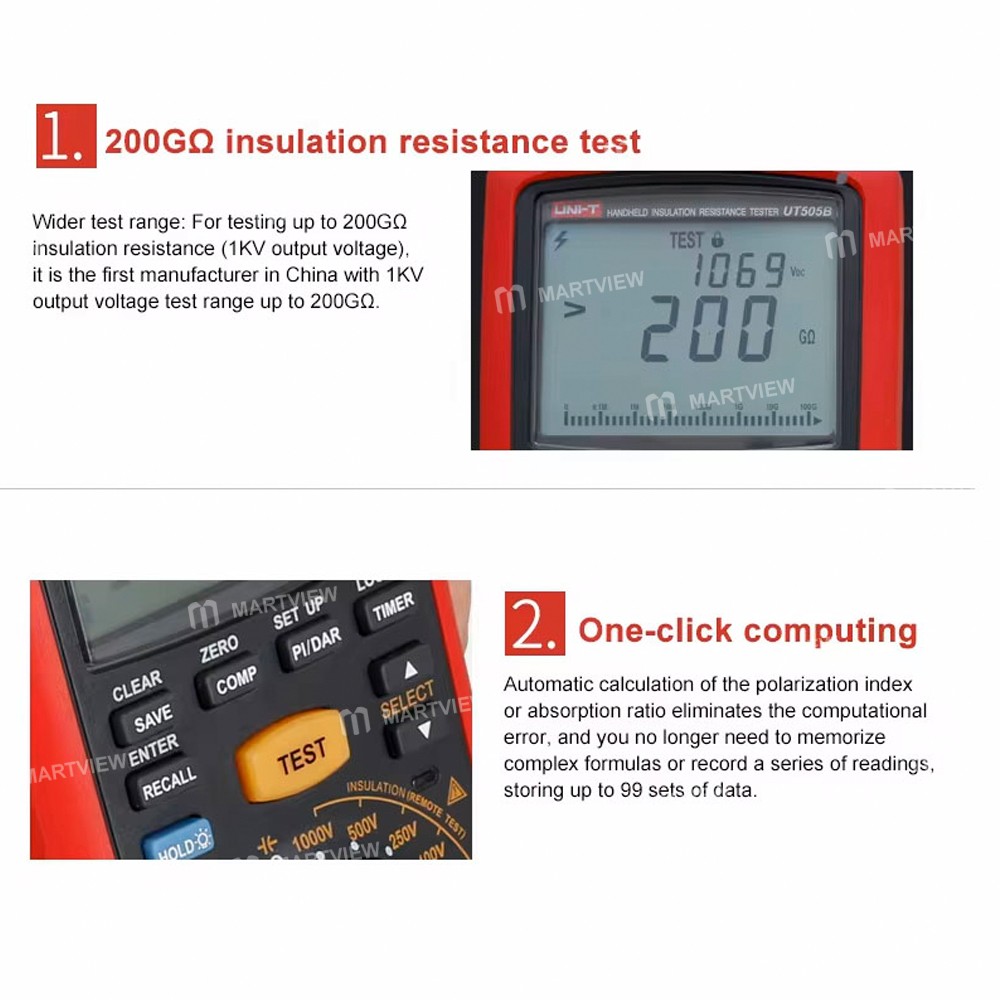

• Can conduct up to 200GQ insulation resistance test(at 1KV output voltage)

• 50V, 100V, 250V, 500V, 1000V basic insulation output voltage, which can meet various basic applications

• 50%~120% step-by-step insulation output voltage for each function gear, which can meet more applications

• Automatic calculation of polarization index or absorption ratio

• The test light will be on during the test

• Can store 99 sets of test results

• Test with a remote test pen

• With analog bar display function

• CAT IV 600V measurement safety level for increased user protection

• Measuring AC/DC voltage: 0.1V to 600V

• Auto-off function to save battery power

• With the lock measurement function

• Resistance: 0.01Ω to 20.00KΩ

Specification:

Package includes:

• 1 x Tester (without Battery)

• 1 x Test Leads
