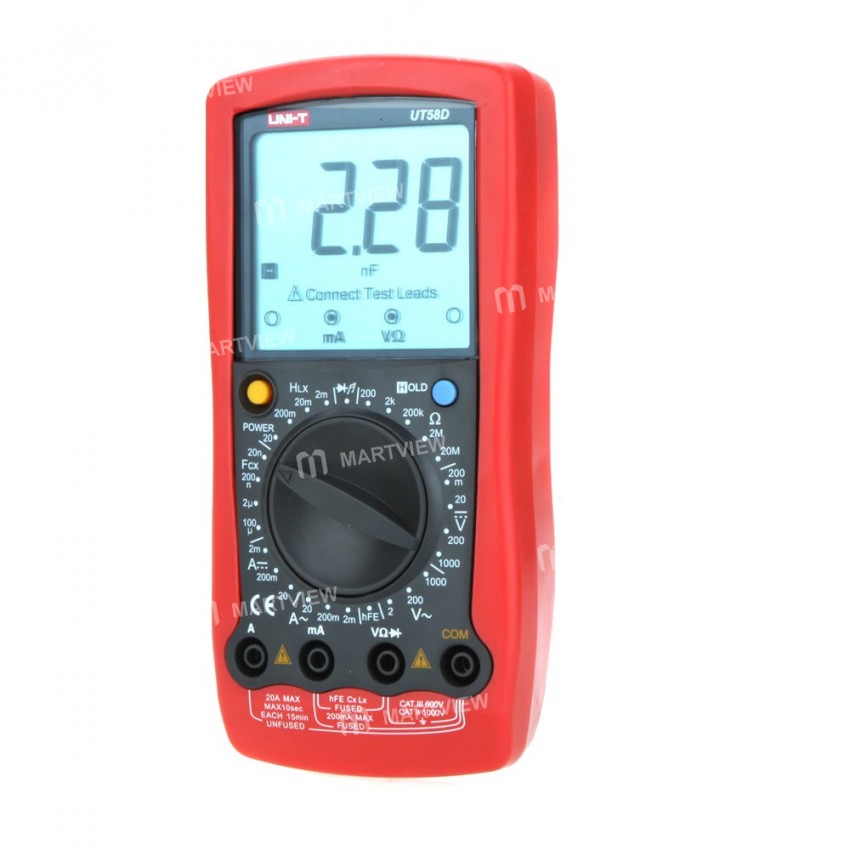

UNI-T UT58D AC / DC Digital LCR Multimeter With Large LCD and Wide Range Measurement

UNI-T UT58D AC / DC Digital LCR Multimeter With Large LCD and Wide Range Measurement

Features:

• Display Count: 2000

• Manual Range: √

• Diode: √

• Transistor: √

• Auto Power Off: √

• Continuity Buzzer: √

• Data Hold: √

• Low Battery Indication: √

• Full Icon Display: √

• Input Impedance for DCV: Around 10MΩ

• Test Lead Connection Indications: √

Specifications:

• DC Voltage (V): 200mV/20V/200V/1000V ±(0.5%+1)

• AC Voltage (V): 2V/200V/1000V ±(0.8%+3

• DC Current (A): 2mA/20mA/20A ±(0.8%+1)

• AC Current (A): 2mA/20mA/20A ±(1%+3)

• Resistance (Ω): 200Ω/2KΩ/200KΩ/2MΩ/20MΩ ±(0.8%+1)

• Capacitance (F): 20nF/200nF/2μF/100μF ±(2.5%+5)

• Inductance (H): 2mH/20mH/200mH/20H ±(2%+10)

• Power: 9V Battery ( not included)

• LCD Size: 6.7 * 6.5cm

• Product Size: 17.9 * 8.8 * 3.9cm / 7.4 * 3.5 * 1.6in

Package List:

• 1x UNI-T UT58D Digital Multimeter

• 2x Test Lead

• 1x Muli-Purpose Socket

• 1x English Manual
