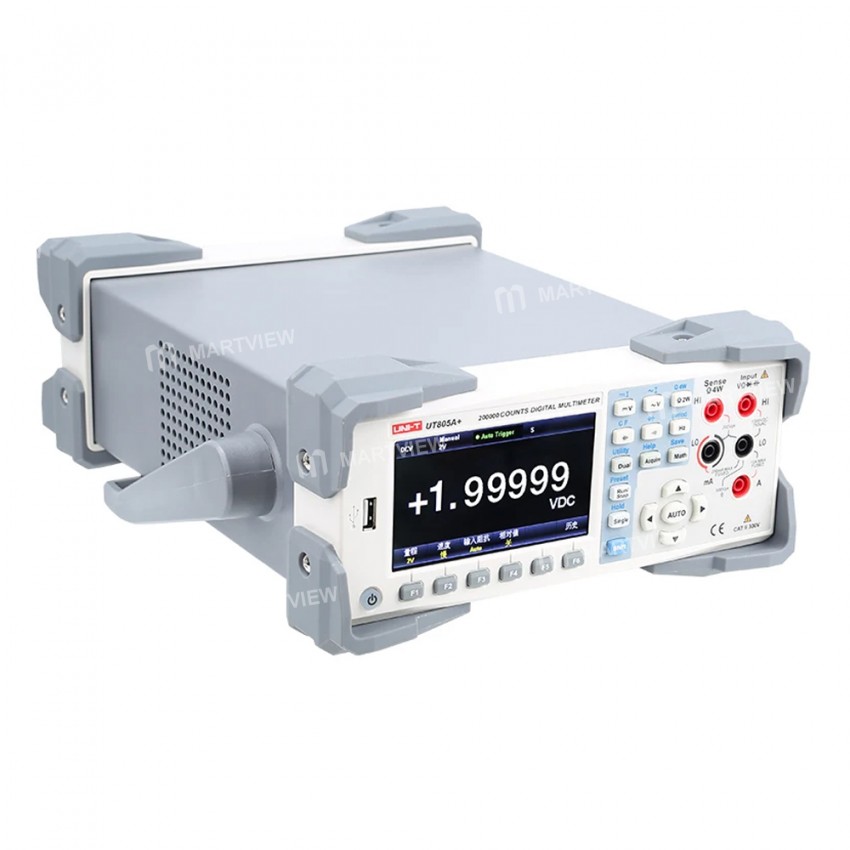

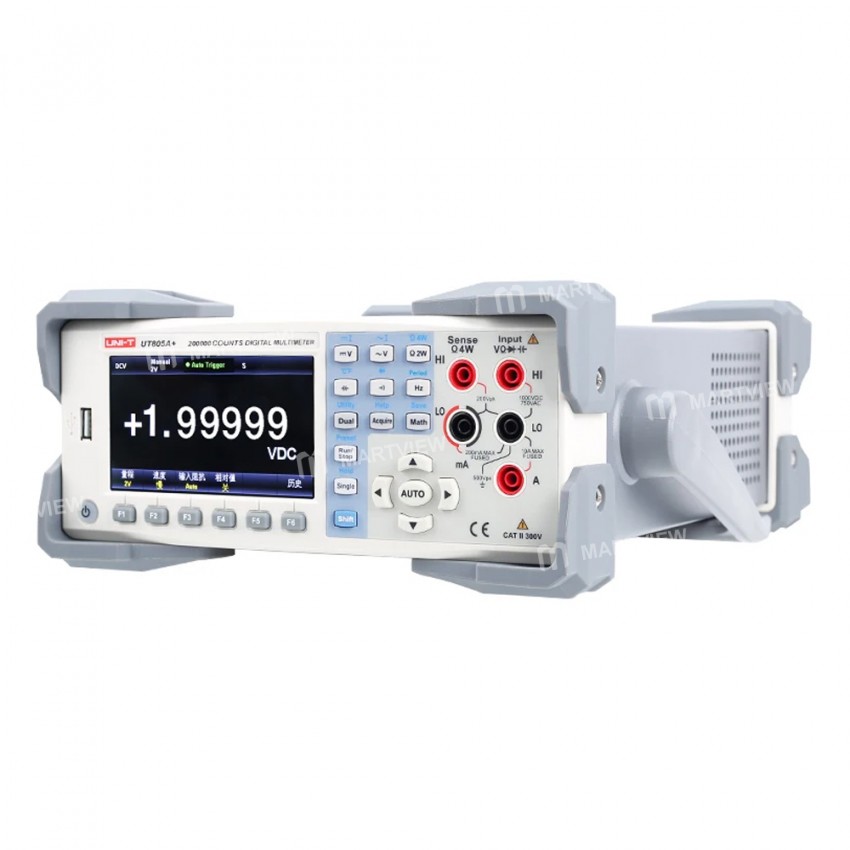

UNI-T UT805A+ Full-Range Anti-Burning True RMS Desktop Digital Multimeter with Temperature Testing

UNI-T UT805A+ Full-Range Anti-Burning True RMS Desktop Digital Multimeter with Temperature Testing

Features:

• 200000 display count

• Auto range, TRMS

• Up to 5k rdgs/s sampling rate

• Multiple mathematical operations

• Arbitrary sensor measurement

• Built-in thermocouple cold junction compensation

• 1Gb flash memory storage which can support up to 10k data recall

• Applications: Production QA, maintenance, research, and education

Specifications:

• Model: UT805A

• DC voltage: 20mV/2V/20V/200V/1000V ±(0.008%+0.003%)

• AC voltage: 200mV/2V/20V/200V/750V ±(0.19%+0.05%)

• DC current: 200μA/2mA/20mA/200mA/2A/10A ±(0.050%+0.005%)

• AC current: 2mA/20mA/200mA/2A/10A ±(0.30%+0.1%)

• Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/10MΩ/100MΩ ±(0.012%+0.003%)

• Capacitance： 2nF/20nF/200nF/2μF/20μF/200μF/2mF ±(1%+0.5%)

• Frequency: 20Hz~1MHz ±(0.01%+0.003%)

• Temperature: -270°C~1760°C (Thermocouple and thermal resistance sensor supported) ±0.5°C

• Display count: 200000

• Auto range: Yes

• True RMS: Yes

• Sampling speed: 5k rdgs/s

• Data storage: 10k data record; 1GB Nand Flash total storage

• Frequency response: 100kHz

• Diode/triode: Yes

• Continuity buzzer: Yes

• Data hold: Yes

• Mathematical operations: Pass/Fail, relative value, minimum/maximum/average, standard deviation, dBm, dB, Hold, histogram, trend chart and bar chart

• Voltage current: AC+DC

• Input resistance: ≥10GB or 10MΩ

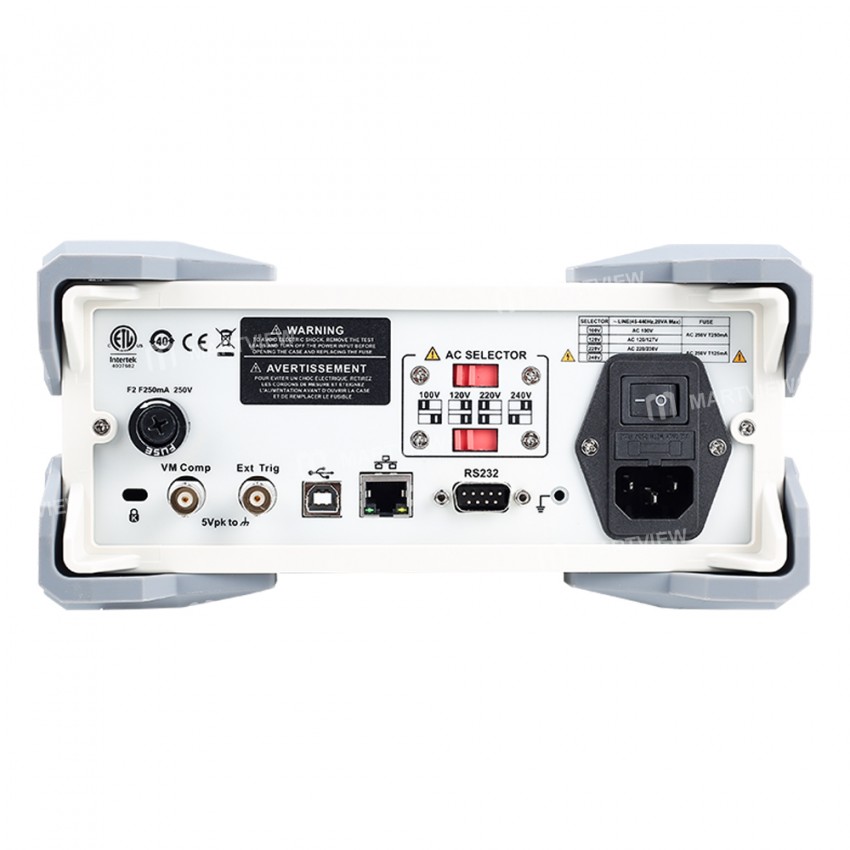

• Interface: USB Host, USB Device, LAN, RS-232

• Power: AC 100V/200V

• Display: 4.3 inches TFT LCD

• Product color: White and Grey

• Product net weight: 4.4kg

• Product size: 239*100*344mm

Package includes:

• 1 x Multimeter

• 1 x Power Cord

• 1 x USB Cable

• 1 x Test Leads

• 1 x Temperature Probe
