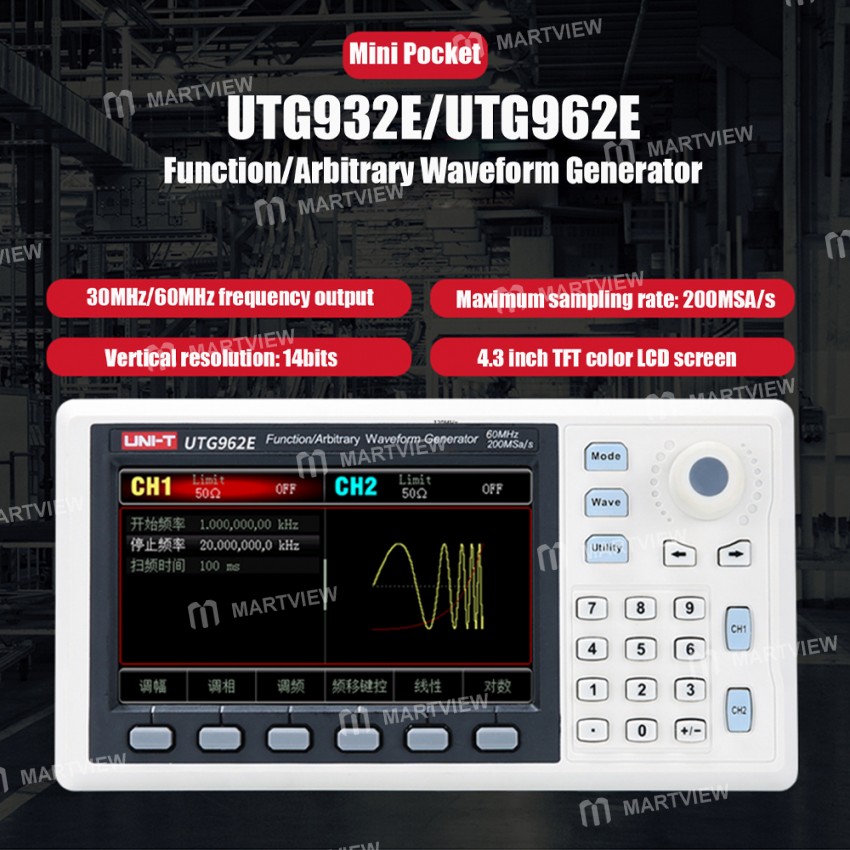

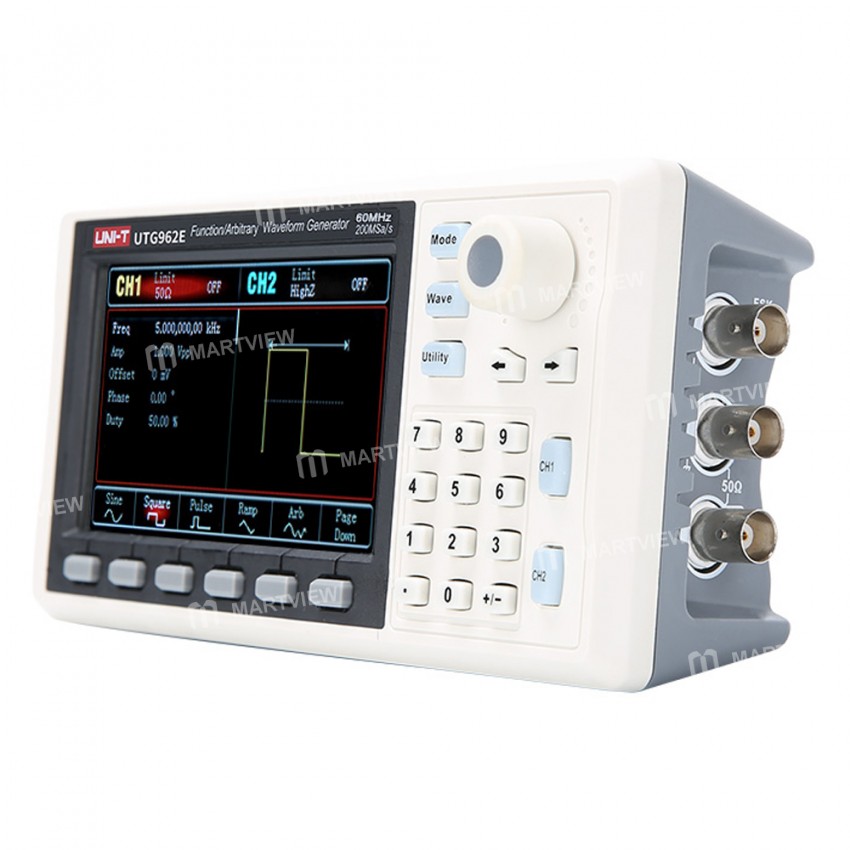

UNI-T UTG932E / UTG962E Dual Channel Signal Generator 30Mhz / 60Mhz 200M Sampling Rate

UNI-T UTG932E/UTG962E Dual Channel Signal Generator 30Mhz / 60Mhz 200M Sampling Rate

Features:

• The UTG900E Series is a handheld mini economical, high-performance, arbitrary function waveform generator

• It provides a unique and cost-effective solution for electronics enthusiasts with a minimum resolution of up to 1uHz, mini size, and lightweight to our most affordable line of generators

• Flexibly meet your testing needs in various scenarios, and fully improve your work and learning efficiency

• 30MHz/60MHz frequency output, full band 1 uHz resolution

• Low jitter square wave output

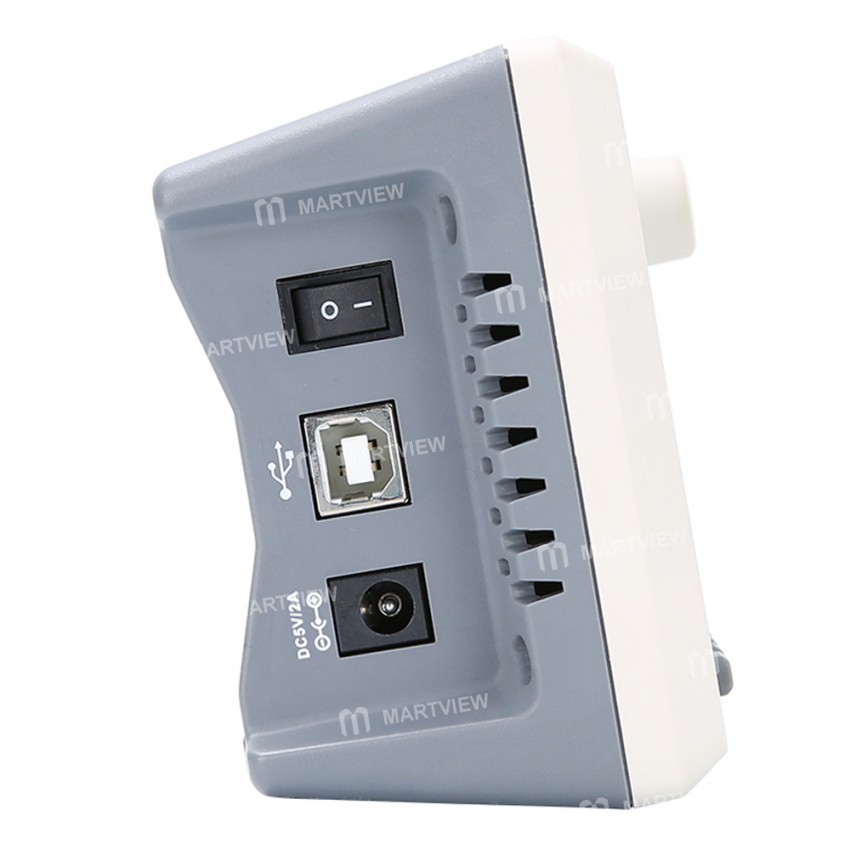

• Portable shape, supporting AC and DC power supply

• 200MS/s sampling rate,14bits vertical resolution

• 7-bit high-precision frequency meter compatible with TTL level signal

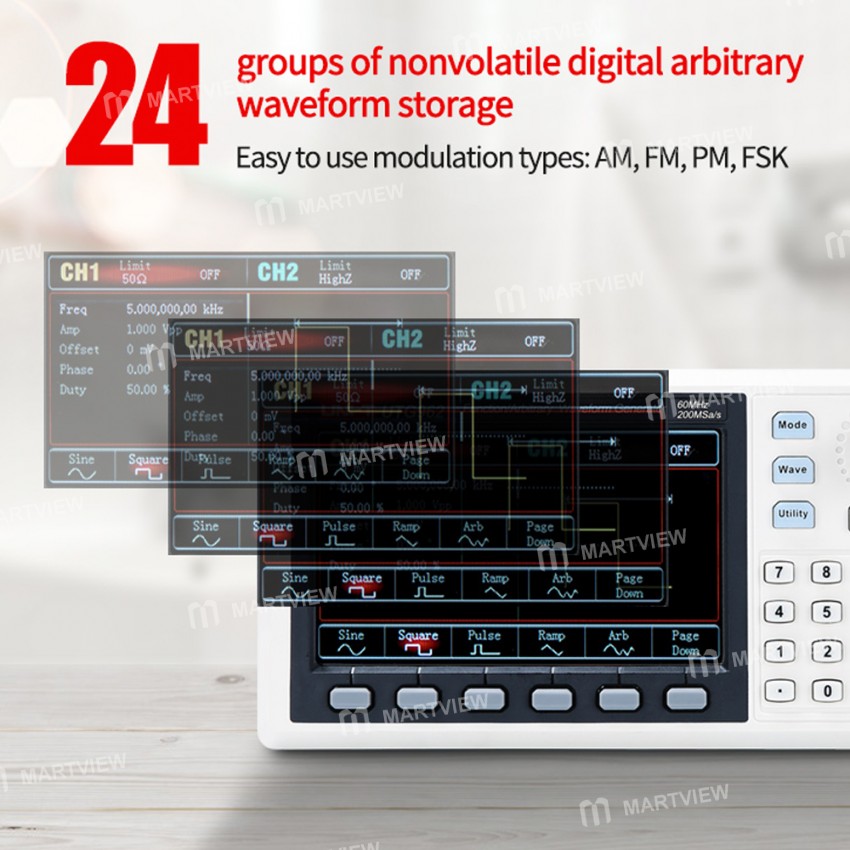

• 24 groups of non-volatile digital arbitrary waveform storage

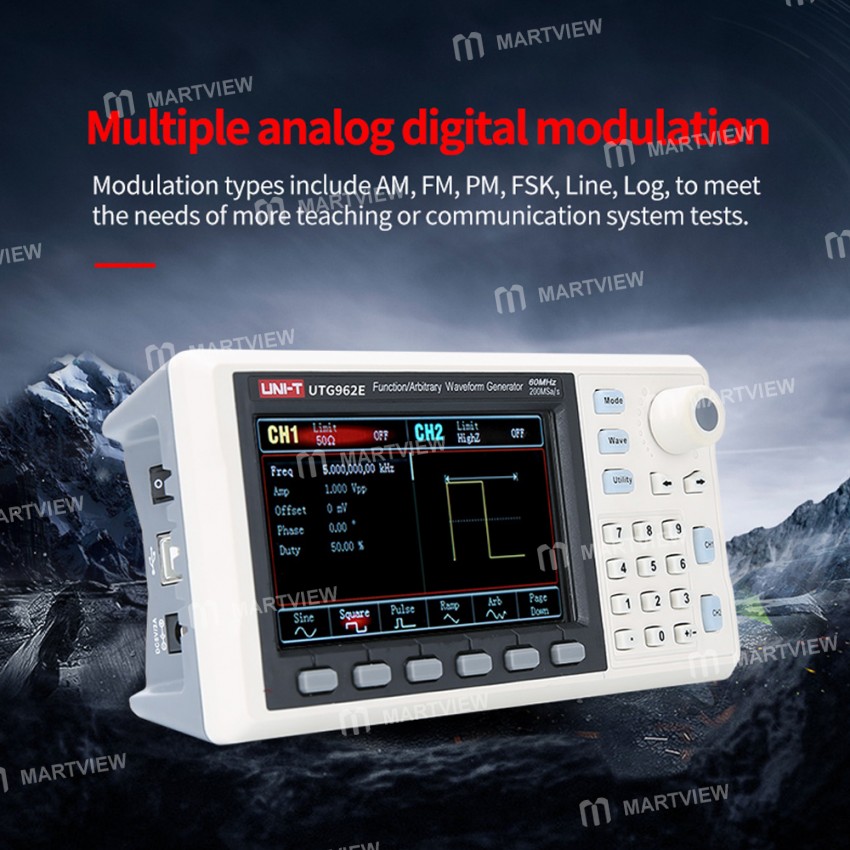

• Support frequency scanning output: AM, FM, PM, FSK

• 4.3-inch high-resolution TFT color LGD display

• Standard configuration interface: USB Device

Specification:

• Model: UTG932E/UTG962E

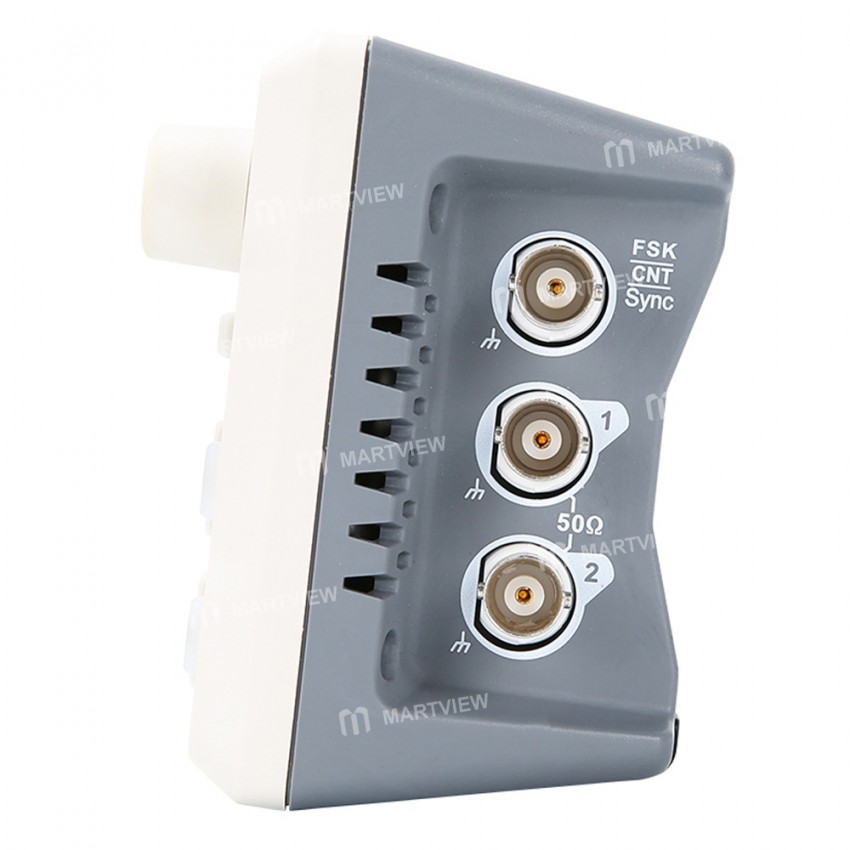

• Channel: 2

• Max frequency: 30MHz/60MHz

• Sampling rate: 200MS/s

• Vertical resolution: 14 bits

• Modulation type: AM、FM、PM、FSK、Line、Log

• Impedance: 50Ω typical

• Insulation: Maximum 42Vpk to ground

• Protection: Channel protection

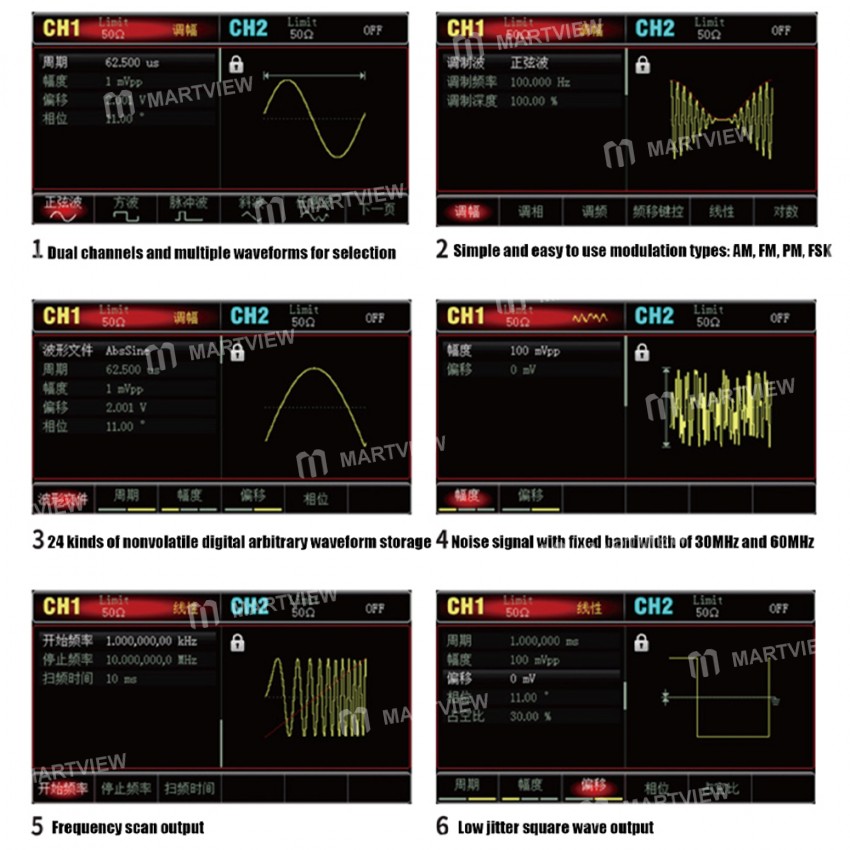

• Waveforms: Sine, square, pulse, ramp, noise, DC, arbitrary

• Sweep modes: Logarithmic, linear

• Frequency Characteristics: Sine: 1μHz~30MHz/1μHz~60MHz

• Square: 1μHz~15MHz/1μHz~20MHz

• Ramp: 1μHz~400kHz/1μHz~400kHz

• Pulse: 1μHz~15MHz/1μHz~20MHz

• Arbitrary: 1μHz~10MHz/1μHz~10MHz

• Resolution: 1μHz

• Accuracy: Within 90 days ± 50ppm Within; 1 year ± 100ppm; 18℃~28℃

• Impedance: 50Ω/High Z

• Amplitude range: 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z)

• DC offset range (AC+DC): ±5V (50Ω); ±10V  (high Z)

• Amplitude resolution: 1mV

• Power: 100~240VAC, 50Hz/60Hz

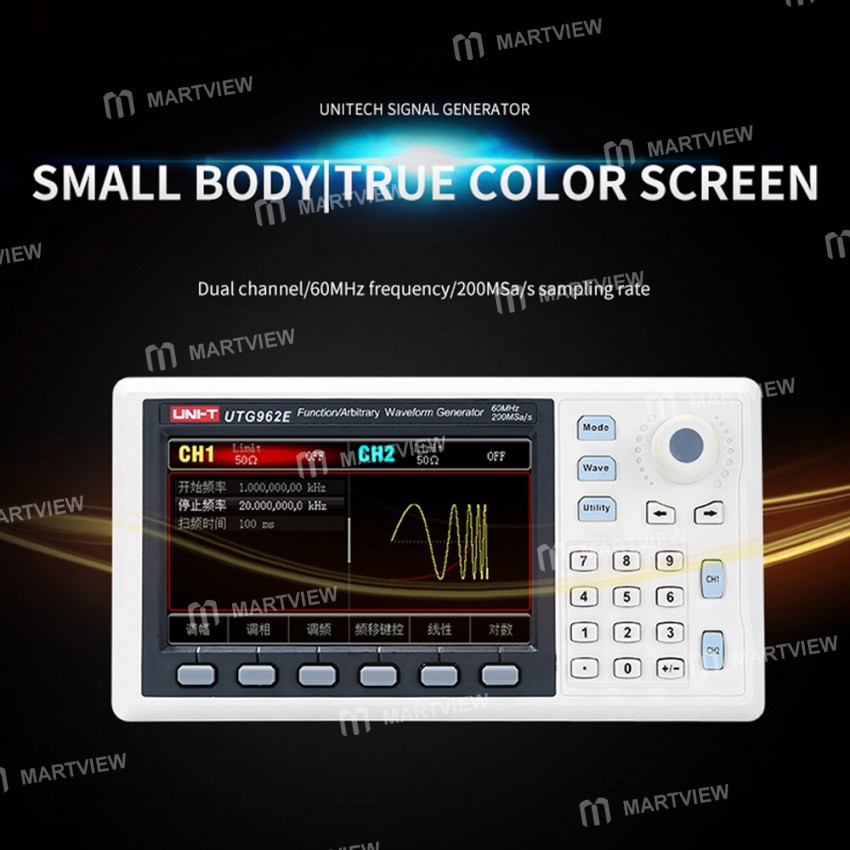

• Display: 4.3” TFT LCD (480×272)

• Product color: White and grey

• Product net weight: 0.33kg

• Product size: 172 * 90 * 68mm

• Standard accessories: USB interface cable, power cord, BNC cable with alligator clips

Package includes:

• 1 x Oscilloscope

• 1 x Power Adapter

• 1 x BNC Cable

• 1 x BNC to Alligator Clip Cable
