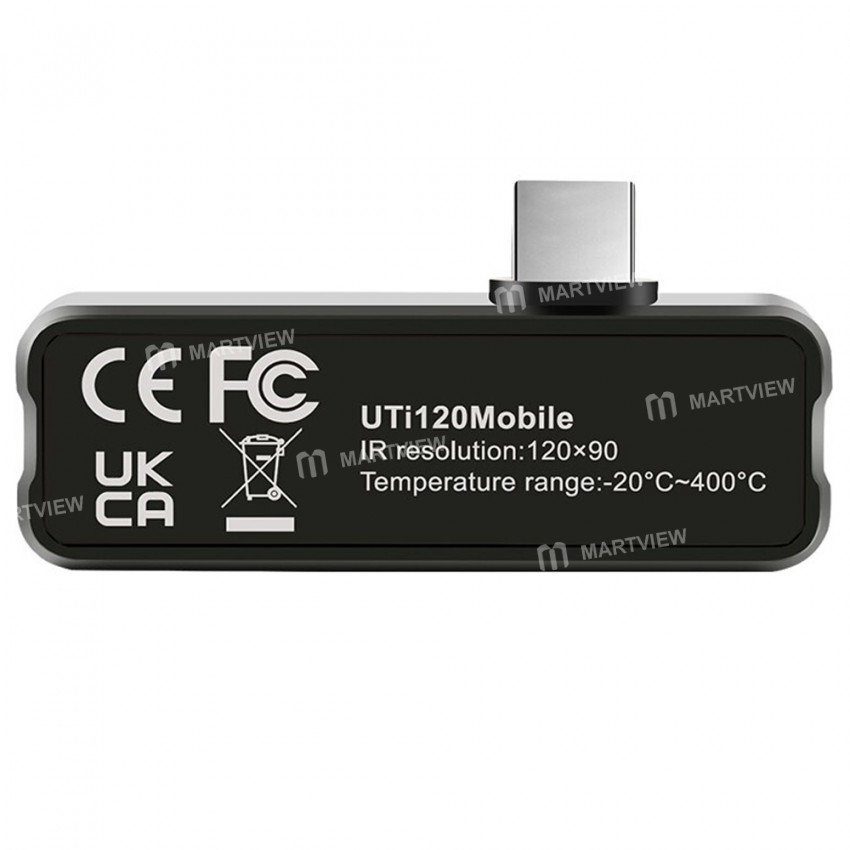

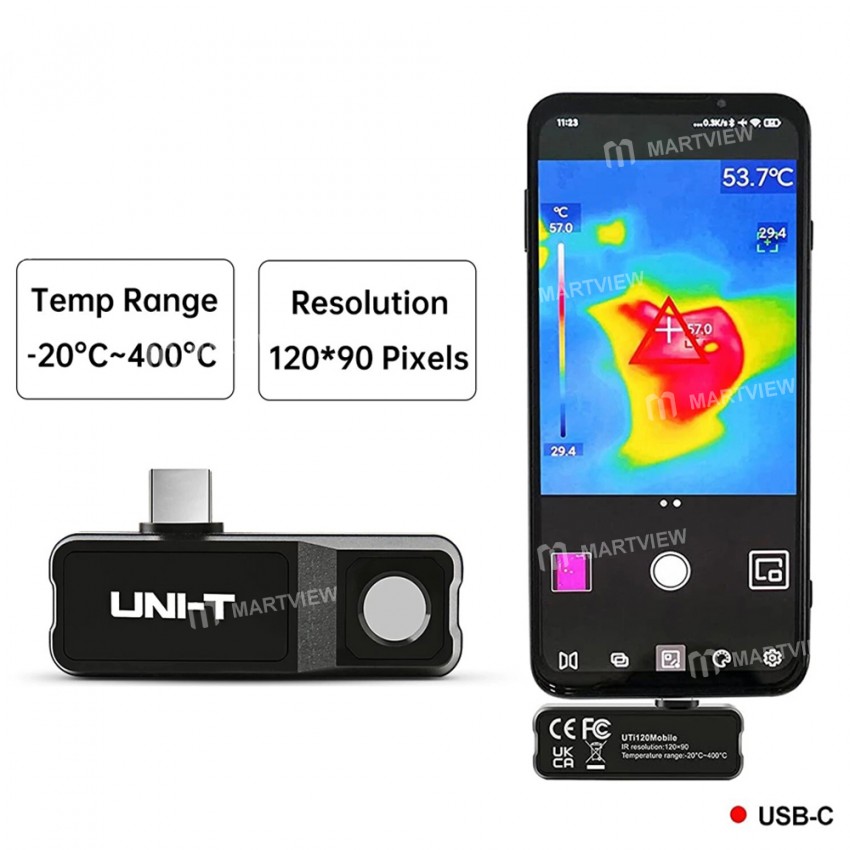

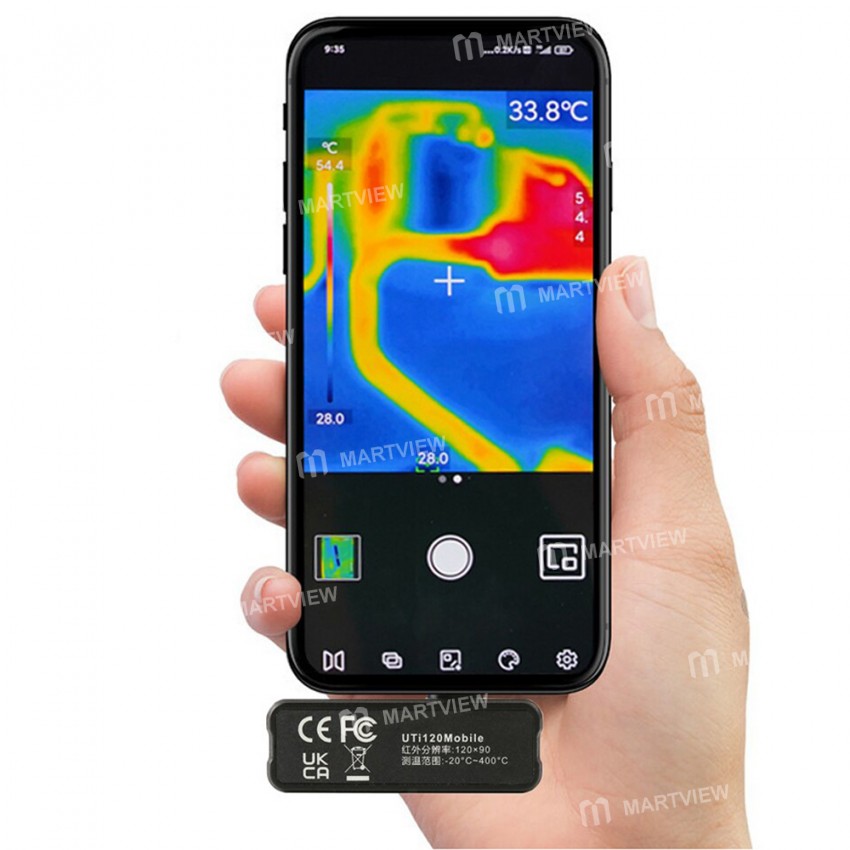

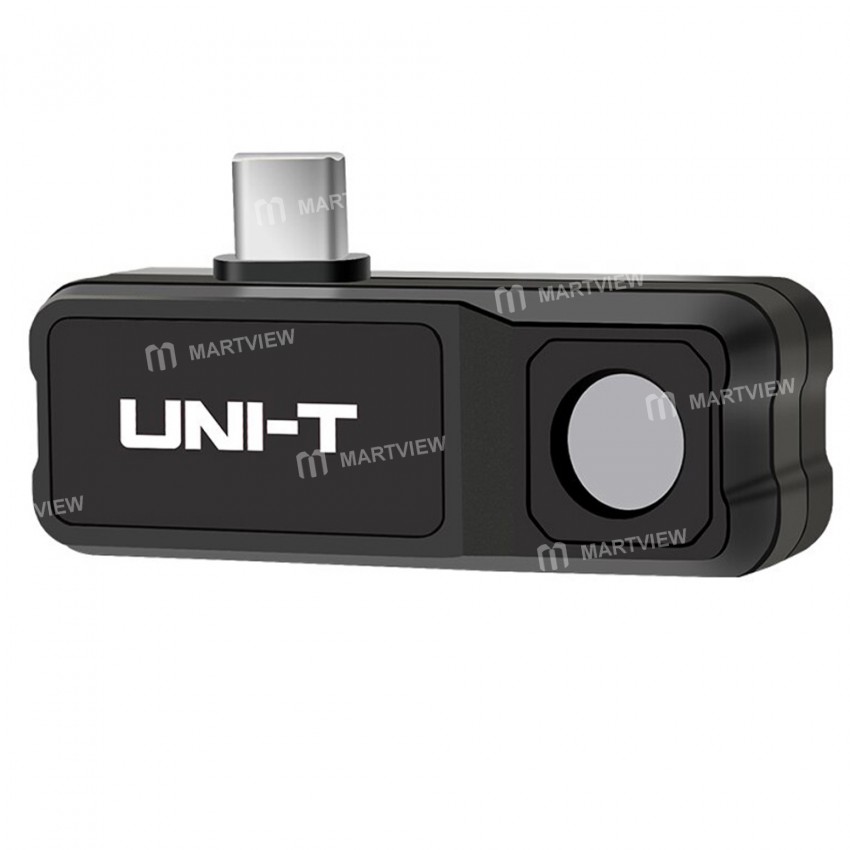

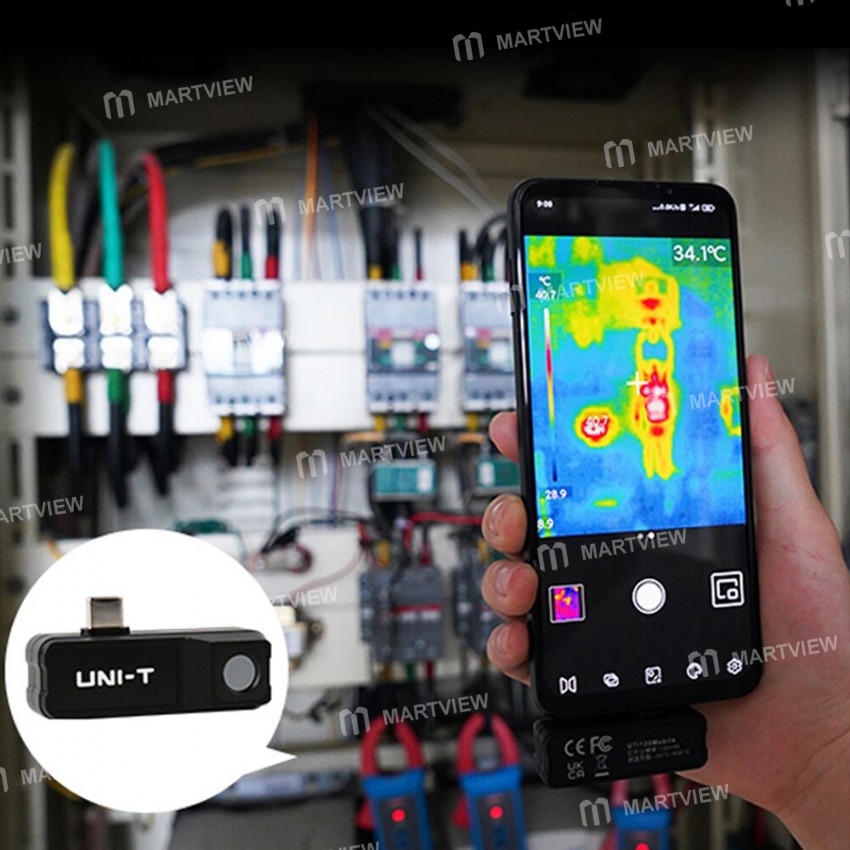

UNI-T UTi120 Mobile Phone TThermal Camera for Android Type-C

UNI-T UTi120 Mobile Phone TThermal Camera for Android Type-C

Features:

• Image capture

• Video recording

• Visible and thermal image fusion

• App analysis on a smartphone

• 2M drop proof

• Extension cable supports multiple scenarios

Specifications:

• Certifications:CE, FCC, RoHS

• IR resolution:120×90 pixels

• Field of view (FOV):50°×38°

• Thermal sensitivity (NETD):＜60mk

• Temperature range:-20~400℃

• Emissivity:0.1-0.99(adjustable)

• Frame rate:25Hz

• Measurement accuracy:±2℃ or ±2% whichever is greater

• Display modes: Thermal, blending(blend with an image of a mobile phone ), PIP Image capturing modes Take photos or videos

• Plate: Iron Red, Rainbow, Grayscale, Red hot, Black White, Lava, High-Contrast Rainbow

• Image format: JPG

• Data communication: Type-C USB

• Drop proof:2M

• Product color: Black and grey

• Product net weight:25g

• Product size:53*18.2*18.5mm

Package Includes:

• 1 x Thermal Imager

• 1 x Type-C male to the female extension cable

• 1 x USB adapter
