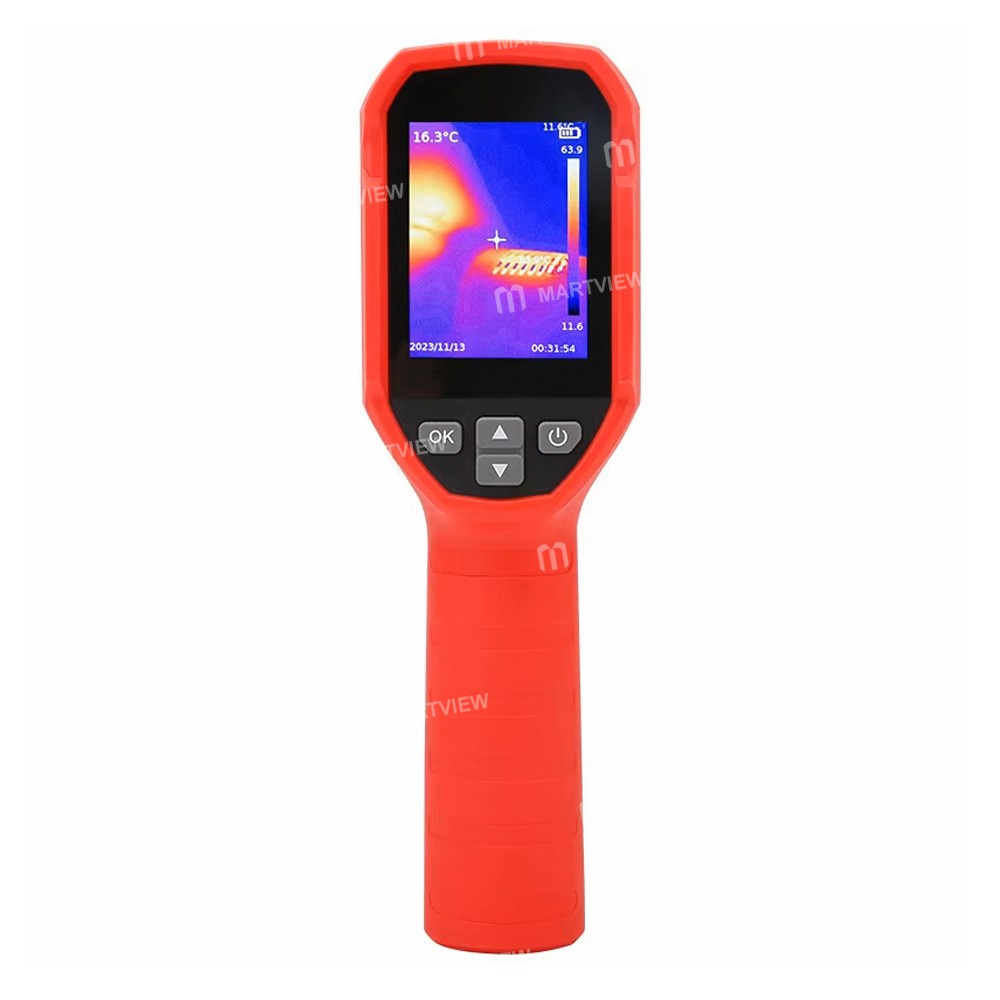

UNI-T UTi160S Handheld High Accuracy Thermal Imaging Camera with Laser Indication

UNI-T UTi160S Handheld High Accuracy Thermal Imaging Camera with Laser Indication
This product does not support external Macro Lens!!!

Features:

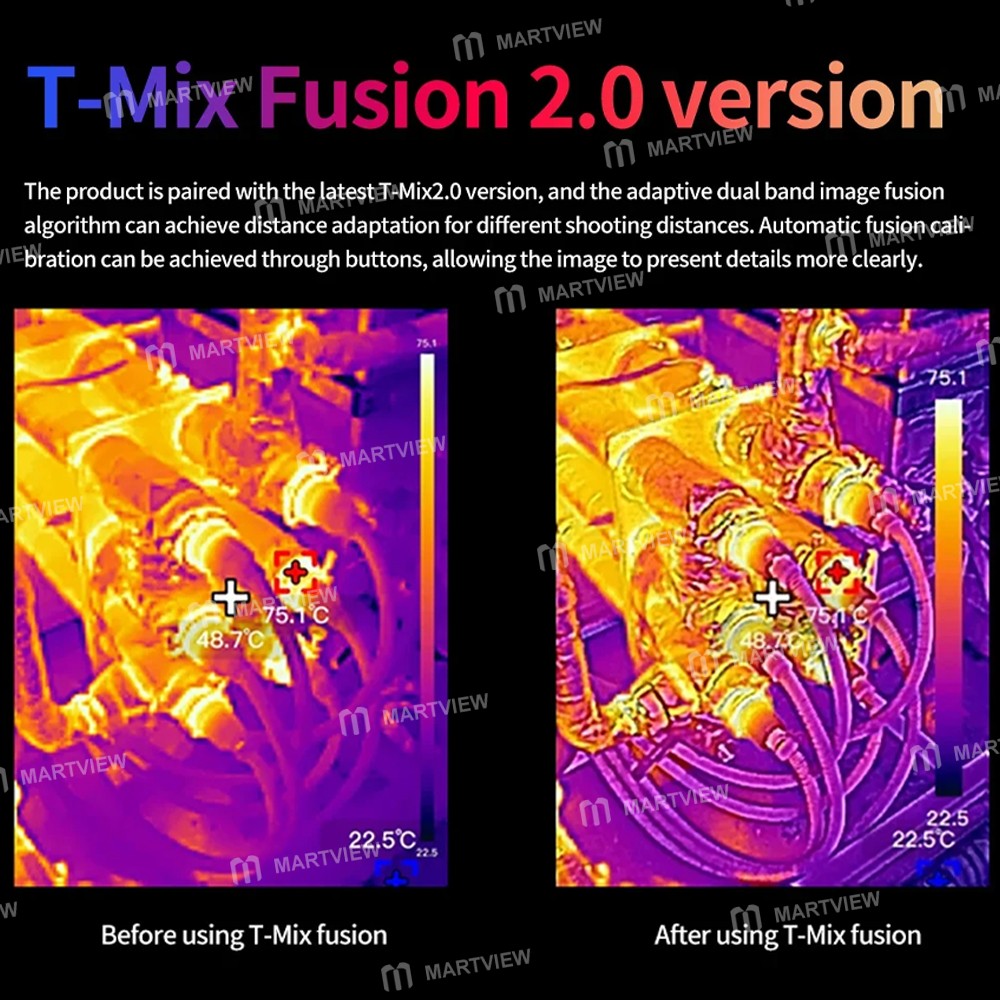

• With the latest T-Mix 2.0 version, the adaptive dual-band image fusion algorithm can be distance-adaptive for different shooting distances, and automatic fusion calibration can be achieved at the touch of a button to make the image more clearly present the details seen

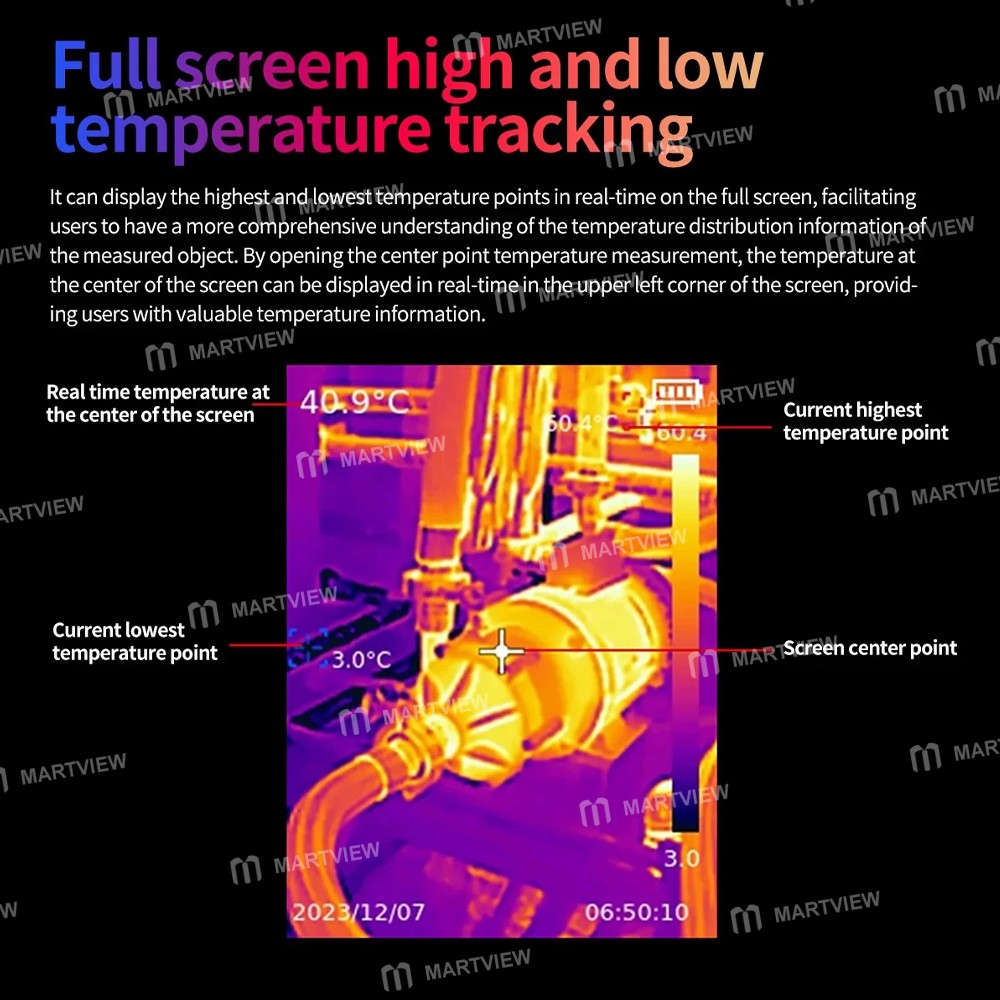

• It can display the highest and lowest temperature points in real-time on the full screen, facilitating users to have a more comprehensive understanding of the temperature distribution information of the measured object

• By opening the center point temperature measurement, the temperature at the center of the screen can be displayed in real-time in the upper left corner of the screen, providing users with valuable temperature information

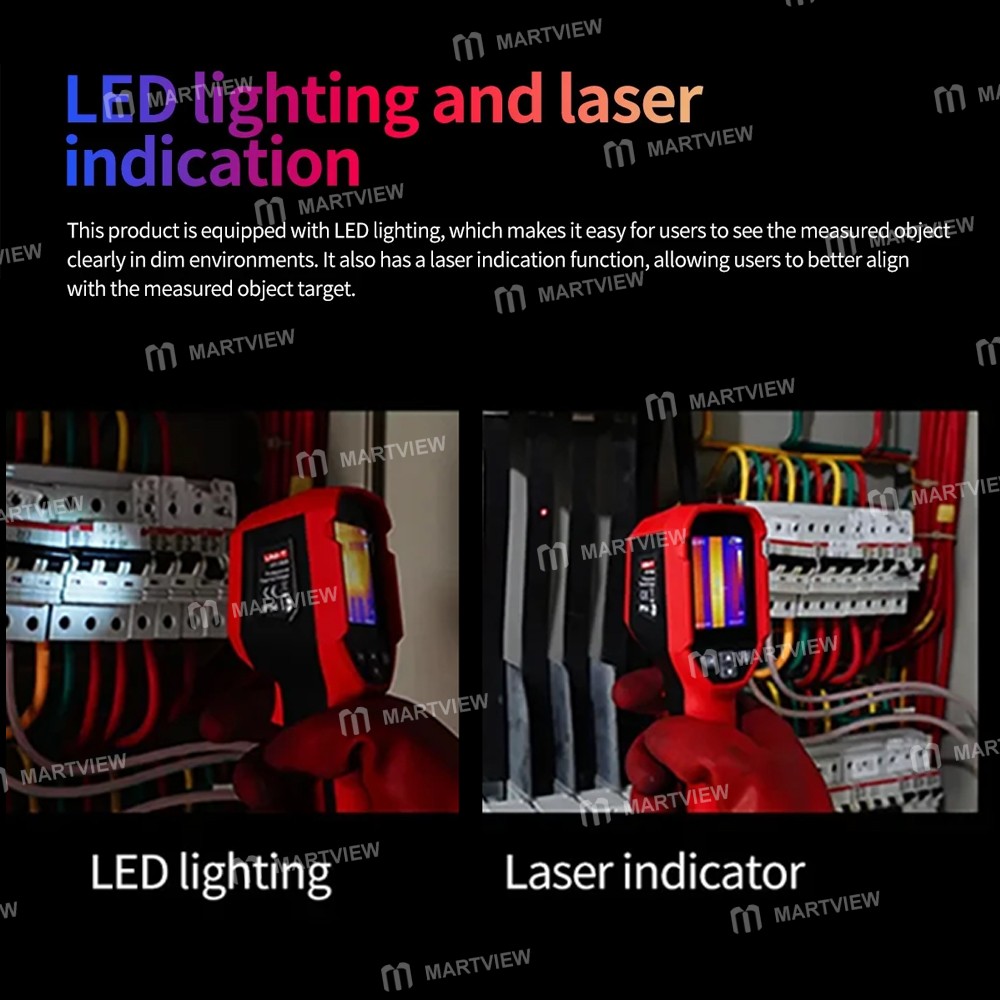

• This product is equipped with LED lighting, which makes it easy for users to see the measured object clearly in dim environments. It also has a laser indication function, allowing users to better align with the measured object target

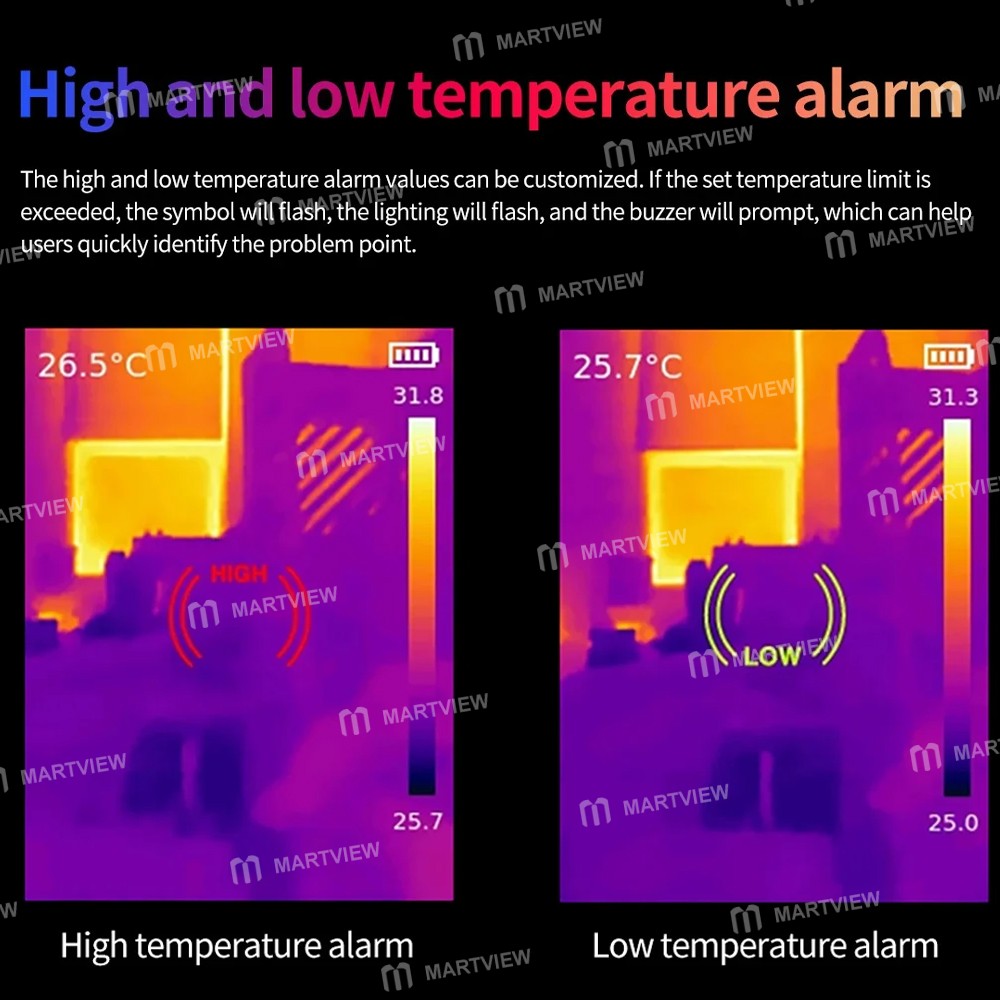

• The high and low temperature alarm values can be customized. If the set temperature limit is exceeded, the symbol will flash, the lighting will flash, and the buzzer will prompt, which can help users quickly identify the problem point

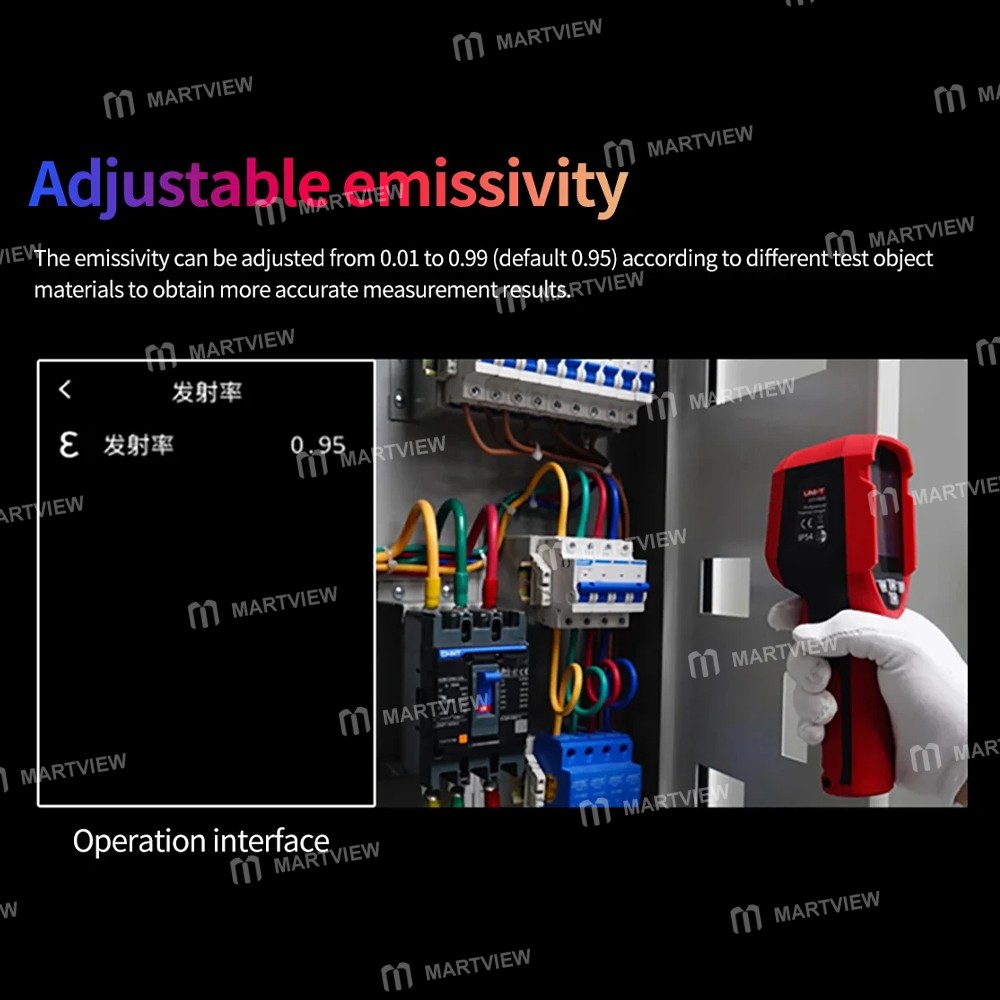

• Adjustable emissivity: The emissivity can be adjusted from 0.01 to 0.99 (default 0.95) according to different test object materials to obtain more accurate measurement results

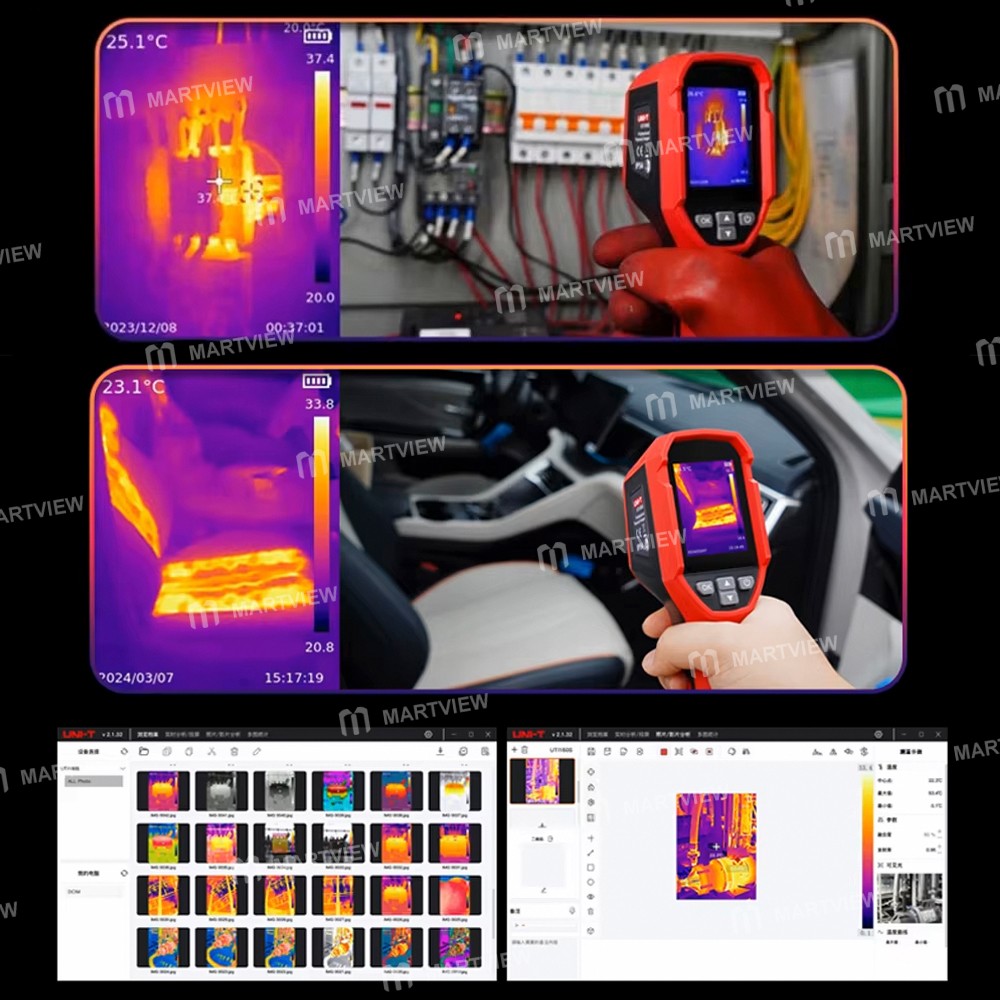

• UTi160S is equipped with professional infrared analysis software, which can be connected to browse stored infrared images, perform super-resolution analysis on images, and export PDF report files after analysis is completed

Specification:

• Model: UTi160S

• Detector type: Uncooled infrared detector

• Infrared resolution: 160x120

• Infrared response band: 8~14μm

• Pixel spacing: 12μm

• Frame rate: ≤25Hz

• Thermal sensitivity/NETD: <50mK@25°C

• Temperature measurement response time: ≤500ms

• Gain mode: Automatic gain

• Focus Mode: Fixed focus

• Thermal imaging lens focal length: 2.6mm

• Aperture: F1.3

• Field of view angle: 40Hx30V

• Spatial resolution/FOV: 4.62mrad

• Measuring range: -20°C~550°C

• Temperature measurement accuracy: ±2°C/±2% (Take the maximum value at room temperature of 25°C)

• Temperature measurement resolution: 0.1°C

• Suggested temperature measurement distance: 0.25m

• Temperature measurement unit: ℃/℉

• Temperature measurement display: Center point temperature measurement, high and low temperature tracking

• High and low temperature tracking: Yes

• High and low temperature alarm: Can manually set alarm width, screen high and low temperature alarm screen+LED flashing+buzzer alarm

• Battery type: 18650 3.7V 2600mAh 9.62Wh Rechargeable lithium battery

• Battery working time: ≥6 hours (At room temperature of 24C-28C, default working state)

• Charging system: Type-C direct charging

• Temperature measurement parameters: Emissivity 0.95 (recognized) (0.1~0.99)

• Display screen: 2.4-inch TFT TN

• Display resolution: 320*240px

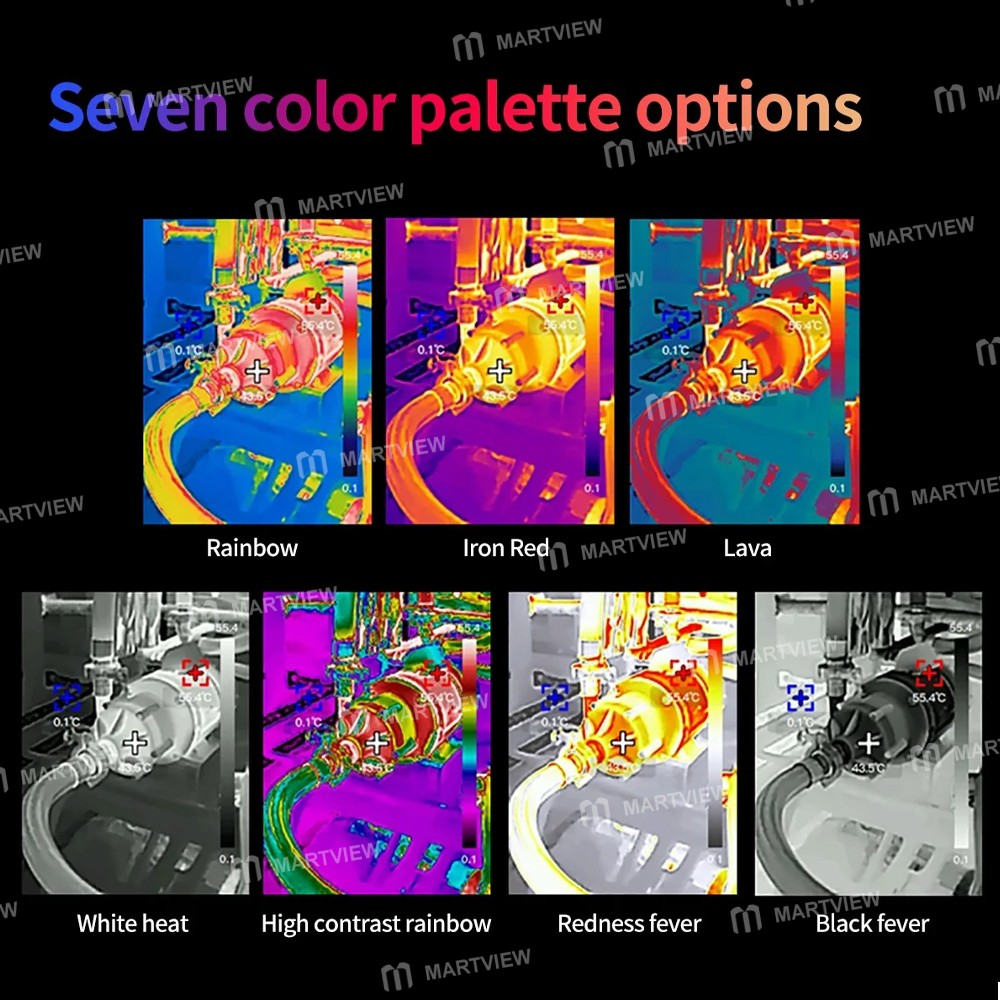

• Color palette: Iron Red, Rainbow, White Heat, Black Heat, Red Heat, Lava, High Contrast Rainbow

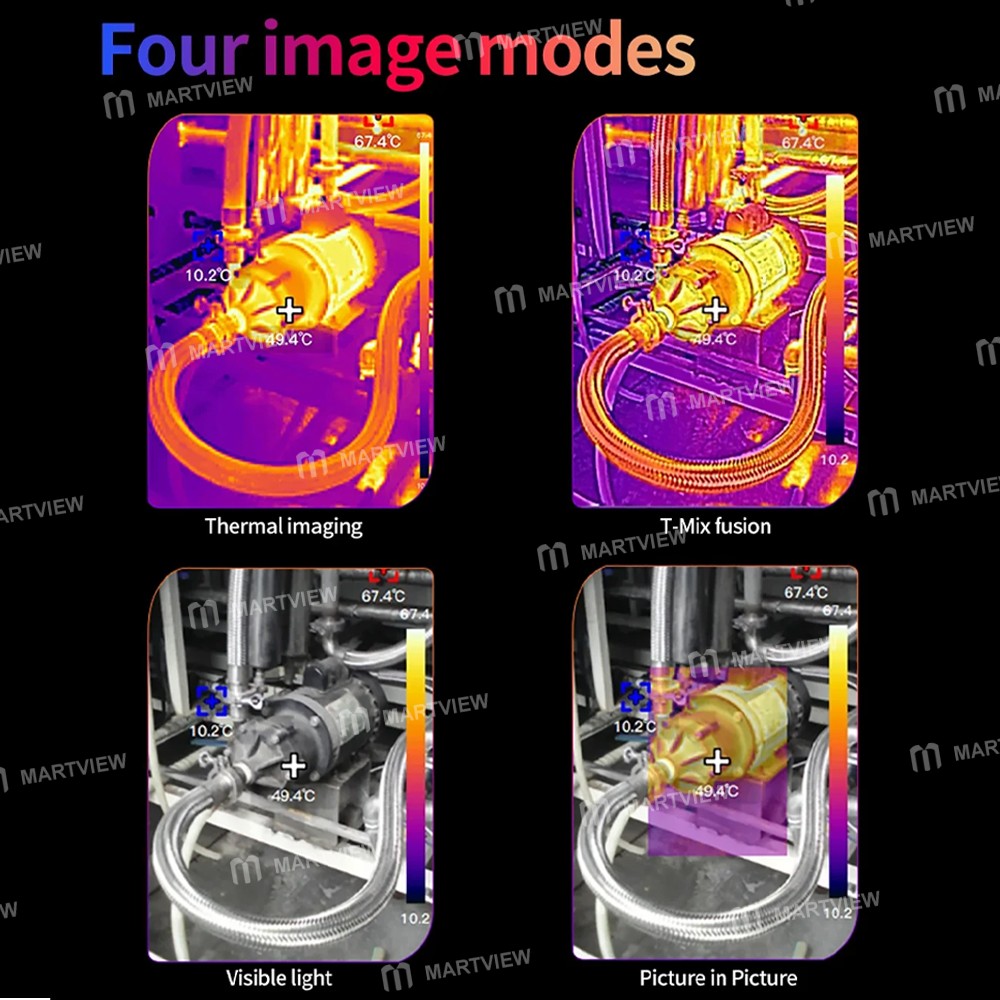

• Image mode: Thermal imaging, T-Mix fusion, picture in picture, visible light

• Fusion ratio: Yes

• Image mode: JPG

• Storage: EMMC built-in storage (can use 28GB)

• Data interface: Type-C USB

• Photograph: Yes

• Lighting/laser indication: Yes

• Automatic shutdown: OFF, 5min, 10min, 30min

• Charging time: ≤2.5 Hours

• PC analysis software: Yes

• Protection level/fall protection: IP54/2M

• Size: 197*72*60mm

• Weight: 0.33kg

Package includes:

• 1 x Thermal Imaging Camera

• 1 x Charging Cable
