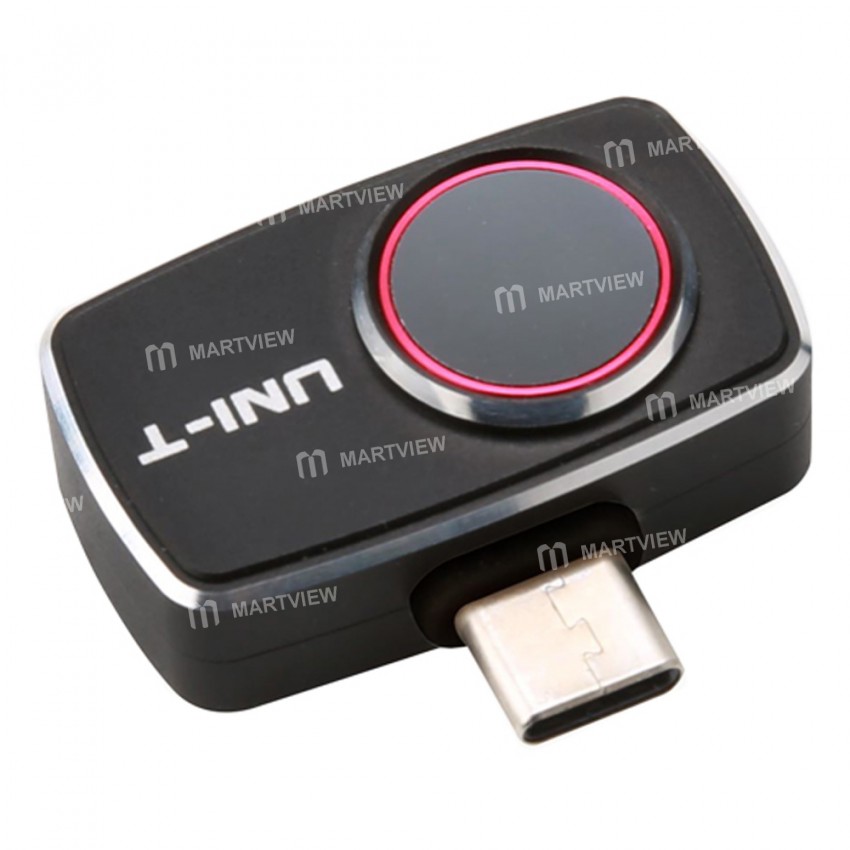

UNI-T UTi260M Type-C PCB Circuit Failure Test Thermographic Thermal Imager for Mobile Phones

UNI-T UTi260M Type-C PCB Circuit Failure Test Thermographic Thermal Imager for Mobile Phones

If you need a Micro Lens specially to this product, please Click Here

Features:

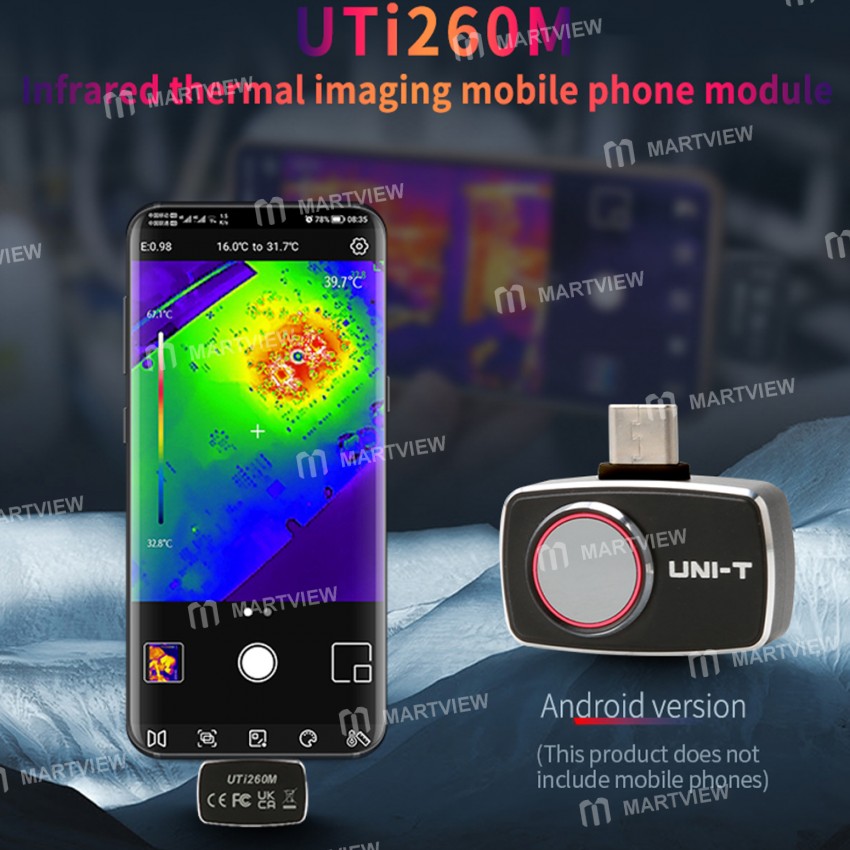

• UTi260M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate by connecting with mobile phones

• Its 256×192 IR resolution provides a clear image with a fast response

• UTi260M is with wide temperature measurement range of -20℃ ~ 550℃

• It includes two measurement modes for elevated skin temperature inspection and industry applications

• Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module

• It is a perfect tool for DIY homeowners, outdoor lovers, engineers, contractors, builders, etc.

• IR resolution: 256×192（49152）

• Temperature measurement range: -20℃to 550℃  / -4℉ to 1022 ℉

• Measurement modes: Industry, EST(Elevated Skin Temperature)

• Temperature scale: Low gain: -20℃~150℃, High gain: 0℃~550℃

• Auto alarm for high/low temperature

• Auto tracking for hot spot/cold spot

• On-screen analyzer: Point 6/ Line 6/Rectangle 6/Circle 6

• Image capture

• Video recording

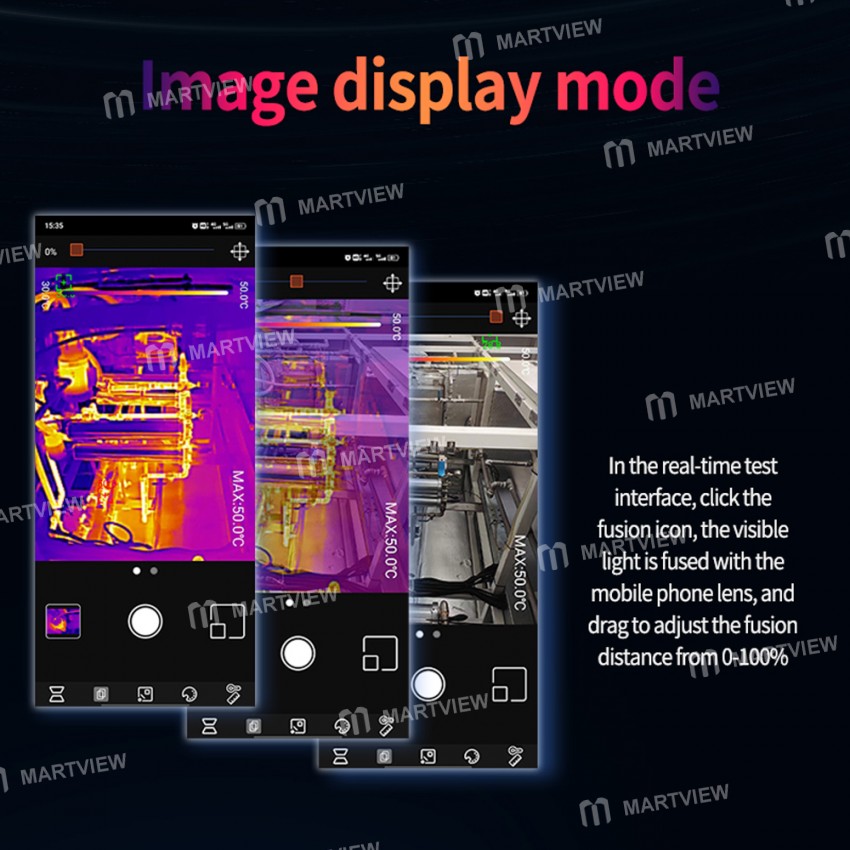

• Image modes: Thermal, Fusion, PIP

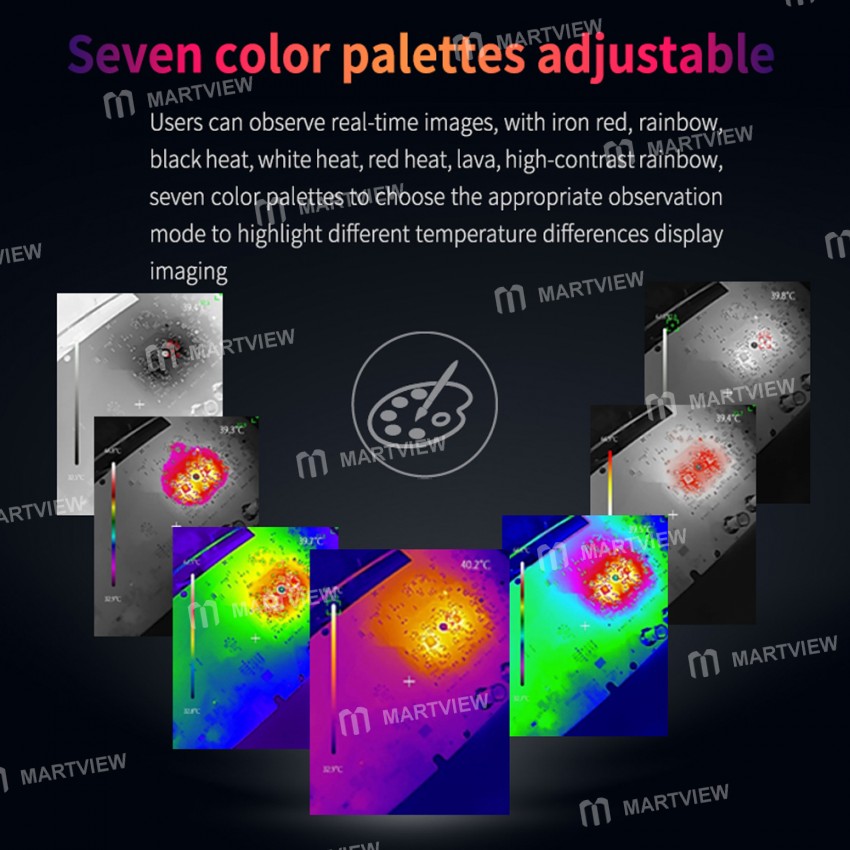

• Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)

• Phone: Android (USB Type-C interface)

• 1m extension cable

• 2m drop proof

Specification:

• IR resolution (Pixels): 256×192

• Field of view (FOV): 56.0°×42.2°

• Thermal sensitivity (NETD): ≤50mK  @25℃

• Spatial resolution (IFOV): 3.8mrad

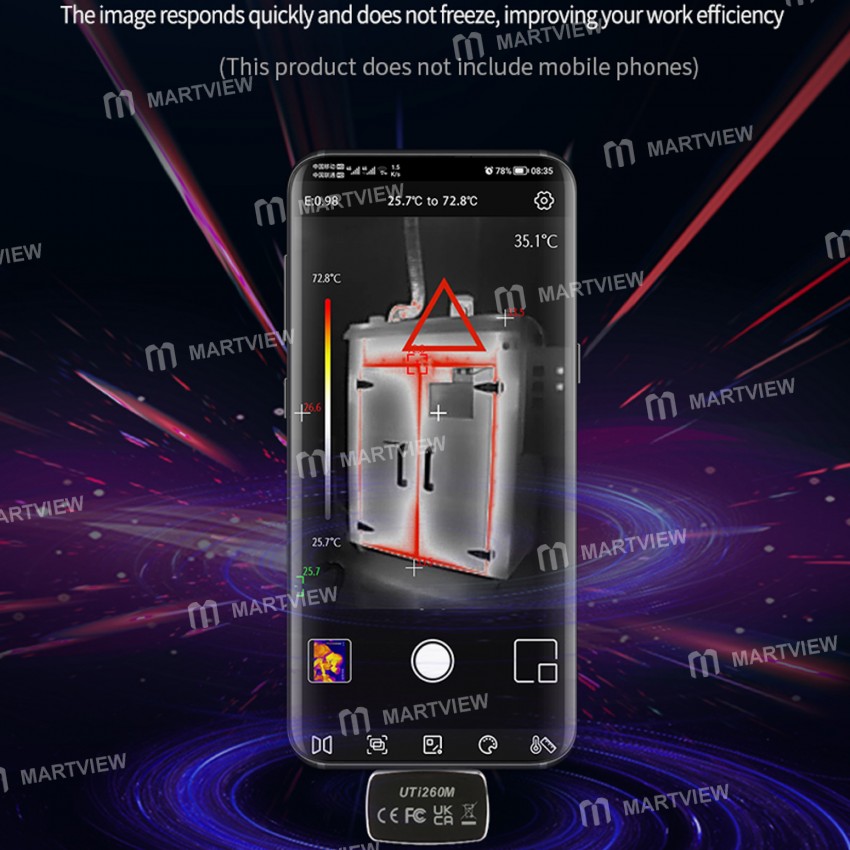

• Frame rate: 25Hz

• Focus: Focus free

• Lens focal length: 3.2mm

• Temperature measurement range: -20℃ ~ 550℃

• Temperature scale: Low gain: -20℃~150℃; High gain: 0℃~550℃; Measurement modes

• Industry, EST Accuracy: Industry: ±2° or ±2% whichever is greater (0℃~550℃); EST: ±0.5° (30℃~40℃)

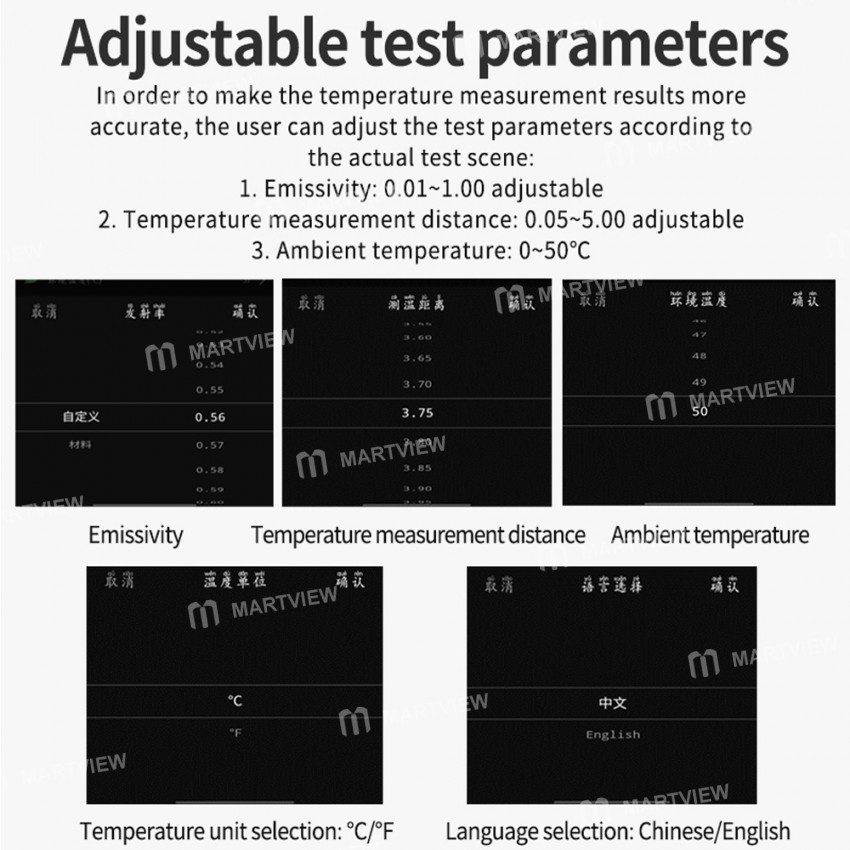

• Emissivity: 0.01~1.00 adjustable (0.95 default)

• Color palettes; 7(White hot, Lava, Ironbow, Black hot, Red hot, Rainbow, Rainbow HC)

• Image modes: Thermal, Fusion, PIP

• On-screen analyzer: Points/ Lines / Rectangles

• Auto alarm for high/low temperature: Yes

• Video recording: Yes

• General Characteristics: Yes

• USB: Type-C

• Drop proof: 1m

• Image/Video storage format: JPEG

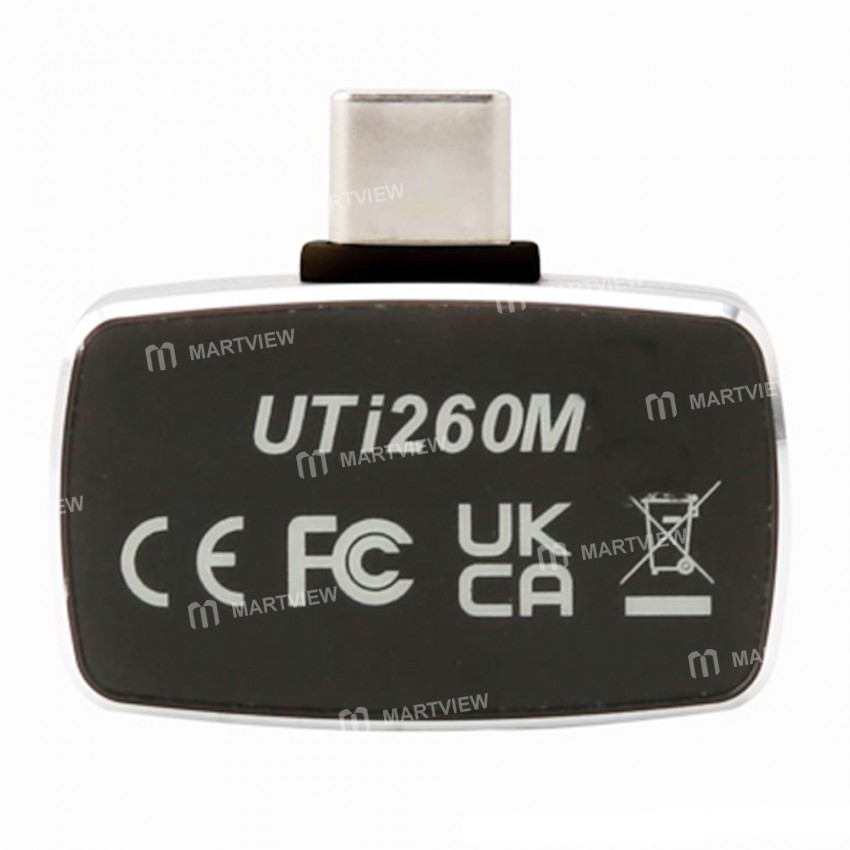

• Certificates: CE, FCC

• Product net weight: 12g

• Product size: 33*28.2*11.3mm

Package includes:

• 1 x Thermal Imager
