UNI-T UTi32 High Temperature -20~1000℃ Handheld Thermal Imager for PCB Circuit Board / Motor HVAC Inspection

UNI-T UTi32 High Temperature -20~1000℃ Handheld Thermal Imager for PCB Circuit Board/Motor HVAC Inspection

Features:

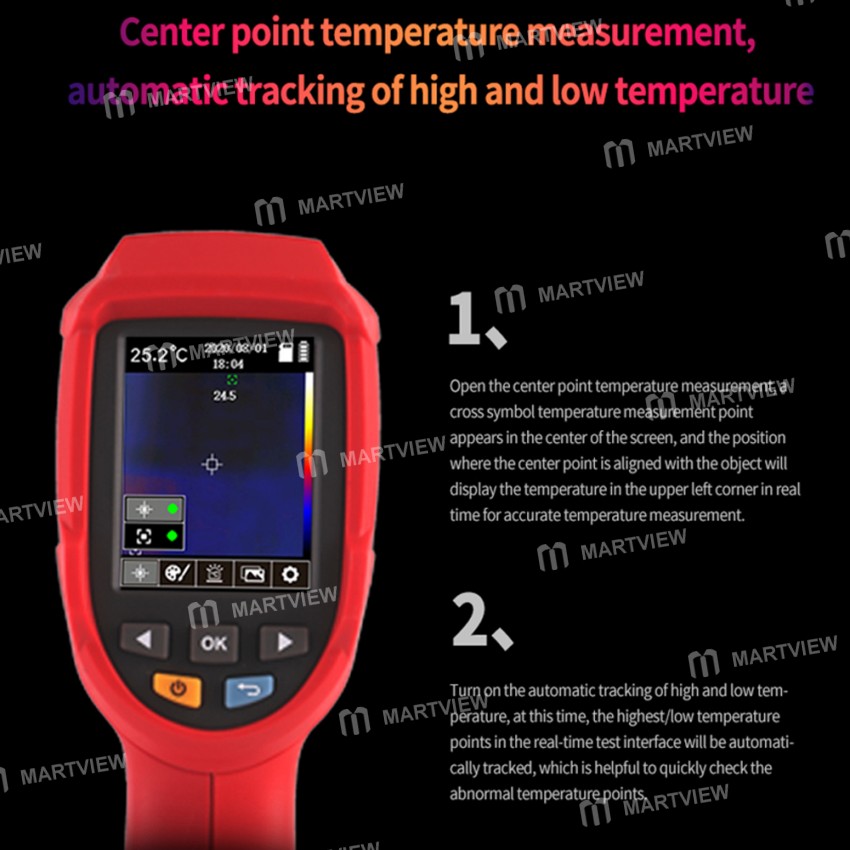

• Center point temperature measurement, automatic tracking of high and low temperature

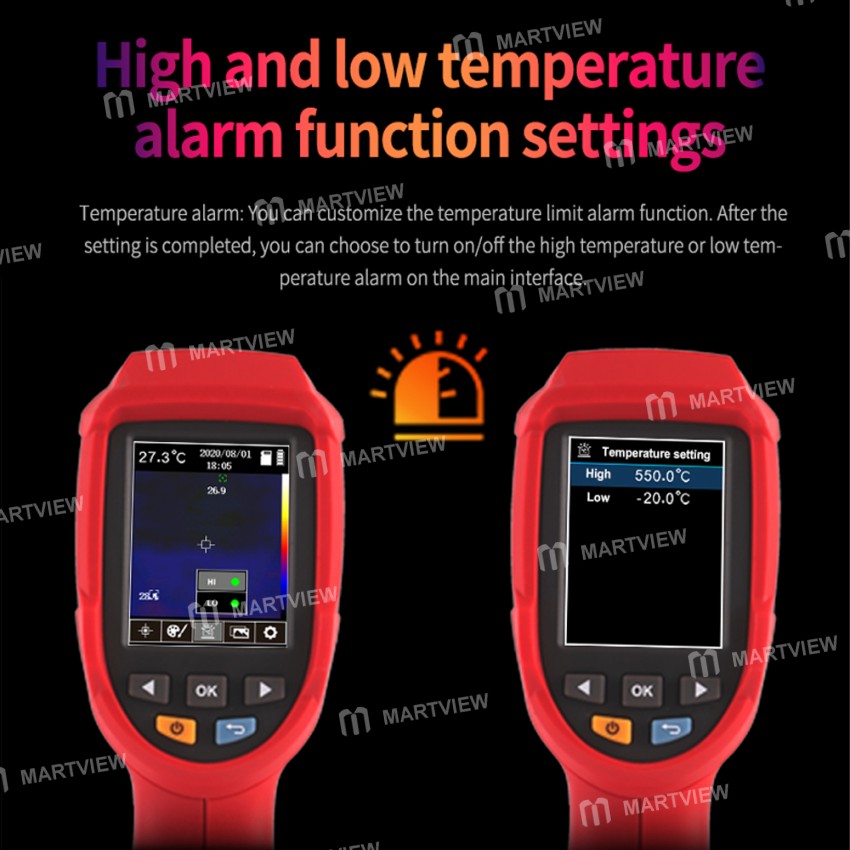

• High and low temperature alarm function settings

• Temperature alarm: You can customize the temperature limit alarm function

• After the setting is completed, you can choose to turn on/off the high-temperature or low-temperature alarm on the main interface

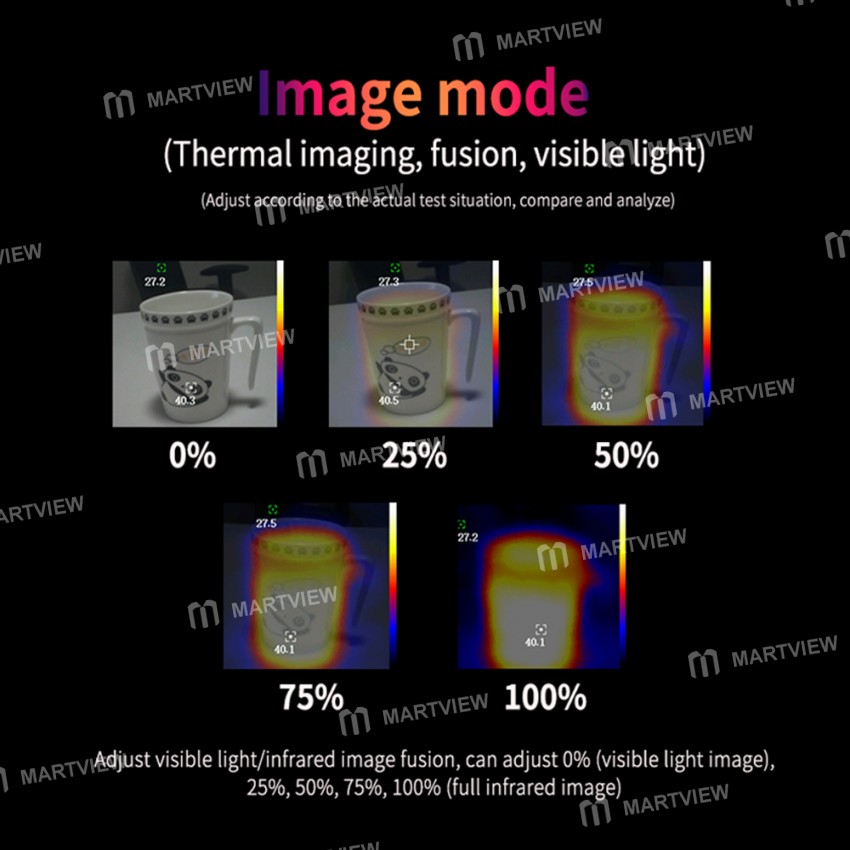

• Adjust visible light/infrared image fusion,can adjust 0% (visible light image), 25%, 50%, 75%, 100% (full infrared image)

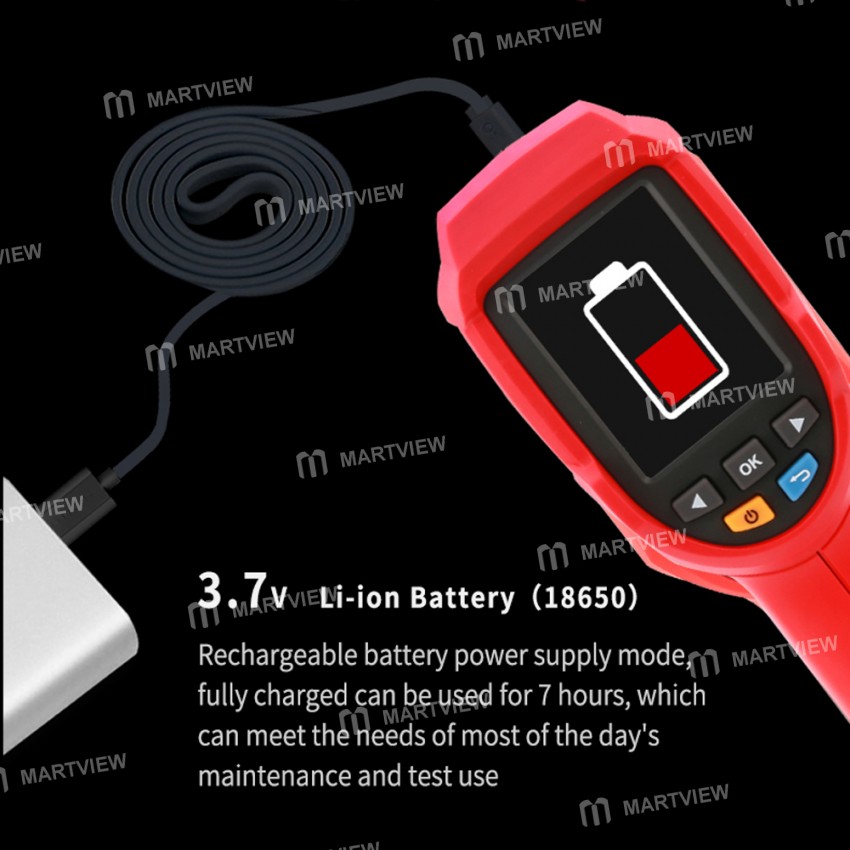

• Rechargeable battery power supply mode, fully charged can be used for 7 hours, which can meet the needs of most of the day's maintenance and test use

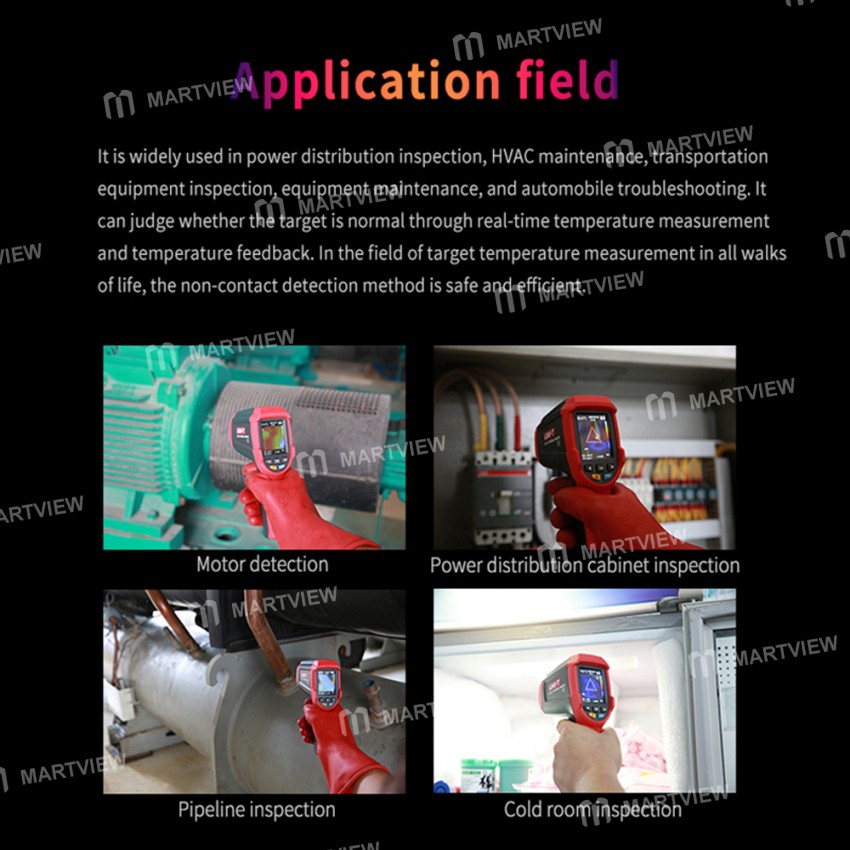

• It is widely used in power distribution inspection, HVAC maintenance, transportation equipment inspection, equipment maintenance, and automobile troubleshooting

• It can judge whether the target is normal through real-time temperature measurement and temperature feedback

• In the field of target temperature measurement in all walks of life, the non-contact detection method is safe and efficient

Specification:

• Model: UTi32

• Screen specification: 2.4"LCD

• Infrared resolution: 32×32

• Field of view: 30°×30°

• Thermal sensitivity: 0.15℃

• Frame rate: 9Hz

• Focus method: Free Focus

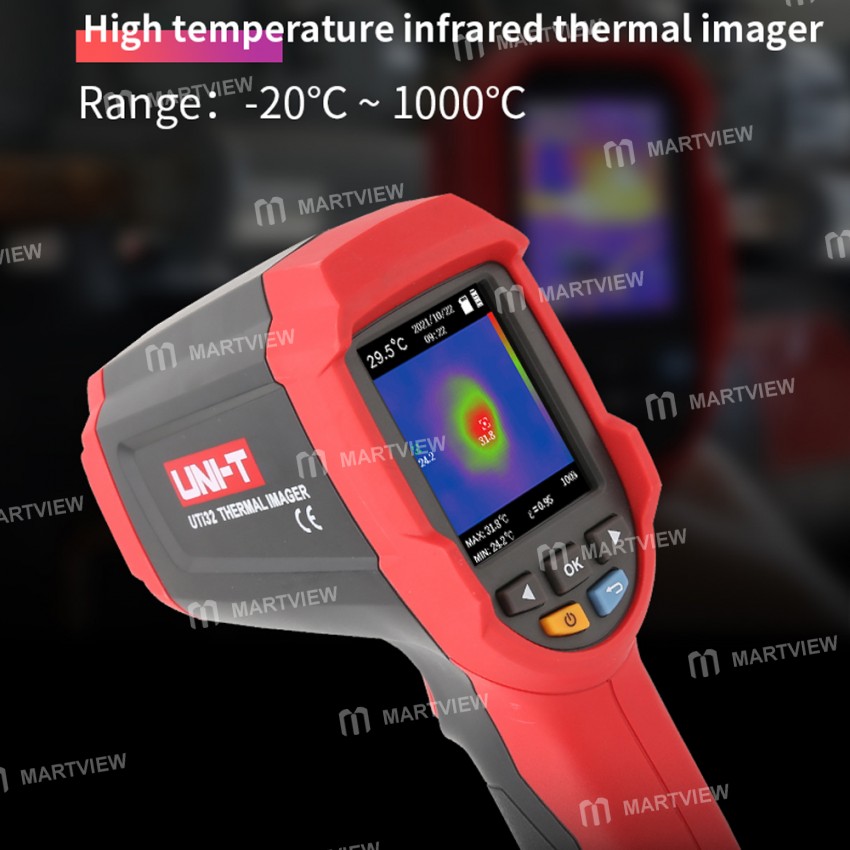

• Temperature range: -20-1000^℃

• Precision: ±2%/±2℃

• Temperature function: Center point/maximum/minimum

• Temperature unit: C°/F°

• Resolution: 0.1℃

• Emissivity: 0.01-1.00

• Photograph: Yes

• Visible light: Yes

• Visible light shooting: Thermal imaging, fusion, visible light

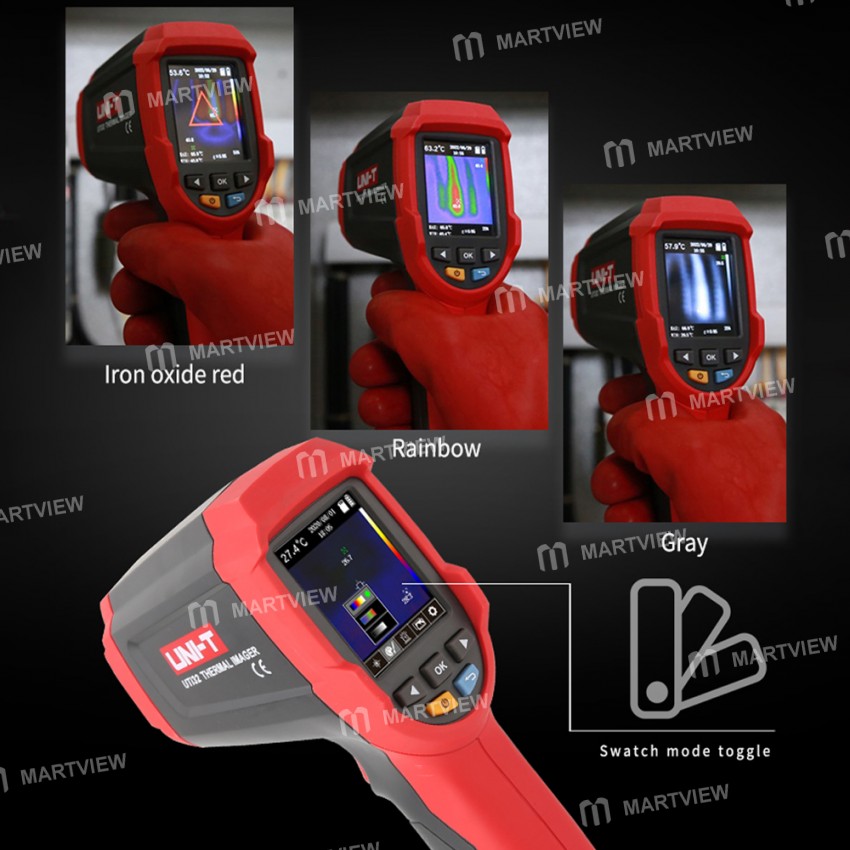

• Swatches: 3

• High and low temperature tracking: Yes

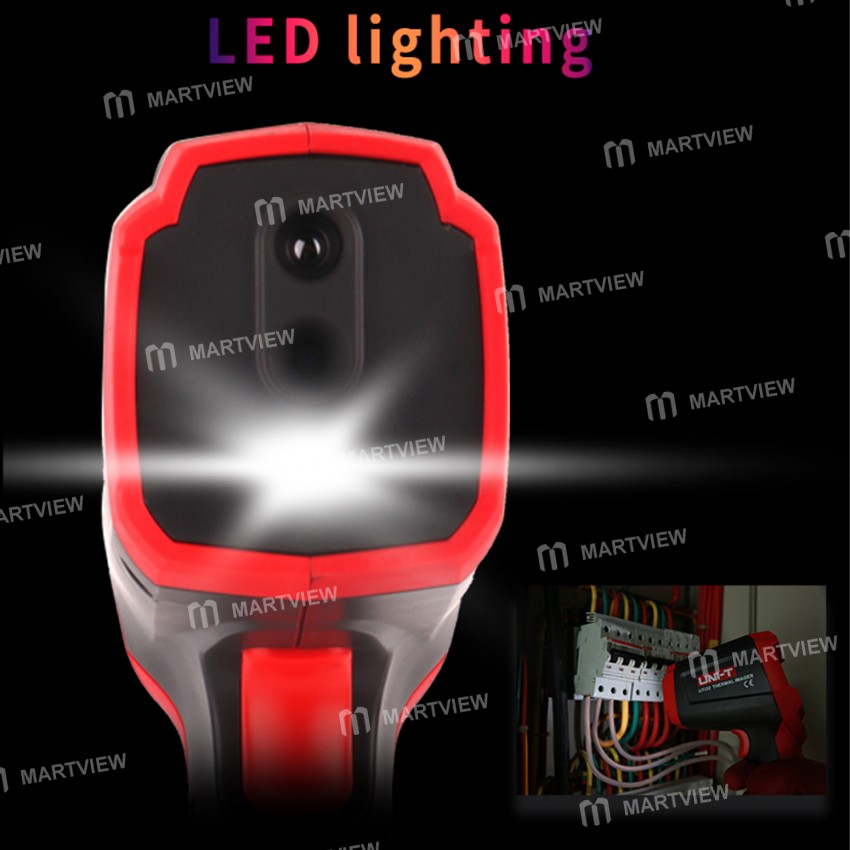

• LED lighting: Yes

• Battery: 3.7V Li-ion Battery (18650)

• Battery usage time: About 7 hours

• Auto Off: Off, 5 minutes, 10 minutes, 30 minutes

• Storage type: Mirco SD card

• USB interface: Micro USB

• Use environment: -20'C~60'C<85%RH(non-condensing)

• Operating temperature: 0℃-50℃(32℉-122℉)

• Working humidity: 10%-95%RH

• Size: 205*124*65mm

Package includes:

• 1 x Thermal Imager

• 1 x Cable
