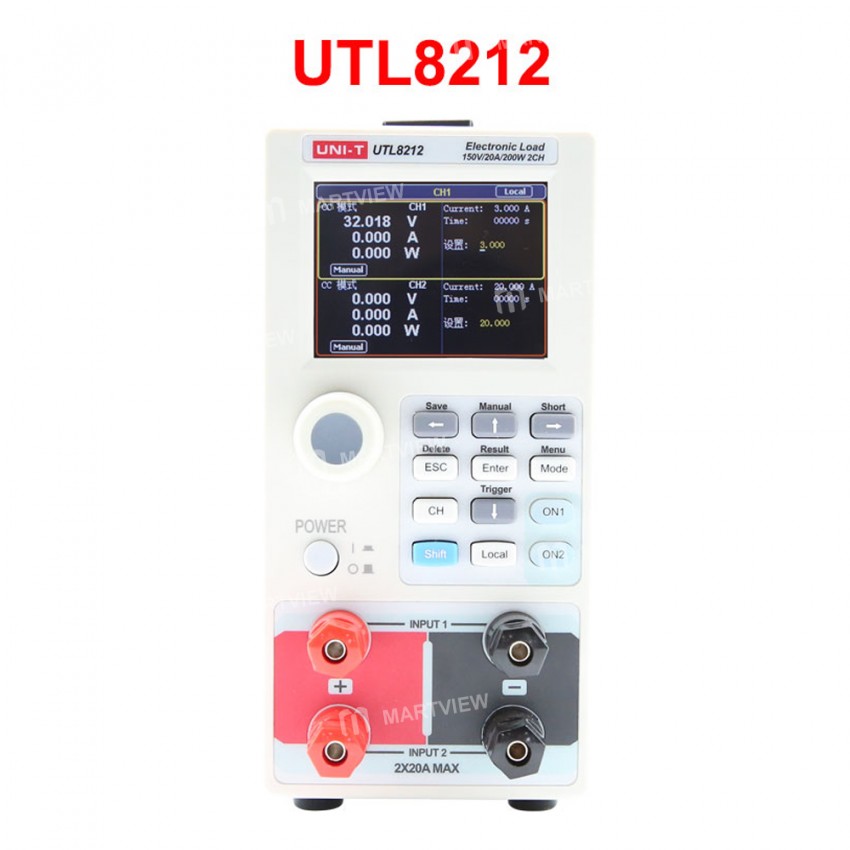

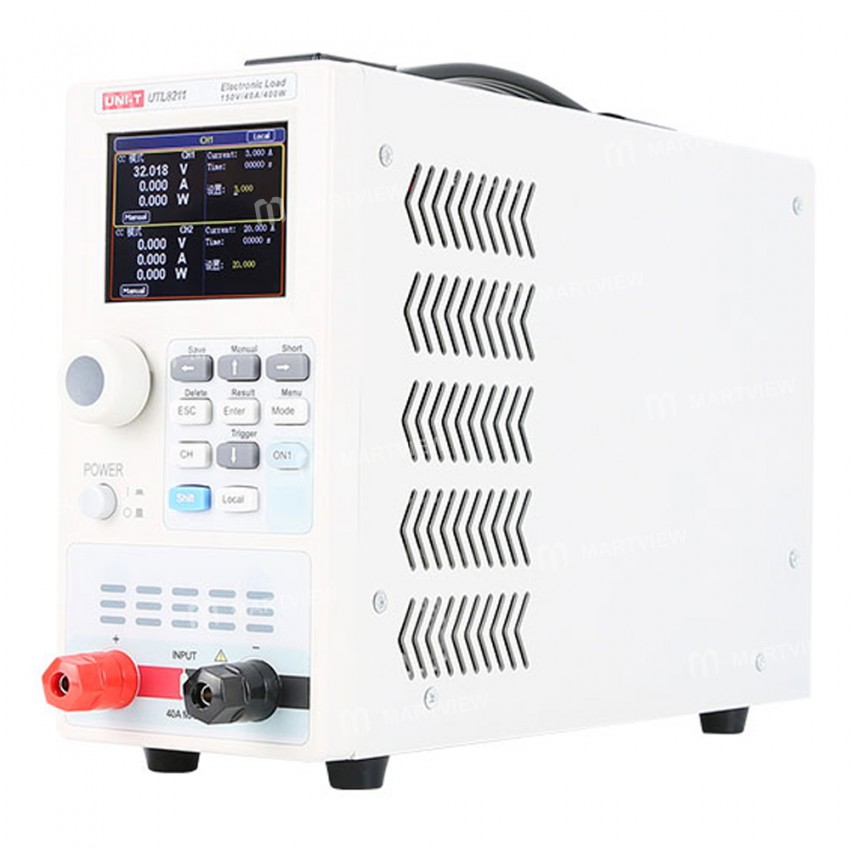

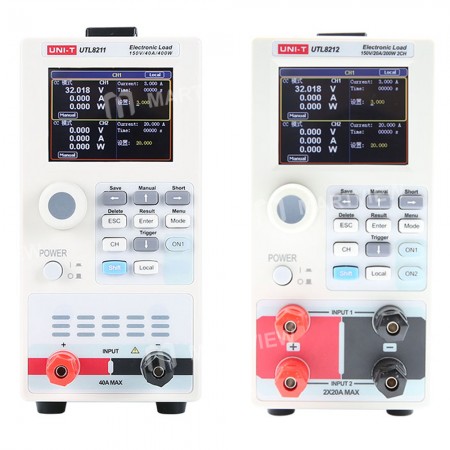

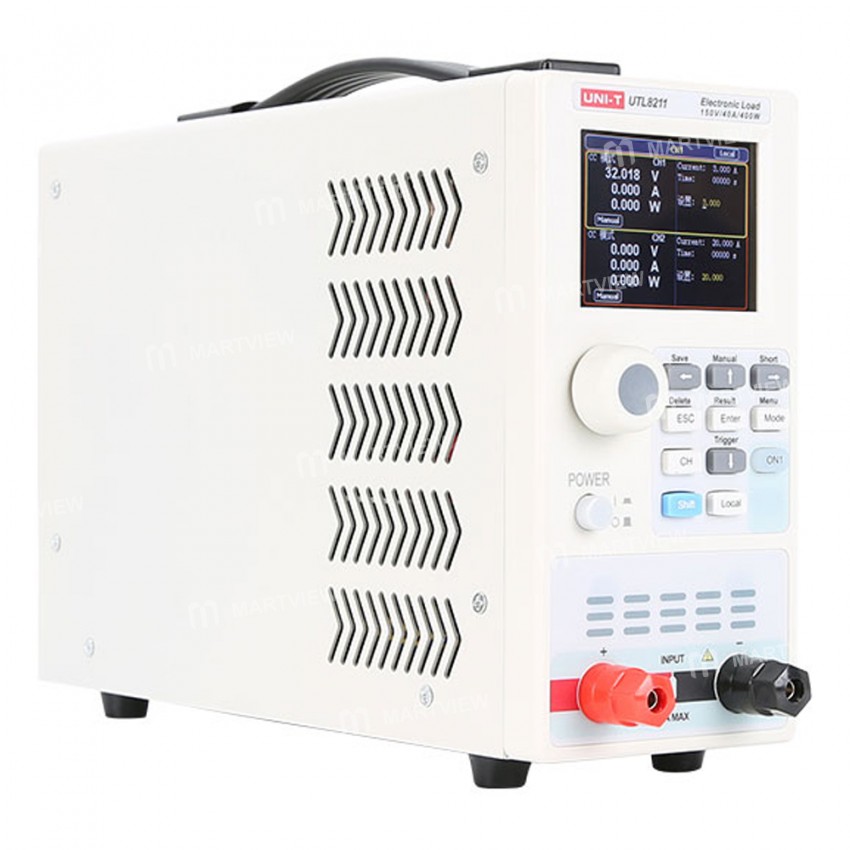

UNI-T UTL8211 / UTL8212 Dual Channel High-Precision Compact DC Electronic Load Tester

UNI-T UTL8211/UTL8212 Dual Channel High-Precision Compact DC Electronic Load Tester

Features:

• 4 basic modes: CC/CV/CR/CP

• Test resolution can reach 1mV/1mA

• Up to 40kHz voltage and current testing speed

• Multi-mode battery discharging test

• List mode supports autotest

• Independent short-circuit test

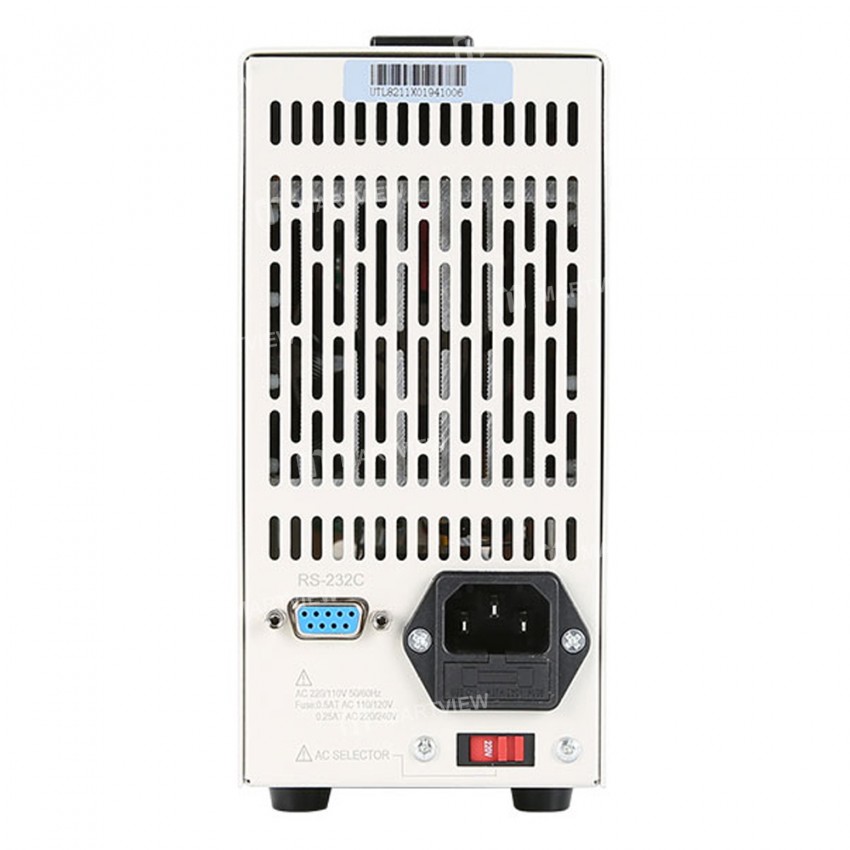

• Standard RS-232C interface and SCPI protocol are supported

• Protections of over-voltage/under-voltage/over-current/over-power/over-temperature/anti-reverse connection

• The 2.8-inch LCD is intuitive and easy to understand

• UTL8212 supports dual-channel completely independent testing

• Standard RS232 communication interface and host computer software, which can realize remote control

Specification:

• Model: UTL8211/UTL8212

• Number of channels: Single channel(UTL8211)/Dual channel(UTL8212)

• Input ratings Voltage:0~150V

• Input ratings Current: 0-4A, 0~40A(UTL8211); 0~2A, 0~20A(UTL8212)

• Input ratings Power:400W(UTL8211); 2×200W(UTL8212)

• Basic operation mode: CC/CV/CR/CP

• CV mode Range:0~18V(UTL8211), 0-150V(UTL8212)

• CV mode Resolution: 1 mV, 10 mV

• CV mode Accuracy: ±(0.05%+0.1%FS)

• CC mode Range: 0~4A, 0~40A(UTL8211); 0~2A,0~20A(UTL8212)

• CC mode Resolution: 1mA,10mA

• CC mode Accuracy: ±(0.05%+0.05%FS)

• CR modeRange: 0.05Ω~7.5KΩ

• CR modeResolution: 16bits

• CR modeAccuracy: ±(0.1%+0.5%F3)

• CP mode Range: 400W(UTL8211); 200W(UTL8212)

• CP modeResolution: 10mW

• CP modeAccuracy: 0.1%+0.5%FS

• Test function: Dynamic test,list mode,battery test

• Multiple protections such as over Protective function voltage, low voltage, over current, overpower, overheat, anti-reverse

• System settings: Chinese and English switching, key tone setting

• Data storage: Memory storage 60 groups

• Communication interface: RS232,SCPI protocol

• Operating temperature: 0℃~40C

• storage temperature: -10℃~60℃

• Working humidity: 20%~80%(Non-condensing)

• Storage humidity: 20%~80%(Non-condensing)

• Working altitude: ≤2000m

Package includes:

• 1 x DC Electronic Load Tester

• 1 x Power cable
