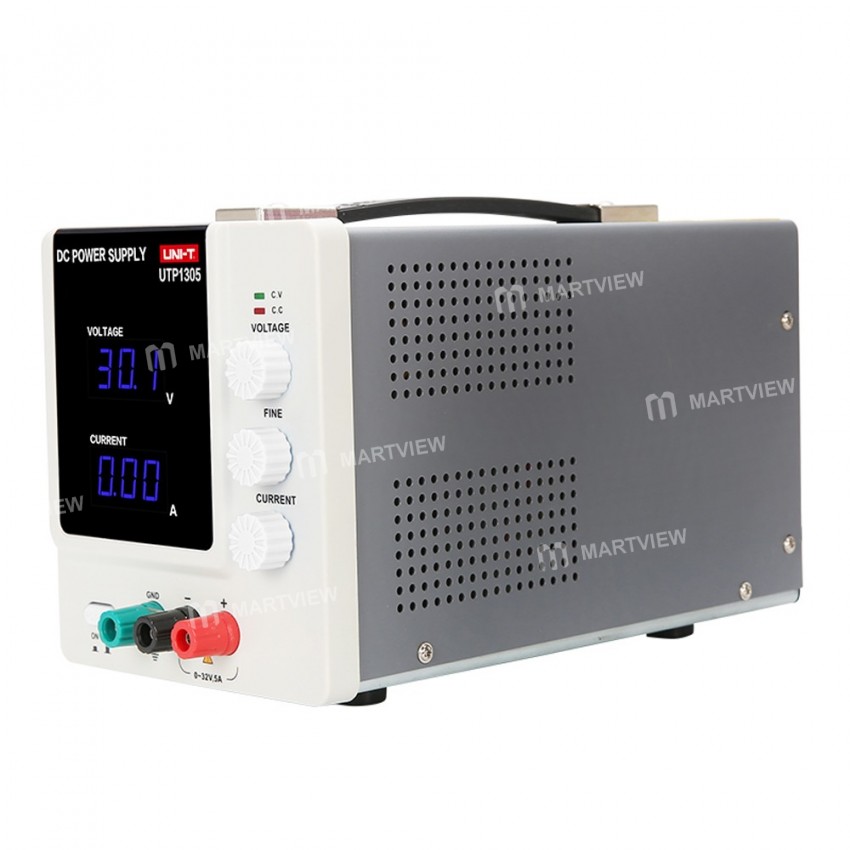

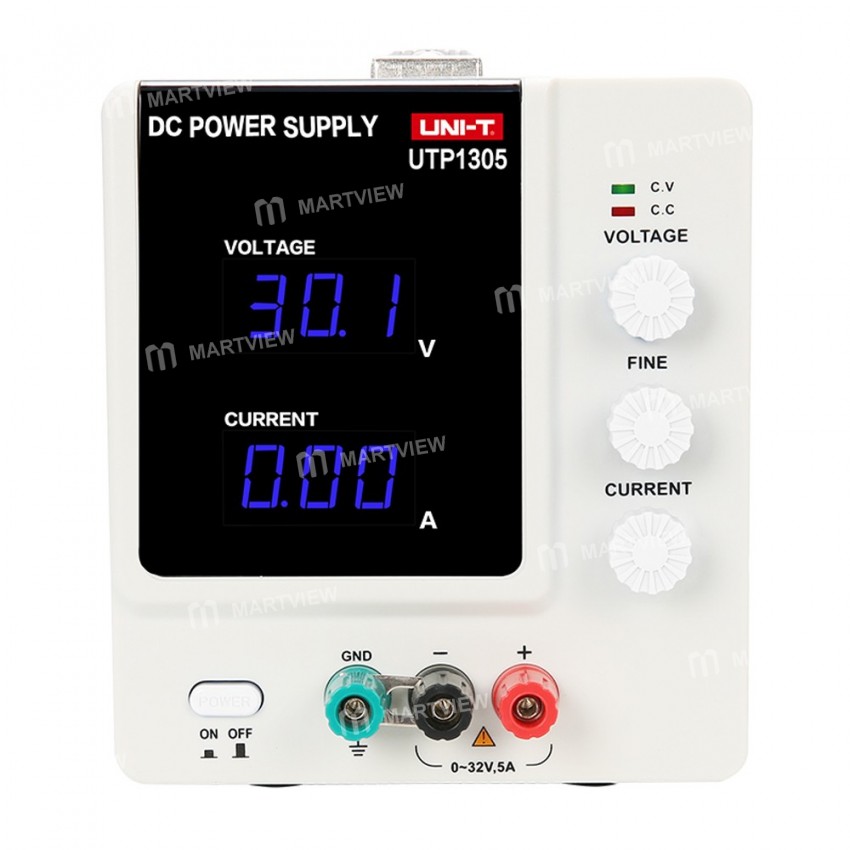

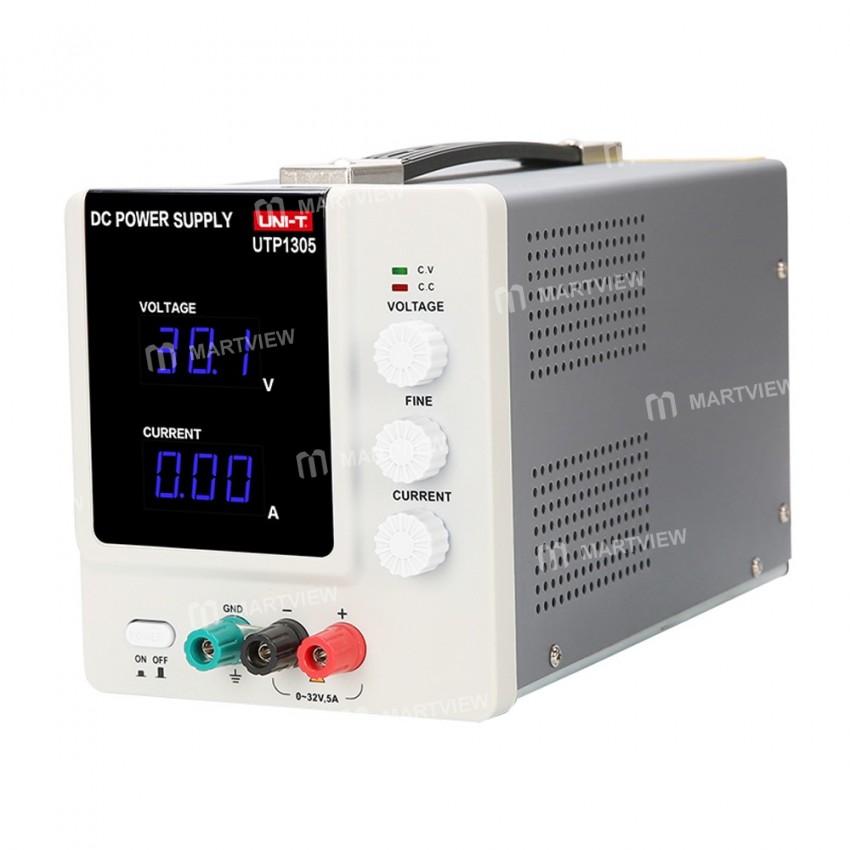

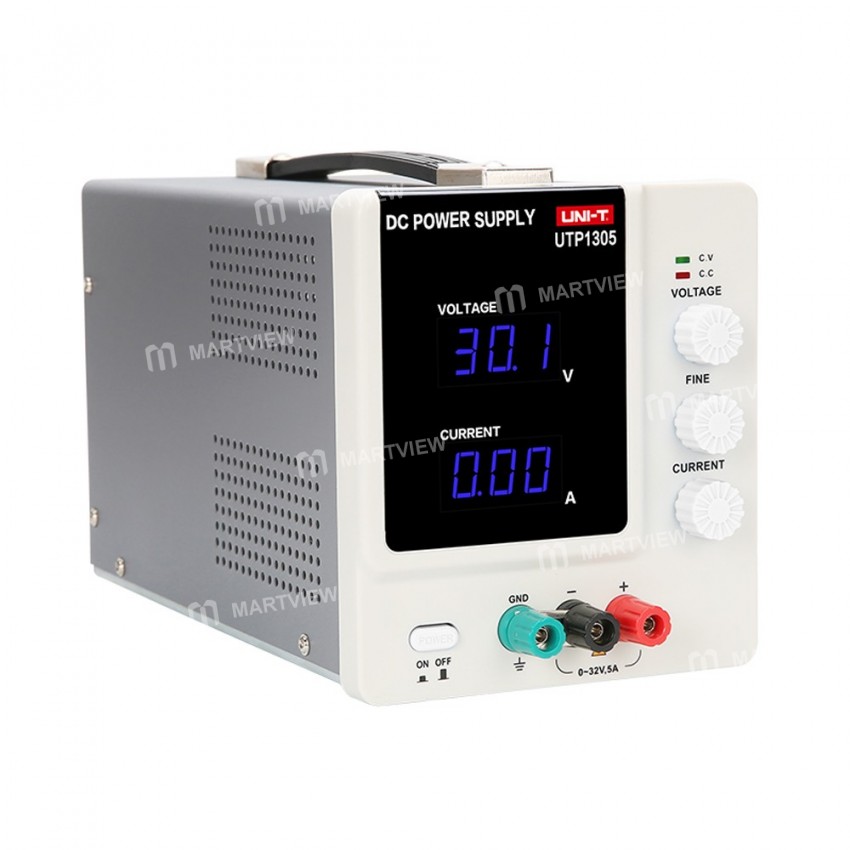

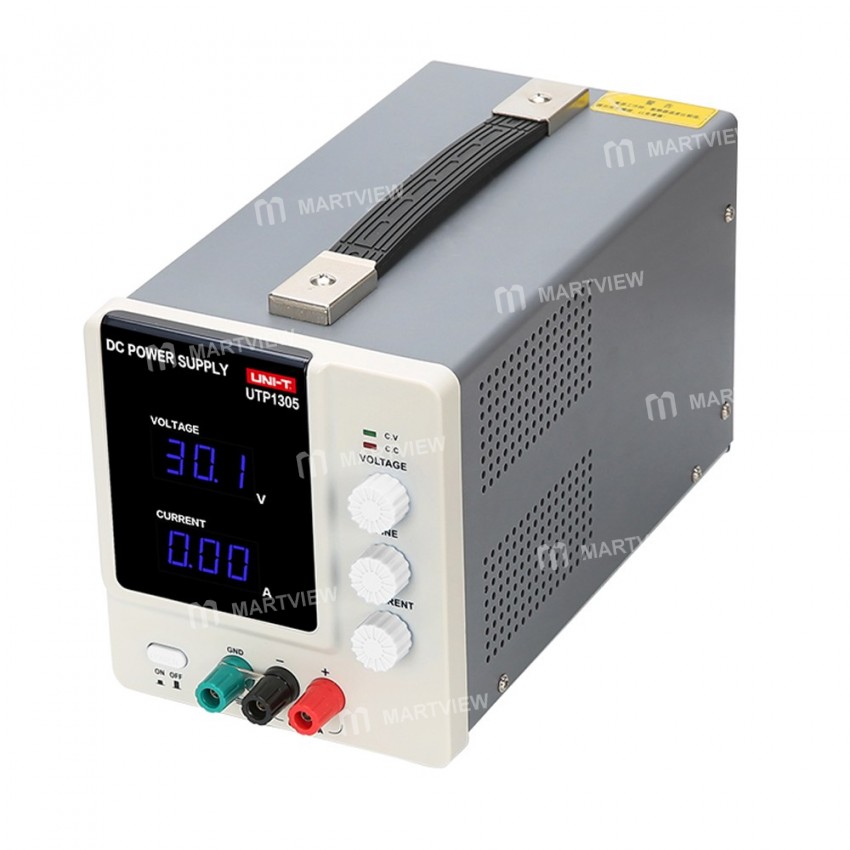

UNI-T UTP1305 Single‑Channel 32 V  /  5 A DC Power Supply

UNI-T UTP1305 Single Channel 32V 5A DC Power Supply

Key Features:

• Adjustment accuracy: up to 0.01%
• Low ripple & noise
• Single channel output: 0‑32 V
• Maximum current: 0‑5 A
• Protection: overload & reverse polarity
• Constant voltage & current modes
• Dual display: voltage and current simultaneously

General Functions

General Functions
Model		UTP1305
Output Voltage		0~32V
Output Current		0~5A
Load Regulation	Voltage	≤0.01%+3mV
	Current	≤0.2%+3mA
Power Regulation	Voltage	≤0.01%+3mV
	Current	≤0.1%+3mA
Noise	Voltage	≤1mVrms
	Current	≤3mArms
Display Accuracy		≤±1%rdg+2digits
Working Temperature		0℃~40℃
MTBF (Constancy)		≥2000 hrs
General Characteristics
Power Supply		Input: 115VAC/230VAC, 47‑63 Hz
Product Color		White and grey
Product Weight		≈5.6 kg
Product Size (W×H×D)		145 mm × 174.7 mm × 283.5 mm

Package Includes:
1 x DC Power Supply
1 x Manual
