UNI-T UTP1306S Adjustable 32V 6A Single Channel Regulated Switch DC Power Supply

UNI-T UTP1306S Adjustable 32V 6A Single Channel Regulated Switch DC Power Supply

Features:

• It is an economical switching DC stabilized voltage supply with a single output.

• highly efficient, low ripple, small volume, lightweight,3 groups data storage.

• Voltage stabilization, excellent performance indicator, simple operation.

• Temperature control fan heat dissipation, low noise.

• Short circuit prevention with fuse.

• Complete operating protection function.

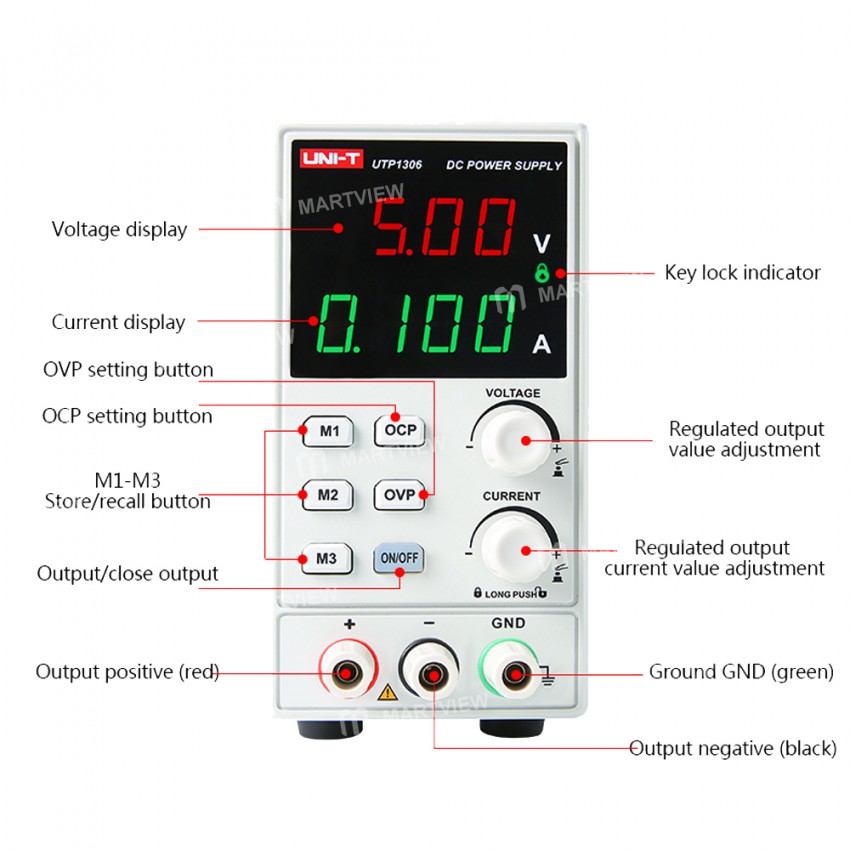

• Double display voltage, current.

• Widely used for mobile electric repairing, lab, factory, etc.

Specification:

• Color: White

• Brand: UNI-T

• Model: UTP1306S

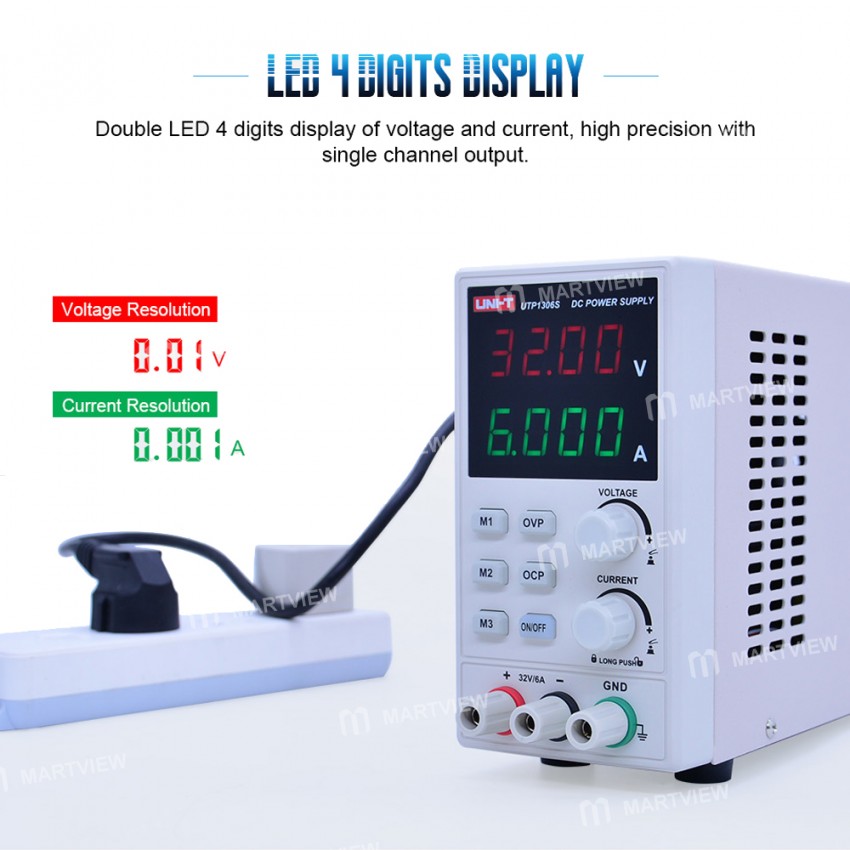

• LED Display:4 digits

• Input voltage:220V±10%

• Plug Type: AU/US/EU(optional)

• Output voltage: 0 ~ 32V

• Output current: 0 ~ 6A

• Output Power: 192W

• Load regulation rate  voltage: <0.5%+10mV

• Load regulation rate  current: <0.5%+3mA

• Power regulation rate voltage: <0.3%+5mV

• Power regulation rate current: <0.5%+3mA

• Set resolution voltage: 10mV

• Set resolution voltage current: 1mA

• Readback resolution voltage: 10mV

• Readback resolution current: 1mA

• Setting accuracy current: <0.5%+3mA

• Ripple and noise voltage: 10mVrms

• Ripple and noise current: 5mArms

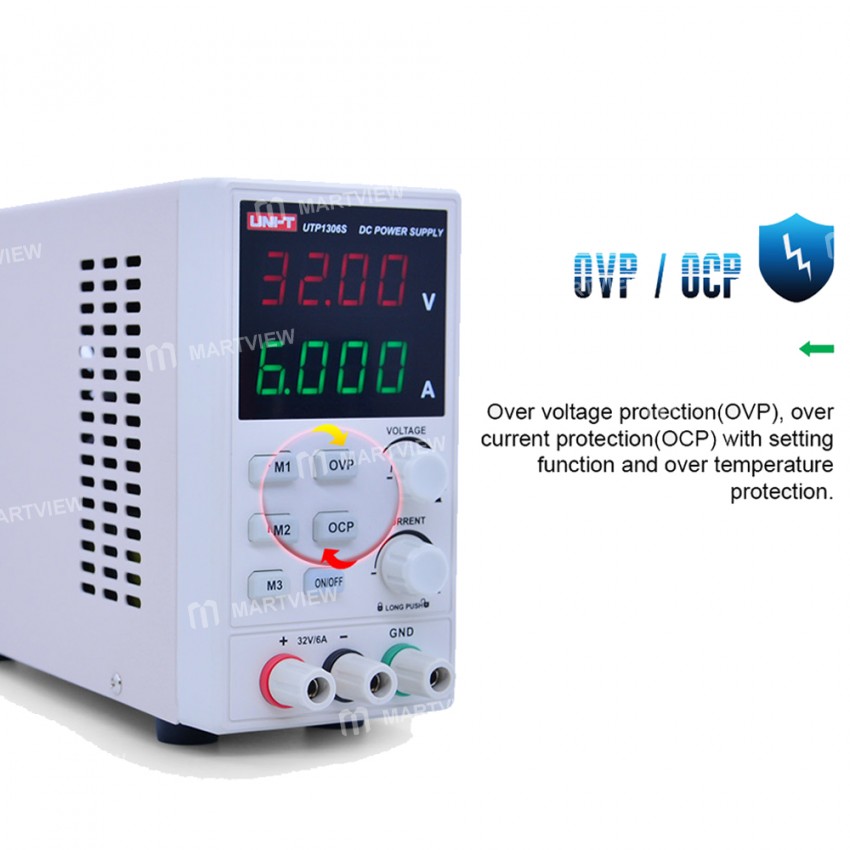

• OVP: 0-32V±0.2%FS

• OCP: 0-6A±0.2%FS

• Operating environment: 0-40°,<80%RH

• Storage environment: -15-70°,<80%RH

• Weight: 1541g

• Size: 230*79*150mm

Package includes:

• 1 x DC power supply

• 1 x Power Cord

• 1 x Alligator clip test line
