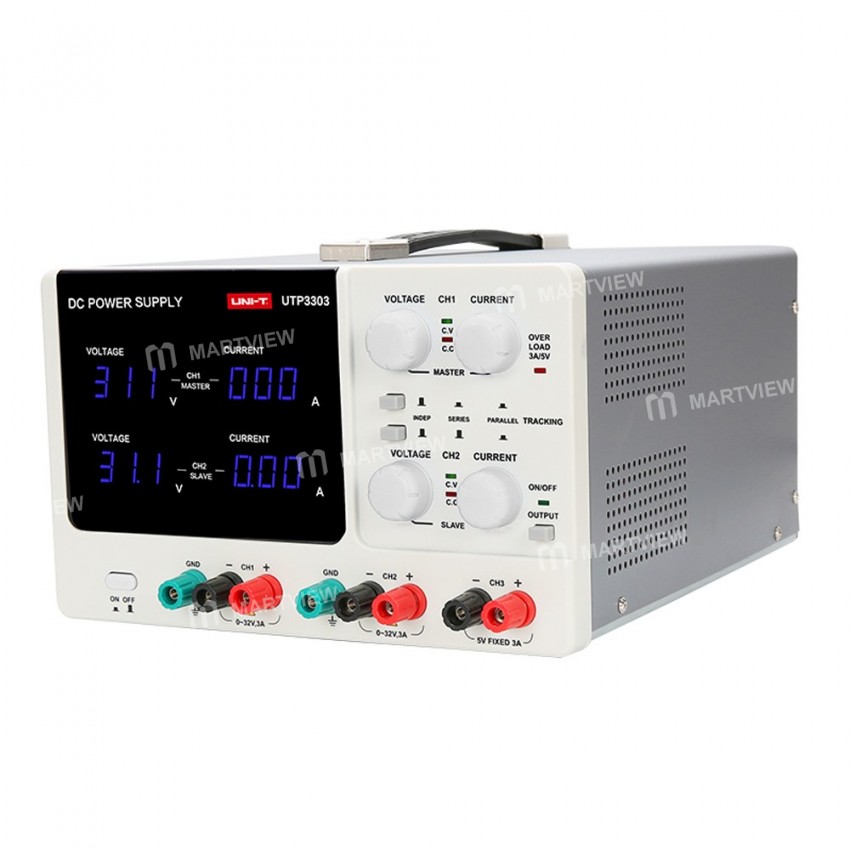

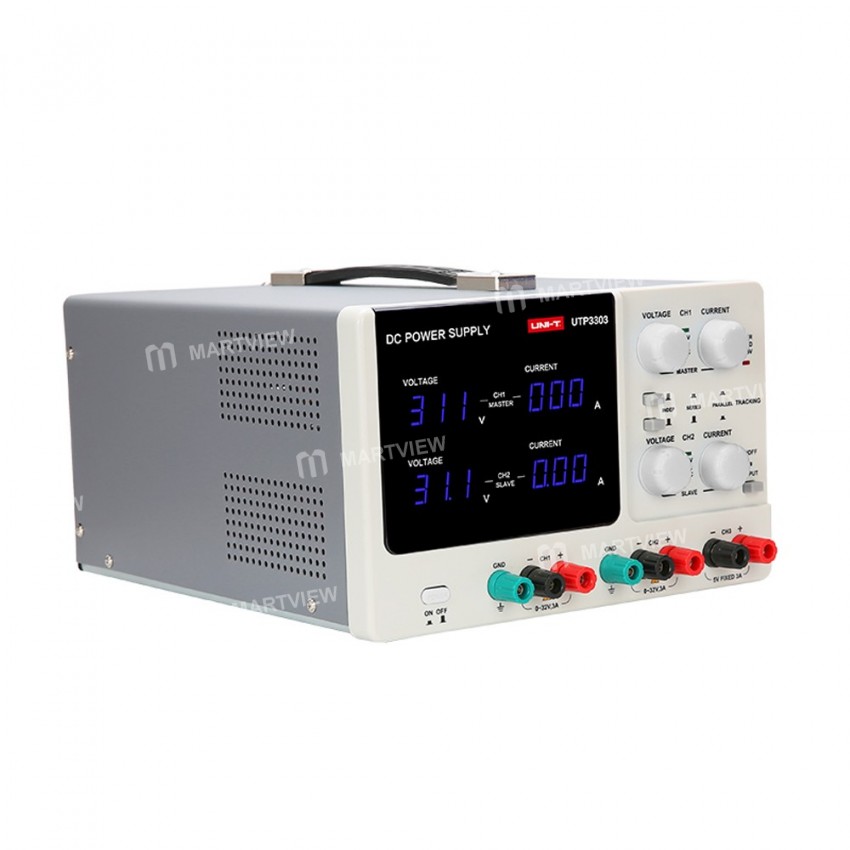

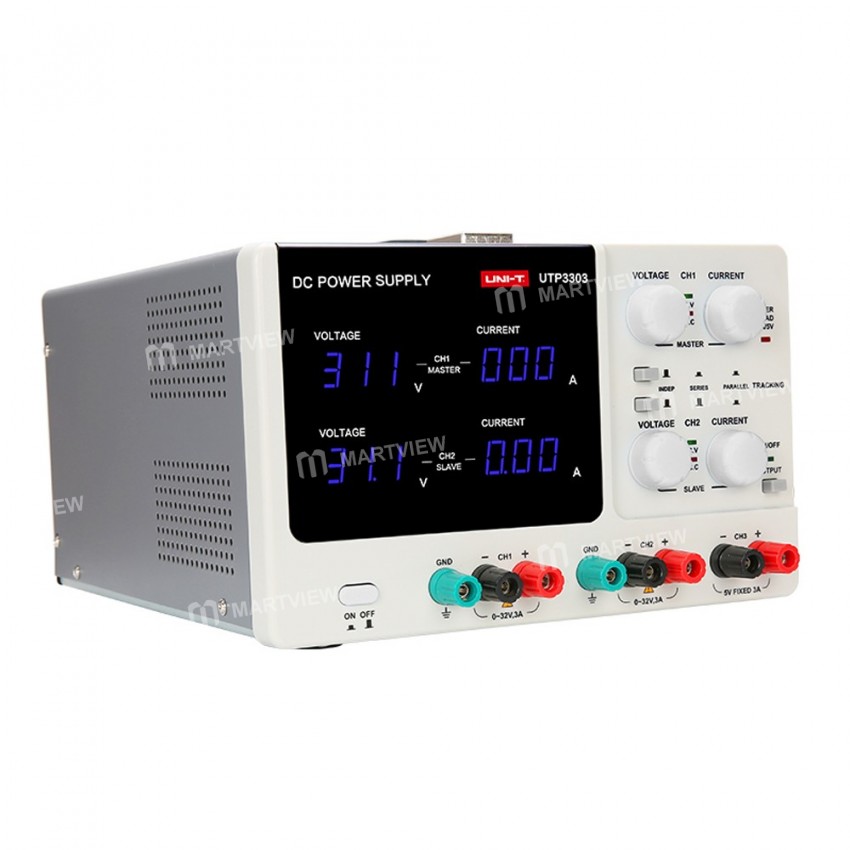

UNI‑T UTP3303 Dual‑Channel 64 V 3 A DC Power Supply

No review yet

Out of stock

NaN

As low as NaN

Worldwide shipping

ID: MV-103710

Weight: 10.00 kg

Product details

UNI‑T UTP3303 Dual‑Channel 64 V 3 A DC Power Supply

Features

Dual‑channel 0‑32 V/0‑3 A + fixed 5 V output, master‑slave & series/parallel tracking.
Two adjustable channels (CH1 & CH2) 0‑32 V, 0‑3 A and one fixed 5 V channel (CH3) 3 A max.
Master‑slave tracking mode – circuits can operate in parallel or series for higher voltage or current.
Forced‑ventilation temperature control: fan activates automatically at 65 ℃.
LED digital display shows voltage and current simultaneously.
Low ripple & low noise performance.
High regulation: ≤0.01 % voltage regulation.
Output ON/OFF control with constant voltage/current operation.
Optional European‑standard output terminals.
Overload and reverse‑polarity protection.

General Functions

General Functions
Model			UTP3303
Channels			CH1	CH2	CH3
Output Voltage			0‑32 V		5 V Fixed
Output Current			0‑3 A		3 A Max
Series Tracking			0‑64 V		-
Parallel Tracking			0‑6 A		-
Load Regulation	Voltage		≤0.01 %+3 mV		≤3 %+5 mV
	Current		≤0.2 %+3 mA		-
Power Regulation	Voltage		≤0.01 %+3 mV		5 mV
	Current		≤0.1 %+3 mA		-
Noise	Voltage		≤1 mV_rms		≤2 mV_rms
	Current		≤3 mA_rms		-
Tracking Operation (CH1, CH2)
Tracking Bias		Power Regulation			Load Regulation	Noise
≤0.5 %+10 mV (CH1)		≤0.01 %+5 mV			≤300 mV	≤2 mV_rms, 5 Hz‑1 MHz
Display Accuracy					±1 % rdg + 2 digits
Working Temperature					0 ℃ ~ 40 ℃
Constancy (MTBF)					≥2000 hrs
General Characteristics
Power Supply					Input voltage: 220 VAC/110 VAC; Frequency: 50 Hz/60 Hz
Product Color					White and grey
Product Weight					≈9 kg
Product Size (W×H×D)					260 mm × 176 mm × 317 mm
Standard Accessories					National‑standard power cord, output leads
Standard Package					Gift box, user manual
Package Quantity					1 pcs
Package Size (W×H×D)					430 mm × 400 mm × 255 mm
Package Gross Weight					10 kg
