UNO R3 ATmega328P-AU Controller ZY Main Control Board with CH340 Type-C for Arduino

UNO R3 ATmega328P-AU Controller ZY Main Control Board with CH340 Type-C for Arduino

Features:

• It is a microcontroller board based on the ATMEGA328P-AU, fully compatible with the development board

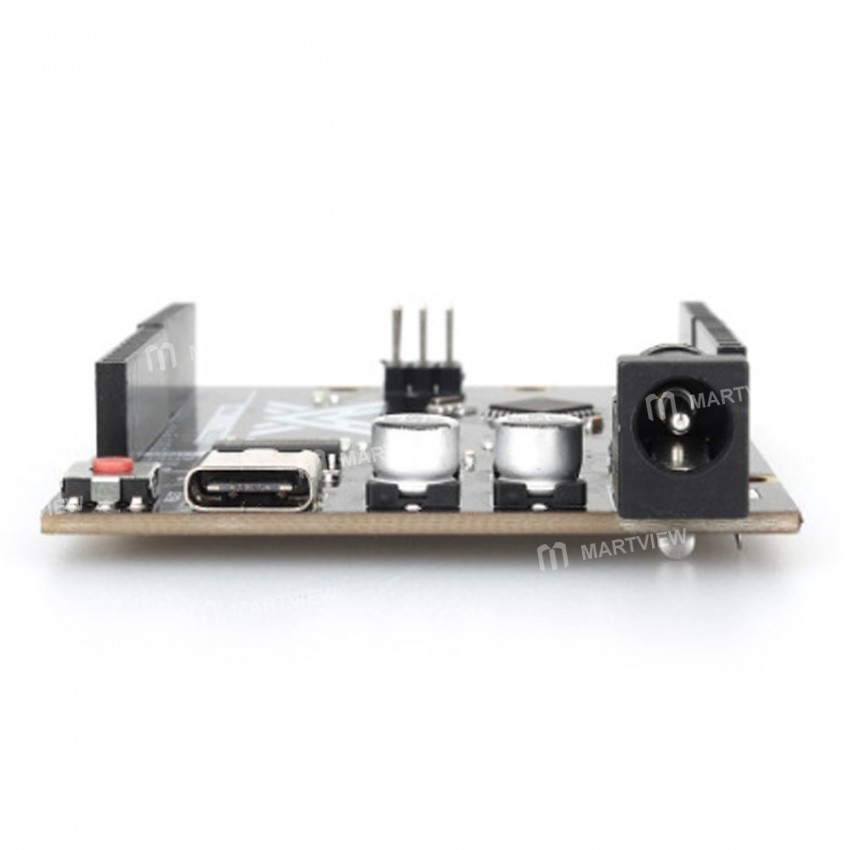

• The new development board  with a USB Type C connector that replaces the bulky square USB A connector

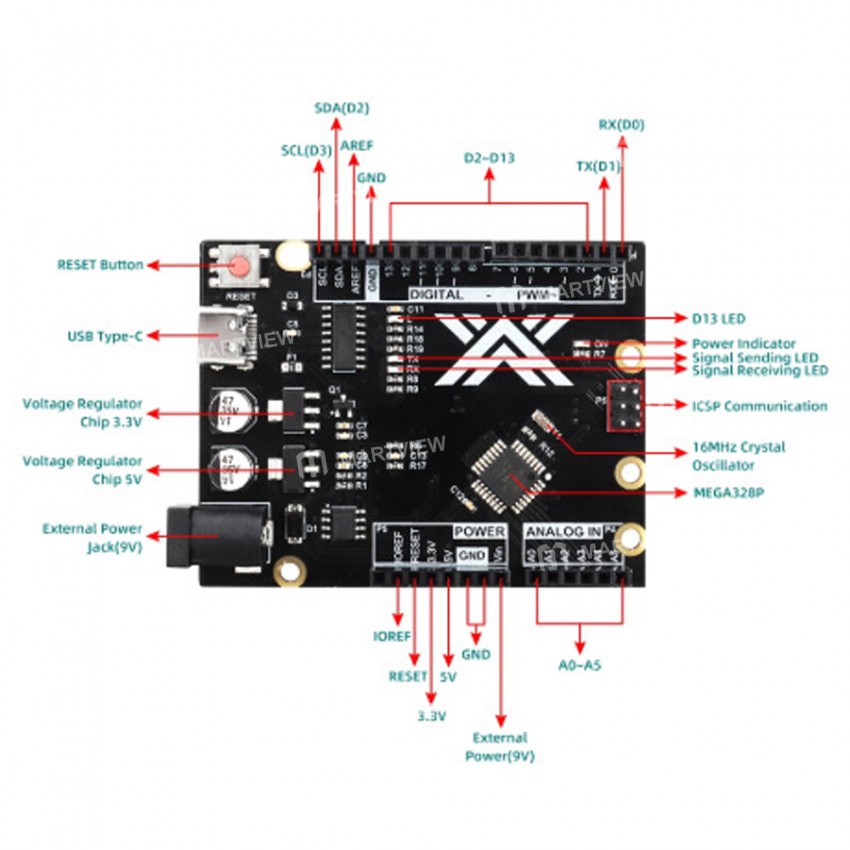

• It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, and a reset button

Specification:

• Controller: ATMEGA328P-AU

• USB Port: Type-C

• Analog input pins: 8

• DC Current per I/O Pin: 40mA

• SRAM: 2KB

• Clock Speed: 16 MHz

• Operating voltage(logic level): 5V

Package includes:

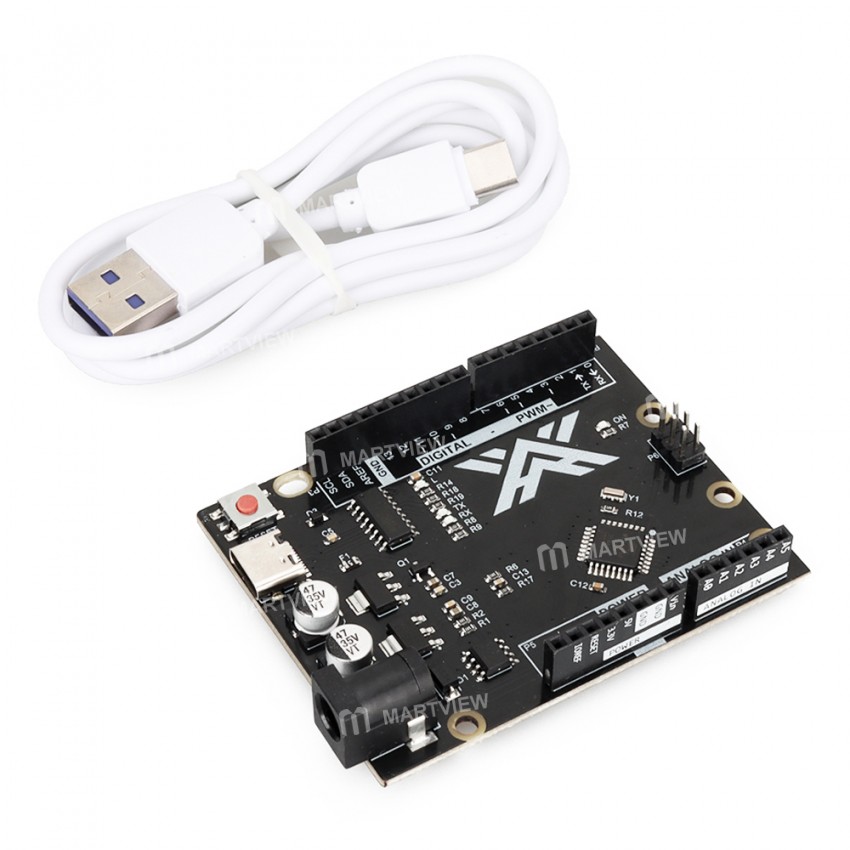

• 1 × Development board

• 1 x Data cable(optional)
