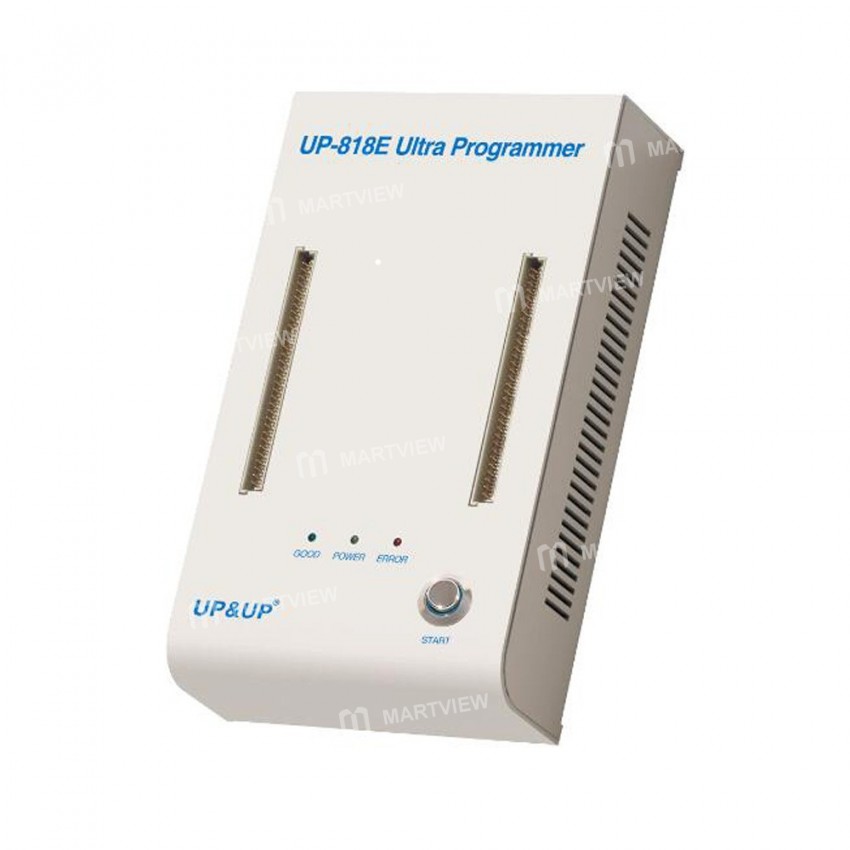

UP-818E – EMMC Flash Memory Ultra Programmer

UP-818E Ultra Programmer is a high‑speed eMMC flash memory programmer (adapter not included). It supports the full range of eMMC pins and is specifically designed for eMMC chip burning. Both the UP‑818E and UP‑828E models are compatible with almost any BGA adapter.

Feature:

• Summary: High‑speed, multi‑voltage eMMC programmer compatible with various BGA adapters and Windows operating systems.
• Support for eMMC chip burner programming specifically
• Supported IC package sizes: 12 × 16 mm, 12 × 18 mm, 14 × 18 mm, 11.5 × 13 mm, etc.
• Supported pin counts: 153 Pin, 162 Pin, 169 Pin, 186 Pin, etc.
• Supported eMMC specifications: version 4.3, 4.4, 4.41, 4.5
• Operates at 3.3 V, 1.8 V and 1.2 V
• Supports any Extended CSD literacy
• Supports USER, BOOT, RPMB and GPP region literacy
• Customizable USER area size to greatly improve work efficiency
• Adjustable BOOT, RPMB and GPP area capacity sizes
• Open WrRel (Reliability Write) and SLC mode OTP settings
• Detailed chip information analysis
• Patented BGA adapter with an average life of 20,000 cycles or more
• Comprehensive log files and production programming statistical reports for quality tracking
• Compatible with Windows XP, Vista, and 7 operating systems
• Communication interface: USB 2.0 (compatible with USB 1.0/1.1)
• System requirements: Windows XP/2003/NT/Win7, 256 MB RAM or higher, 1 GB hard‑disk space or more
• Power specifications: Input AC 100‑240 V, 50/60 Hz; Output DC 5 V/1 A
• Dimensions: 208 × 128 × 45 mm
