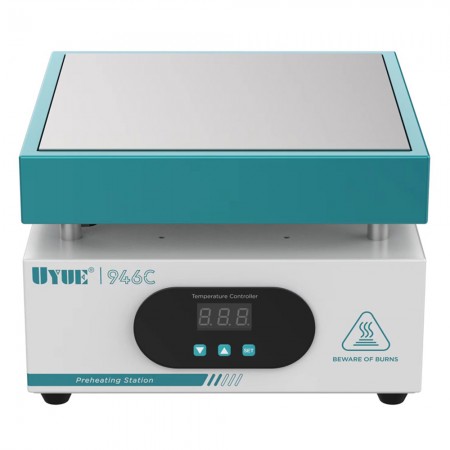

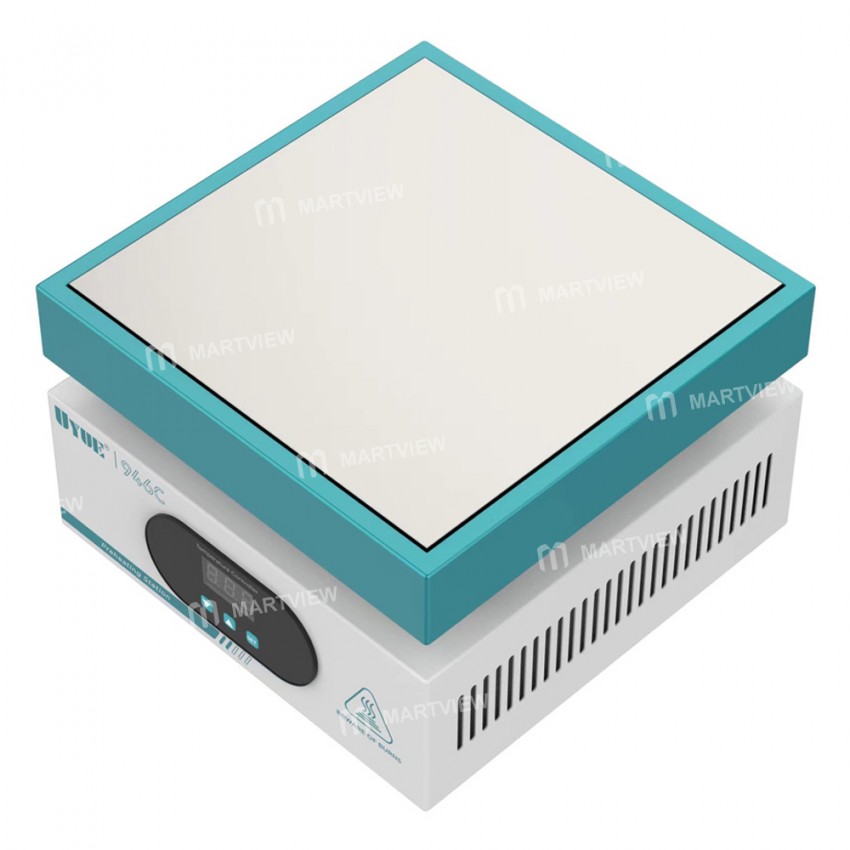

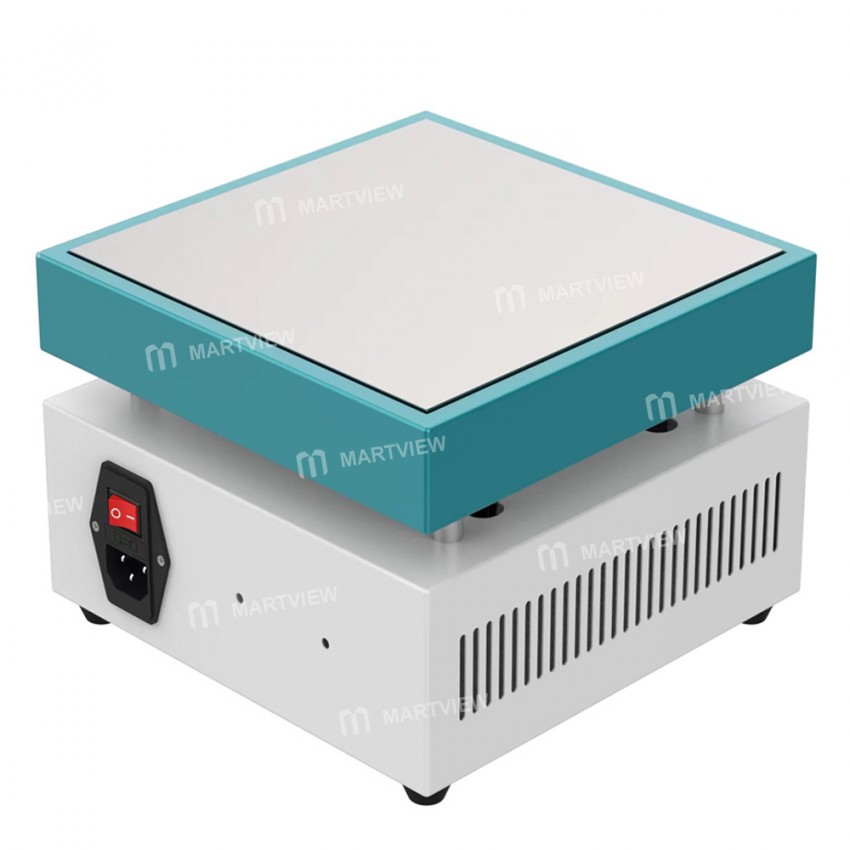

Uyue 946C Digital Display Maintenance Preheating Platform for PCB Heating and LCD Screen Separate

Uyue 946C Digital Display Maintenance Preheating Platform for PCB Heating and LCD Screen Separate

Specification:

• Model: UYUE 946C

• Power: 800W

• Temperature range: 50-350 degrees

• Temperature display: 3 (display resolution: 1 degree)

• Heating panel: 200 * 200 * 20MM

• Constant slow stability: 1.5 degrees

• Conventional temperature setting: Press the * key for more than one second, you can enter the temperature setting mode, and press the * key to switch to the median value of the set temperature and the heating or cooling through key settings.

• Instant temperature setting: at constant temperature heating units, direct heating or cooling key can be adjusted to the current operating temperature of ± 50 ℃

• Dimensions: 196 * 145 * 200MM

• Weight: 3.2kg

Caveat:

• Heating units placed on the work platform, countertops should be smooth, and the material must be resistant to heat

• In the course of their work, the board and around the very hot, be careful to guard against burn!!!

• The heated object to safety, high temperatures may damage the heating elements

• Prohibiting the use of the heating plate in the vicinity of flammable and combustible material

• To move or touch the machine, remember to turn off the power to be heated plate is completely cooled to room temperature

• The machine is a high-temperature electric product, remember to cut off the power if not using the machine to avoid danger and accidents

• To extend the life of the heating element and the machine is prohibited in high temperatures (300 °c above) continuous long-term use of the machine

• Under normal circumstances, the machine should not be more than eight hours of continuous work time

Package includes:

• 1 x Preheating Station

• 1 x Power Cable
