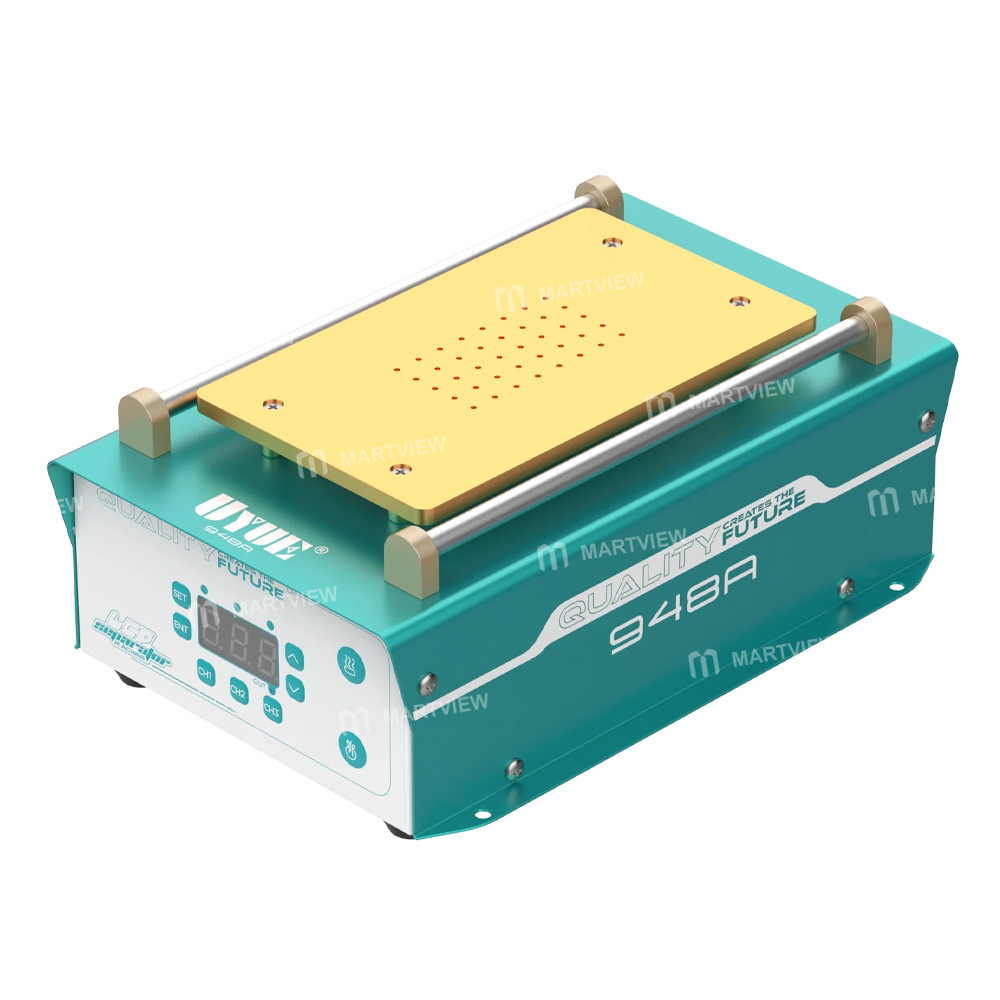

Uyue 948A 7-inch Digital Display Preheat LCD Screen Separator Built-in Vacuum Pump

Uyue 948A 7-inch Digital Display Preheat LCD Screen Separator Built-in Vacuum Pump

Specifications:

• Model: 948A LCD screen separator

• Scope of application: LCD screen under 7 inches

• Working size: 190*110mm

• Temperature range: 0~140°C ±5°C

• Heating method: PTC heating sheet

• Power: 400W

• Supply voltage: 110V/220V

• Net weight: 1.65kg

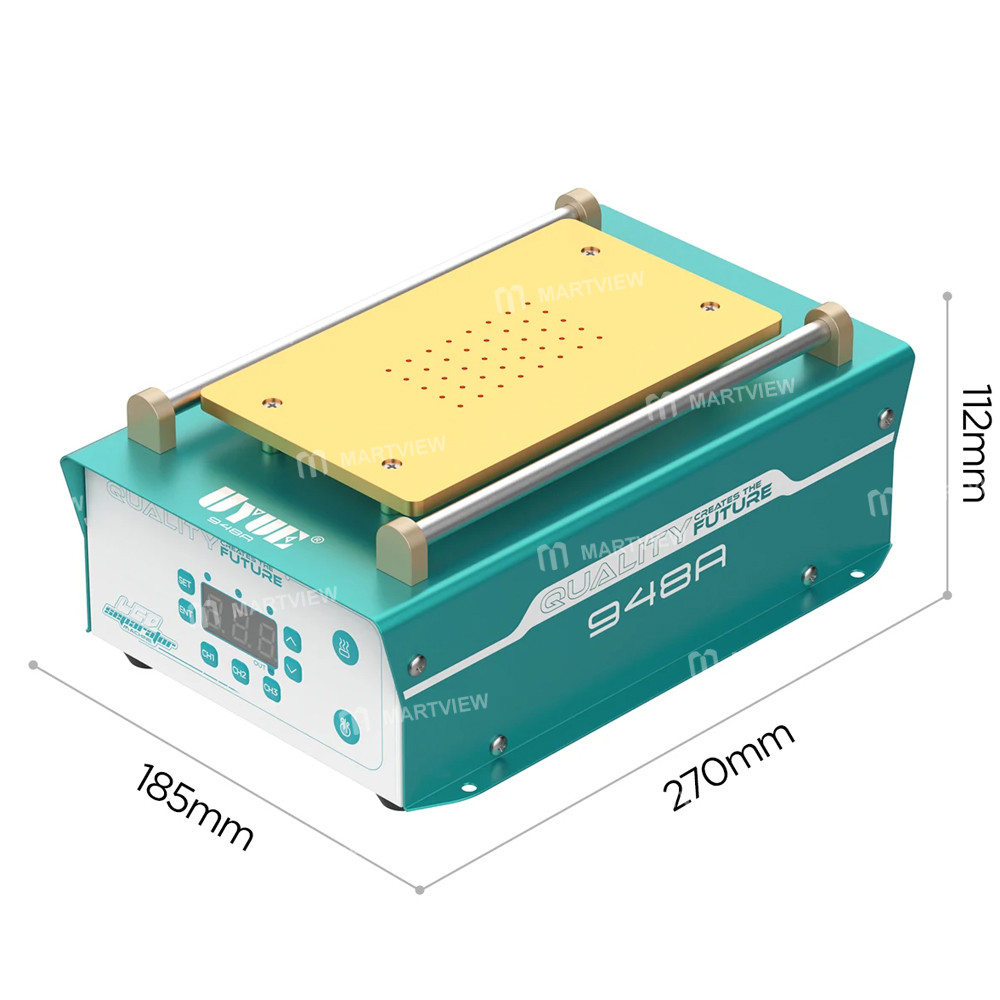

• Overall dimensions: 270*185*112mm

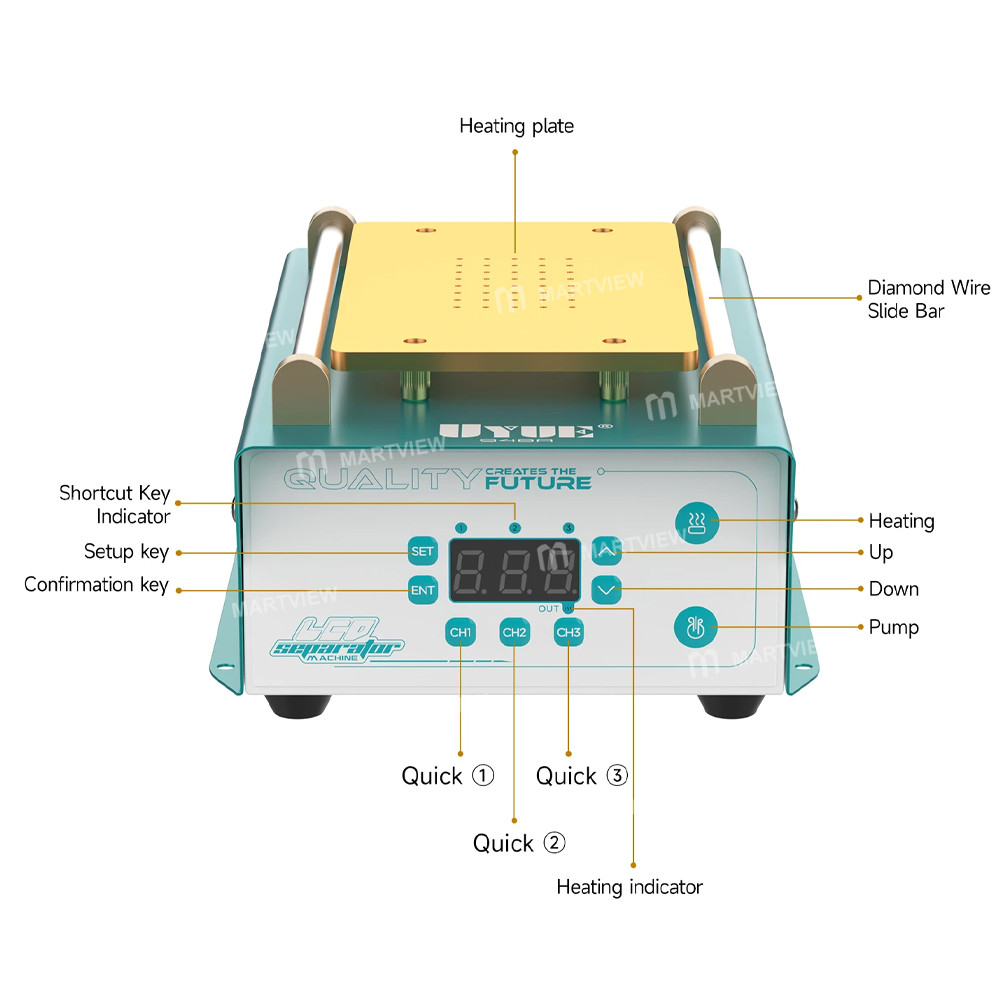

Instructions:

• Setting key: click this button to set the temperature parameters, press the addition and subtraction keys to adjust the parameters, press and hold this button for 3 seconds to display the PO to enter the temperature calibration, and then click this button to display the 00 adjustment parameters -50~50°C

• Confirm button: After setting the parameters, click this button to return to the actual temperature interface

• Quick (1) (80°C), fast (2) (100°C), fast (3) (120°C), quickly adjust the temperature parameters (parameters are adjustable)

• Add and minus key: add or subtract when adjusting temperature parameters or temperature calibration

• Heating start button: Press this button to turn off the heating in the heating state, and click this button to start heating when the heating state is off

• Extraction start button: click this button to start pumping, and then click this button to turn off pumping

• Quick (1) indicator light, quick (2) indicator light, quick (3) indicator light: press which shortcut key to light up the corresponding indicator light

• Heating indicator: Solid light means heating, light up, turn off means heating, and then constant temperature

Package includes:

• 1 x Host

• 1 x Silicone Pad

• 1 x Power Cord
