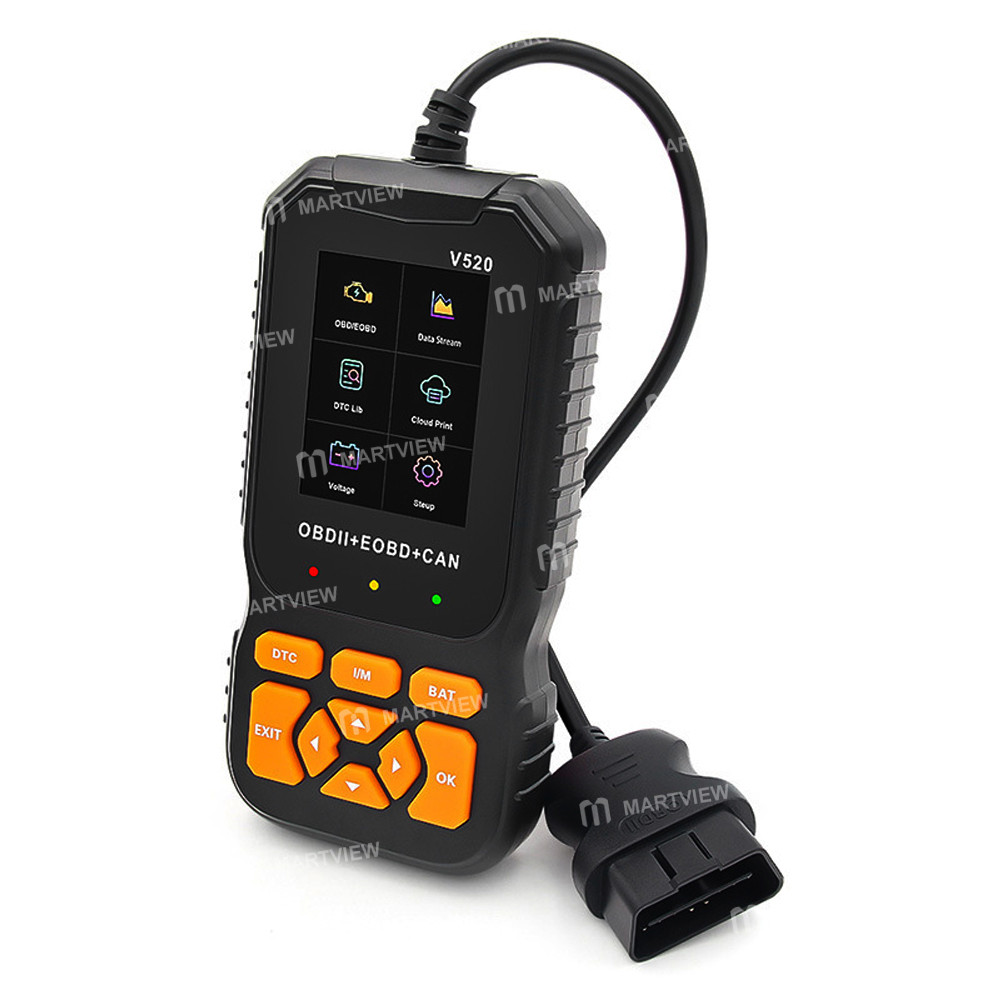

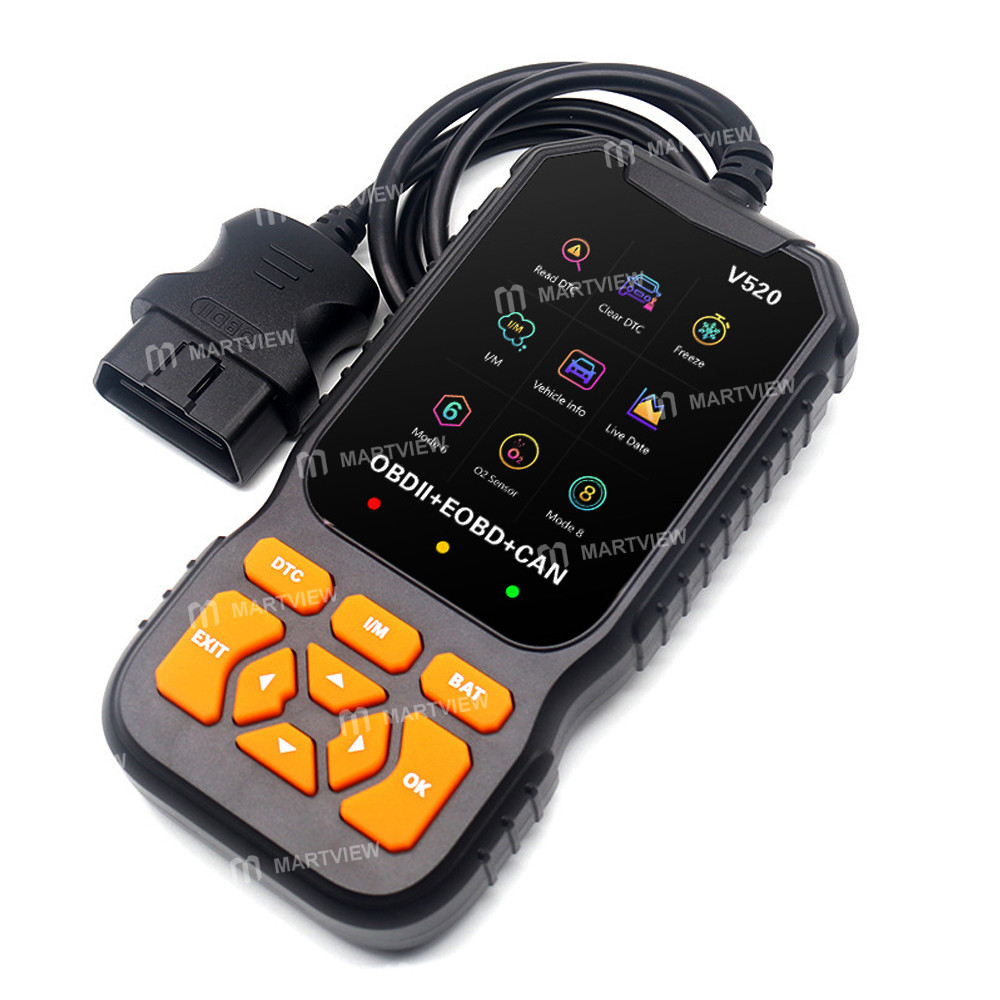

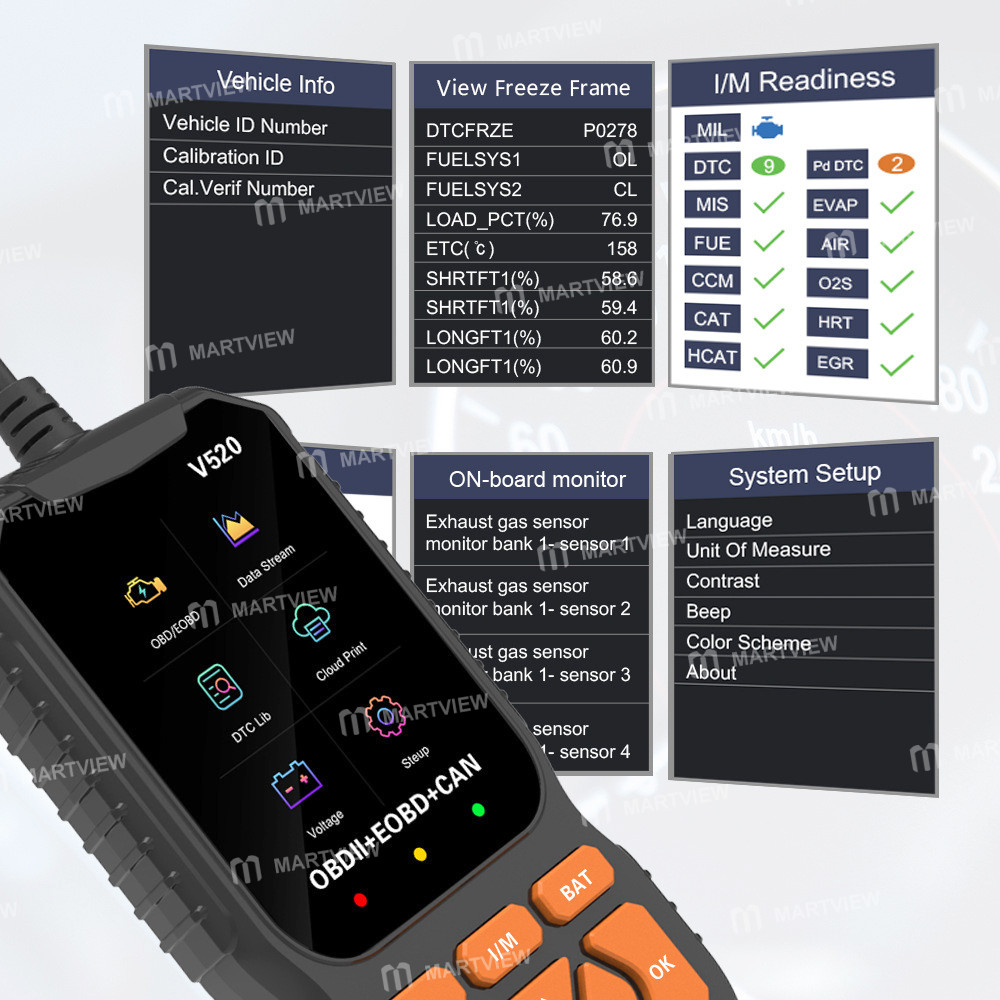

V520 Multi-Function Color Screen 12V Car Engine Fault Scanner Supports OBD2 Protocol

V520 Multi-Function Color Screen 12V Car Engine Fault Scanner Supports OBD2 Protocol

Function:

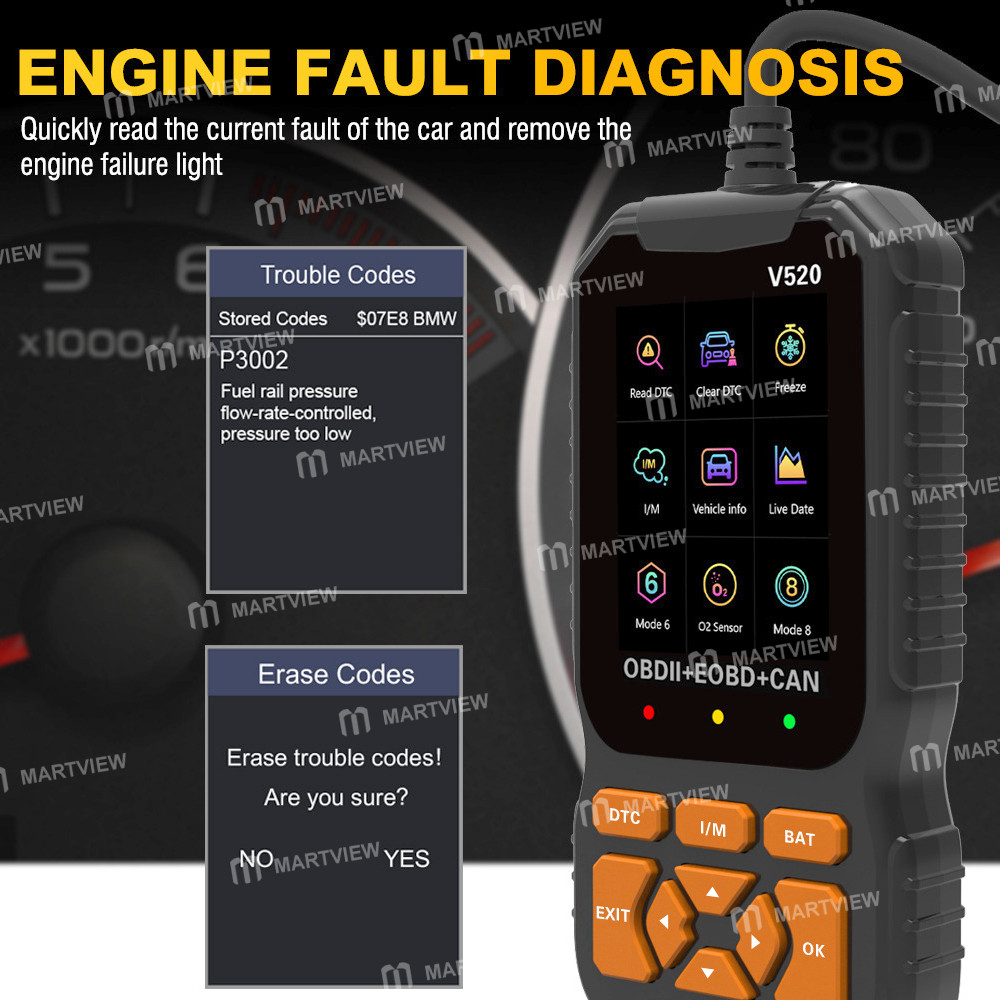

• Automotive Engine Fault Diagnosis

• Automotive Engine Fault Clearance

• Automotive Fault Freeze Frame

• Automotive VM Ready Status

• Vehicle Information Readout

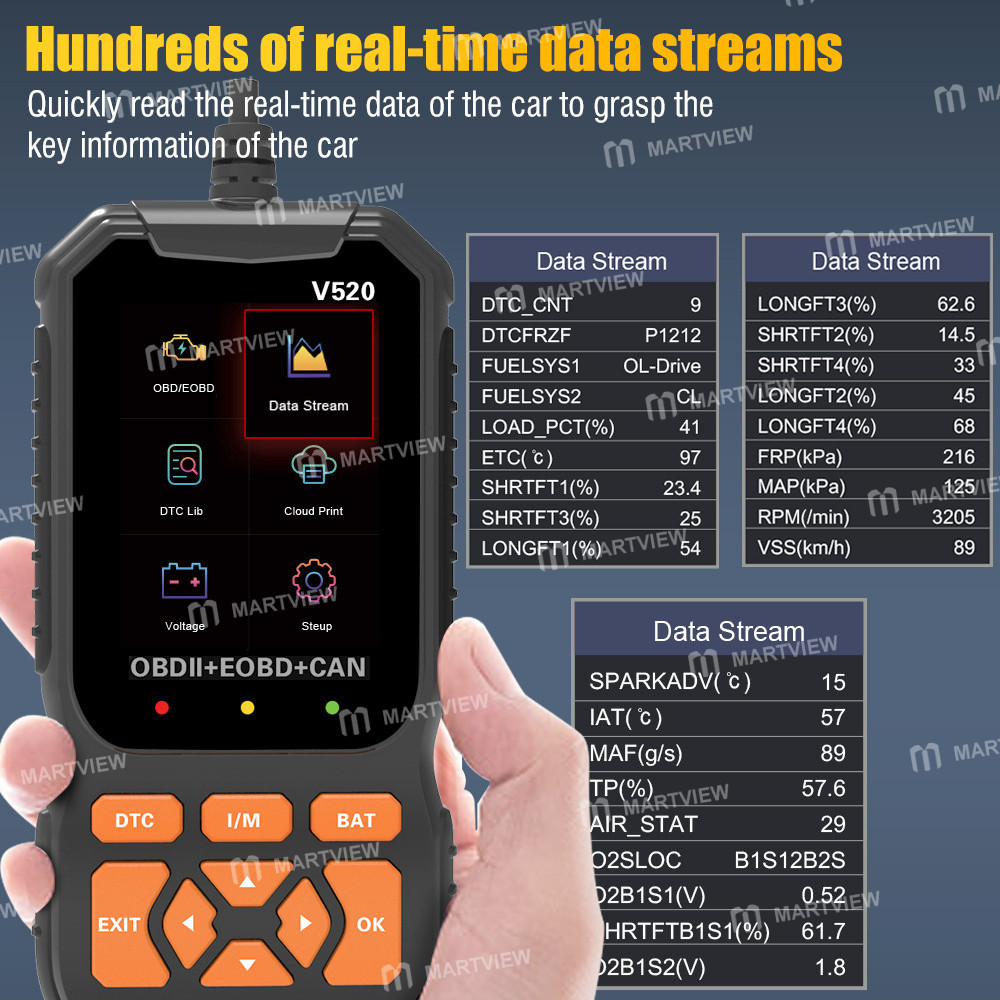

• Automotive Real-Time Data Stream

• Automotive Battery Voltage Readout

• Mode 6 Inspection

• Oxygen Sensor Test

• Mode 8 Inspection

• Fault Code Query

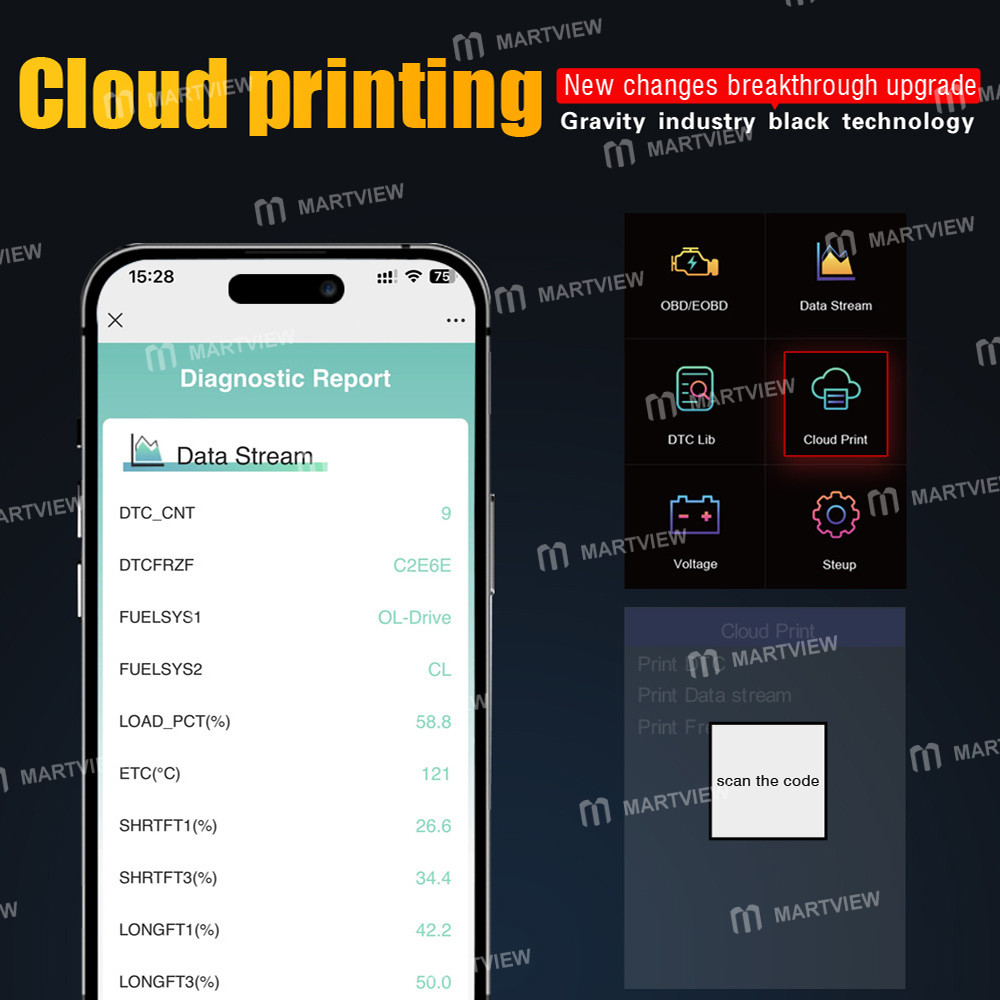

• Cloud Printing Function

• Dual-U Mode

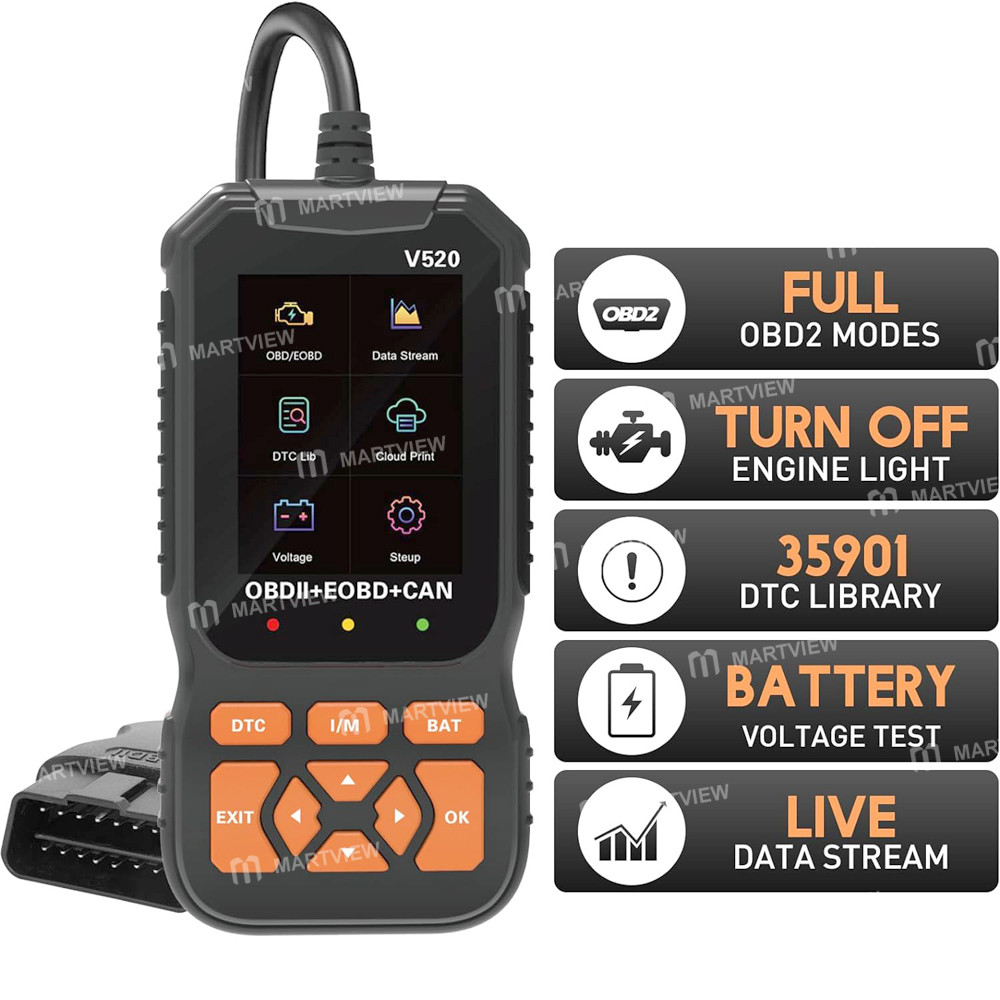

• 35,901 Fault Code Database

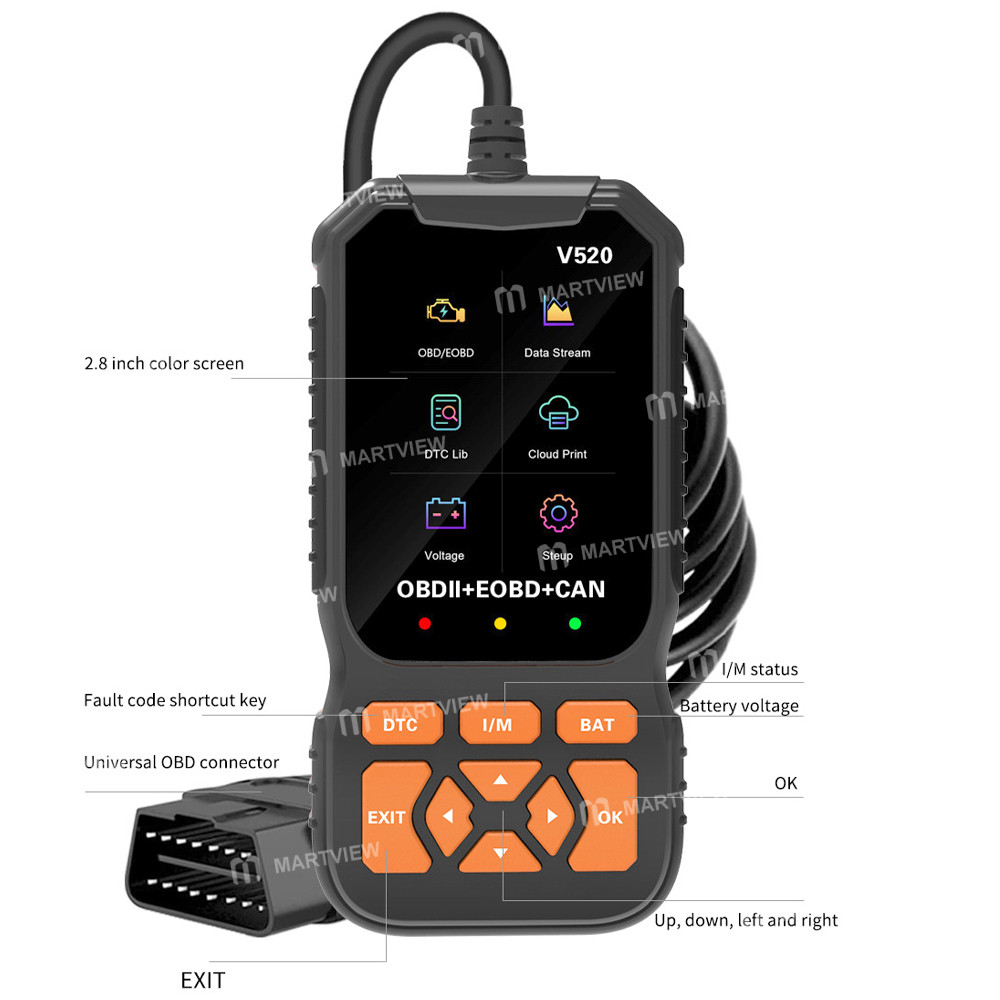

• 2.8-inch Color Screen

Supported protocols:

• SAE J1850 PWM（41.6 Kbaud）

• SAE J1850 VPW（10.4 Kbaud）

• ISO 9141-2（5 baud init,10.4 Kbaud）

• ISO 14230-4 KWP（5 baud init,10.4 Kbaud）

• ISO 14230-4 KWP（fast init,10.4 Kbaud）

• ISO 15765-4 CAN（11bit ID,500 Kbaud）

• ISO 15765-4 CAN（29bit ID,500 Kbaud）

• ISO 15765-4 CAN（11bit ID,2500 Kbaud）

• ISO 15765-4 CAN（29bit ID,250 Kbaud）

• Supported Vehicle Data

• Reading error diagnostic codes

• Clear fault codes (clear error codes and turn off MIL)

• Engine RPM

• Calculated load value

• Cooling liquid temperature

• Fuel system status

• Vehicle speed

• Short-term fuel situation

• Long-term fuel situation

• Intake manifold pressure

• Fuel injection lead time

• Intake temperature

• Air flow velocity

• Absolute position of the throttle valve

• Oxygen detection voltage associated with short-term fuel status

• Fuel system status

• Fuel pressure

• Monitoring of fuel consumption, etc

• Note: The number of data items supported varies depending on the model year, subject to actual support.

Technical parameters:

• Main control chip: APM32E103VET6, LQFP100

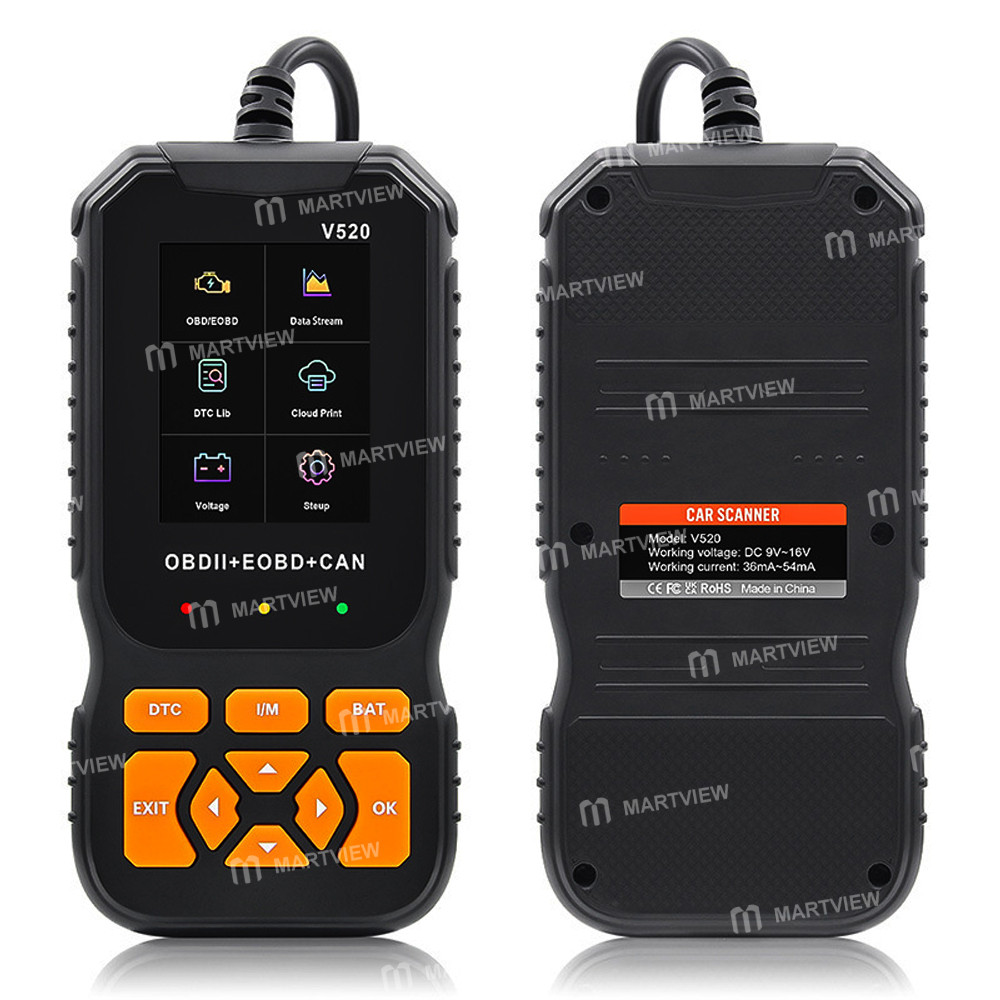

• Working voltage: DC 9V~16V

• Working current: 36mA~54mA

• Standby current: 40mA

• Operating environment: -30~70°C

• Storage temperature: -30~70°C

• External dimensions: 171 * 85 * 28mm

Package includes:

• 1 x Scanner
