VC 60B+ 1000V Digital Insulation Resistance Tester 2000M Megger For DC AC

VC 60B+ 1000V Digital Insulation Resistance Tester  2000M Megger For DC AC

Features:

• An accurate, reliable, and easy-to-measure insulation resistance, voltage

• Wide measuring range,voltage:250V/500V//750V1000V, resistance:0.1MΩ～2000MΩ

• Large LCD backlight display, convenient to read data, max display counts 1999

• Stable performance, LED light indicator, auto power-off, and low battery indication

• Wide range of applications, such as transformer, motor, cable, switch, and electrical facilities

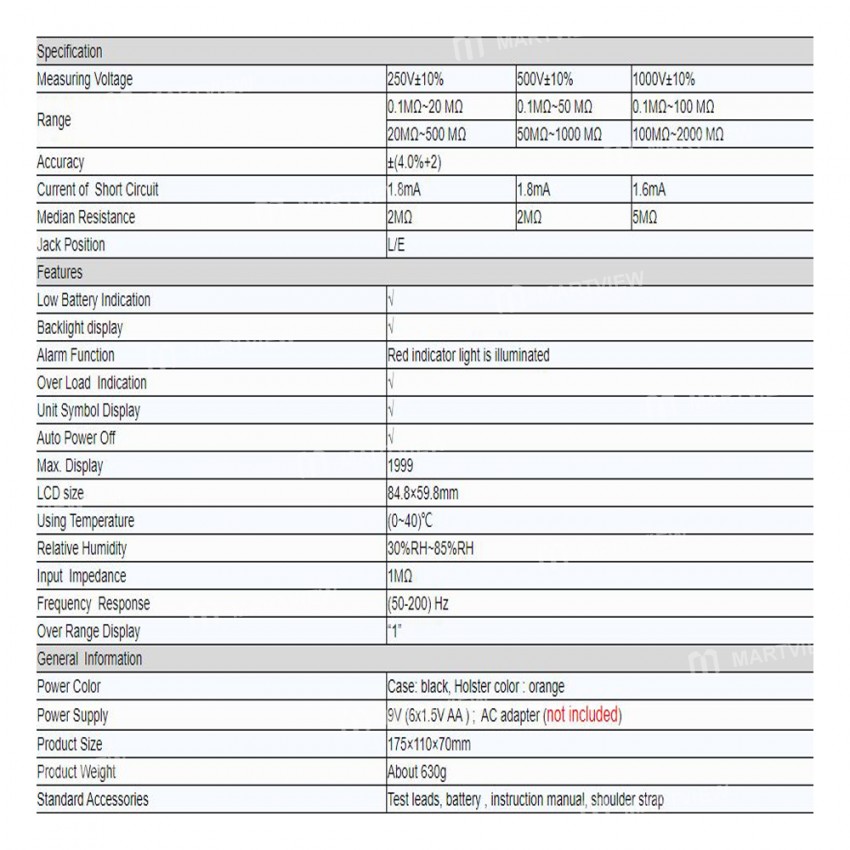

Specifications:

• Model: 60B+

• Color: Black & Orange

• Display Count:1999

• Test Voltage: 250V/500V/1000V

• Short current: 1.8mA,1.8mA,1.6mA

• Accuracy: ±(4% of reading±2)

• Meduan resistance: 2MΩ,2MΩ,5MΩ

• Terminal position: L .E

• Test Voltage: 750V ±(1% of reading±6)

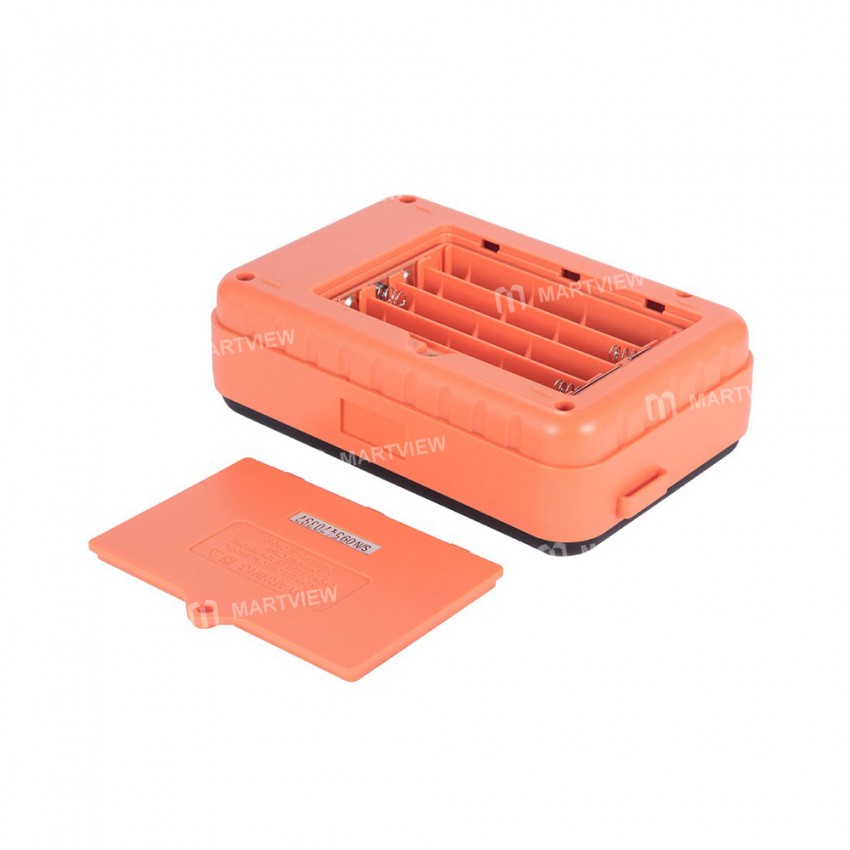

• Power: 6 x 1.5V AA battery (Not included)

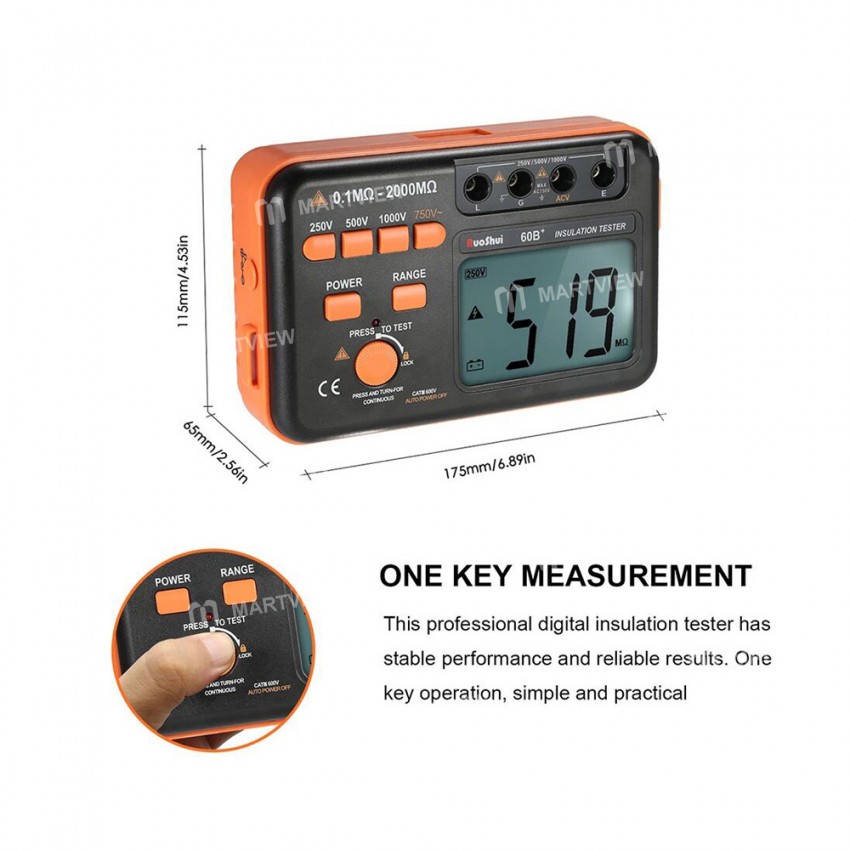

• Product Size: 175 x 115 x 60mm

• Product Net Weight: 504g

• Package Size: 210 x 170 x 70mm

• Package Weight: 630g

Package includes:

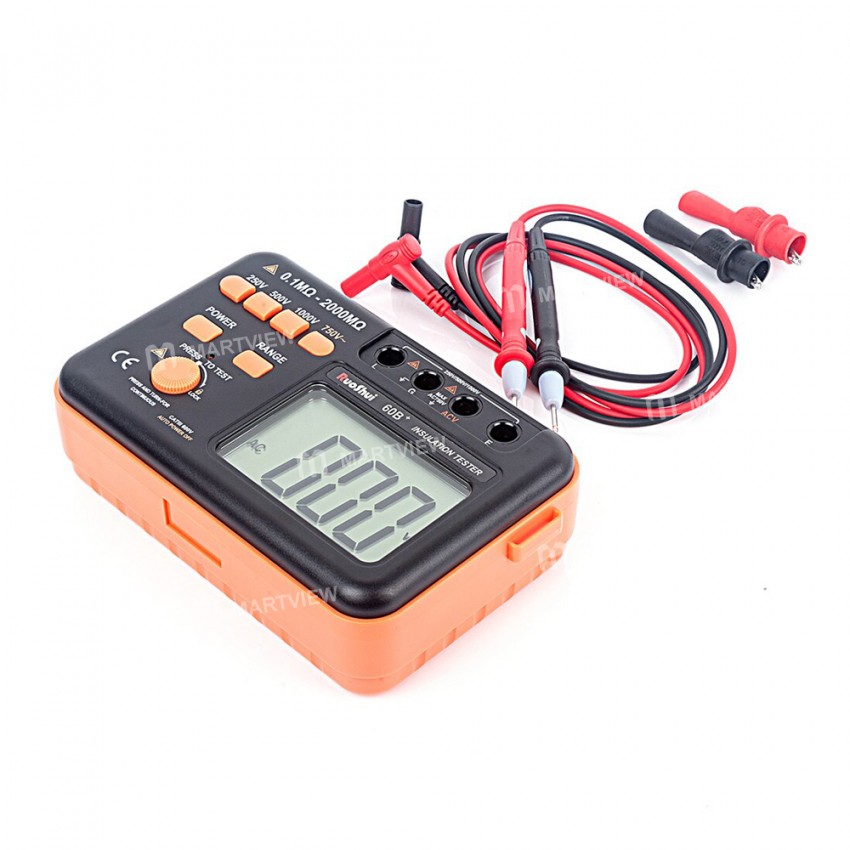

• 1 x 60B+ Insulation Resistance Meter

• 2 x Test Leads Pens

• 2 x Alligator Clips

• 1 x User Manual

• 1 x Strap
