Wanptek APS3010H 30V / 10A 4-Digits LED Programmable Regulated DC Power Supply with Memory Function

Wanptek APS3010H 30V/10A 4-Digits LED Programmable Regulated DC Power Supply with Memory Function

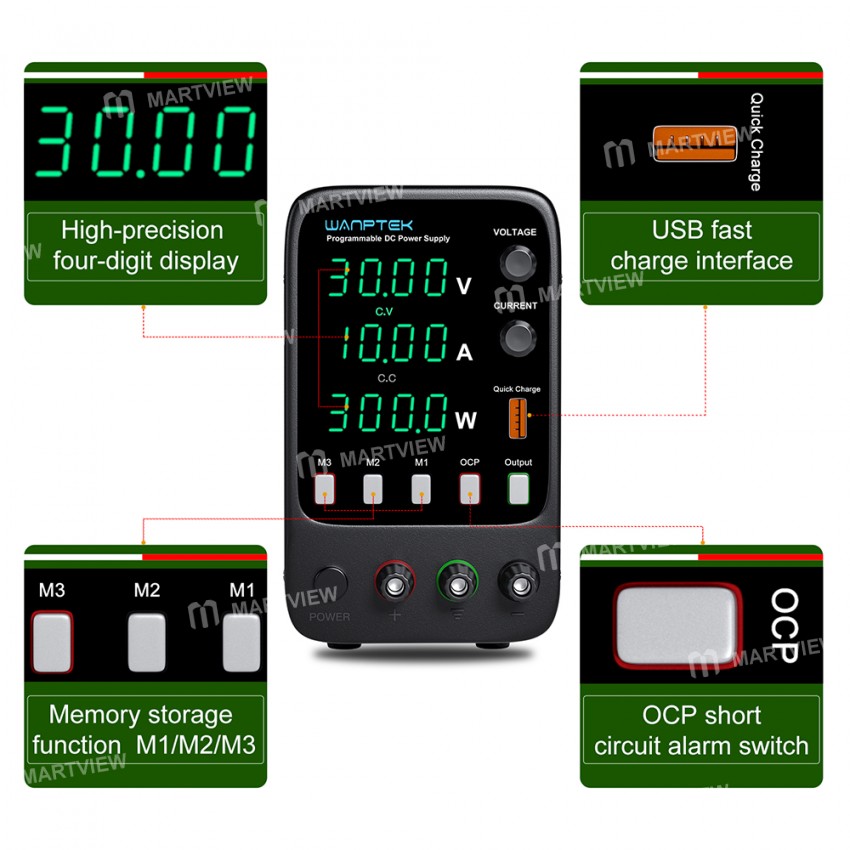

Features:

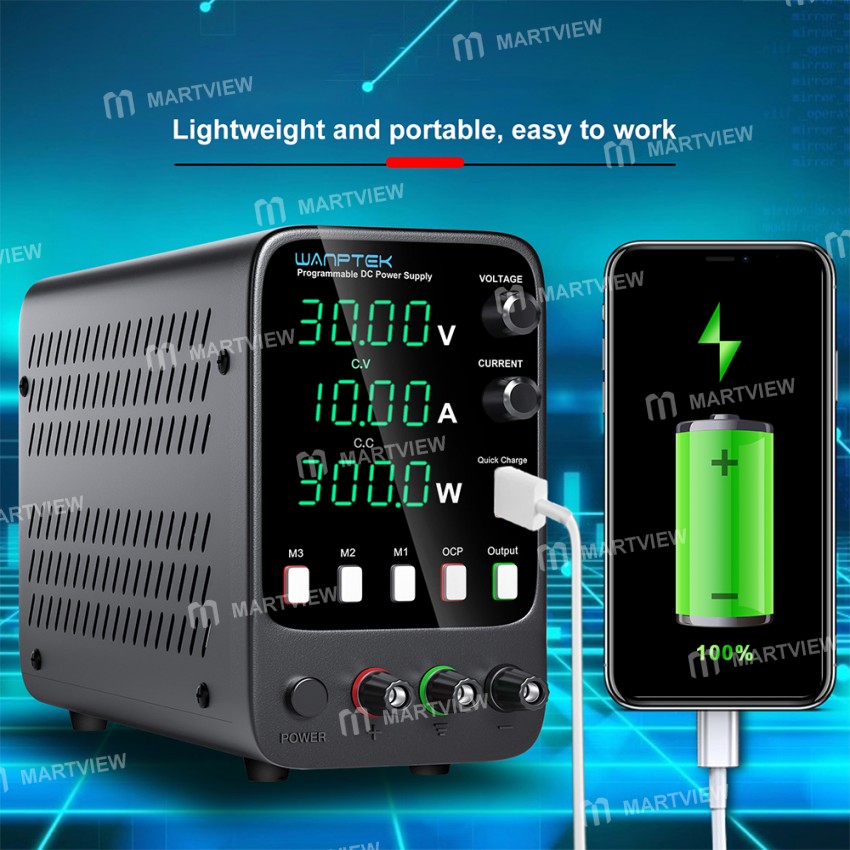

• Small size, lightweight, and high power density

• Constant pressure and constant current switch automatically

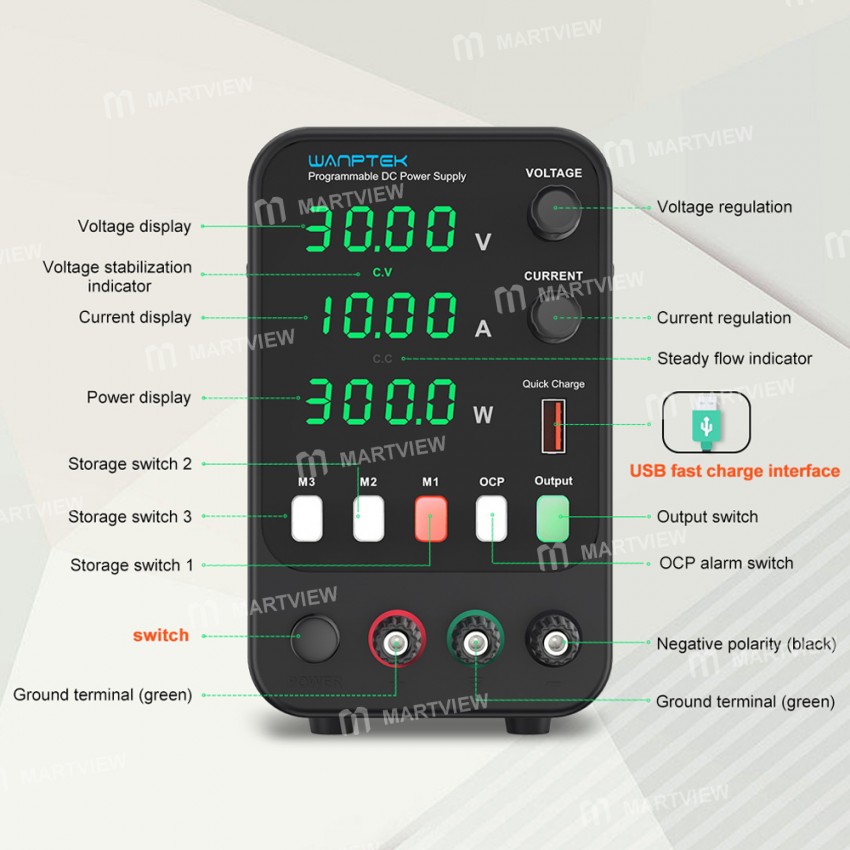

• LED display of voltage, current, and power, high precision and features of voltage stabilization, current limiting, and simple operation

• Adjustable Output Voltage & Current: output voltage and output current can be continuously

• Adjusted between 0 and nominal value with fine-regulating and coarse regulating

• It has over-voltage protection(OVP), over current protection(OCP), over temperature protection

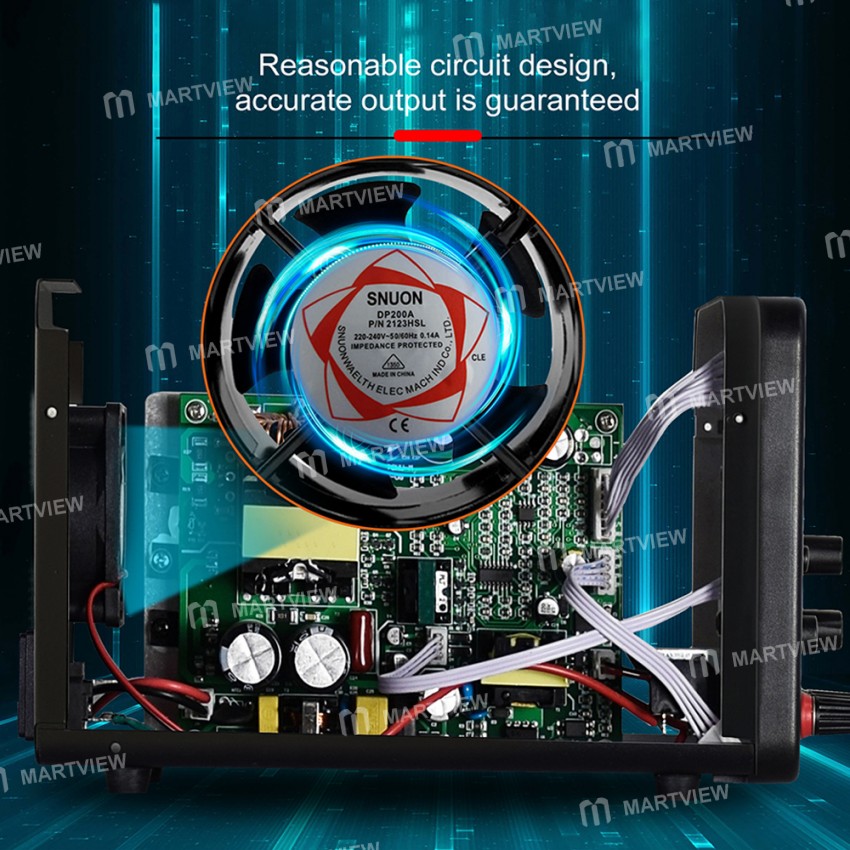

• Temperature-controlled fan cooling, low noise, long life

• Dual voltage input and convenient choice

• Output Voltage ranges from 0 to rating voltage with continuous adjustment

• Output current ranges from 0 to rating current with continuous adjustment

• AC 110V and 220V can work, rest assured to choose

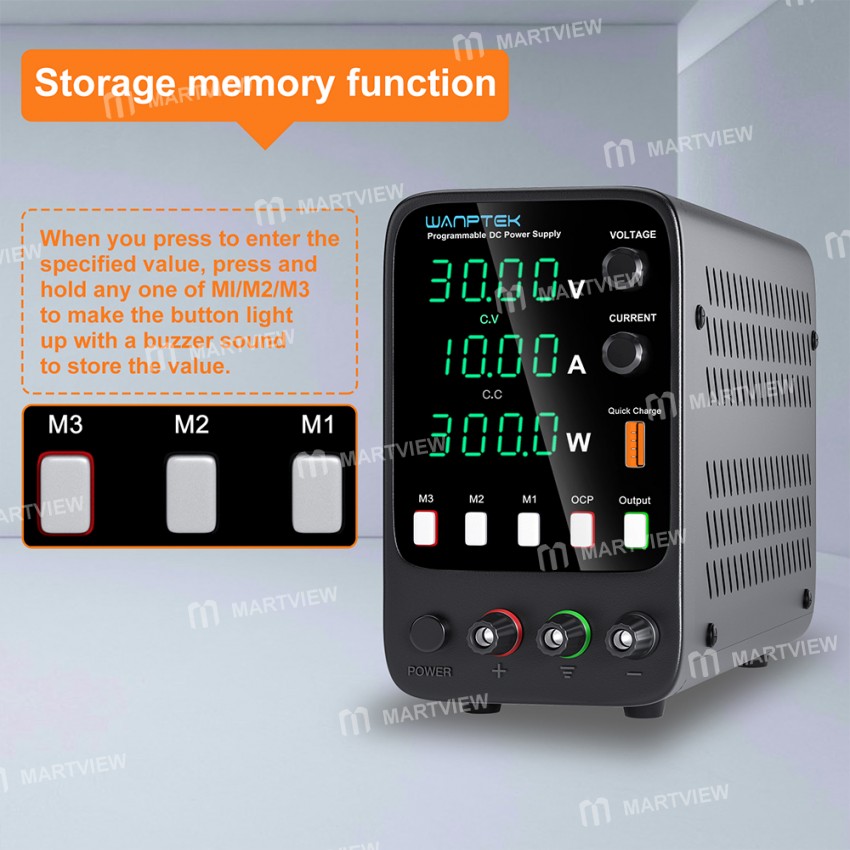

• Programmable (With memory storage function) DC power supply

Specification:

• Product Model: APS3010H

• Output power: 150W

• Output voltage: 0~30V

• Output current: 0~10A

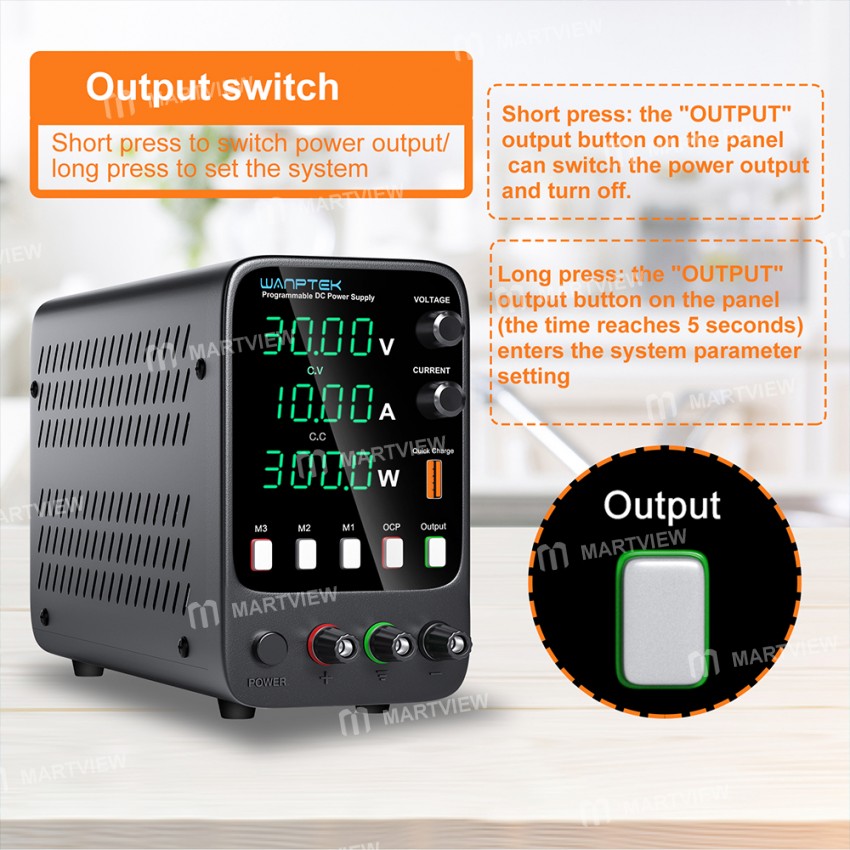

• Auxiliary functions: USB fast charging, OUT output on/off, USB upper computer communication (optional) data storage

• Protection: OVP over-voltage protection, OCP over-current protection, over-temperature protection, short-circuit alarm to stop output

• Input power: AC230V/115V±10%; 50Hz/60Hz

• Operating temperature: 0℃~40℃; relative humidity: <80%RH

• Storage temperature: -10℃~70℃; Relative humidity: <70%RH

• Voltage stabilization state CV.

• Voltage Stability: 0.5%±3mV

• Load stability: 0.5%±3mV

• Ripple voltage: ≤0.5%Vpp

• Current Stability CC.

• Current Stability: 0.5%±3mA

• Load stability: 0.5%±3mA

• Ripple current: ≤0.5%Vp-p

• Recovery time: ≤500μS

• Temperature coefficient: ≤100ppm/°C

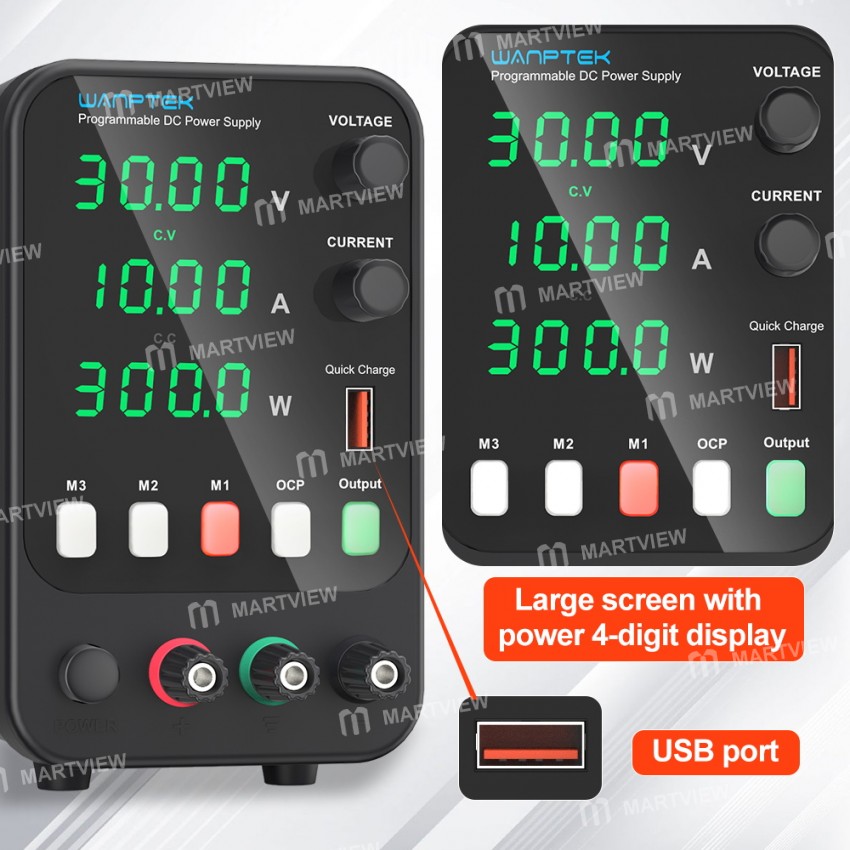

• Display: 0.4" four-digit digital tube

• Display accuracy: 0.5% ± 5 words

• Display resolution: voltage 0.01V, current 0.001A

• Product size: 190*90*145mm

• Package size: 265*135*195mm

• Net weight: 1.15Kg

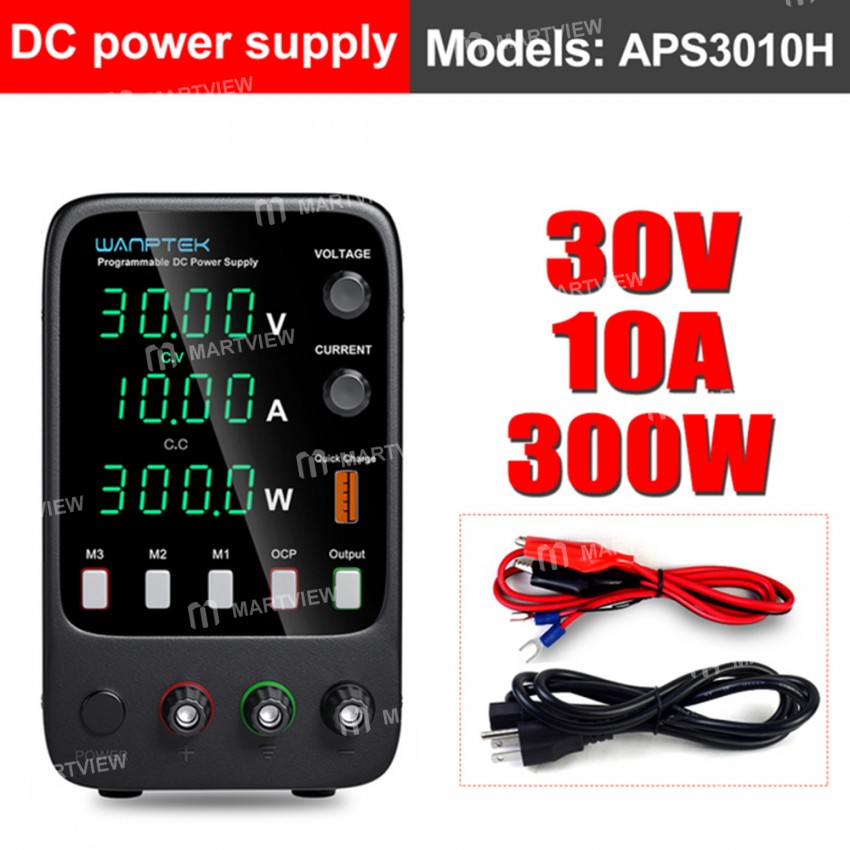

Package includes:

• 1 x Power Supply

• 1 x Power Cable

• 1 x Test Cable
