Wanptek DPS3010U 30V / 10A 4-Digits Display LED High Precision Adjustable Switching DC Power Supply

Wanptek DPS3010U 30V/10A 4-Digits Display LED High Precision Adjustable Switching DC Power Supply

Features:

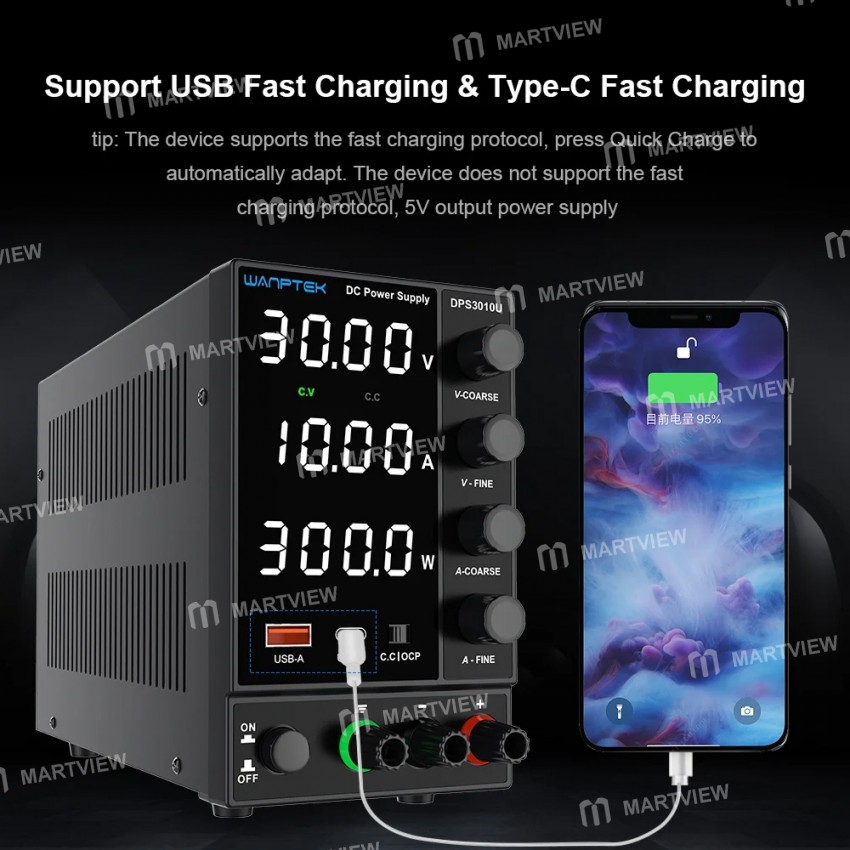

• USB Quick Charging: the machine has a built-in fast charging protocol identification chip that supports USB fast charging function.

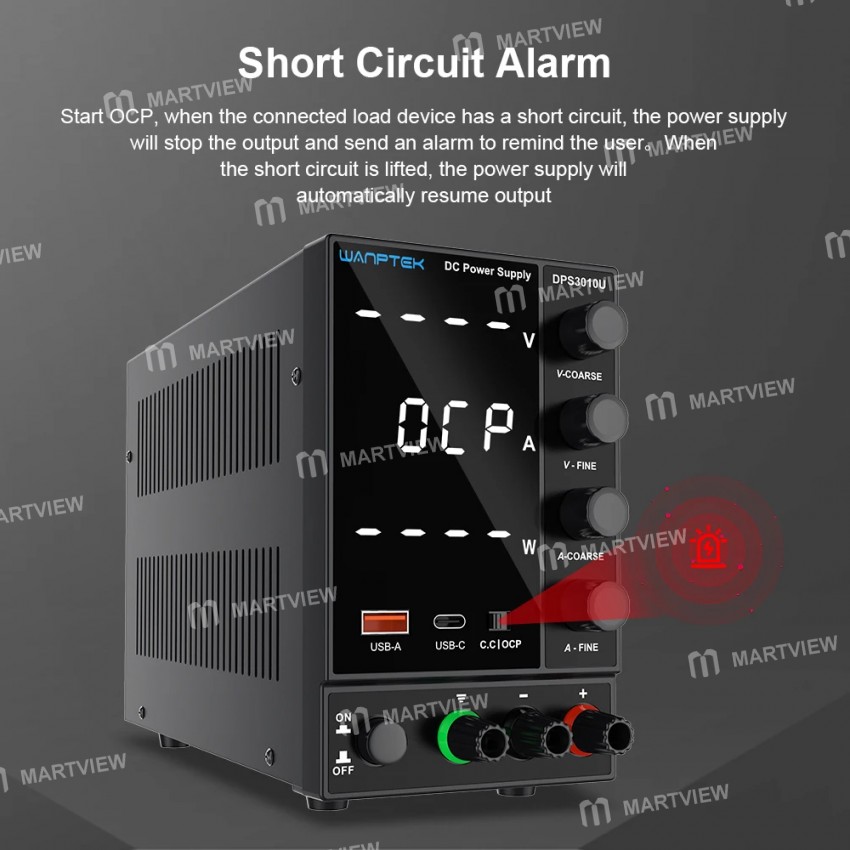

• Safety Operation: it has over-voltage protection(OVP), over-current protection(OCP), over-temperature protection, and the upgraded short circuit alarm function

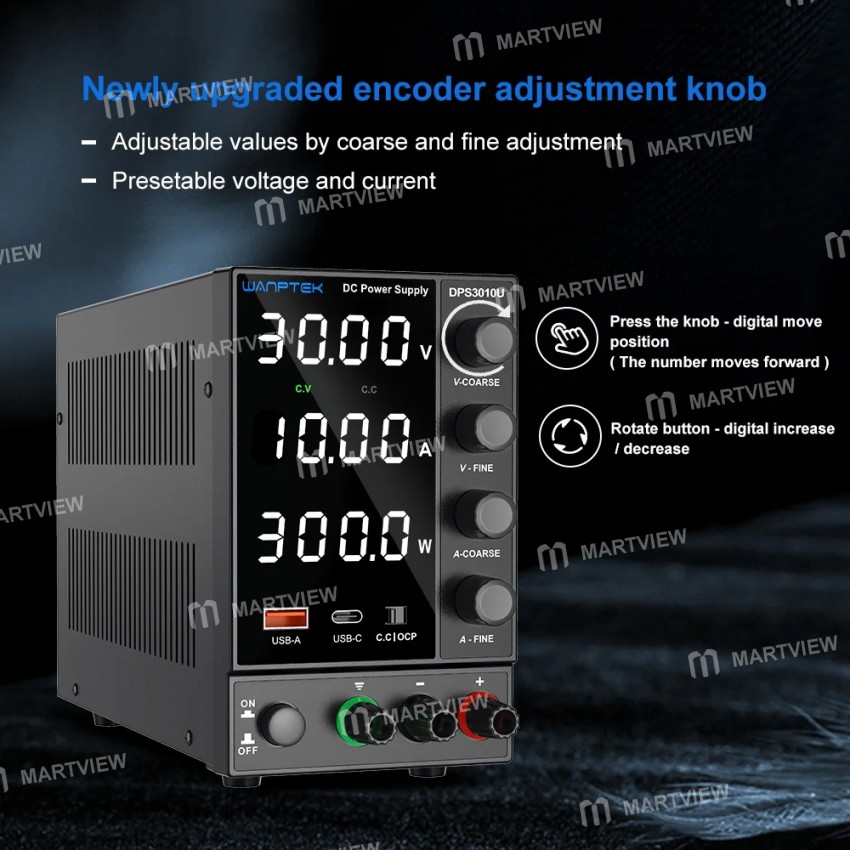

• Adjustable Output Voltage & Current: output voltage and output current can be continuously adjusted between 0 and nominal value with fine regulating and coarse regulating

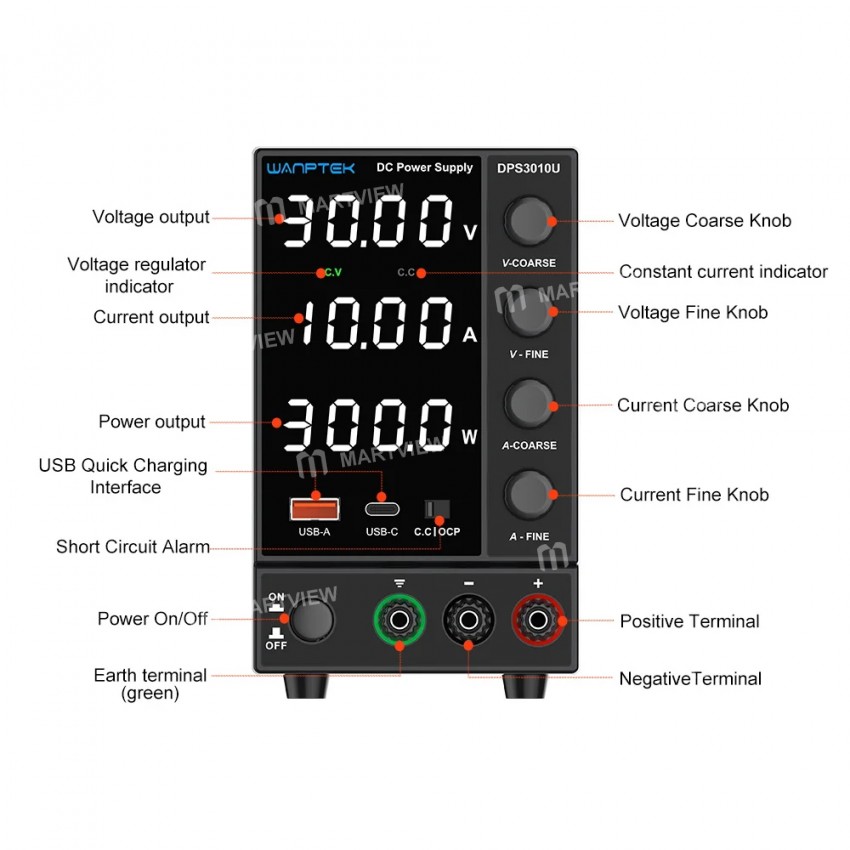

• Clearly Display & Functional: LED 4 digits display of voltage, current, and power, high precision and features of voltage stabilization, current limiting, and simple operation

• Wide Application: can be used in mobile phone maintenance, computer maintenance, electrical maintenance, school laboratories scientific research and production line use, and all other needs DC regulated power supply

• Supporting Fast Charging Protocols Include: compatible with Qualcomm QC2.0, QC3.0, iOS, Huawei FCP, SCP Samsung AFC, and other fast charging protocols

Specification:

• Plug Type: AU / EU / US / UK (Optional)

• Material: Aluminium alloy

• Model: DPS3010U

• Output Voltage: 0～30V

• Output Current: 0～10A

• Output Power: 300W

• Auxiliary Output: USB quick charging 18W, supports multiple quick charging protocols

• Input Voltage: AC230V ± 10%, 50Hz; AC115V ± 10%, 60Hz

• Working Temperature: 0~40℃; Humidity: <80%RH

• Storage Temperature: -10~70℃; Humidity: <70%RH
• Protection Mode: Current limiting protection/short circuit alarm stop output and self-recovery

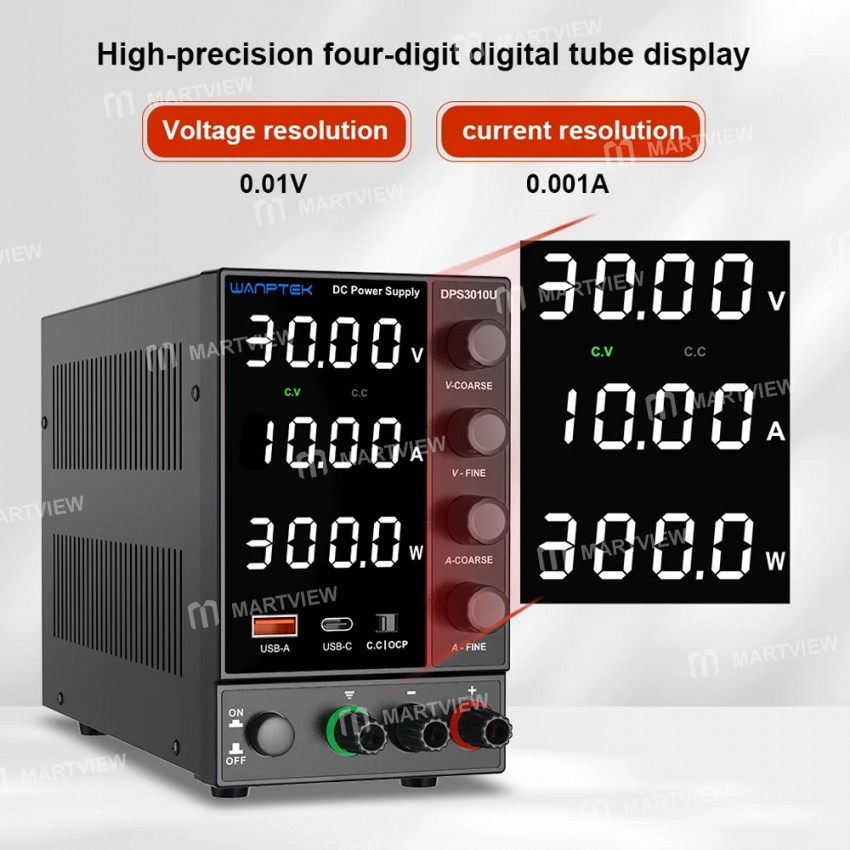

• Display: Four-digit digital tube, three-window display: voltage, current, power

• Display Accuracy: 0.5% ± 3 digits

• Display Resolution: voltage 00.01V; current 0.001A

• Fuse: 3A

• Item Size: 246 * 90 * 152mm

• Item Weight: 1571g

• Package Weight: 1737g

• Package Size: 30 * 20 * 14cm

CV:

• Voltage Stability: ≤0.1% ± 3mV

• Load Stability: ≤0.1% ± 3mV

• Ripple Noise: ≤20mVrms (effective value)

CC:

• Current Stability: ≤0.1% ± 3mA

• Load Stability: ≤0.2% ± 3mA

• Ripple Noise: ≤5mArms (effective value)

Package includes:

• 1 x DC Power Supply

• 1 x Power Cord

• 1 x Alligator Clip Line
