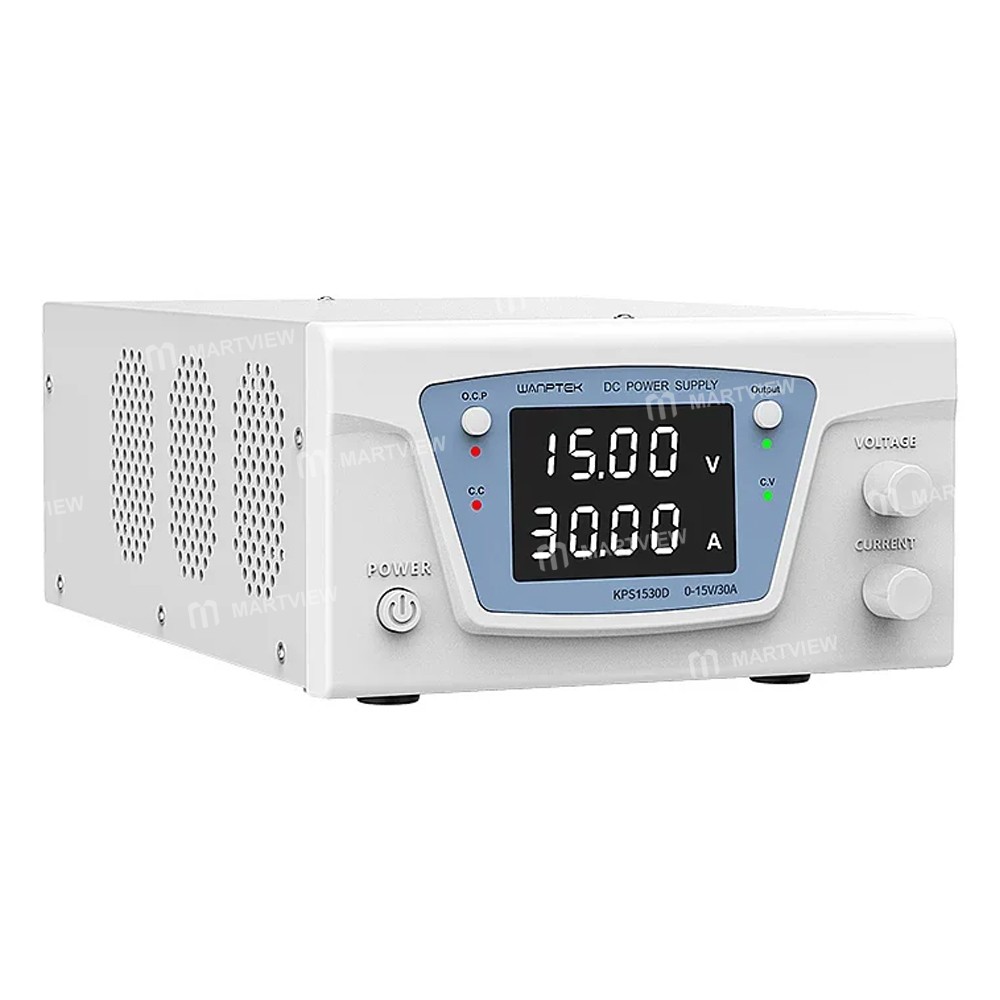

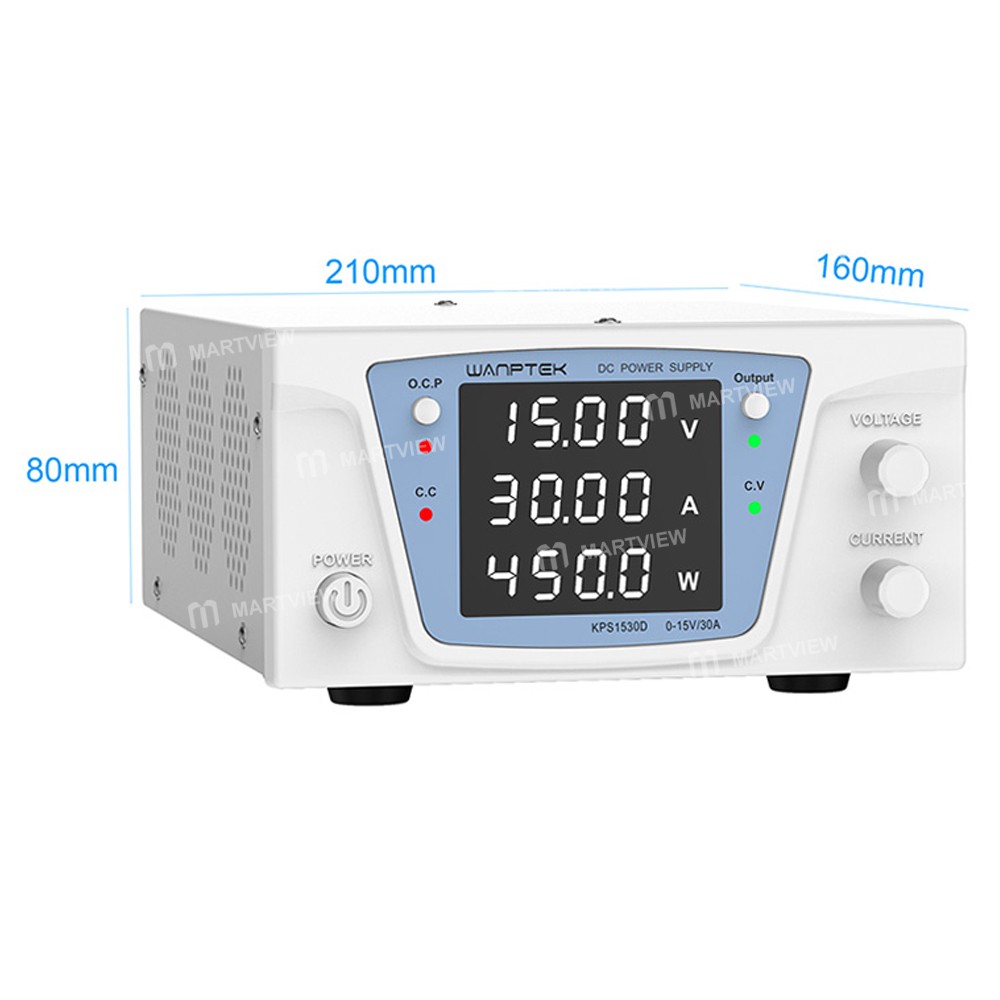

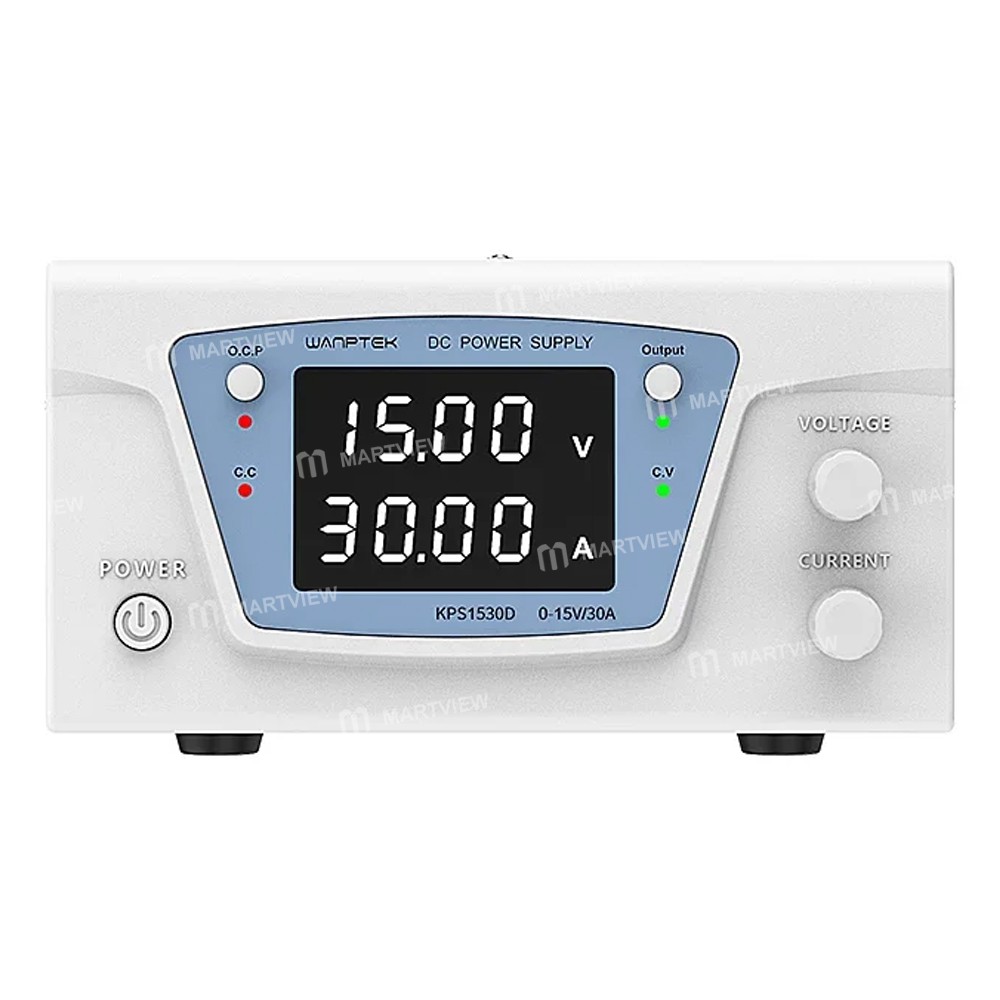

Wanptek KPS1530D 15V / 30A Four Digit Digital Switching Type DC Regulated Power Supply

Wanptek KPS1530D 15V / 30A Four Digit Digital Switching Type DC Regulated Power Supply

Features:

• Small size, lightweight, suitable for work surface use and rack installation

• Exquisite appearance, flexible operation, and convenient use

• High precision, internal use of the original chip, stable and reliable performance

• Using high-gain amplifier circuit design, with good fast load transient response to prevent unwanted voltage offset

• Using PWM modulation, high efficiency, more power saving

• Intelligent temperature control fan with low noise

• Built-in OVP over-voltage protection, OCP over-current protection, OPP overload protection, OTP over-temperature protection, and complete and reliable protection functions

• Voltage and current preset, OUT output function

• The product has a short-circuit protection alarm function

Application:

• Electrolytic plating

• Product aging test

• Production line test

• Charging batteries

• Electronic device testing

• Laboratory research and development test

• School teaching experiment

• Telecom Power

Specification:

Operation requirements
	Input voltage: AC 220V±10%;5 0Hz
	Operating temperature: 0℃～40℃; Relative humidity: <80%RH
	Storage temperature: -10℃～70℃; Relative humidity: <70%RH
output voltage	0~rated value (see specification table)
Output current	0~rated value (see specification table)
output power	See specification table
Set value resolution	Voltage: 0.01V
	Current: 0.01A
Resolution of readback value	Voltage: 0.01V
	Current: 0.01A
Header display
	0.56 inch white four-digit digital tube display
	Display accuracy: 0.5%±3 words
	Display resolution: Voltage 0.01V, Current 0.01A
Regulated state CV
	Voltage stability: 0.5%±20mV
	Load stability: 0.5%±20mV
	Ripple voltage: ≤0.5% Vp-p
Steady flow state CC
	Current stability: 0.5%±20mA
	Load stability: 0.5%±20mA
	Ripple current: ≤0.5% Vp-p
	Temperature Coefficient: ≤100ppm/℃
Rise Time	No load: ≤15ms
	Fully loaded: ≤30ms
Dynamic response time	≤2ms
Accessibility	Output switch, OCP short circuit protection switch
Protective function	OVP, OCP, OPP, OTP

Package includes:

• 1 x Power Supply

• 1 x Power Cable
