Waveshare RP2040-ETH Mini Development Board with Ethernet Port

Waveshare RP2040-ETH Mini Development Board with Ethernet Port

Features:

• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

• 264KB of SRAM, and 4MB of onboard Flash memory

• Onboard CH9120 with integrated TCP/IP protocol stack

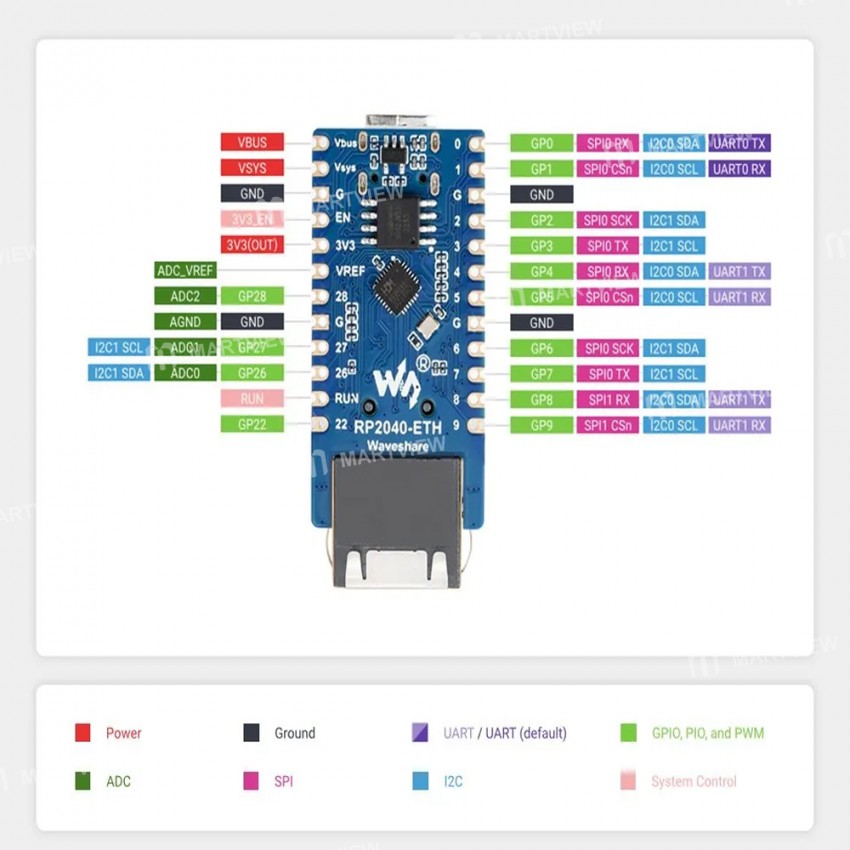

• 14 × multi-function GPIO pins, compatible with some Pico HATs

• The castellated module allows soldering directly to carrier boards

• Drag-and-drop programming using mass storage over USB

• 8 × Programmable I/O (PIO) state machines for custom peripheral support

• Tiny Size And Easy Integration

• Castellated Holes With Immersion Gold Design, Highly Integrated Packaging

• Supports Multiple Ways To Be Embedded Into Various Product Applications

• Support Multiple Communication Modes

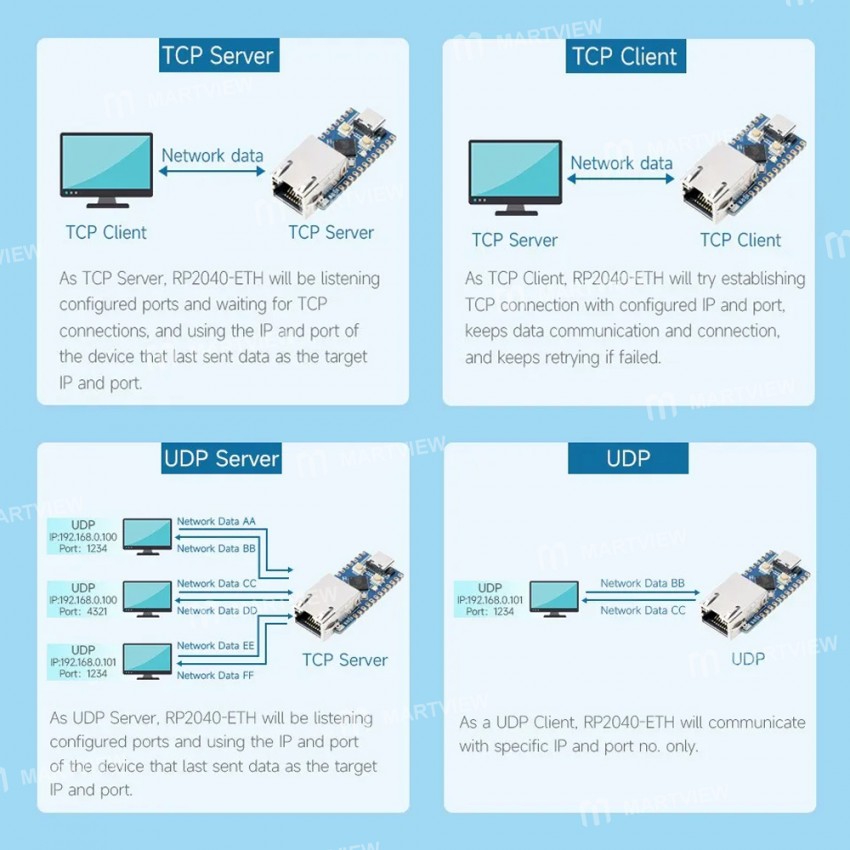

• Supports TCP Server / TCP Client / UDP Server / UDP

• Support C/C++, MicroPython, Arduino

• Comprehensive SDK, Dev Resources, Tutorials to Help You Easily Get Started

• Configurable Pin Function (This product is without a pre-soldered header by default), Allows Flexible Development And Integration

Package includes:

• 1 x Development Board
