Wemon T470 400W Intelligent High Frequency Soldering Station Support T470 / T245 / T210 Handle

Wemon T470 400W Intelligent High Frequency Soldering Station Support T470 / T245 / T210 Handle

Features:

• T470 Intelligent thermostatic professional soldering station, 400W high power, intelligent PID temperature control, support T470/T245/T210 handle

• Flexible switching/instantaneous welding/speed wake-up/rapid heating

• The product adopts the aluminium alloy structural design, compact layout, the use of high-specification ICs and components, to ensure the high stability of the product

• Heating up the temperature, temperature control, back to the temperature, high-speed processor, multi-stage PD temperature control, the temperature tolerance <2%

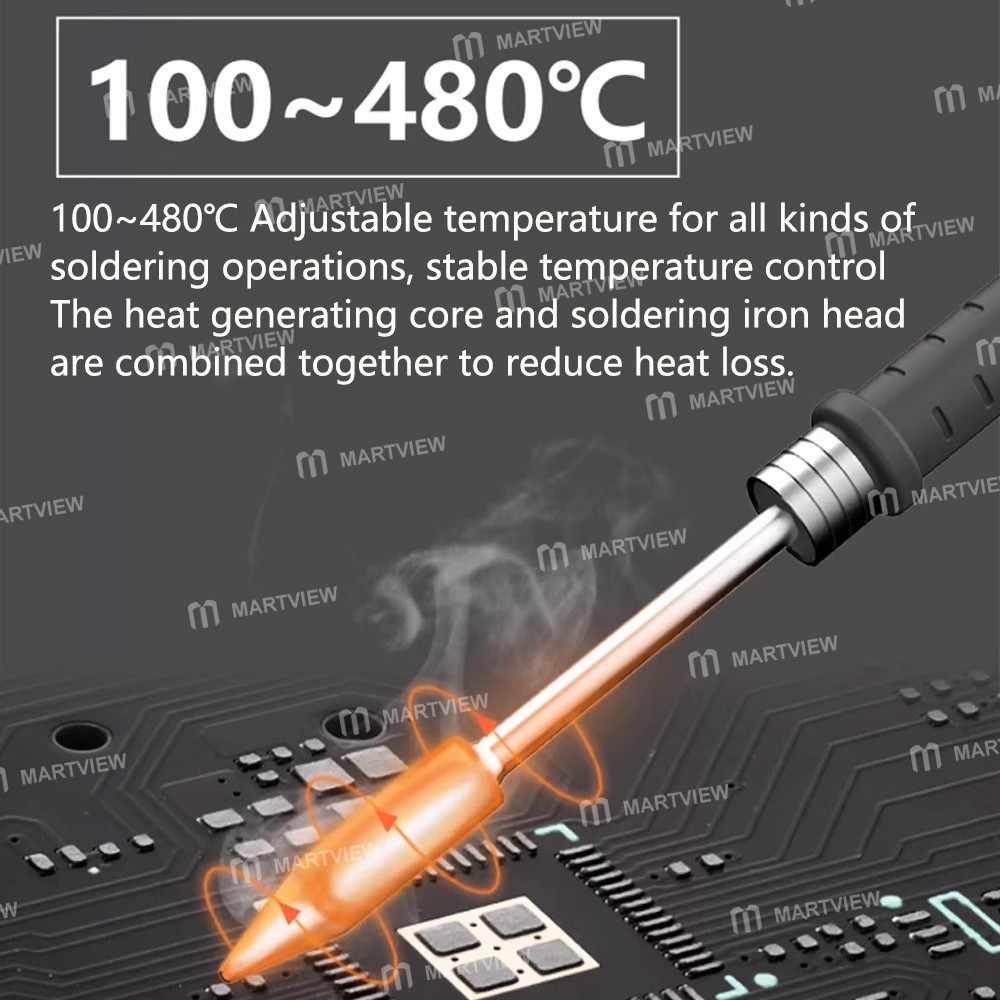

• 100 ~ 480 ℃ adjustable temperature applicable to a variety of welding operations, temperature control and stability, the heating core and the iron head of a combination of design, reduce heat loss, return to the temperature quickly, no time-consuming

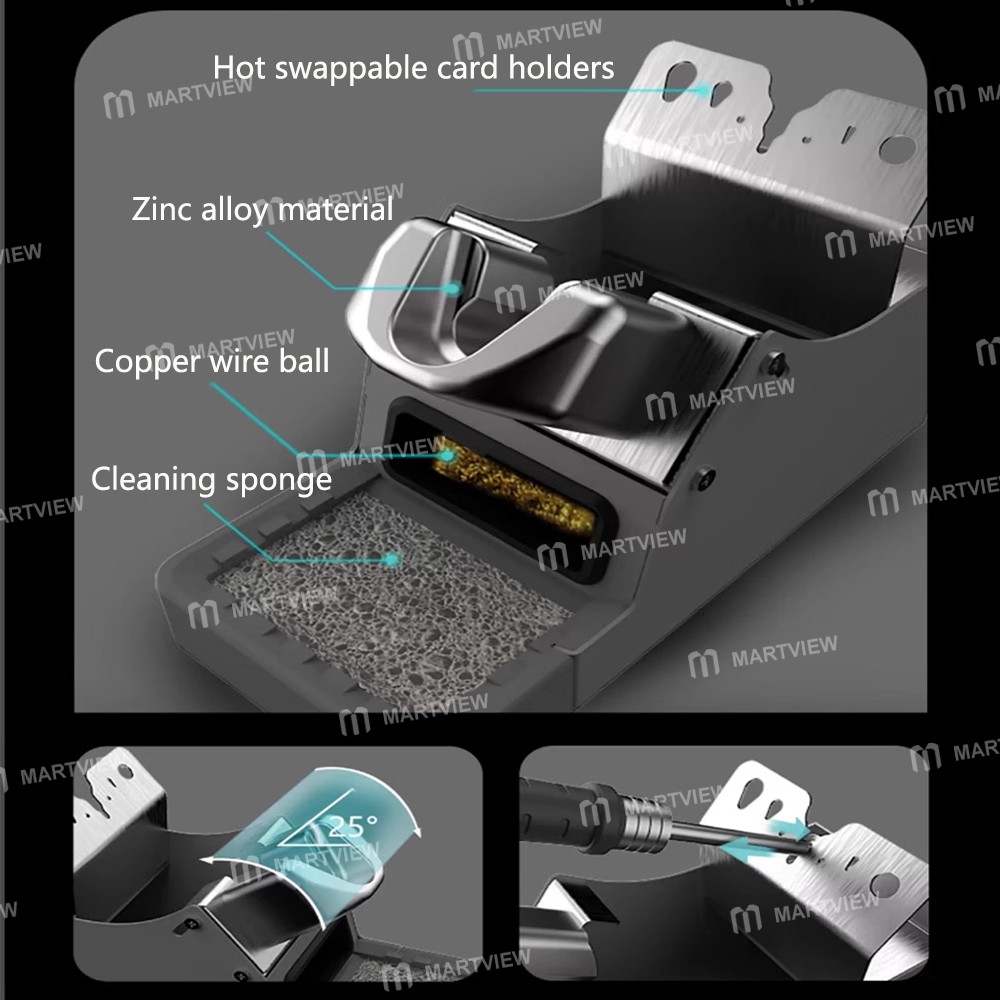

• Multi-functional soldering iron stand, high temperature, corrosion resistance, anti-static, non-deformation, easy to clean

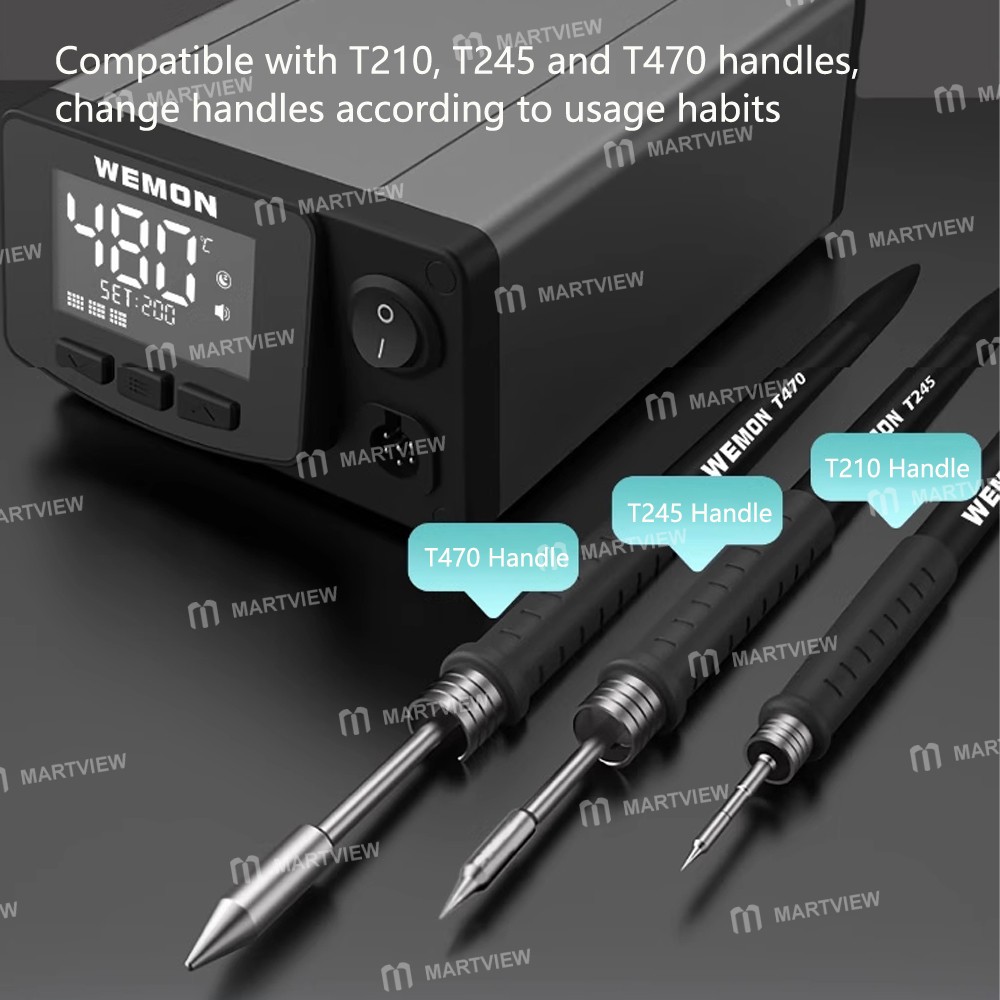

• strong compatibility with a variety of choices, compatible with T210, T245 and T470 handle, according to the habit of use to replace the handle

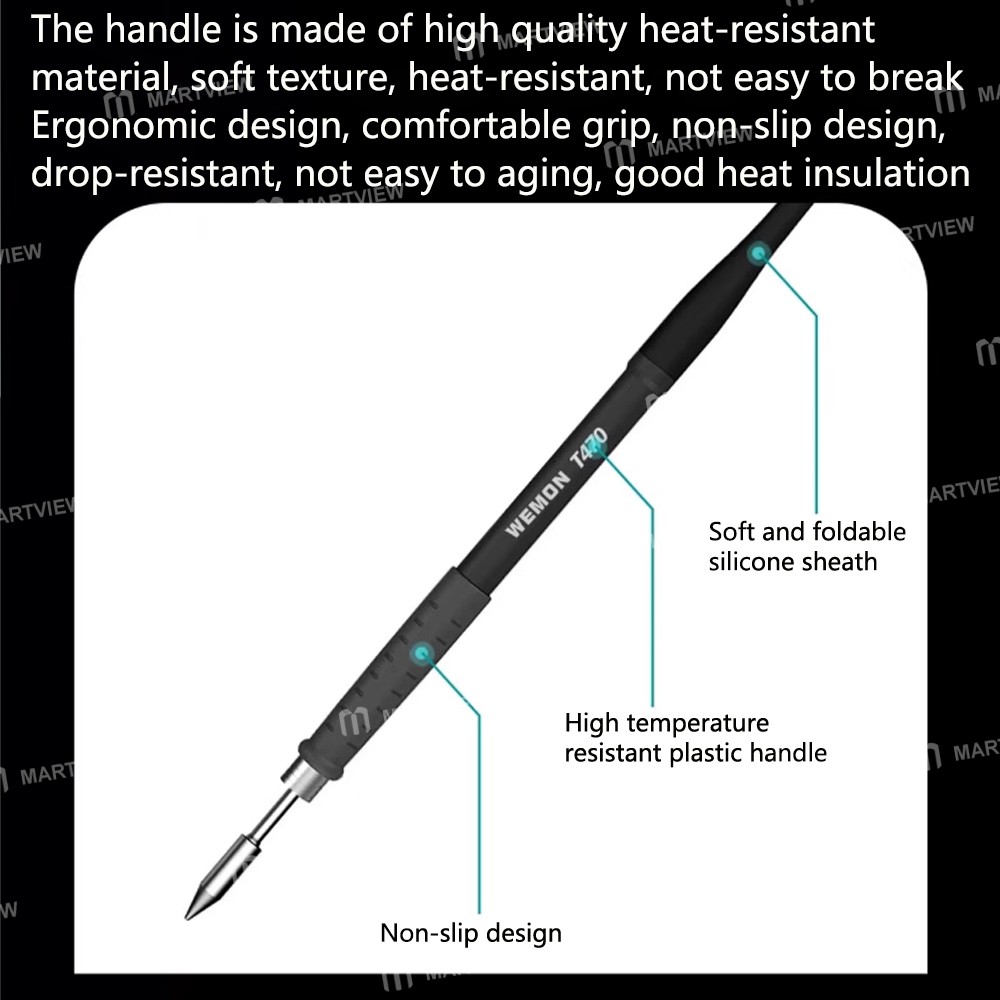

• handle using high-quality high-temperature materials, soft texture, high temperature resistance The handle is made of high quality high temperature resistant material, soft texture, high temperature resistant, not easy to break, ergonomic design, comfortable grip, non-slip design, drop resistance, not easy to aging, good insulation

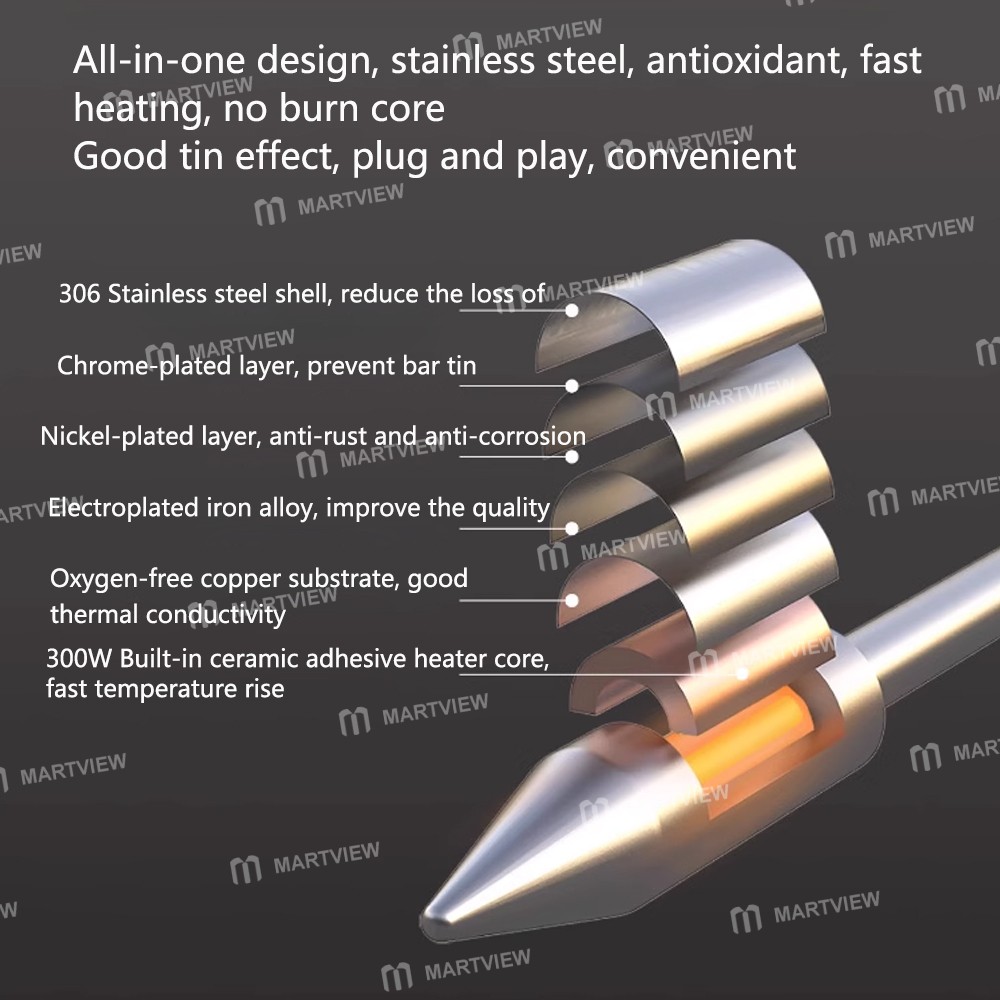

• Integrated design of the soldering iron head, stainless steel, oxidation resistance, fast heating, do not burn the core, tin effect is good, plug-and-play, convenient and quick

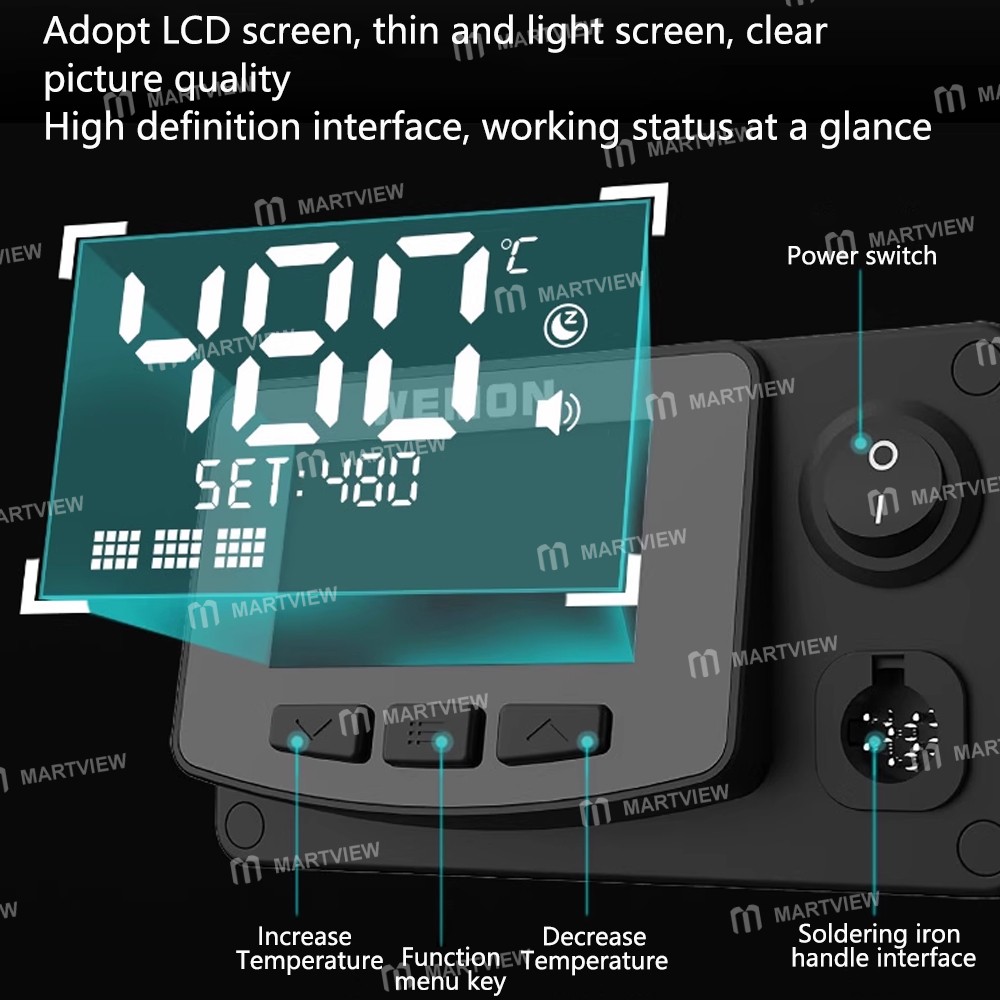

• Adopt LCD screen, thin and light, with clear picture quality, high-definition interface, the work status is clear at a glance

• Password-protected setup mode Code P09 is the password to enter the parameter setting mode (default password 000), short press the function key to enter the P09 option, short press the plus and minus buttons to modify the parameters, short press the function key to confirm the parameter

Setting code table:

• P01: Temperature setting

• P02: Temperature calibration

• P03: Temperature unit

• P04: Standby temperature

• P05: Standby time

• P06: Hibernation time

• P07: Permission to regulate the temperature

• P08: Sound switch

• P09: Password setting

• P10: Restore to factory

Specifications:

• Model: T470

• Peak power: 400W

• Temperature range: 100~480°C

• Support handle type: 210/245/470

• Voltage range: AC100~240V 50/60Hz

• Display: LCD liquid crystal display

• Working temperature: 10~50°C/50~122°F

• Heating method: intelligent PID control

Package includes:

• 1 x Host

• 1 x Hibernation Stand

• 1 x Silicone Pad

• 3 x Heated Core

• 1 x Soldering Iron Handle

• 1 x Power Cable

• 1 x Ground Cable
