WOYO PL007 Handheld CAN / LIN Digital Measuring Automatic Baud Rate Tester

WOYO PL007 Handheld CAN/LIN Digital Measuring Automatic Baud Rate Tester

Features:

• This product is a digital tester designed specifically for automotive electronics, which can detect whether the CAN and LIN communication status is normal and whether there is data online or offline

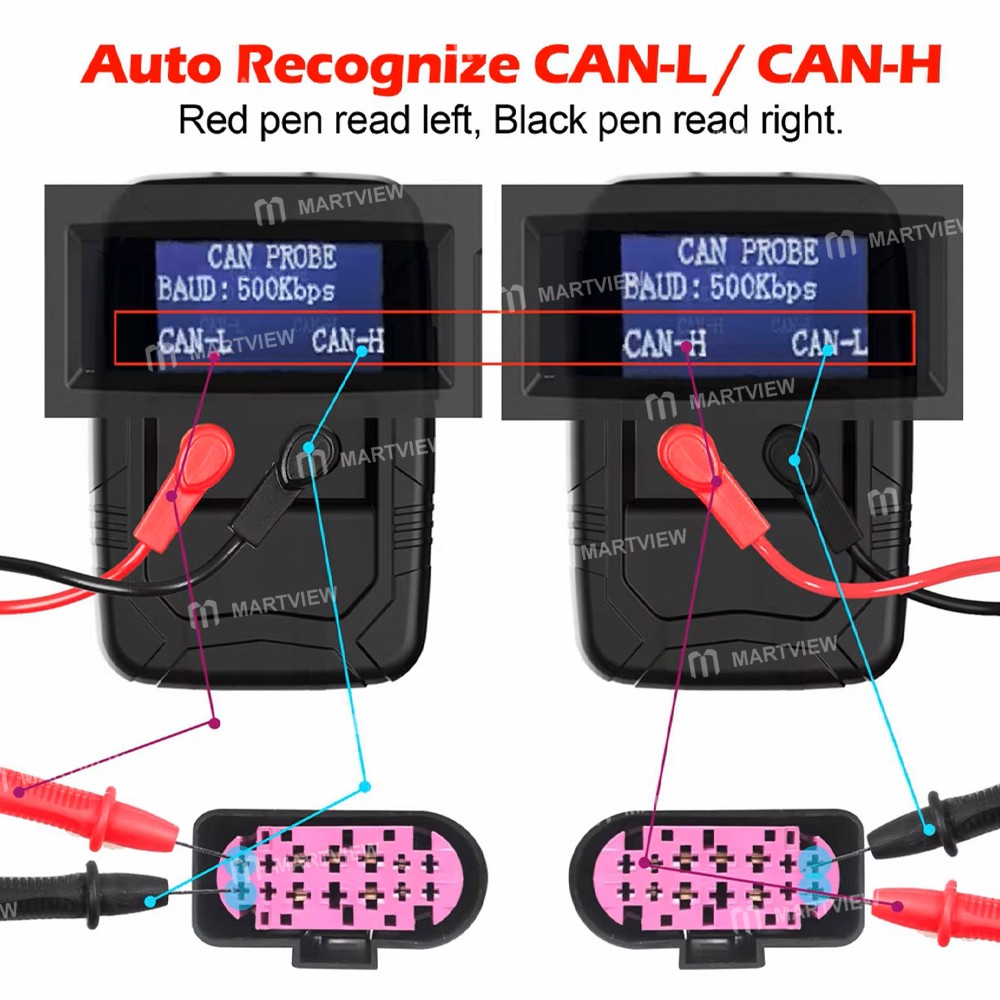

• The tester automatically recognizes CAN-High and CAN-Low, and automatically detects the baud rate

• Supports CAN baud rate of 100-125-150-200-250-300-400-500-666-800-1000kbps, and LIN baud rate of 2400-4800-9600-14400-19200bps

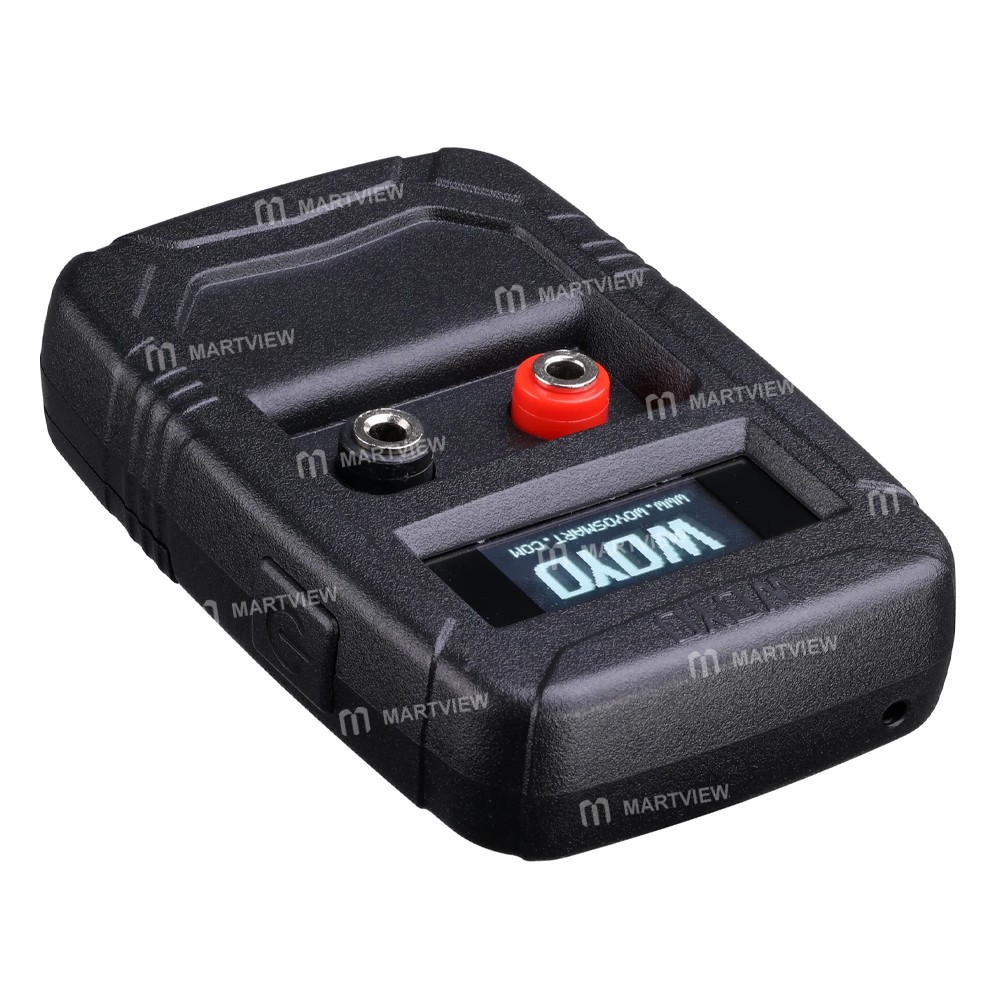

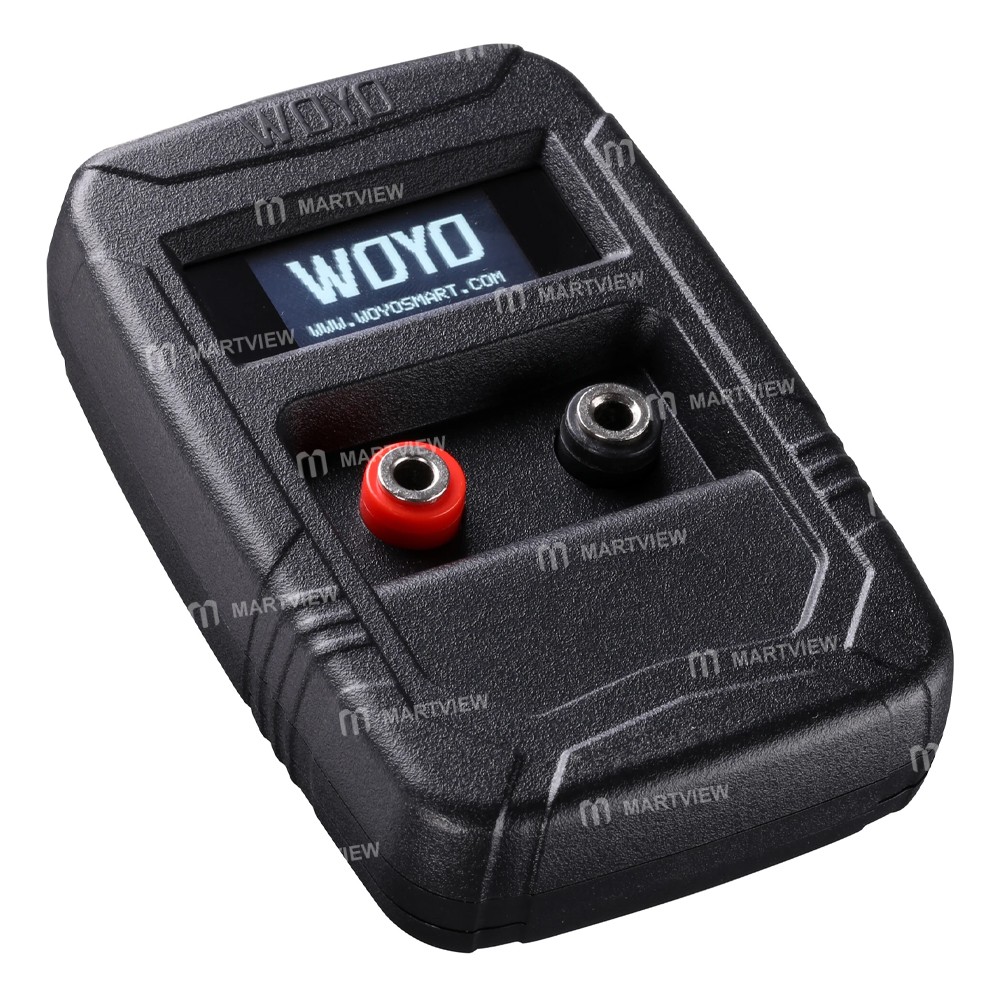

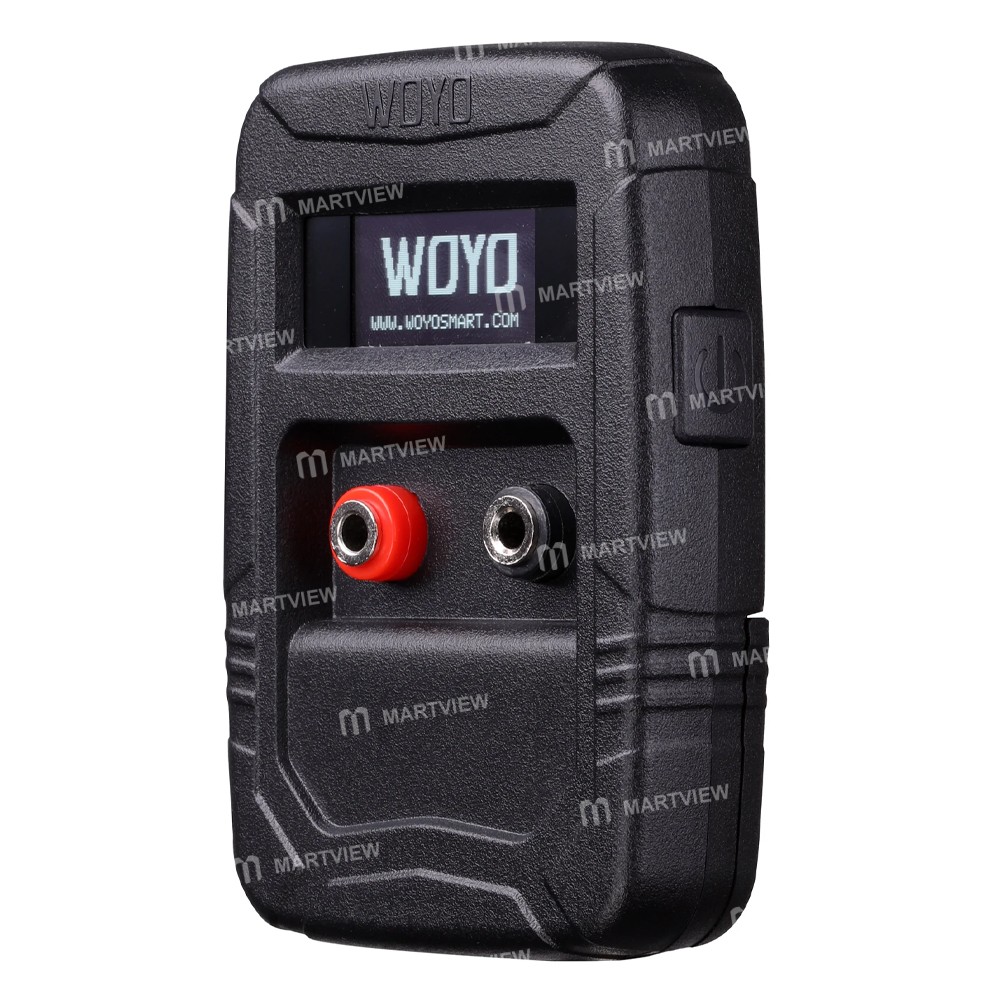

• Handheld CAN/LIN digital meter, compact and portable, you can open it for maintenance whenever and wherever you want

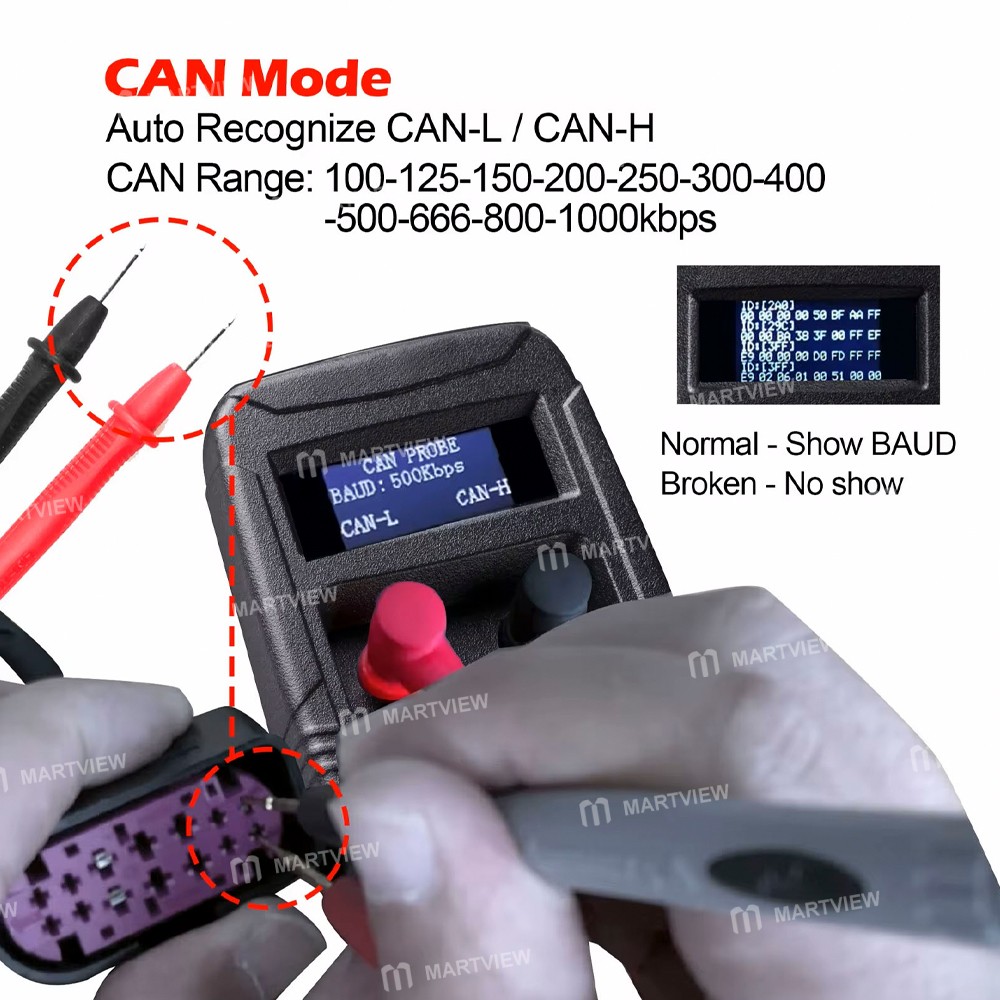

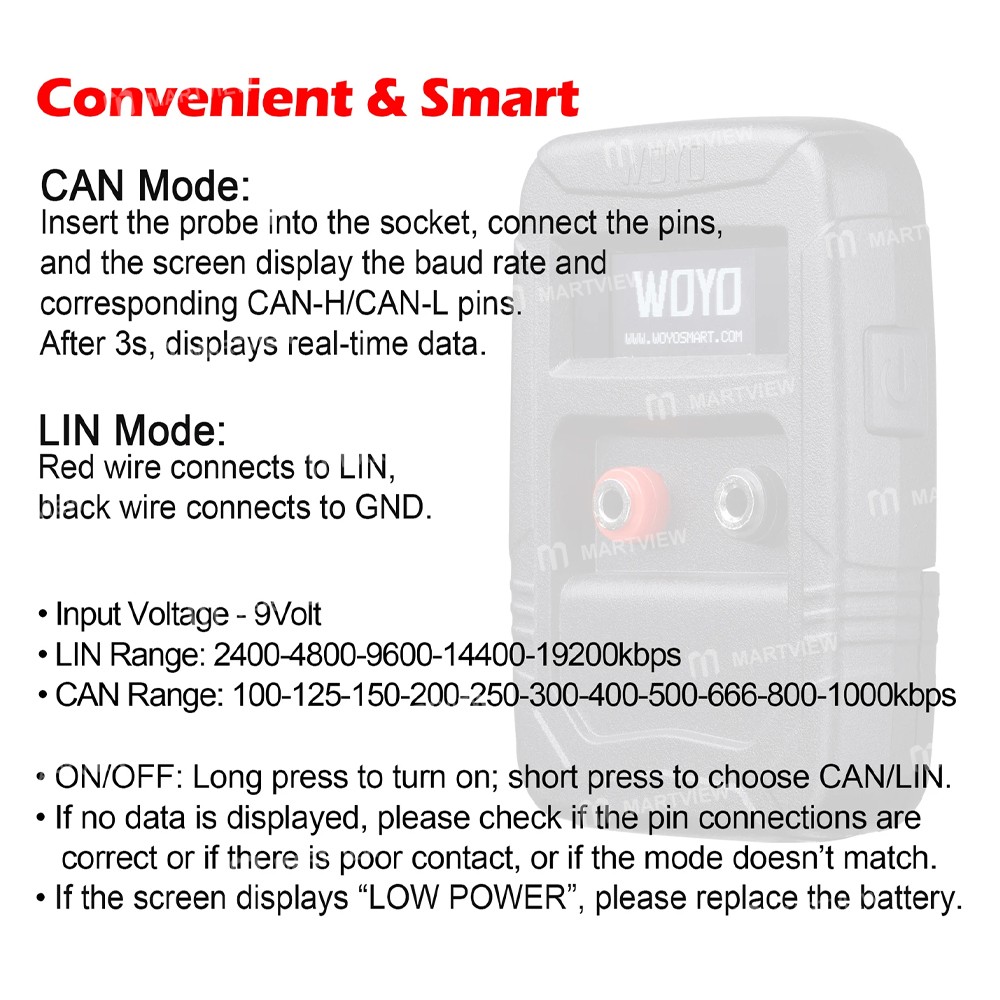

• Connect the measuring probe to the CAN/HL pin, then the screen will display the baud rate, and after 2~3s, the real-time data will be displayed. Automatic identification of CAN-L / CAN-H supports CAN baud rate of 100-125-150-200-250-300-400-500-666-800-1000kbps

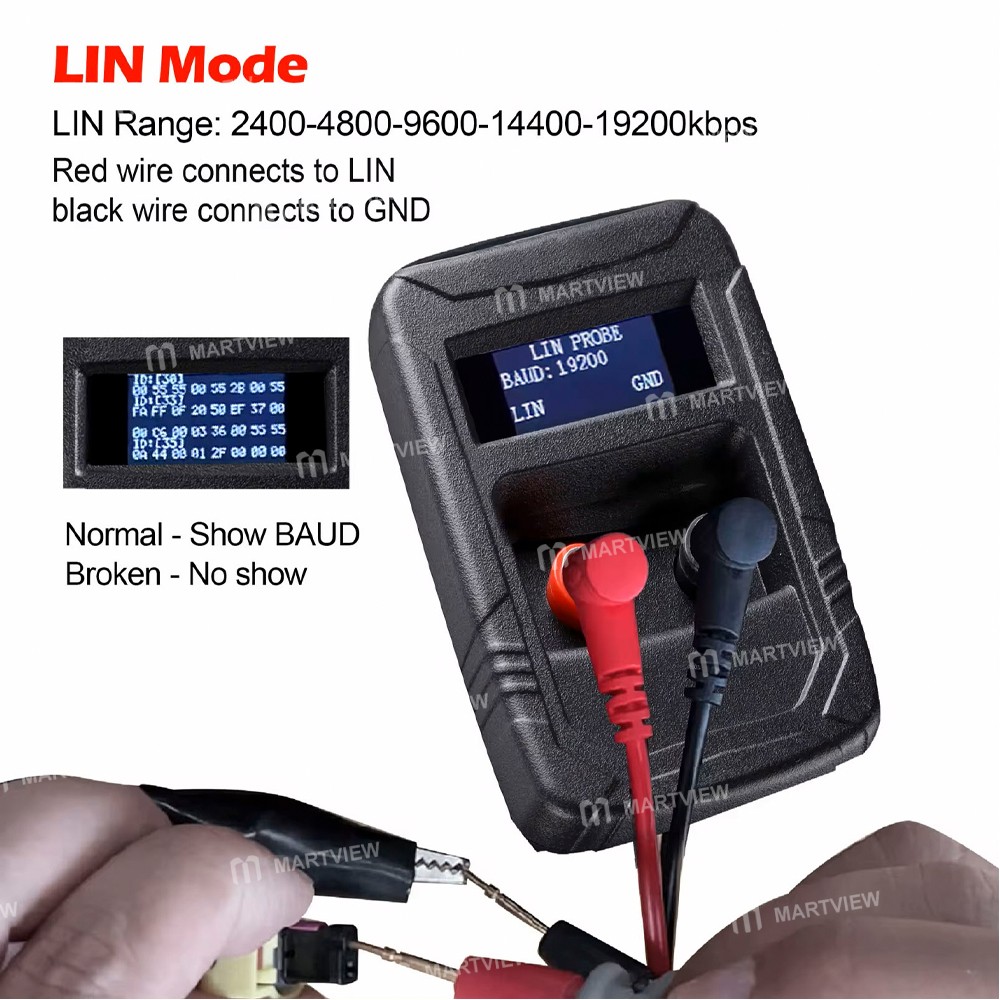

• It needs to be connected correctly (+/-) according to the pin definition, supporting the LIN baud rate of 2400-4800-9600-14400-19200bps. Connect the red meter probe to the LIN pin and the black meter probe to the GND pin

• Equipped with a digital display and low battery prompt function. If the screen displays "Low Battery", please replace the battery.

• If no operation is performed within 3 minutes, the meter will automatically shut down

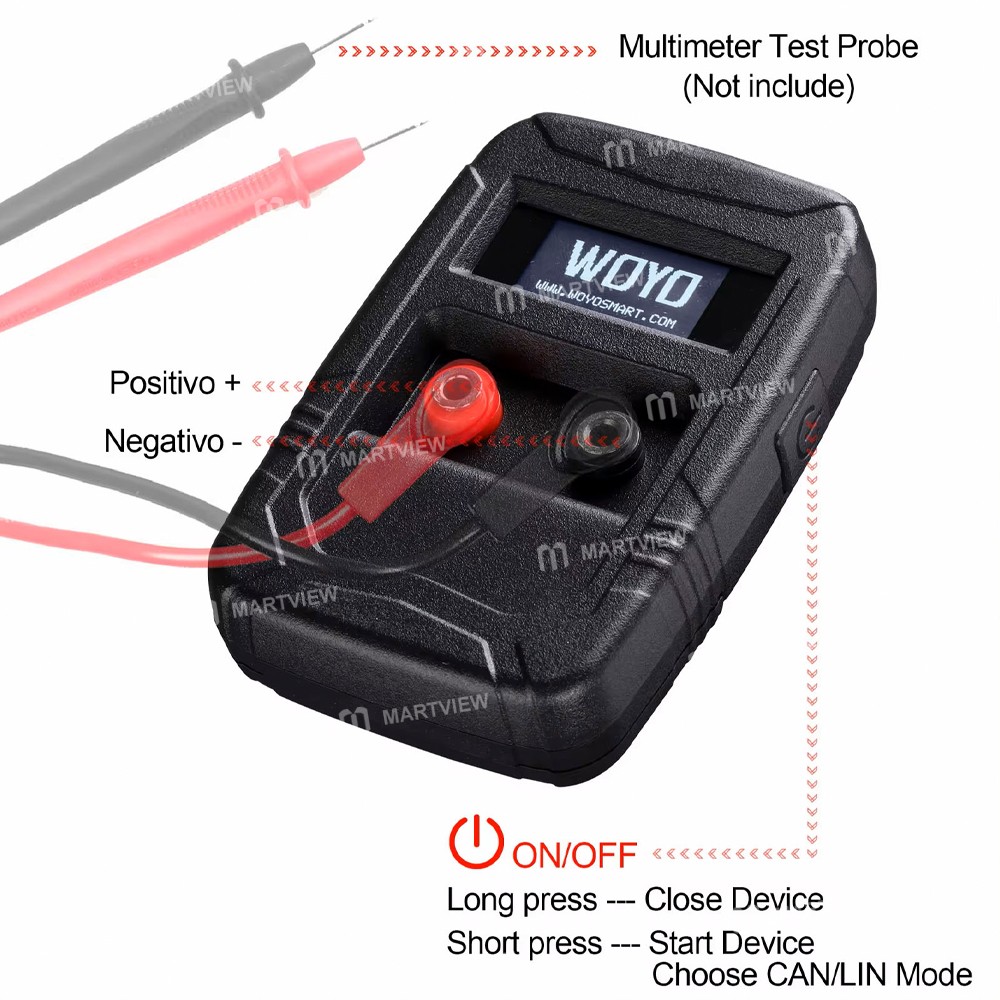

• 9V battery power supplying design, click the ON/OFF button to turn on/off the machine; single short press to switch the mode, and long press for 2 seconds to turn off

Package includes:

• 1 x Handheld Baud Rate Tester
