WP3078ADAM-3AO 4-20mA Analog Output Module for RS485 Modbus RTU Communication

WP3078ADAM-3AO 4-20mA Analog Output Module for RS485 Modbus RTU Communication

Features:

• 3-channel DC type 4-20mA current output

• RS485 MODBUS RTU standard communication, networking

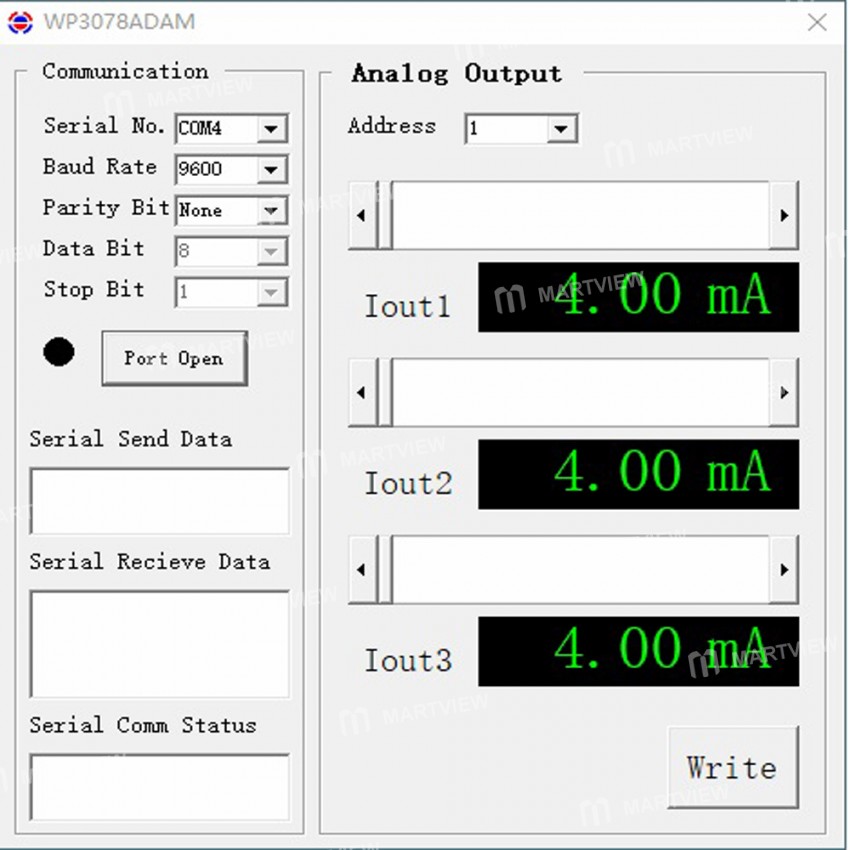

• with communication status indicator light with configuration software, PLC, Industrial touch screen, etc

• The communication circuit adopts lightning protection and anti-interference design

• Can be widely used in industrial field equipment signal acquisition and control

• When the module is powered on, LED is green

• When the module is under communication, LED is twinkling

• When the module receives the correct command, LED is green

• When the module receives incorrect command or another module’s command, LED is red

Specification:

• Analog output channel: 3 way

• analog output range: DC type 4-20mA

• analog output precision: ± 0.03mA

• analog output steady:±3ppm

• drift maximum output: 1050Ohm (24 power supply)

• working temperature range: -20~70℃

• external power supply DC: 9V~30V/2V

• isolation protection: 1500VDC

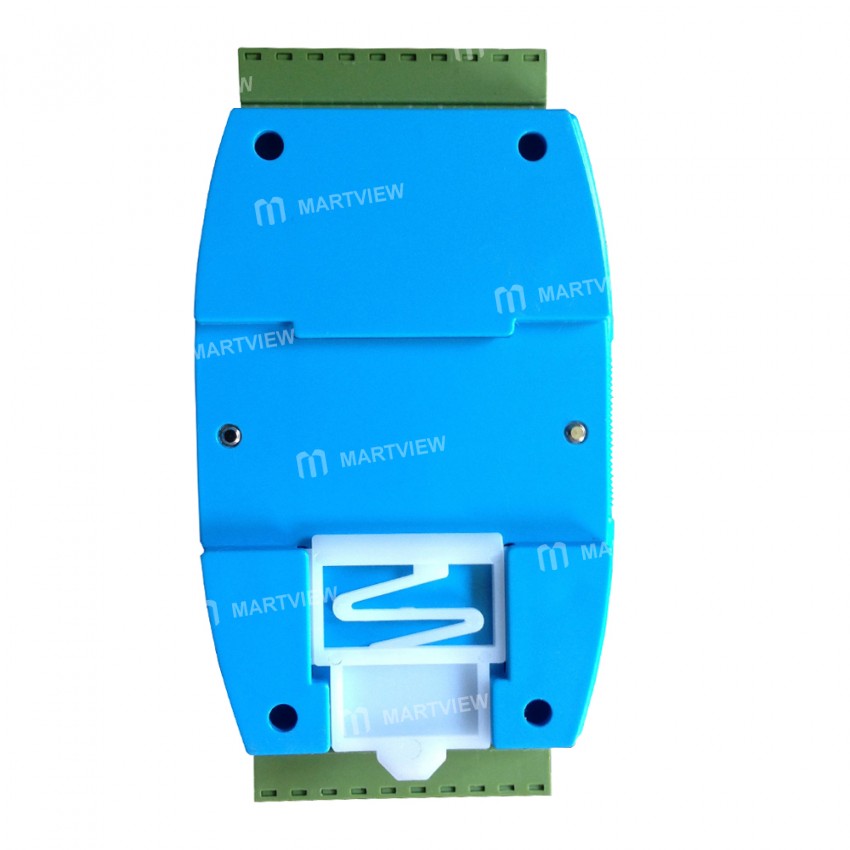

• installation mode: Standard DIN rail mounting or screw mounting

• dimension: 125*73*35mm

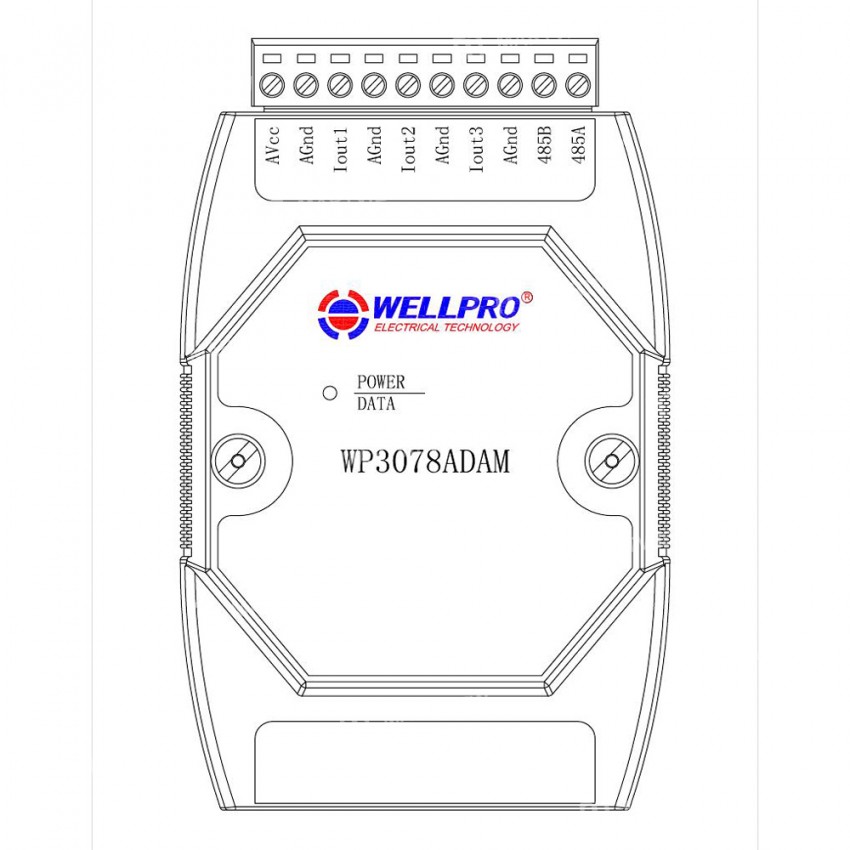

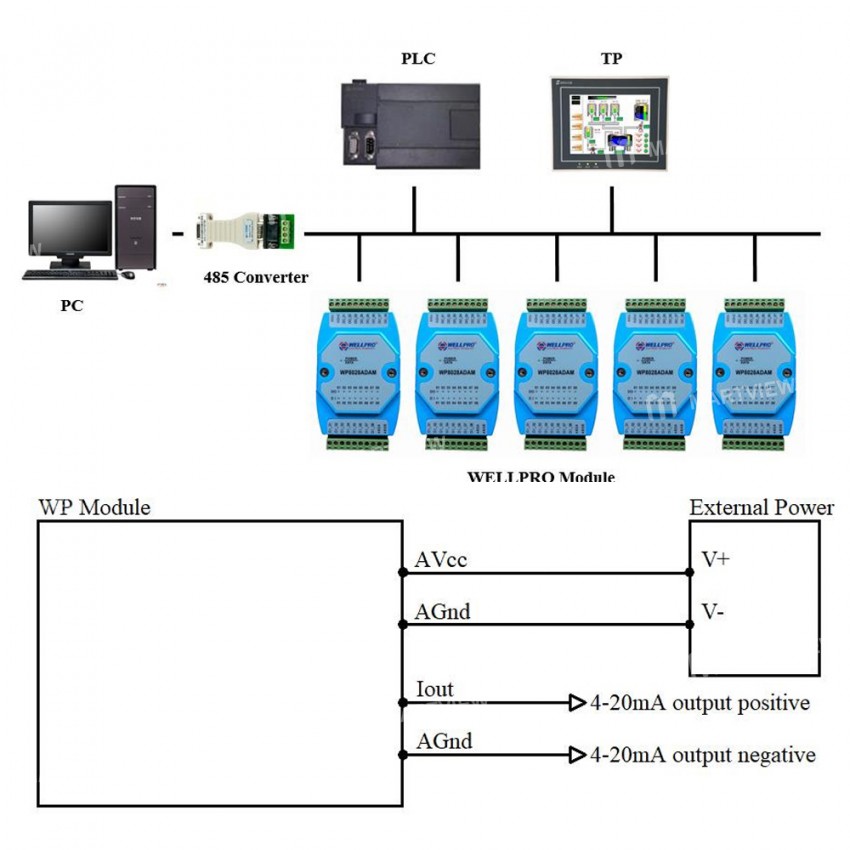

Interface description:

Package includes:

• 1 x Module
