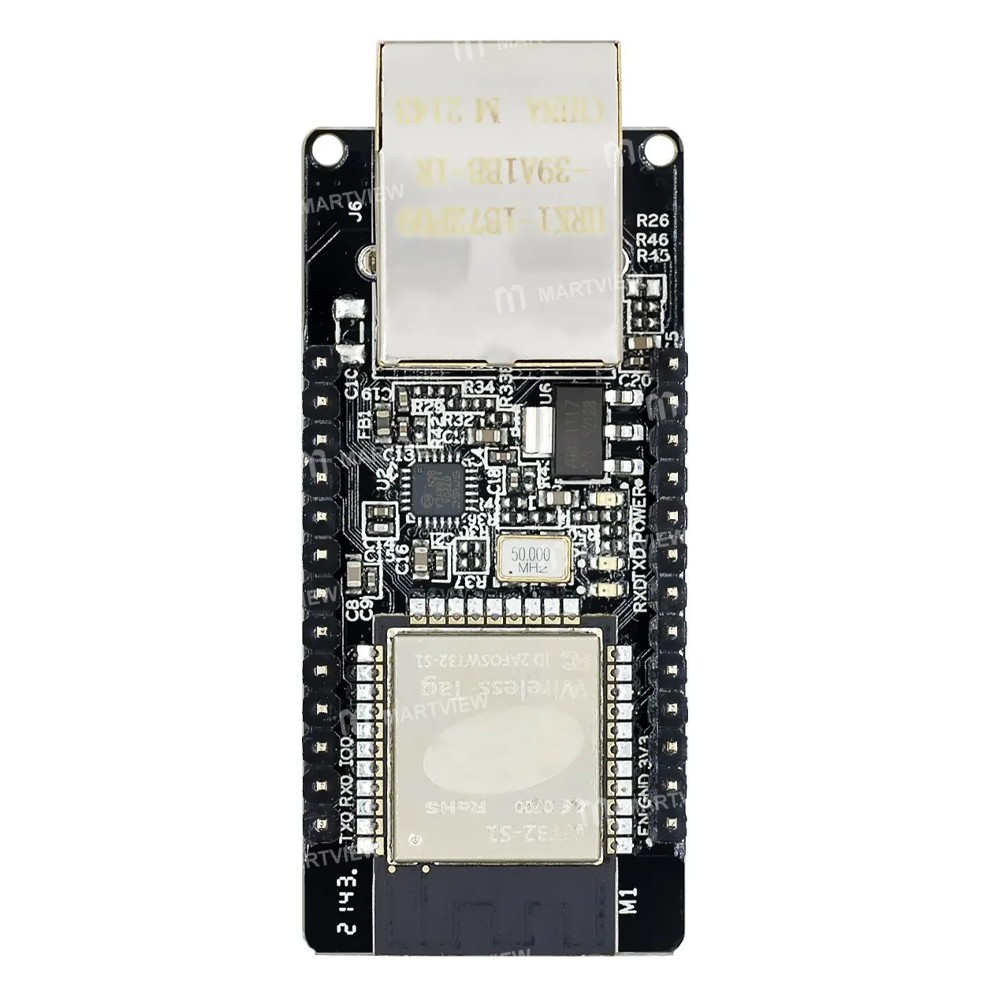

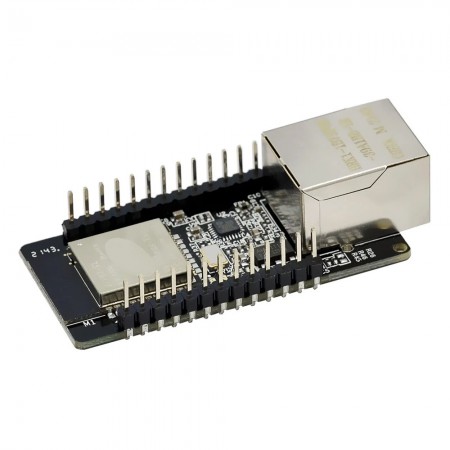

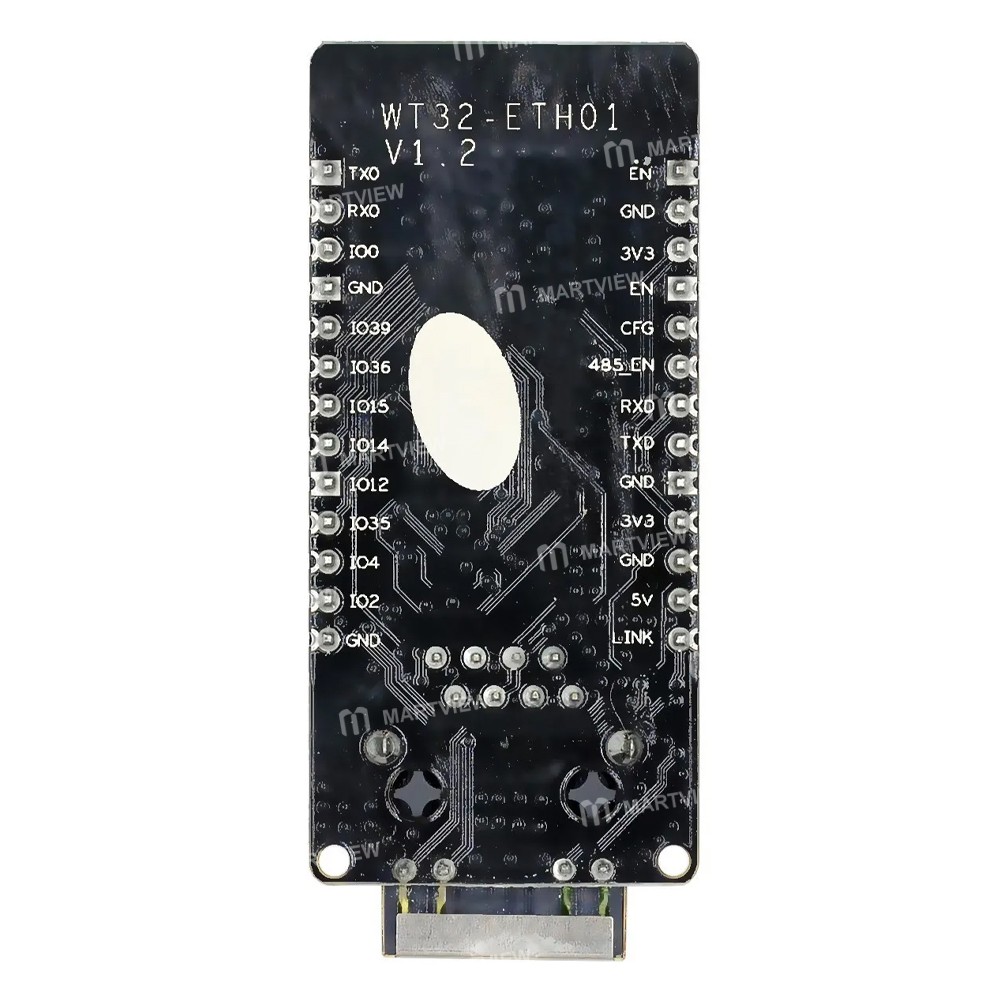

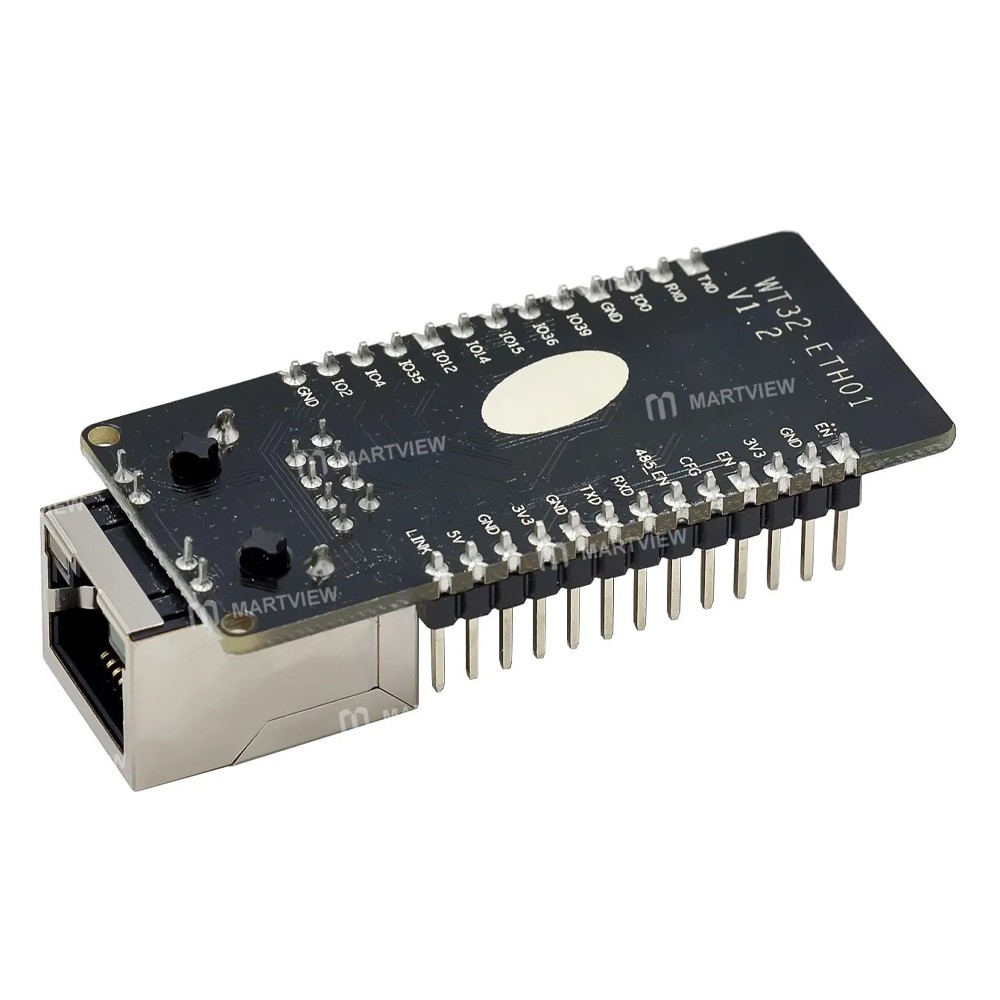

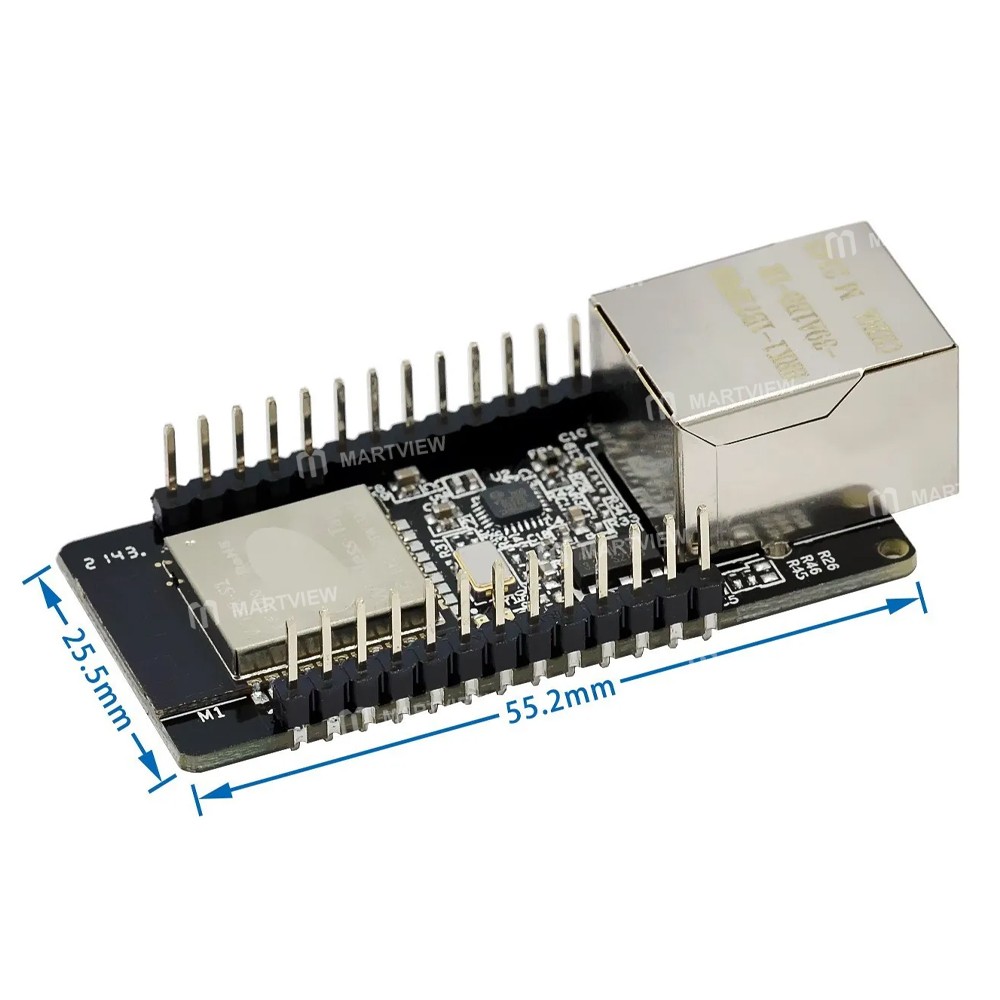

WT32-ETH01 WiFi & Bluetooth MCU Module Embedded Serial to Ethernet Wireless Module

WT32-ETH01 WiFi & Bluetooth MCU Module Embedded Serial to Ethernet Wireless Module

Features:

• WT32-ETH01 is an embedded serial-to-Ethernet module of the ESP32 series, which integrates an optimized TCP/IP stack to facilitate the networking of embedded devices and greatly reduce the development time and cost.

• Moreover, the module is compatible with half-pad and connector through-hole design, and the board width is universal, so the module can be directly soldered to the board, or soldered to the connector, or used in breadboards, which is convenient for users to use in different scenarios

• ESP32 series ICs are integrated 2.4GHz Wi-Fi and Bluetooth dual-mode SOCs with ultra-high RF performance, stability, versatility, and reliability, as well as ultra-low power consumption.

Specification:

• WiFi RF Certification: FCC/CE/RoHS

• WiFi Protocol: 802.11b/g/n/e/i (802.11n, speed up to 150Mbps; A-MPDU and A-MSDU aggregation, support 0.4s protection interval)

• Bluetooth Protocol: Compliant with Bluetooth V4.2BR/EDR and BLE standards

• Bluetooth RF: NZIF receiver with -97dBm sensitivity

• Network port specification: RJ45, 10/100Mbps, cross-direct connection adaptive

• Serial baud rate: 80-5000000

• On-board Flash: 32Mbit

• Operating voltage: 5V or 3.3V power supply (either one)

• Operating current: average: 80mA

• Power supply current: minimum: 500mA

• Operating Temperature Range: -40℃-+85

• Ambient temperature range: Normal temperature

• Package: Half-pad/connector through-hole connection (optional)

• WiFi Mode: Station/softAP/SoftAP+station/P2P

• WiFi Security Mechanism: WPA/WPA2/WPA2-Enterprise/WPS

• Encryption type: AES/RSA/ECC/SHA

• Firmware Upgrade: Remote OTA upgrade via network

• Software development: SDK for secondary user development

• Network protocol: IPv4, TCP/UDP

• IP acquisition method: static IP, DHCP (default)

• Simple transmission mode: TCP Server/TCP Client/UDP Server/UDP Client

• User Configuration: AT+command set

Package includes:

• 1 x Module
