Wylie USB Data Cable On-Off Detection Board for Lightning / Micro / Type-C Data Cable Testing

Wylie USB Data Cable On-Off Detection Board for Lightning / Micro / Type-C Data Cable Testing

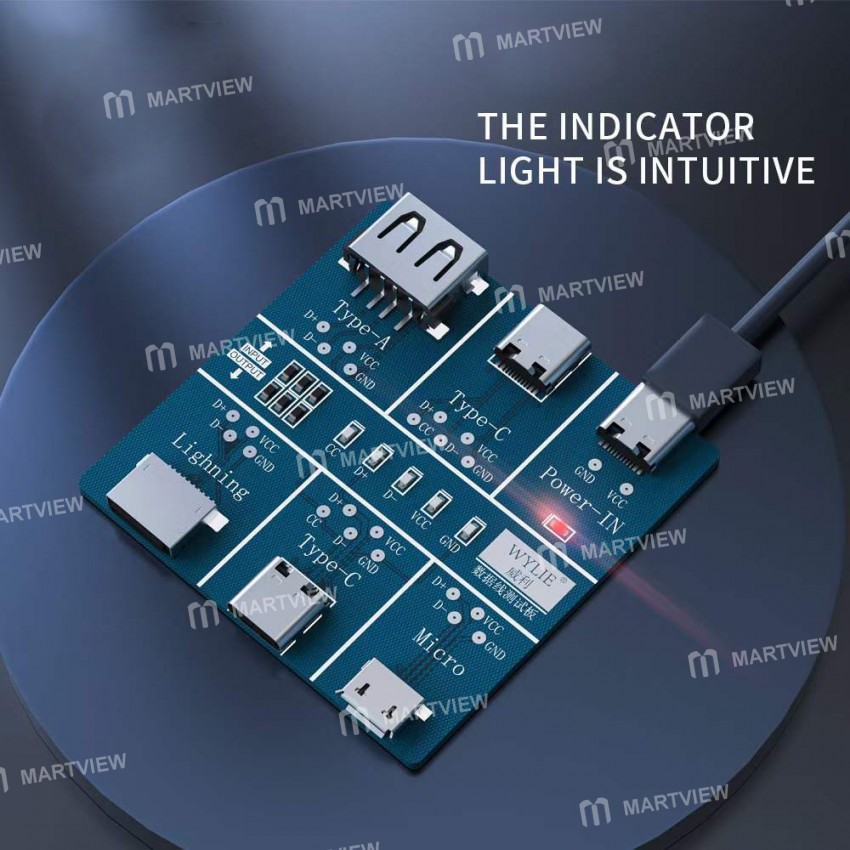

How to use:

• Use the type-c charging cable to plug into the power supply port to supply power to the product

• Insert one end of the data cable that needs to be tested into the corresponding port

• Insert the other end of the data cable into the corresponding port.

• Observe the indicator light

Indicator Light Description:

• All 4 indicator lights are on, then the data line is normal (double-head type-c data line requires all 5 indicator lights to be on)

• If VCC or GND is not lit, it indicates that the charging function of the data line is abnormal

• D+ or D- is off, indicating that the data transmission function is abnormal

• CC is dedicated to double-head type-C data line detection. When testing other data lines, the light will not turn on (Double-head type-C needs 5 lights to be on for normal)

Package includes:

• 1 x Test Board(without Cable)
