Wylie X85 HDMI / USB Dual-Output 4K HD Microscope Camera with Thermal Imaging & Multimeter Functions

Wylie X85 HDMI / USB Dual-Output 4K HD Microscope Camera with Thermal Imaging & Multimeter Functions

Features:

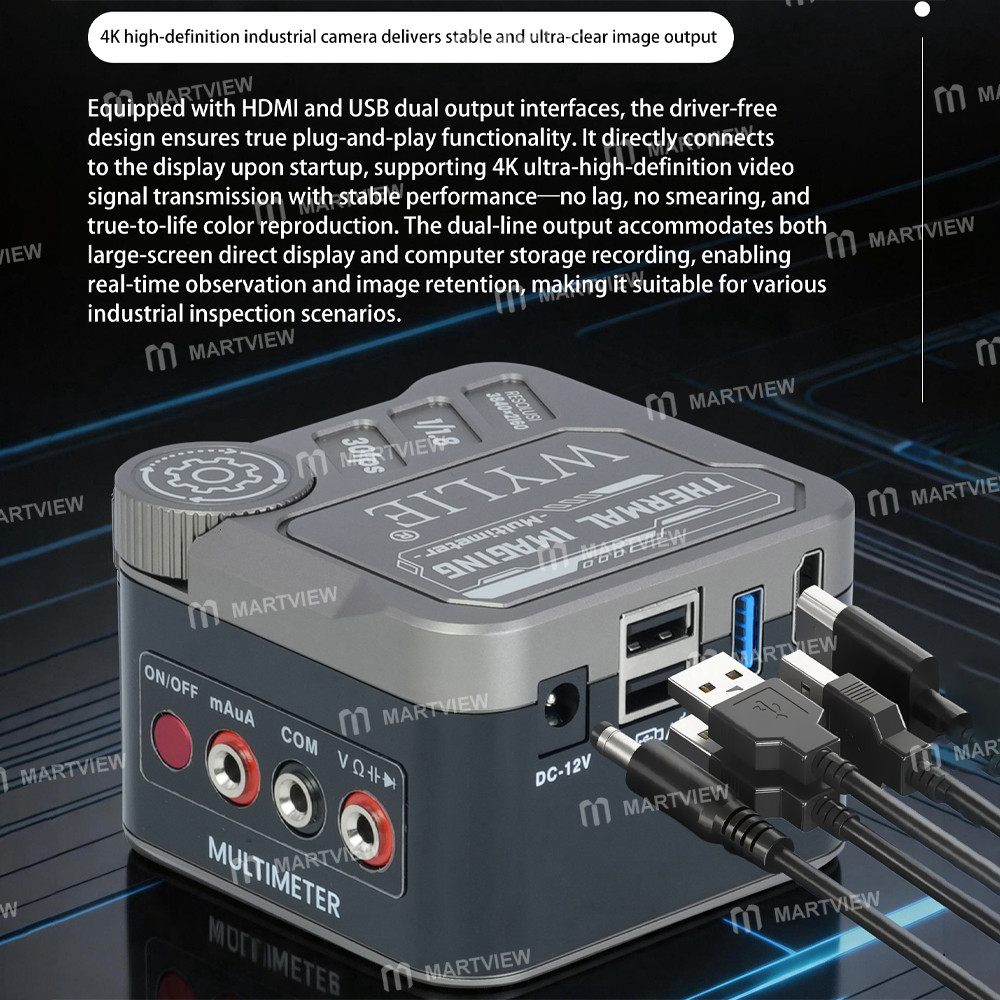

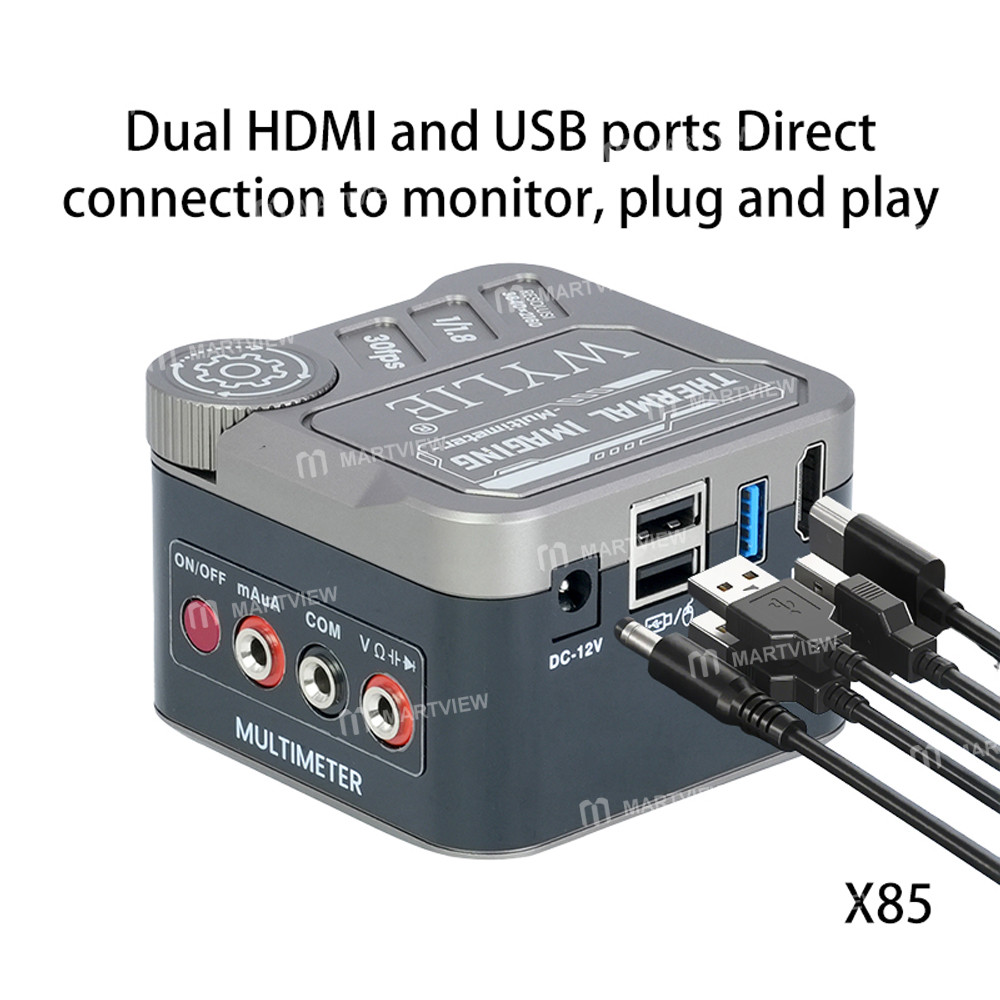

• Equipped with dual HDMI and USB output ports, this driver-free design offers true plug-and-play functionality.

• Connects directly to a monitor upon power-up, supporting 4K ultra-high-definition video transmission with stable signal delivery—no stuttering, no motion blur and true-to-life colour reproduction.

• Dual-output capability allows for both direct display on a large screen and recording to a computer, enabling real-time observation and video archiving, making it suitable for a wide range of industrial inspection scenarios.

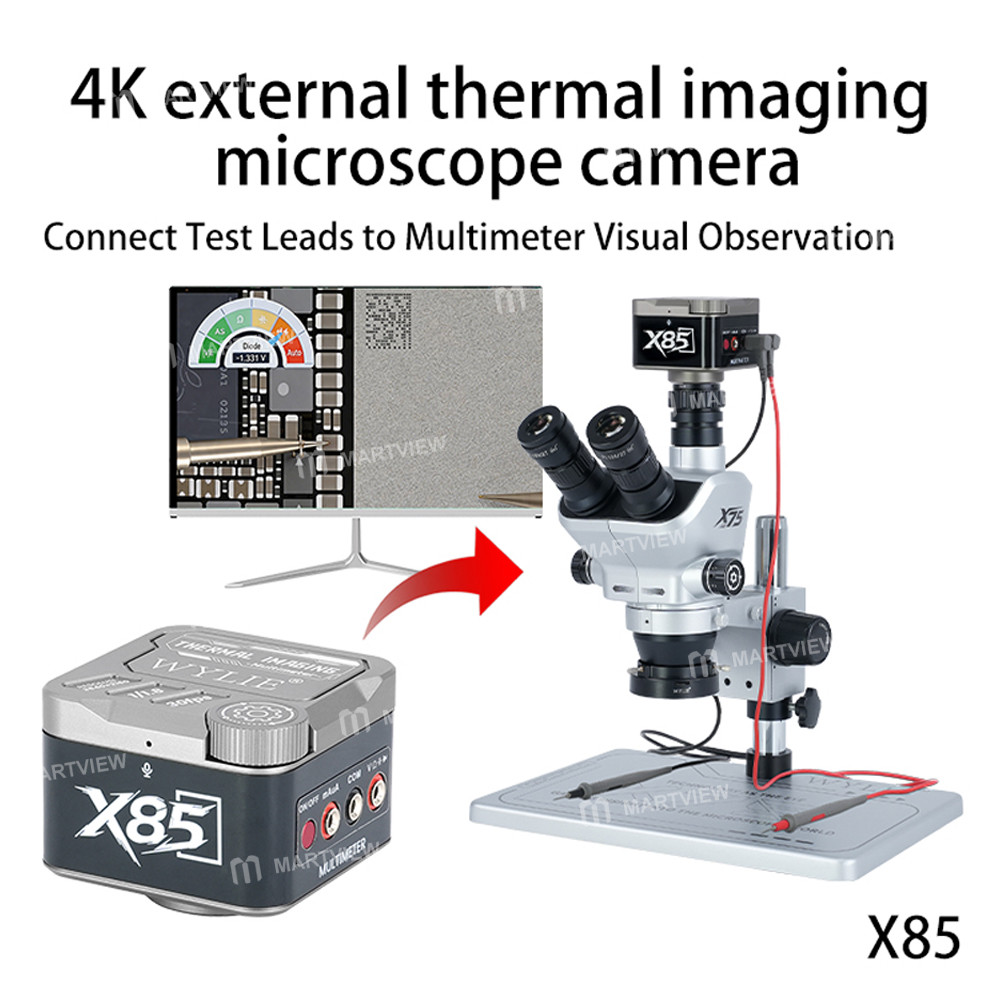

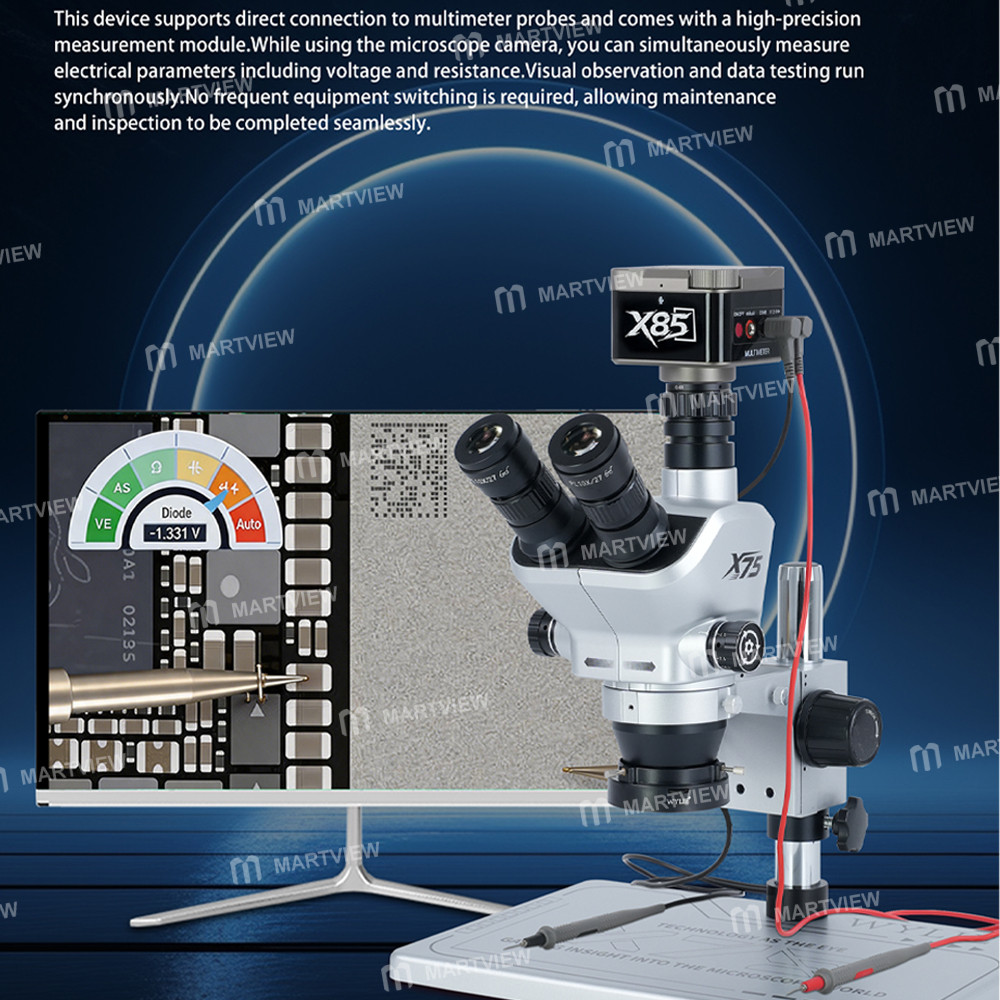

• The device allows direct connection of multimeter probes and is equipped with a high-precision measurement module. Electrical parameters such as voltage and resistance can be measured simultaneously via the microscope camera

• Visual inspection and data measurement run concurrently, eliminating the need to switch between devices and making maintenance and inspection quick and convenient

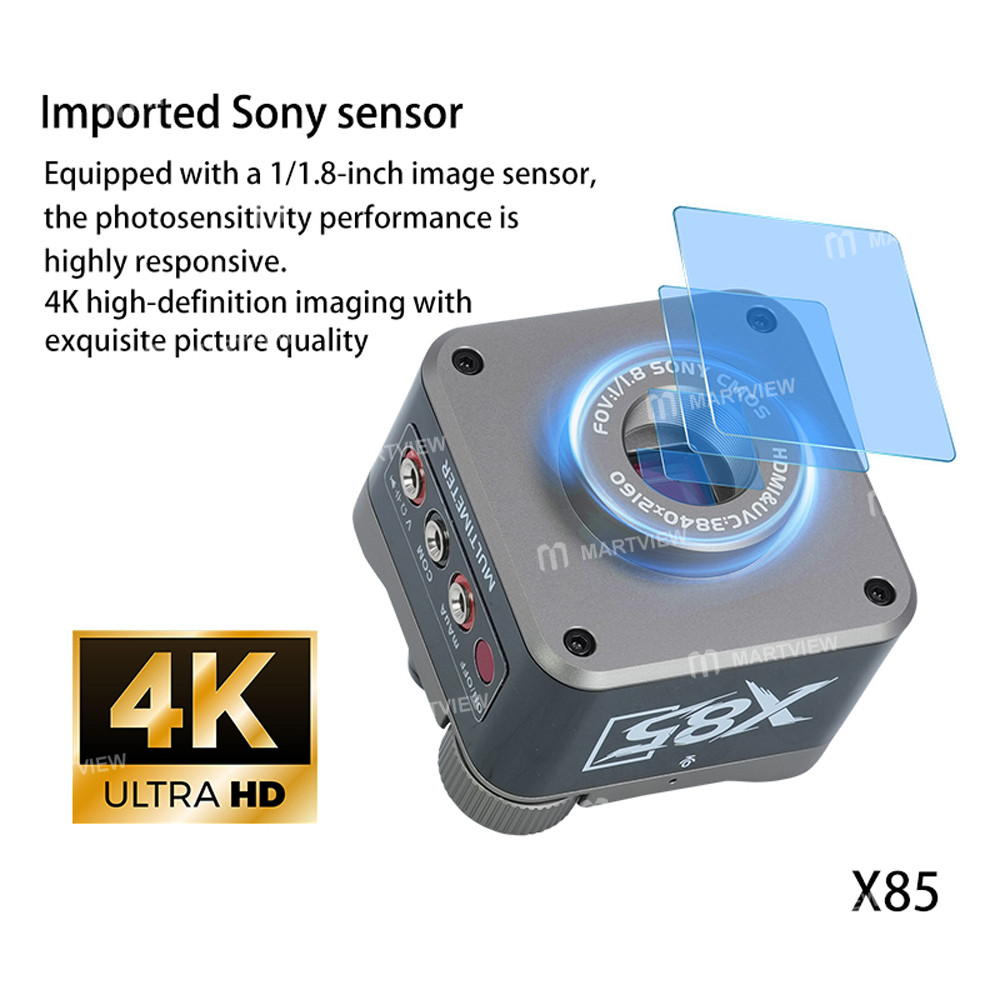

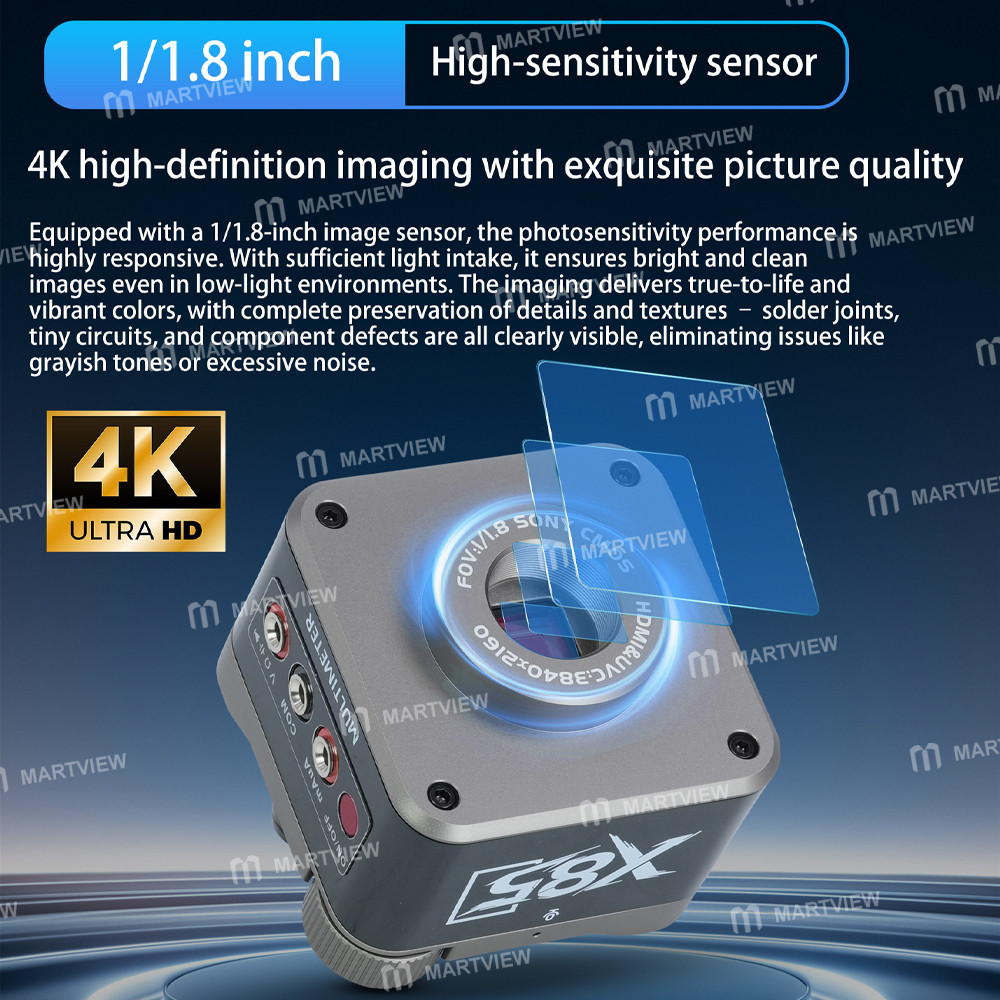

• Equipped with a 1/1.8-inch image sensor, it offers highly sensitive light sensitivity. With ample light intake, it ensures a bright and clear image even in low-light environments

• Colours are rendered true to life and rich, whilst fine details and textures are fully preserved; solder joint patterns, minute circuits and component defects are all clearly visible, eliminating issues such as greyed-out images or excessive noise

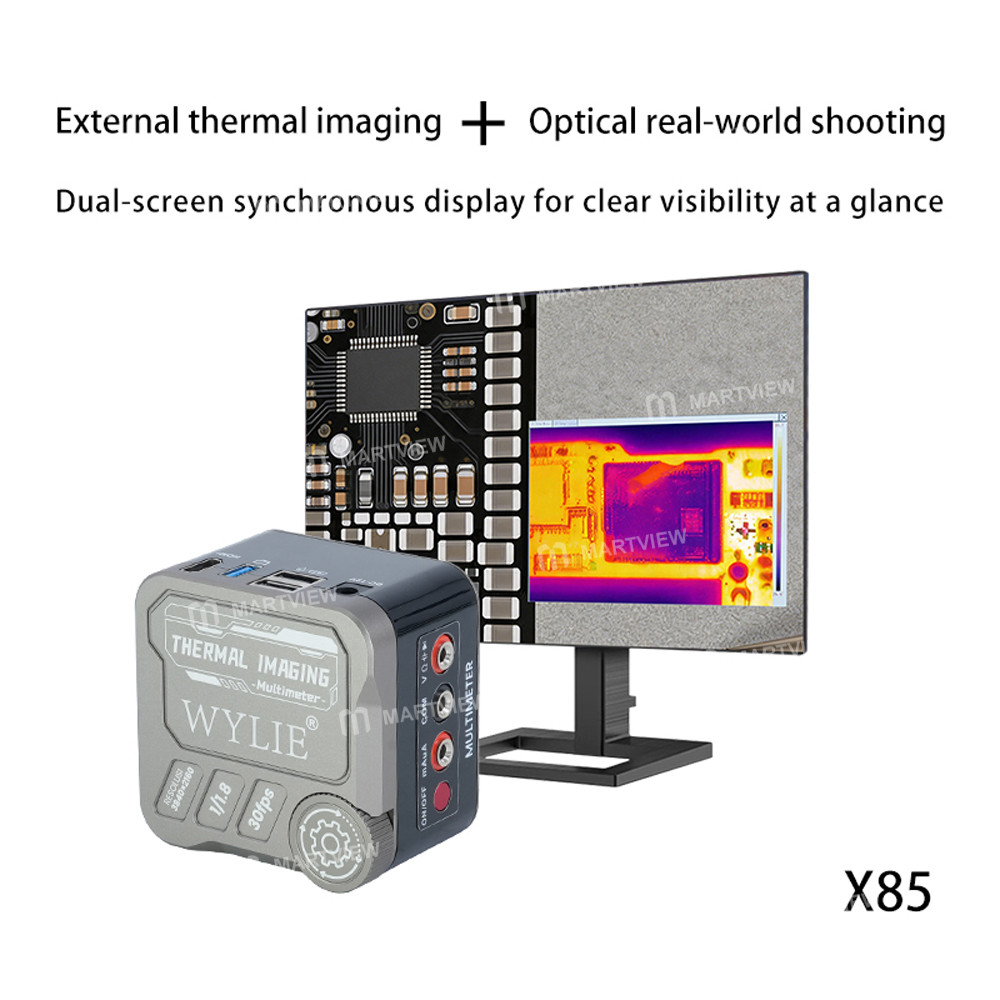

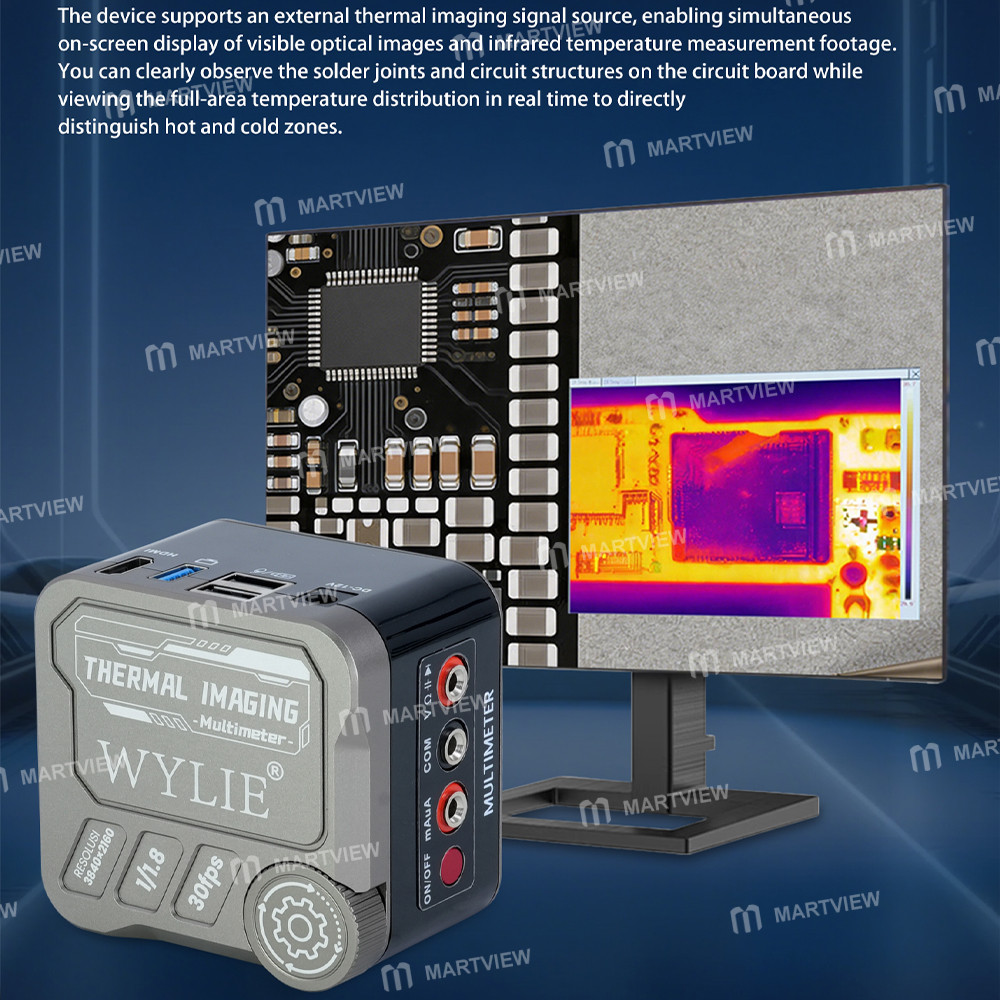

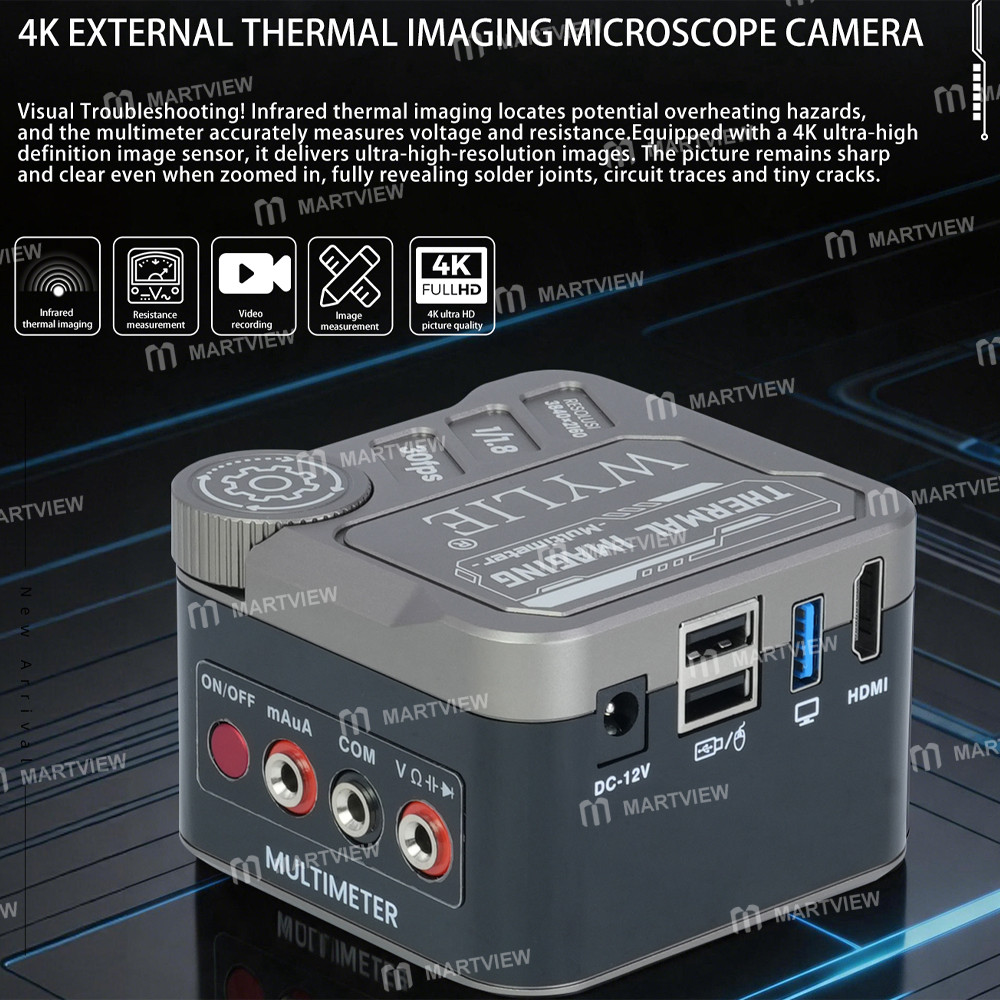

• Visualised fault diagnosis: Infrared thermal imaging locates hidden heat sources, whilst the multimeter accurately measures voltage and resistance; equipped with a 4K ultra-high-definition lens, it produces ultra-high-resolution images

Specifications:

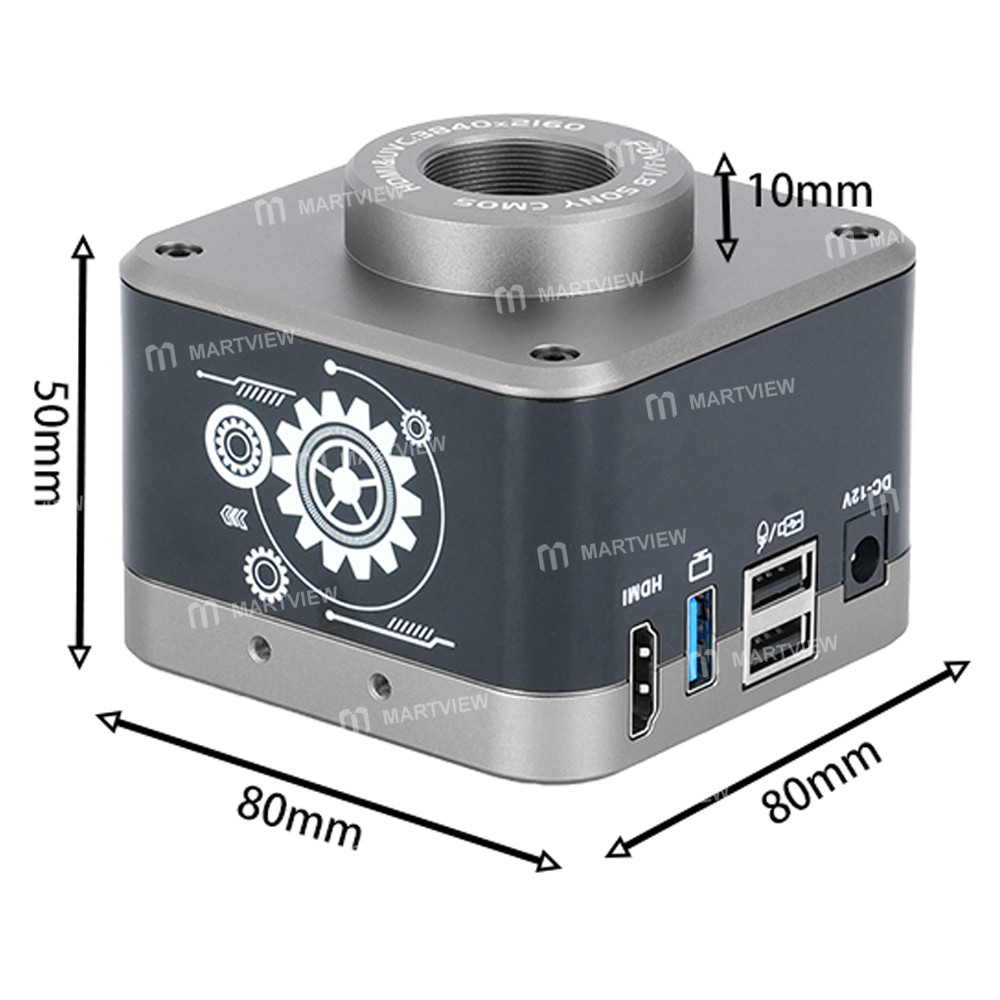

• Model: X85

• Optical Interface: Standard C-mount

• Effective Pixels: 4K

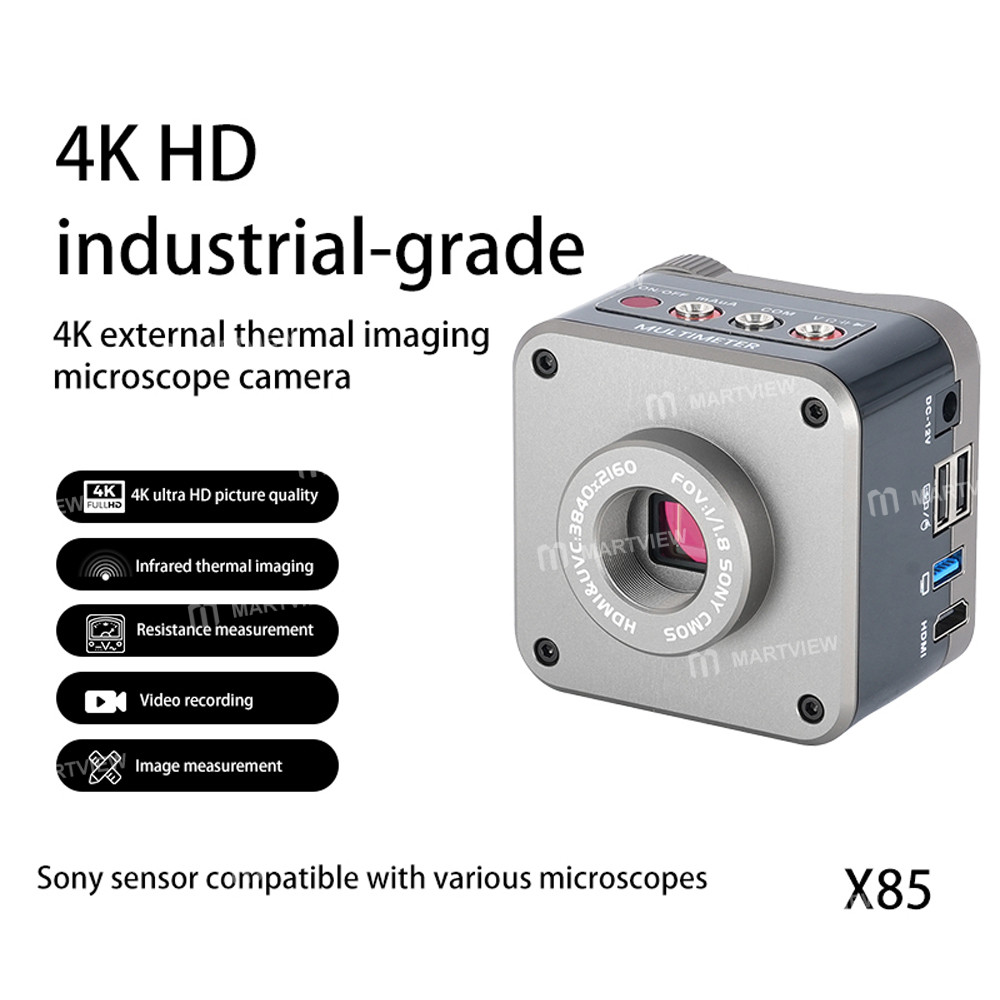

• Sensor: SONY-IMX678

• Bit Depth: 12-bit

• Sensor Size: 1/1.8-inch

• Pixel Size: 2μm × 2μm

• Resolution: 3840 (H) × 2160 (V) @ 30 FPS

• Output Interfaces: HDMI + USB

• External Devices: HD monitor + computer

• External Functions: Multimeter, thermal imaging

• Basic Functions: Photography, measurement, storage, video recording

• Features: One-button control via rotary knob for electronic zoom in/out, local zoom, image flip, freeze frame, magnification display; built-in measurement system; USB flash drive storage

Package includes:

• 1 x Camera

• 1 x HDMI Cable

• 1 x USB Cable
