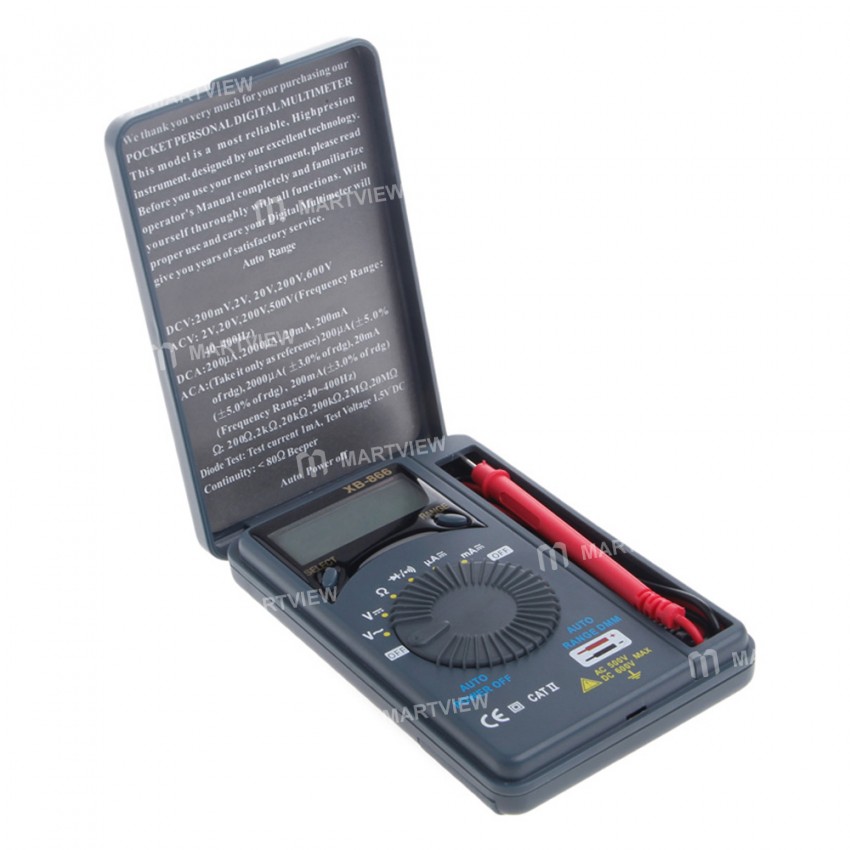

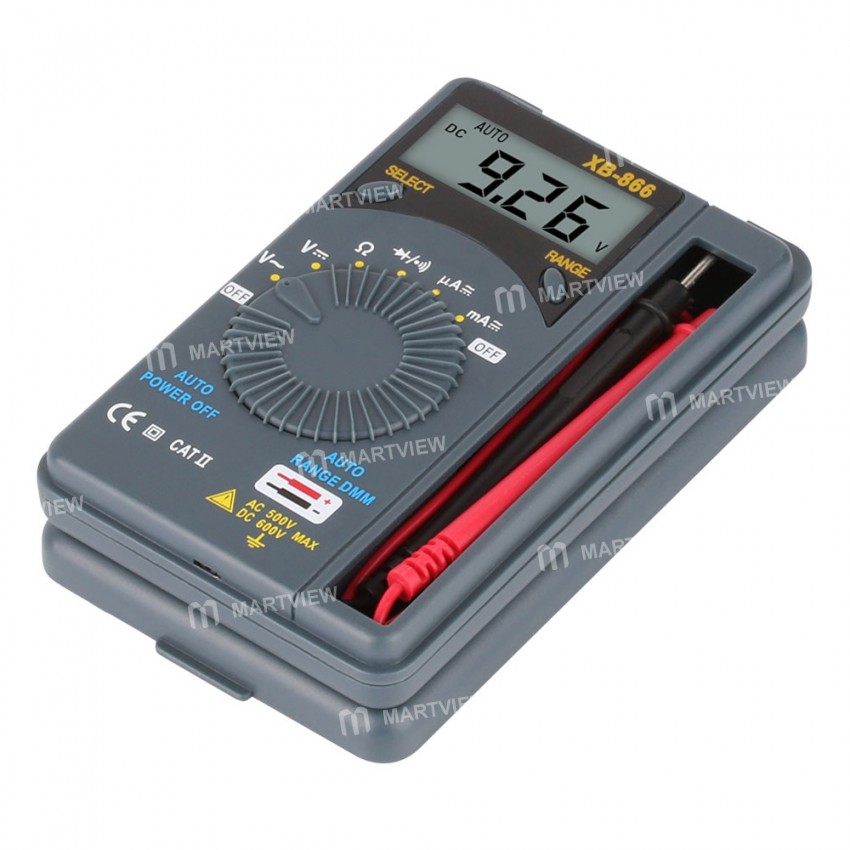

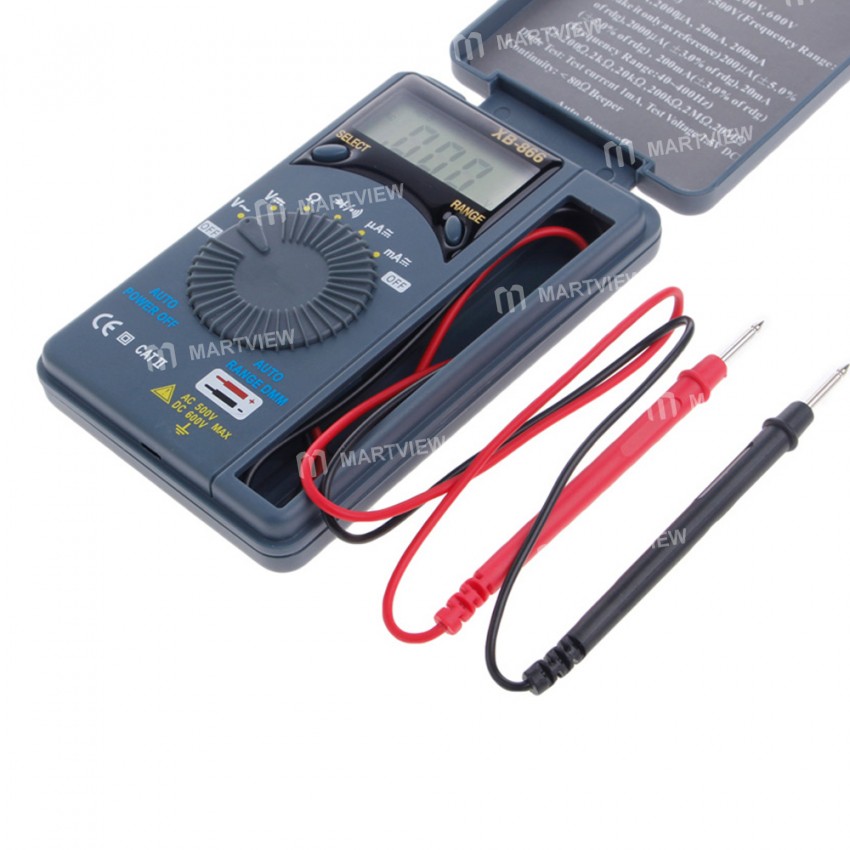

XB-866 Pocket Mini Auto Range AC / DC LCD Digital Multimeter

XB-866 Pocket Mini Auto Range AC/DC LCD Digital Multimeter

Features:

• New type holster, streamlined design, and very portable

• Overrange protection for all ranges

• It includes 7 functions with 25 ratings

Specification:

• Model: XB866

• Display: LCD

• Max Show Value: 1999 counts

• Max Polarity Indication:"-" indicates negative polarity

• Overrange Indication: Display" OL" or "-OL"

• Max Voltage Between Terminals And Earth Ground: 600V DC or 500V AC

• DC Voltage: 200mV/2V/20V/200V/600V

• AC Voltage: 2V/20V/200V/500V (Frequency Range: 40~400Hz)

• DC Current: 200uA/2000uA/20mA/200mA

• AC Current: (Take it only as reference) 200uA(±5% of rdg); 2000uA (±3% of rdg); 20mA (±5% of rdg); 200mA (±3% of rdg) (Frequency Range: 40~400Hz)

• Resistance: 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ

• Operating Temperature: 0 ℃ to 40 ℃ (32°F to 104 °F)

• Storage Temperature: 0 ℃ to 50 ℃ (10°F to 122 °F)

• Circumstance Temperature: 23±5 ℃

• Relative Humidity: ＜70%

• Auto power supply: 15min

• Sampling Time: approx.0.4 seconds

• Continuity: <80Ω

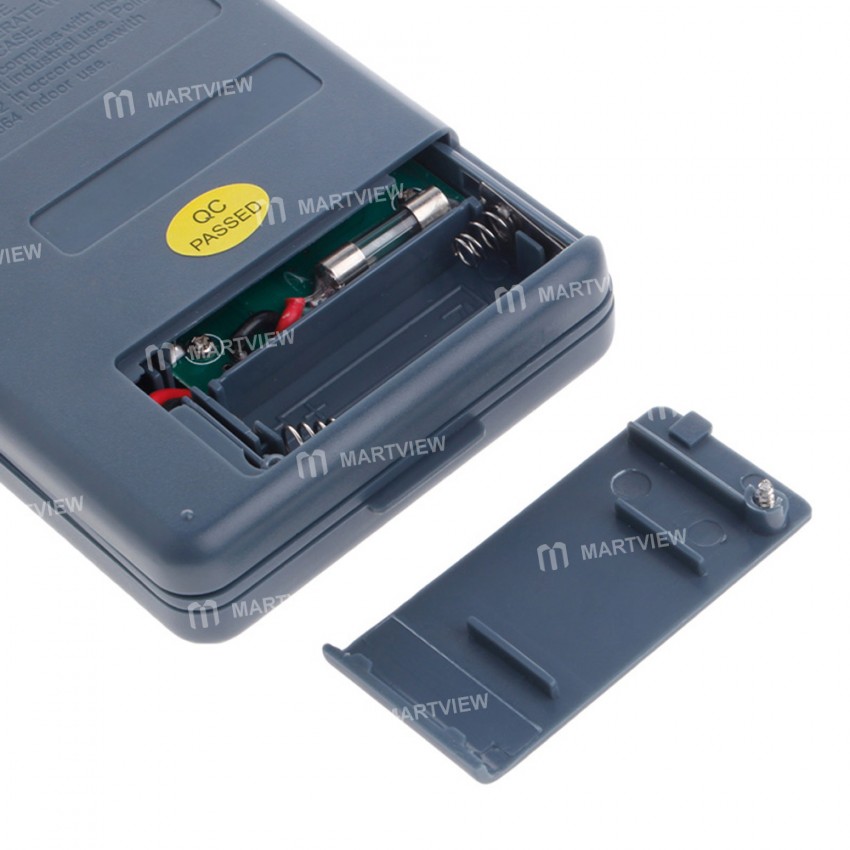

• Power Supply: 1.5V AAA*2(Not included)

• Operating Altitude:2000 meters (7000ft) Maximum

• Low Battery Indication: Yes

• Diode Test: Yes

• Beeper: Yes

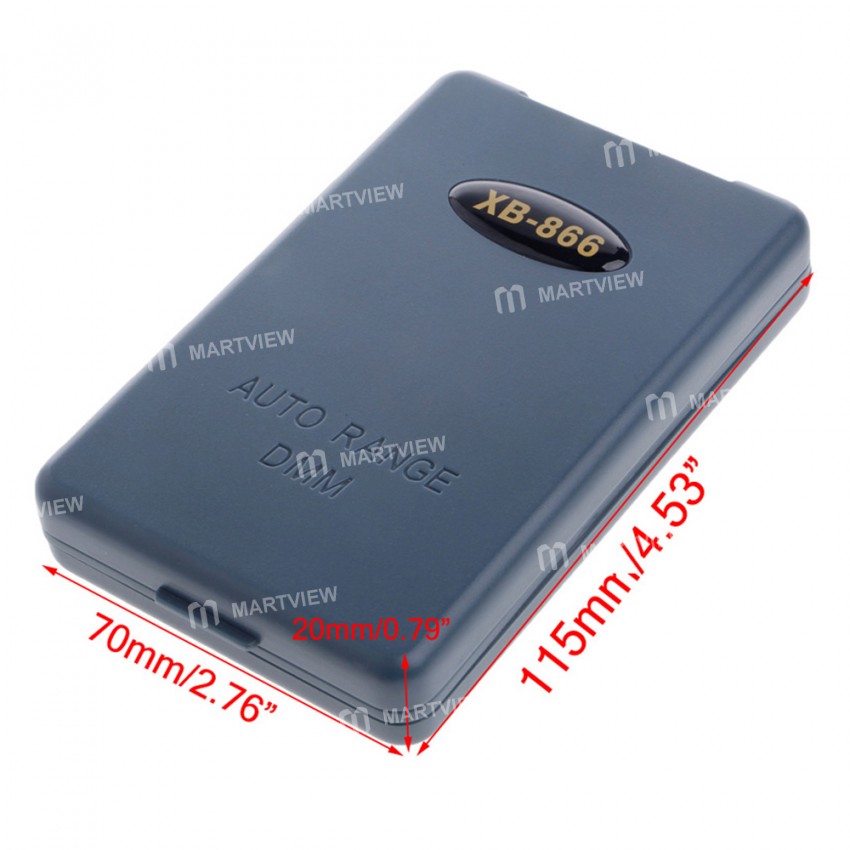

• Product size: 120*75*20mm

Package includes:

• 1 x Multimeter(Not included battery)
