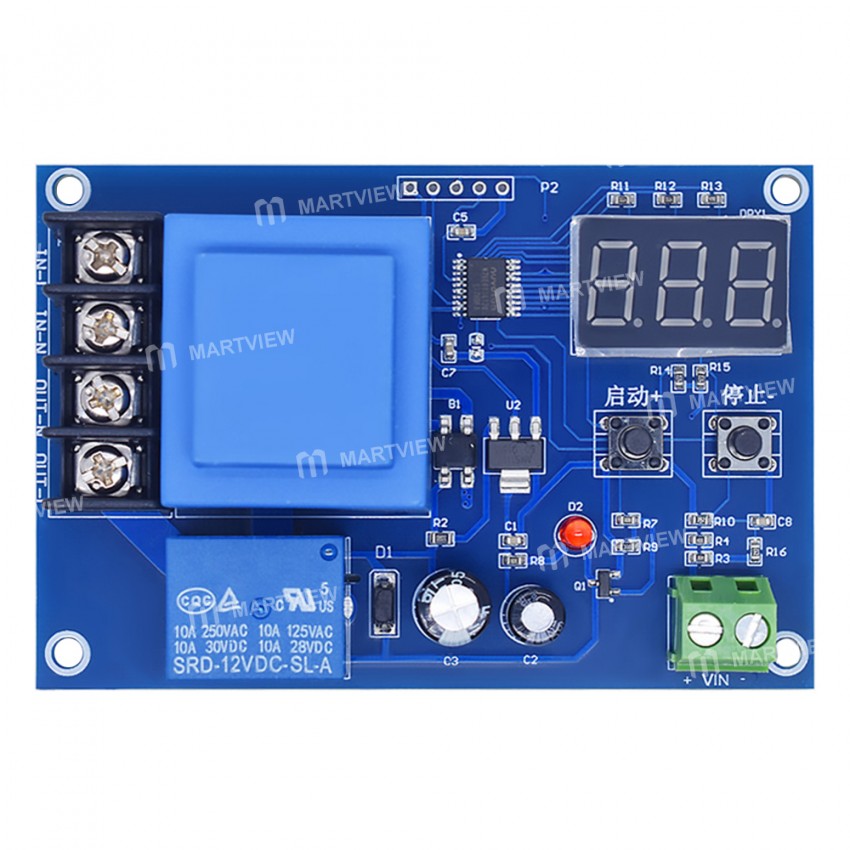

XH-M602 Digital Control Battery Charging Control Module

XH-M602 Digital Control Battery Charging Control Module

Specification:

• Name: Digital control battery charging control module

• Model: XH-M602

• Input Voltage: AC 220V

• Display Precision: 0.1V

• Control Precision: 0.1V

• Output Type: Output  switch

• Voltage Tolerance: +/- 0.1V

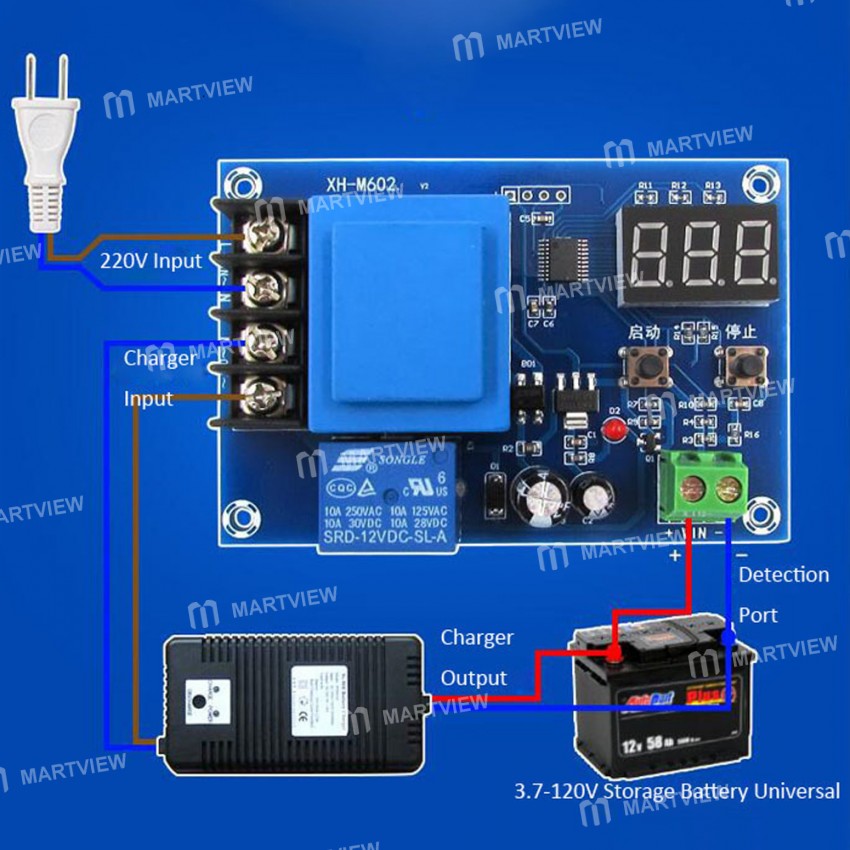

• Application Fields: for 3.7-120V lithium battery or storage battery

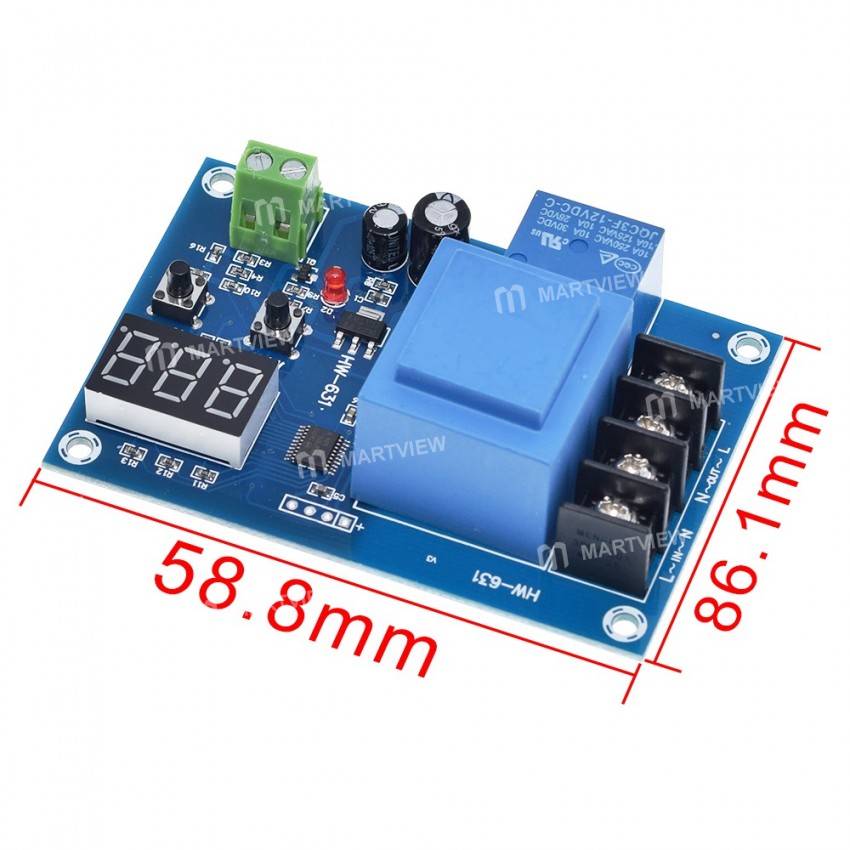

• Size: 86*58*24mm

Instructions:

• In the normal state of setting the value (that is, the digital tube is flashing):

• The start button plays the role of increasing the voltage

• The stop button plays a role in reducing the voltage

• To set the starting voltage:

• Under normal display voltage, press the start button to display the start charging voltage

• Long press the start button to stop the digital tube from flashing, and set the start charging voltage value through the start and stop buttons.

• Set the stop voltage:

• Under normal display voltage, press the stop button to display the stop charging voltage

• Press and hold the stop button to stop the digital tube from flashing, and set the stop charging voltage value through the start and stop buttons

• Restore the original factory settings: When the power is on, press and hold the start and stop buttons at the same time, and the digital tube displays 888, that is, the original factory settings are restored successfully

Package includes:

• 1 x Control module
