XinZhiZao 15 Series 4-in-1 Motherboard Layered Test Fixture for iPhone 15 / 15Plus / 15 Pro / 15Pro Max

XinZhiZao 15 Series 4-in-1 Motherboard Layered Test Fixture for iPhone 15 / 15Plus / 15 Pro / 15Pro Max

Features:

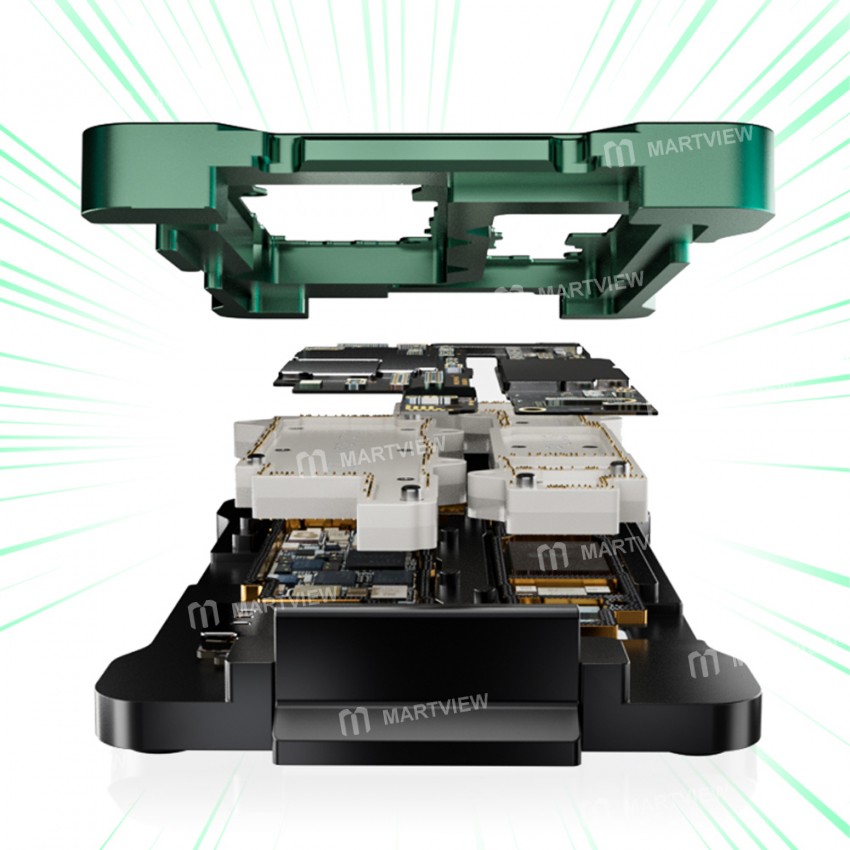

• Solve the problem of repeated lamination and delamination in the process of motherboard repair, test trouble, etc., so that the motherboard test becomes simple and fast

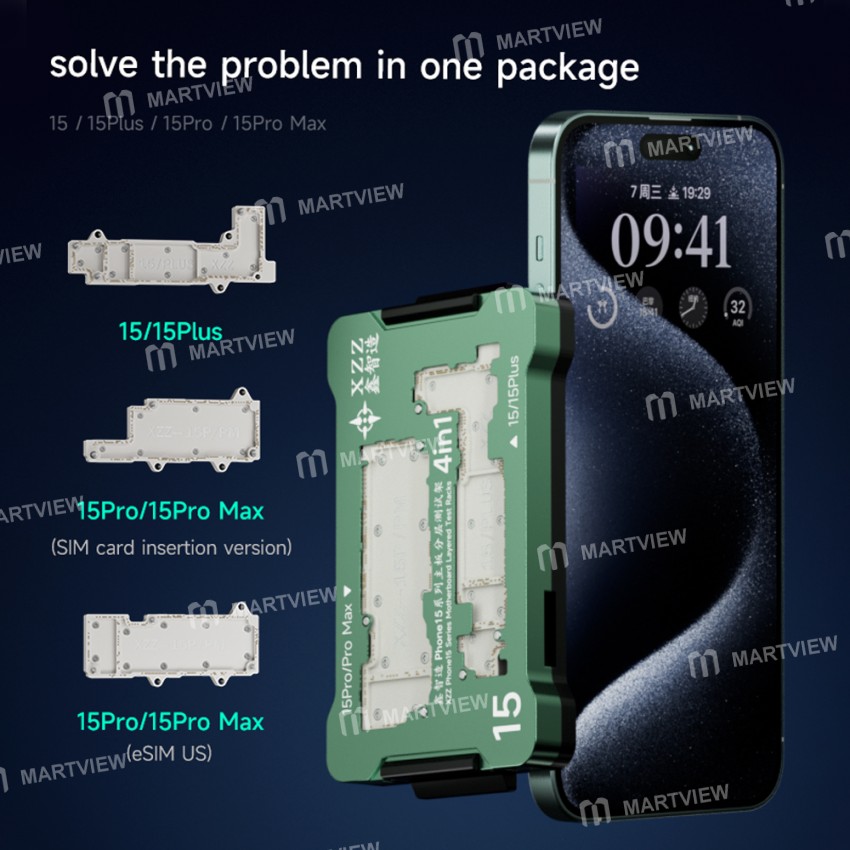

• Adaptation of four models, and many years of experience in the design of test rack products, so that you have a comfortable experience of testing motherboards

• Dual-head probes accurately aligned with small holes, effectively improving contact performance, using a fixed pressure button compression, the motherboard does not buckle, the test value is more accurate

• Solder-free test function can test power on, display, touch, camera, flash, earpiece, speaker, WiFi, facial recognition, etc

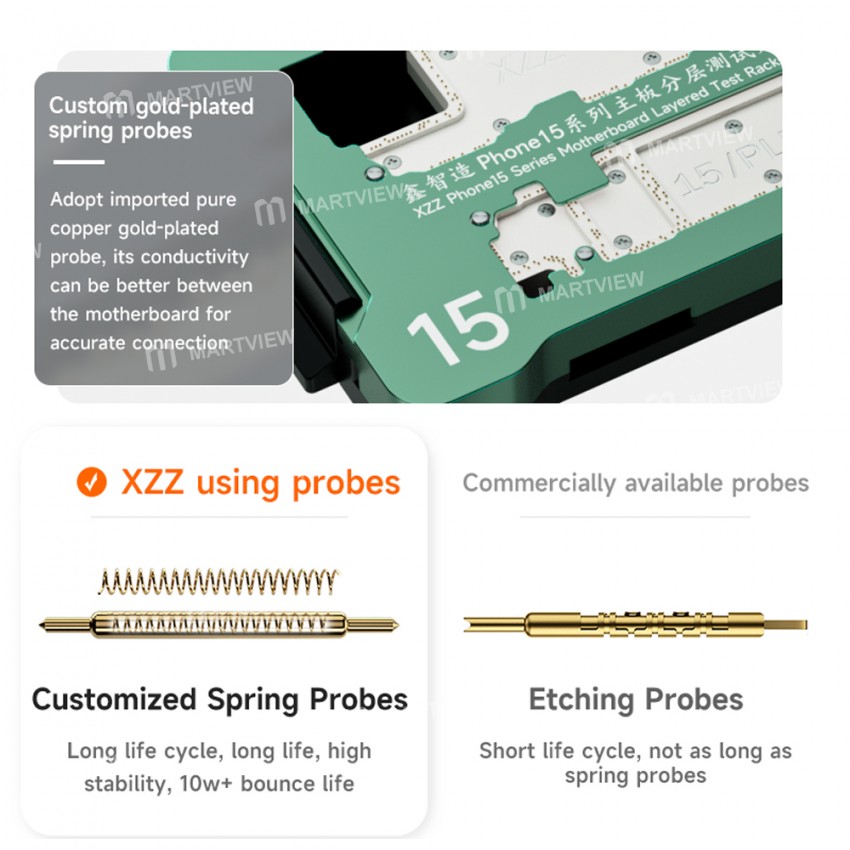

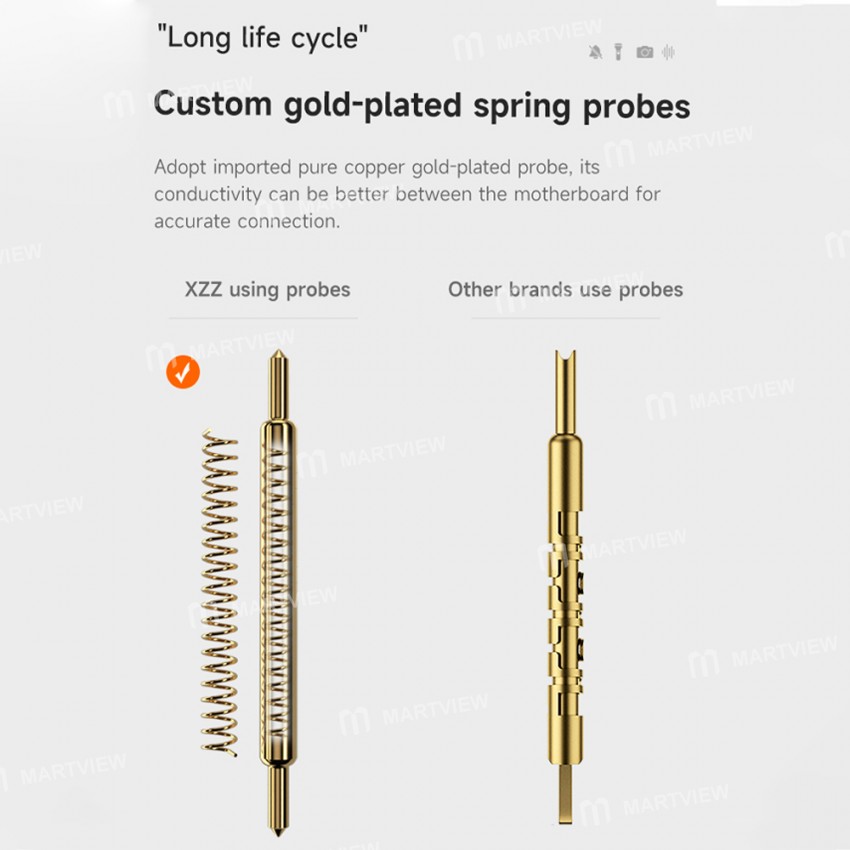

• Custom gold-plated spring probes, adopt imported pure copper gold-plated probes, its conductivity can be better between the motherboard for accurate connection

• Newly upgraded materials, flame retardant, high temperature, and corrosion resistance, improved maintenance efficiency, reduced maintenance risk

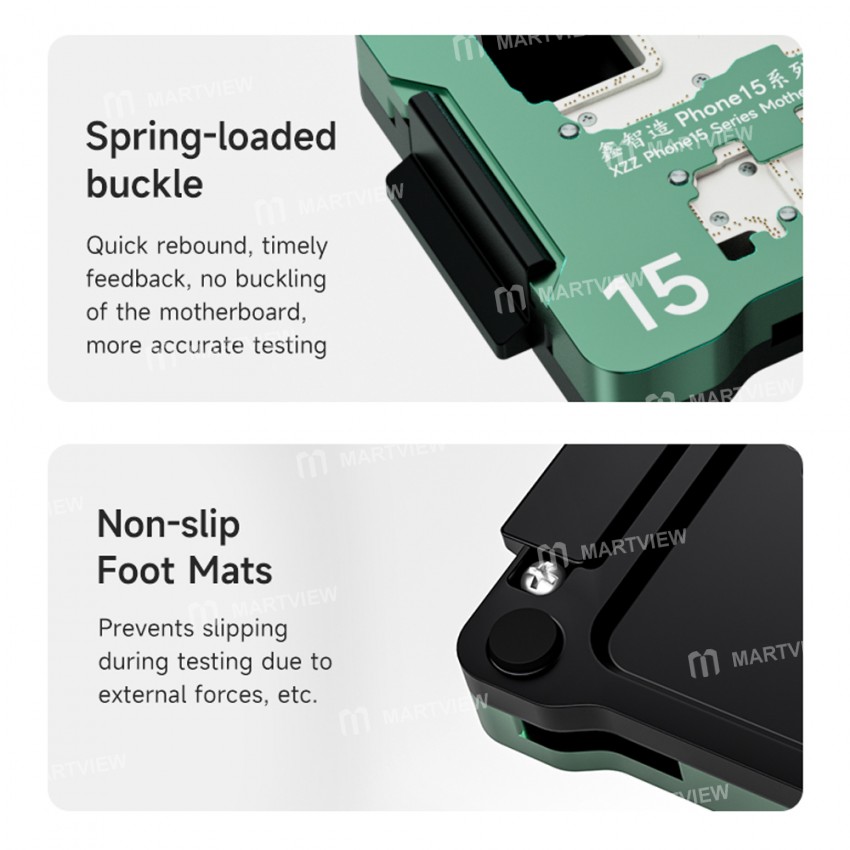

• Spring-loaded buckle, quick rebound, timely feedback, no buckling of the motherboard. more accurate testing

• Non-slip foot mats, prevent slipping during testing due to external forces, etc.

Package includes:

• 1 x Test Fixture
