XinZhiZao No-disassembly Read / Write ITE Burning Programmer for iT85XX / iT83XX Series

XinZhiZao No-disassembly Read/Write ITE Burning Programmer for iT85XX / iT83XX Series

Operation Flow:

• Read chip process

• Use three DuPont cables to connect the SM bus on the battery holder of the motherboard to any ground (no connection is needed for power supply)

• Use the Type-C cable to connect the computer and the programmer.

• Power up the motherboard (the motherboard 3V can be generated normally).

• Software pop-up "Please Turn on ITEEC Power!" error, this is not recognized chip error, click "OK" (if the error continues to report, check whether the wire is welded)

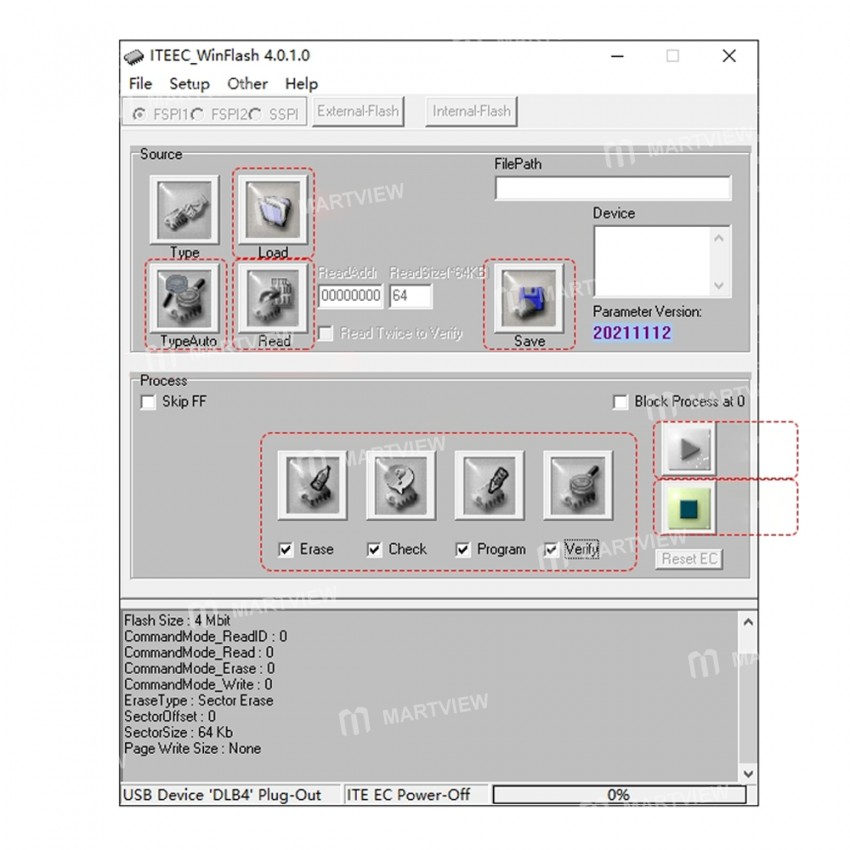

• When the software icon lights up, click "TypeAuto" to recognize the chip.

• Click "Internal--Flash" at the top.

• Click "Read" to read the chip, and click "Save" to save the file

Write chip process (the first six steps are the same as the read chip process):

• Read chip process

• Use three DuPont cables to connect the SM bus on the battery holder of the motherboard to any ground (no need to connect for power supply).

• Use the Type-C cable to connect the computer to the programmer.

• Power up the motherboard (3V can be generated normally).

• Software pop-up "Please Turn on ITEEC Power!" error, this is not recognized chip error, click "OK" (if the error continues to report, check whether the wire is welded)

• When the software icon lights up, click "TypeAuto" to recognize the chip.

• Click on "Internal--Flash" at the top.

• Make sure all four options are checked

• Click "Start" to write the chip

Package includes:

• 1 x Programmer

Note:

• Lenovo Intel platform and all ECs connected to BIOS do not need to write a new program. You only need to clear the EC. How to do it: When writing, you only need to check the first option below.
