XinZhiZao S320 Fault Diagnosis Thermal Imaging Instrument for Mobile Phone / PC Motherboard Repair

XinZhiZao S320 Fault Diagnosis Thermal Imaging Instrument for Mobile Phone/PC Motherboard Repair

Features:

• Adjustable fusion of infrared thermal imaging and the visible light image is a clearer image

• Can record images taken by PCB and save data of infrared thermography

• Turn on the quick check to quickly find the hottest place

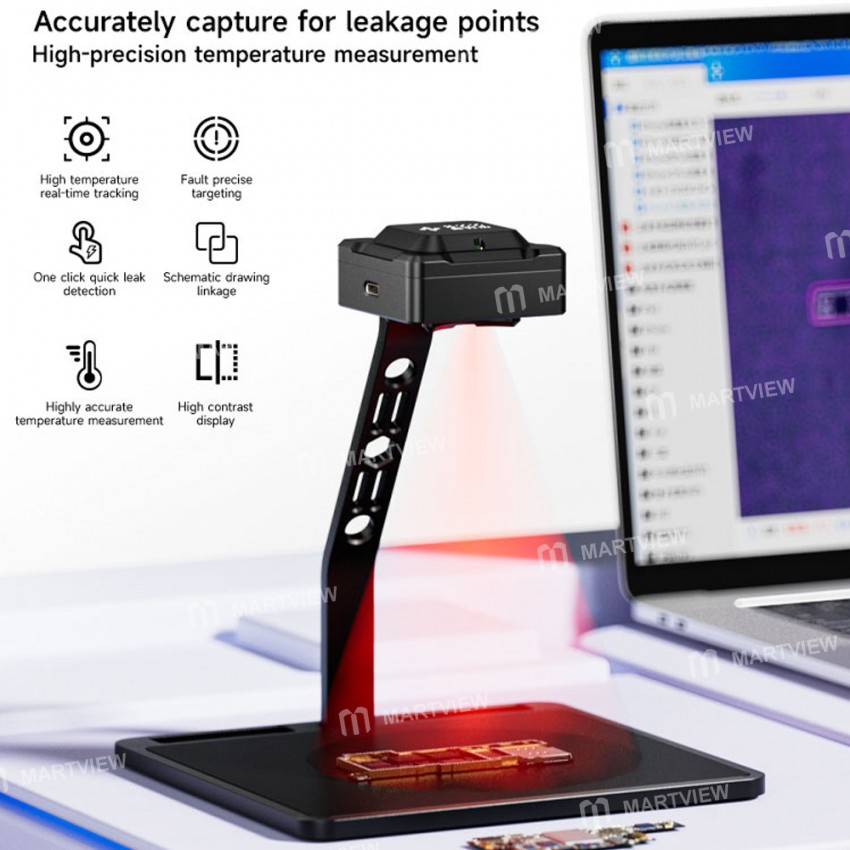

• The infrared thermal camera accurately captures leakage points, high-precision temperature measurement

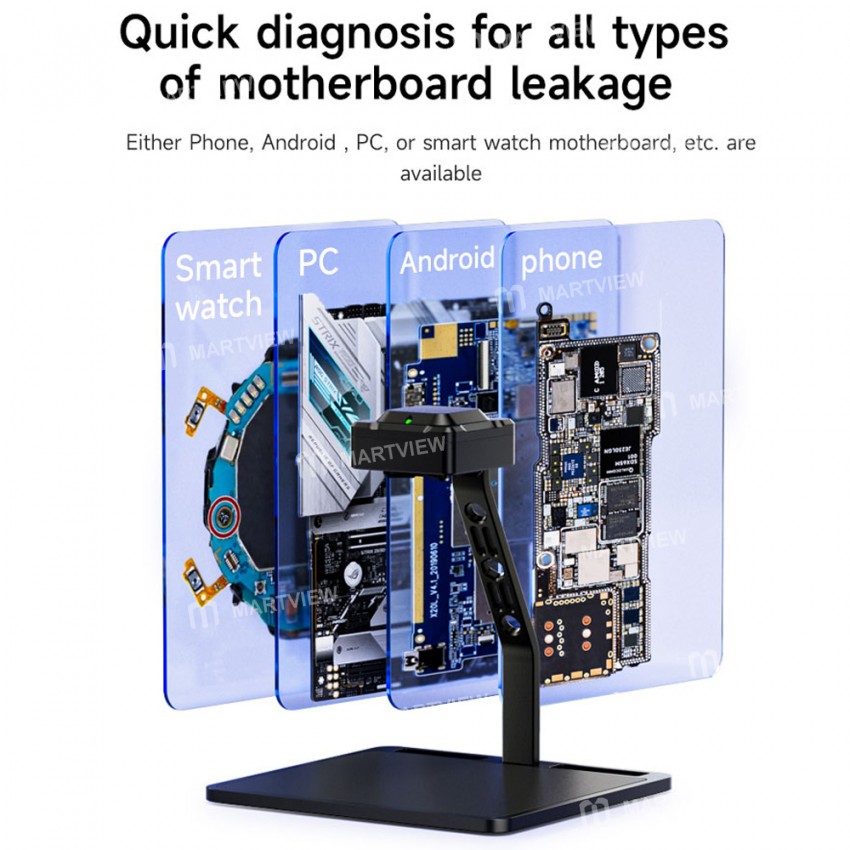

• Quick diagnosis for all types of motherboard leakage, either iPhone, Android, PC, or smartwatch motherboard, etc are available

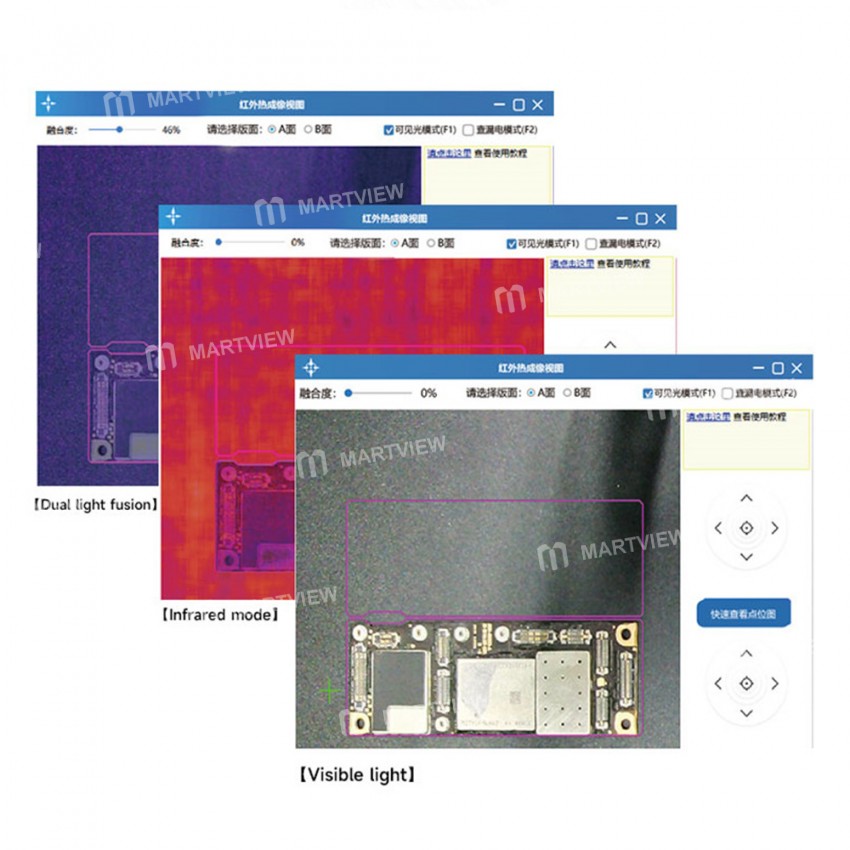

• Multiple display modes, switchable display mode, making leakage points clearer

• Quickly locate leakage high-temperature components, real-time HD display details of faulty devices

• Boardview linkage to quickly locate leakage points

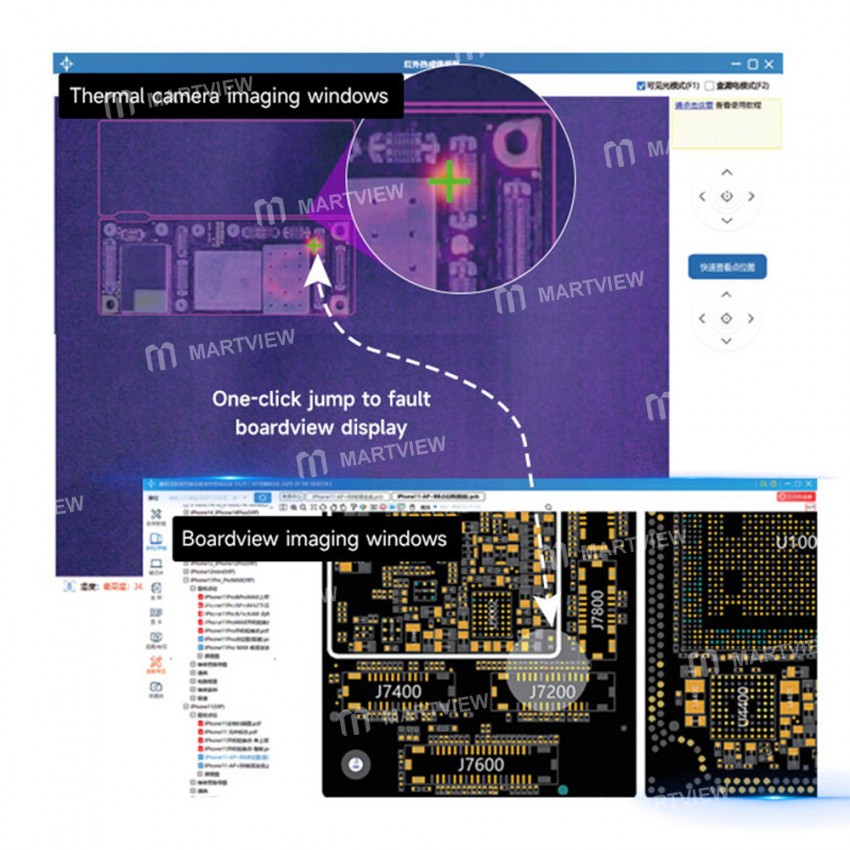

• Click on "Quick View Boardview" on the right-hand side of the thermal camera, automatically jump to the board view and locate  the location of the highest temperature

• One-click jump to the fault board view display

• No need to manually click on the board view and take time to find the corresponding fault location, becoming quick and easy

• Fully upgraded interfaces, configure the type-C port, install the driver for direct use

• High-precision temperature measurement, real-time display of high temperature at the bottom for quick location of temperature anomalies and rapid fault finding

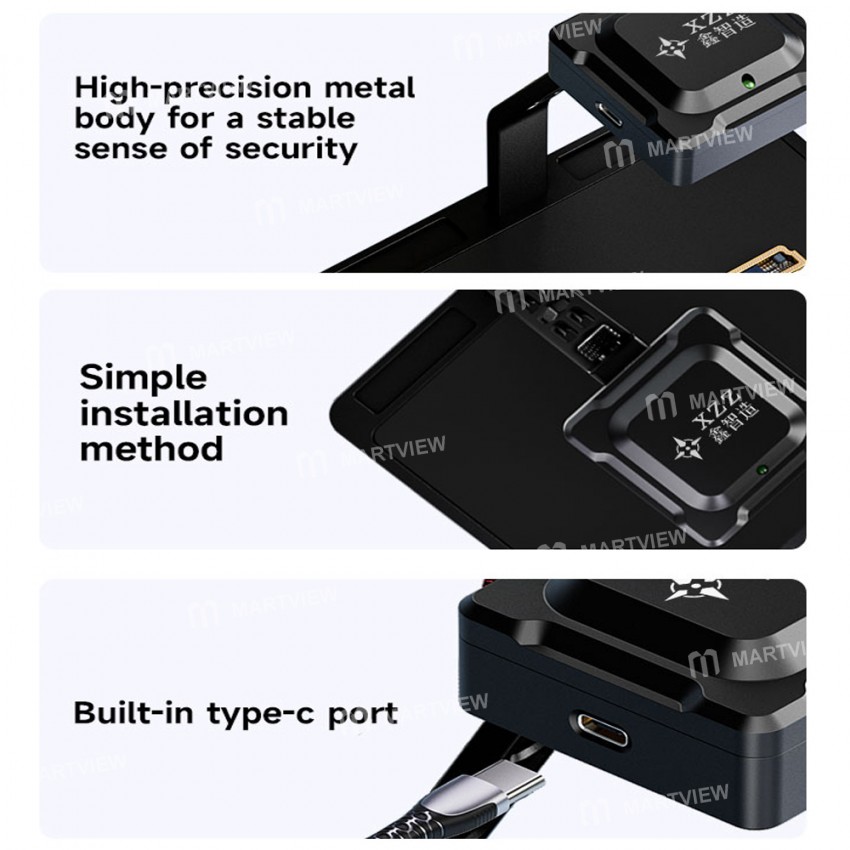

• High-precision metal body for a stable sense of security

• Simple installation method

Specification:

• Brand: XZZ

• Model: S320 Infrared ShortCam

• Product size: 180*170*155mm

• Package size: 180*167*48mm

• Product N.W.: 0.5KG

• G.W.: 0.7KG

• Thermal imaging resolution: 320 x 240

• Height of supports: 150mm

• Display mode: Visible light/Dual light fusion

• Temperature measurement function: Full temperature measurement

• Temperature measurement accuracy: +2°C

• Temperature measurement range: 0~380°C

Package includes:

• 1 x Thermal Imaging

• 1 x Power Cable
