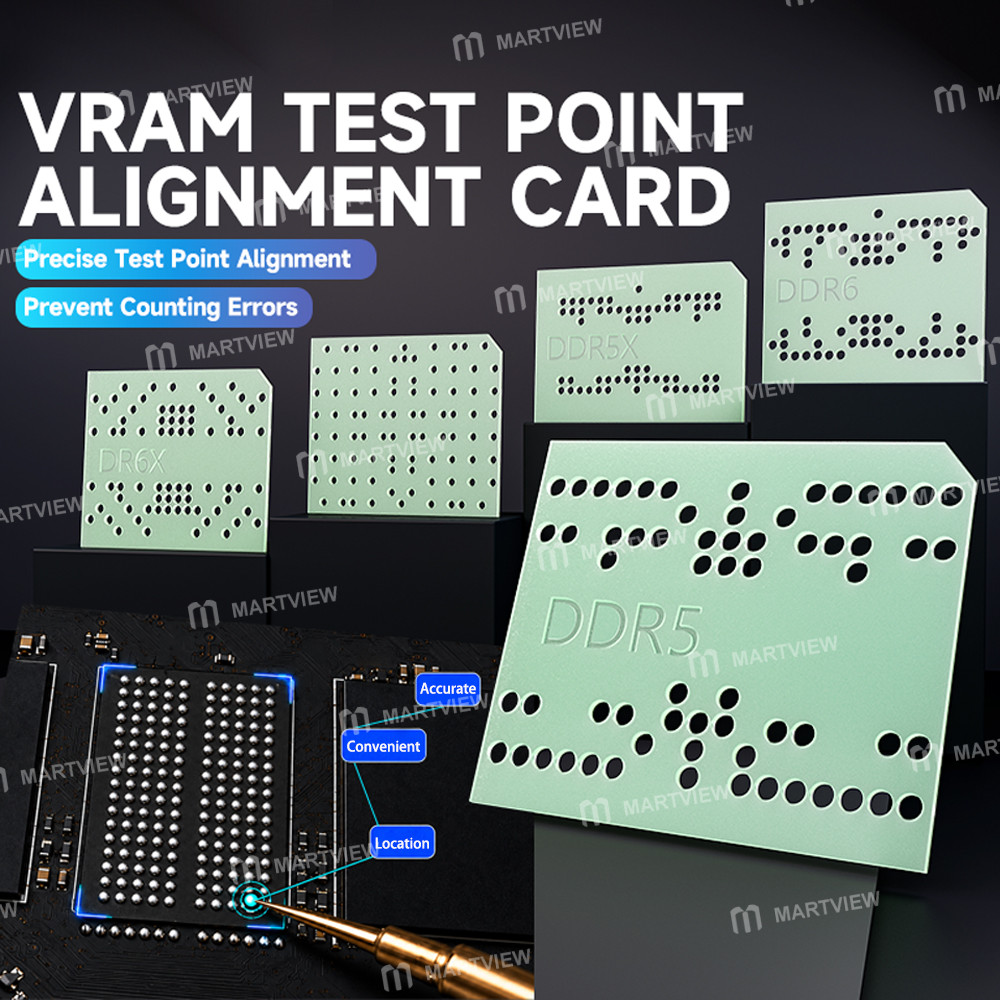

XZZ GDDR5 / 5X / 6 / 6X / 7 Video Memory Chip Overclocking Card (Must be used with an Extra-Fine Multimeter Tip)

XZZ GDDR5 / 5X / 6 / 6X / 7 Video Memory Chip Overclocking Card (Must be used with an Extra-Fine Multimeter Tip)

Features:

• A comparison card for verifying video memory values, allowing for quick location of reference points and reducing the need for repeated manual counting

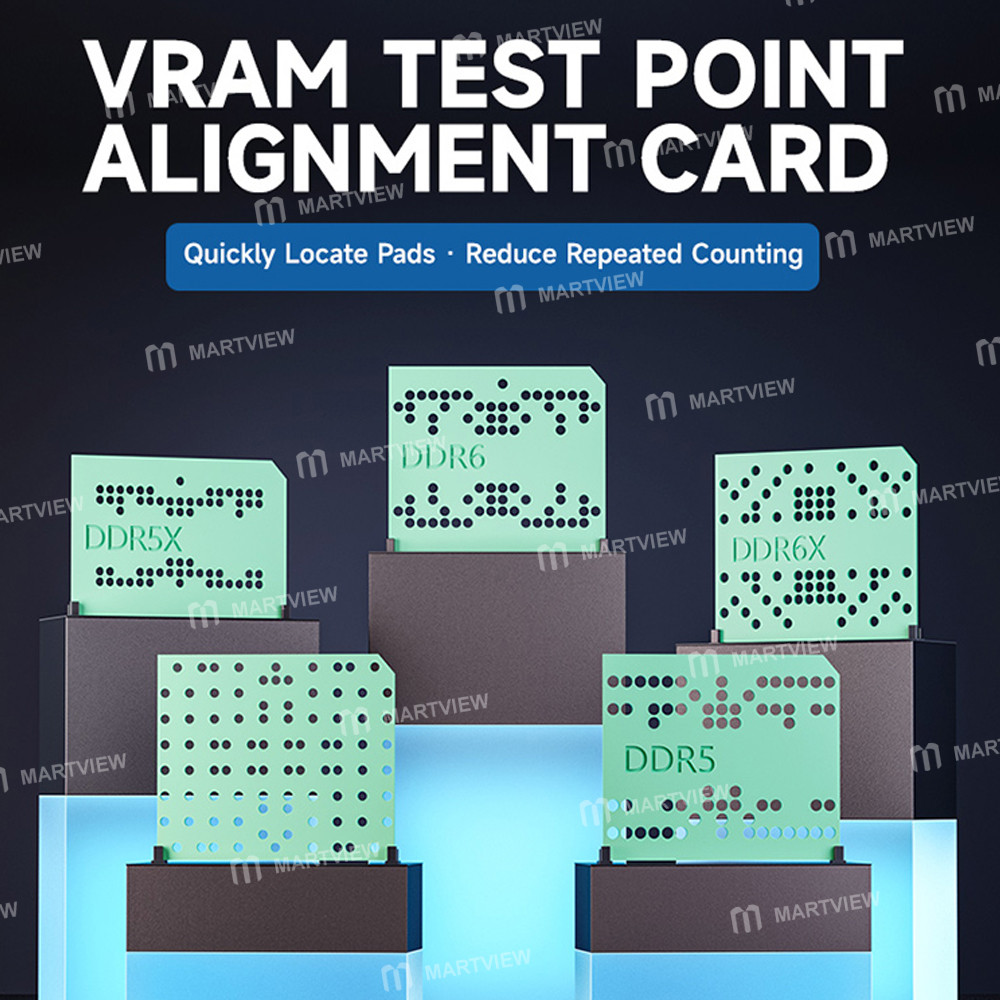

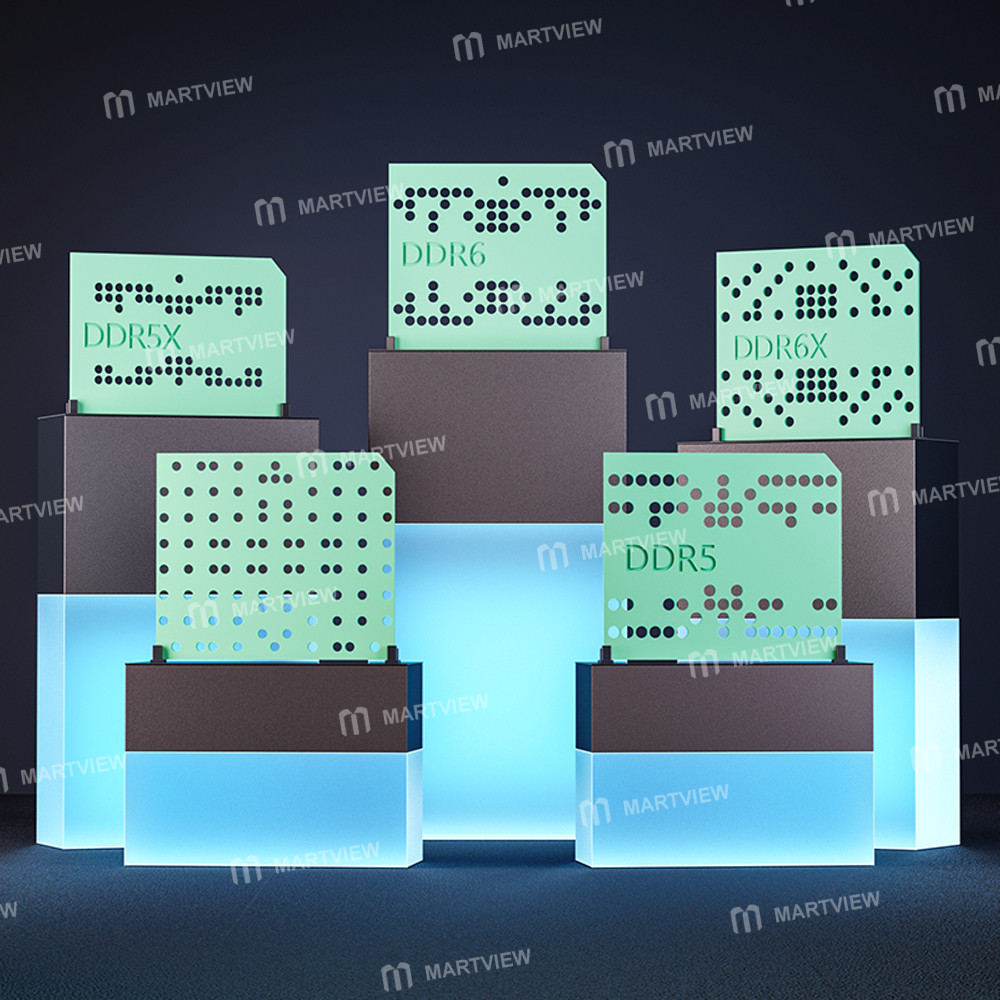

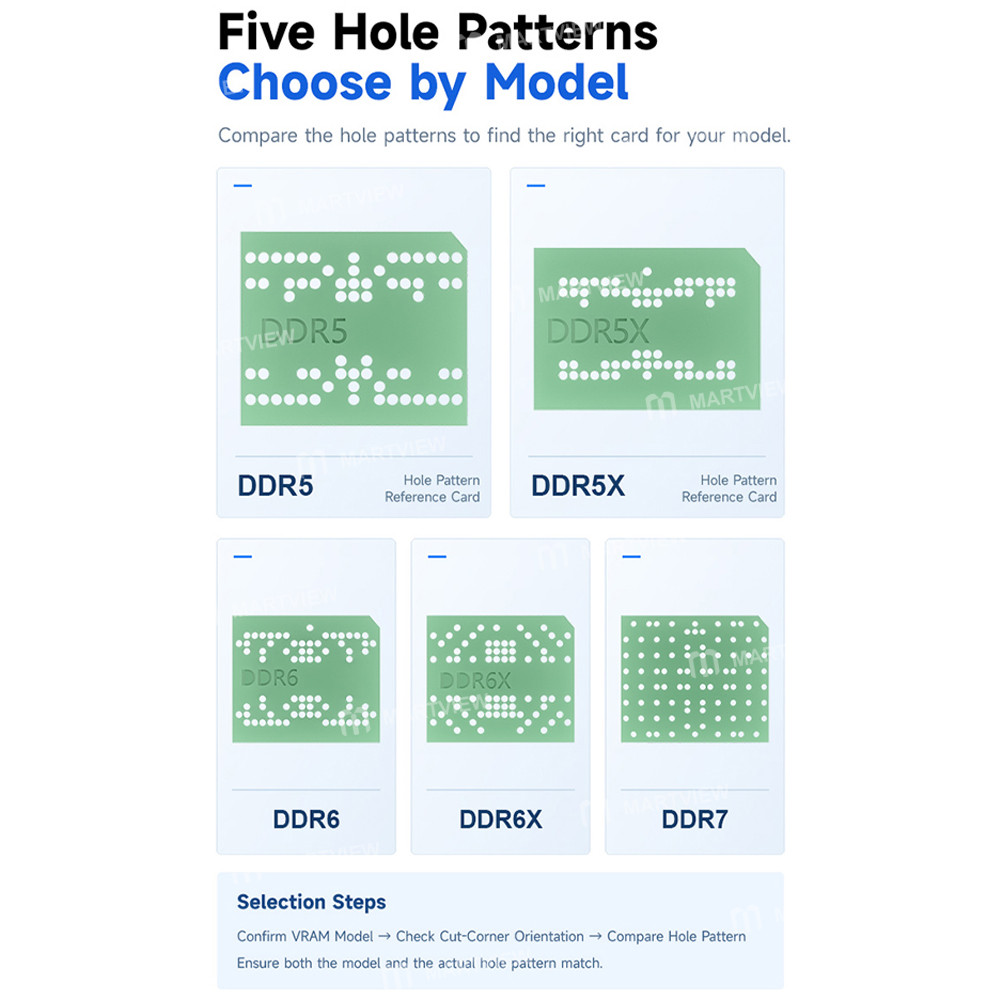

• Reference point alignment for quick assembly; five models available

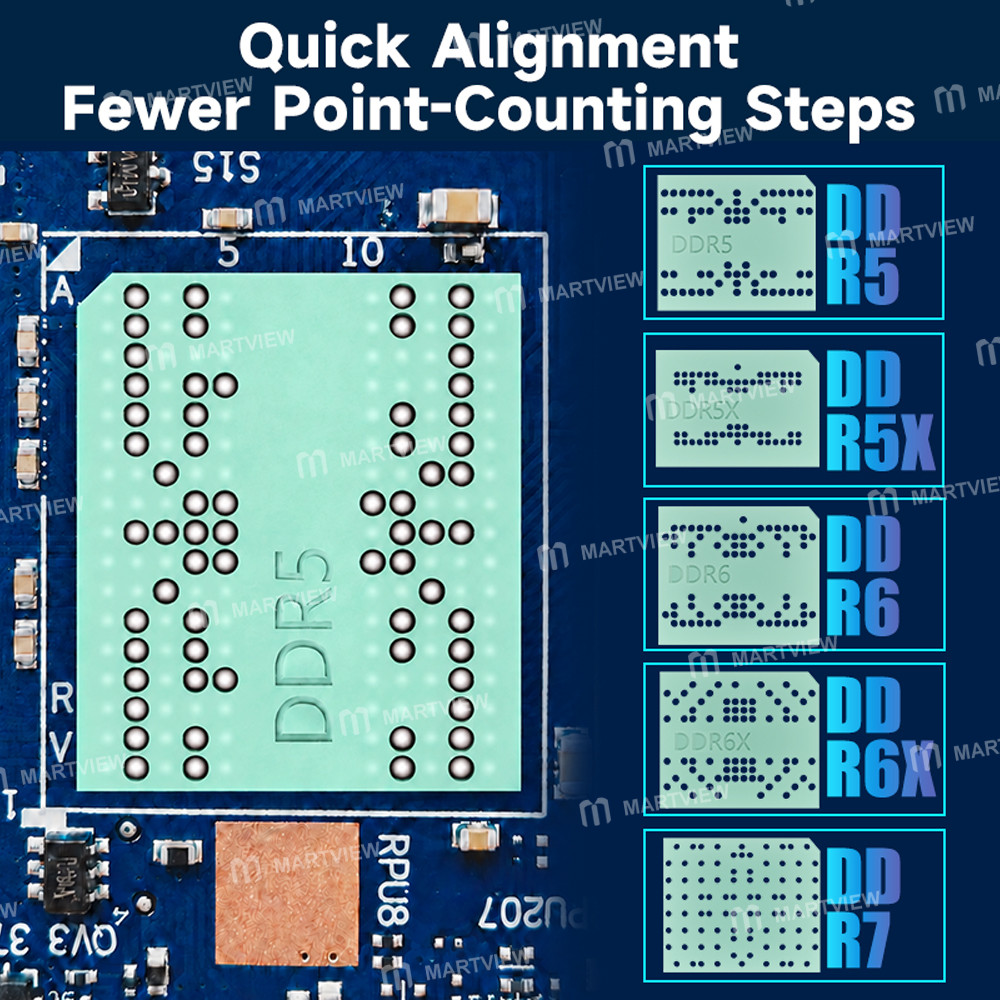

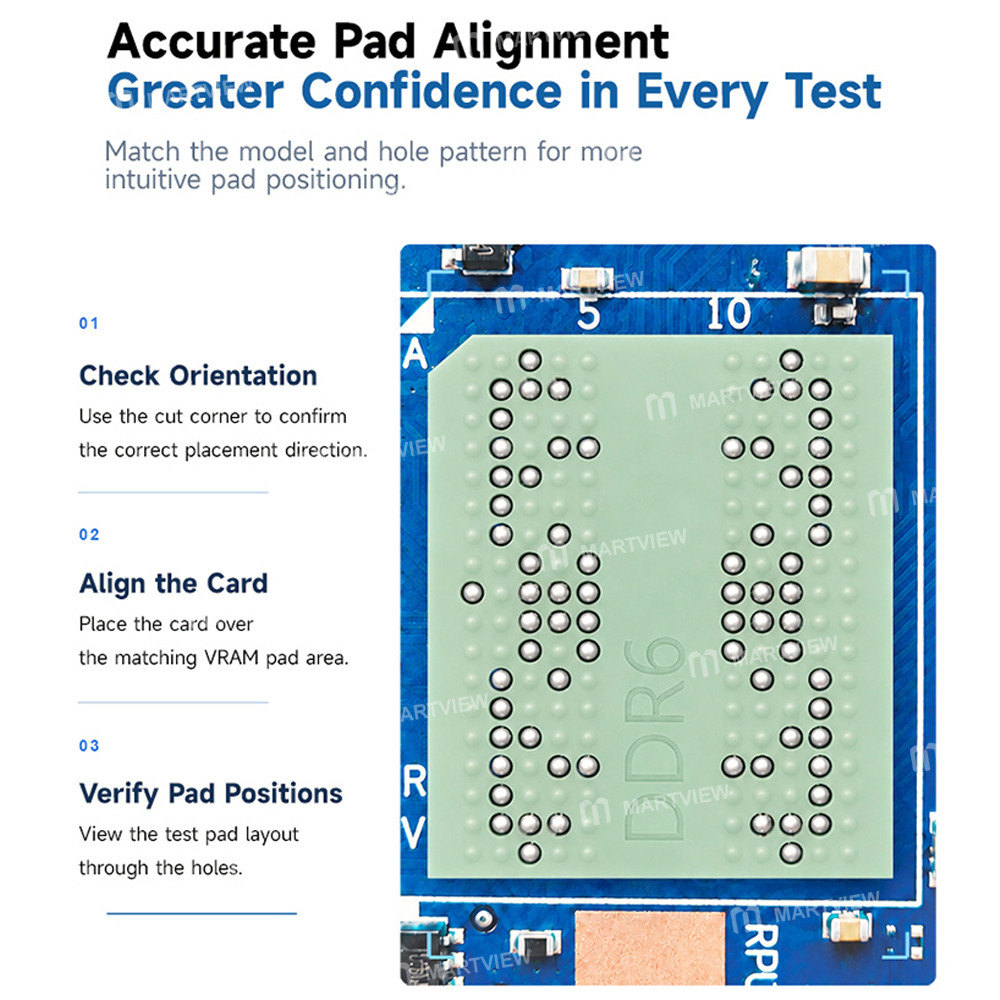

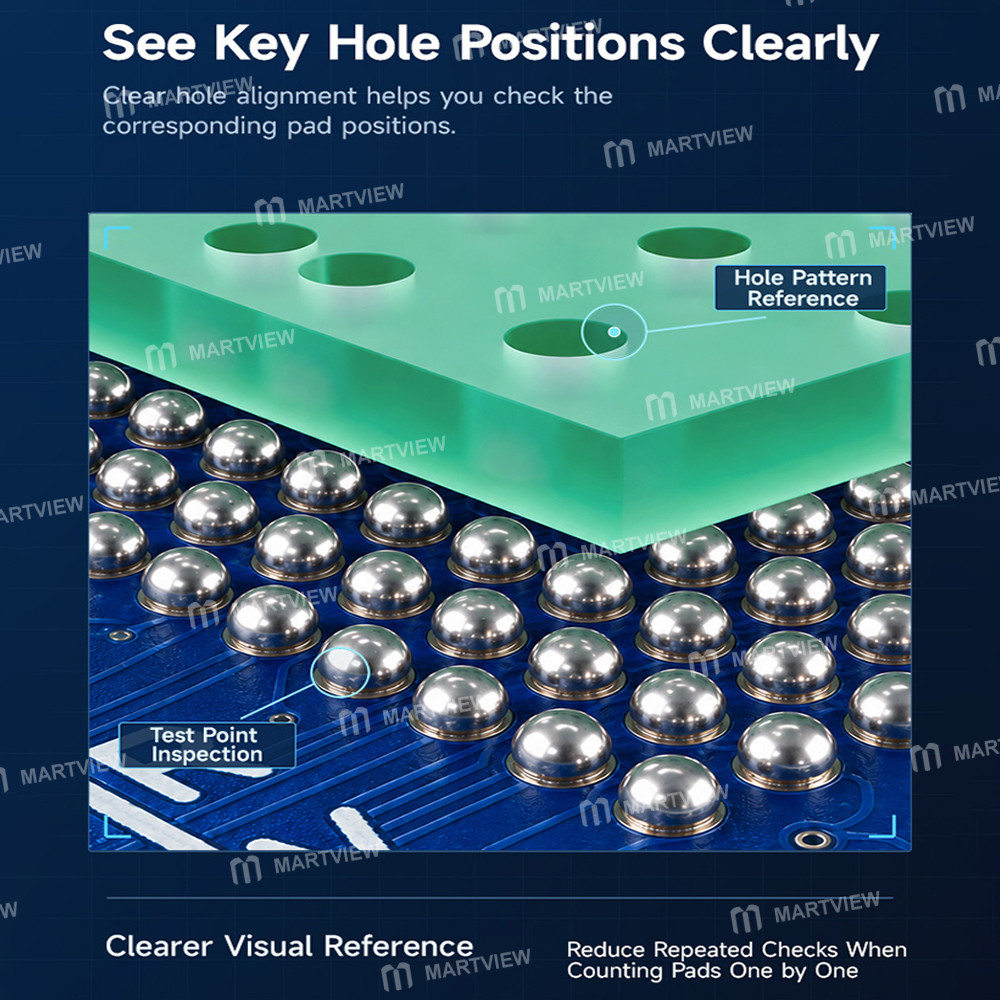

• Clear hole pattern alignment aids in verifying corresponding positions, reducing the need for repeated confirmation during point-by-point counting

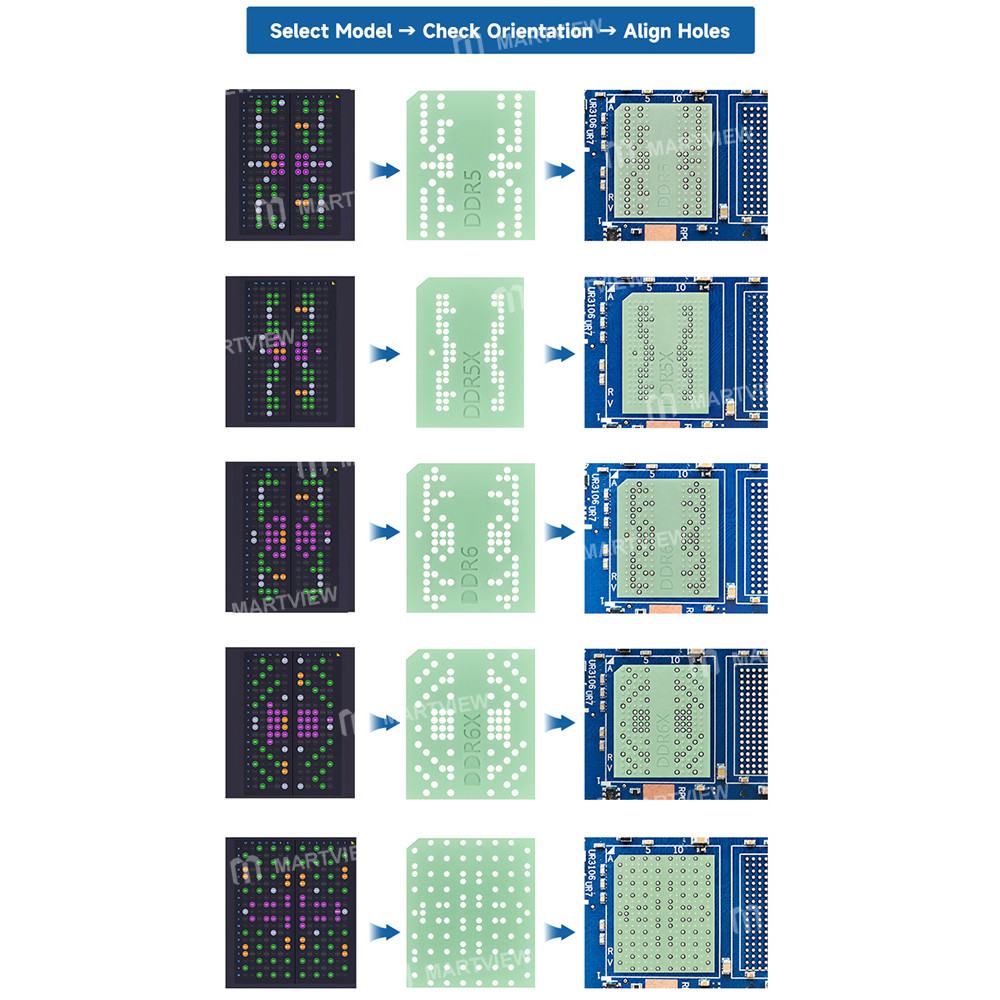

• Confirm the video memory model → Check the direction of the notched corner → Compare the hole pattern distribution

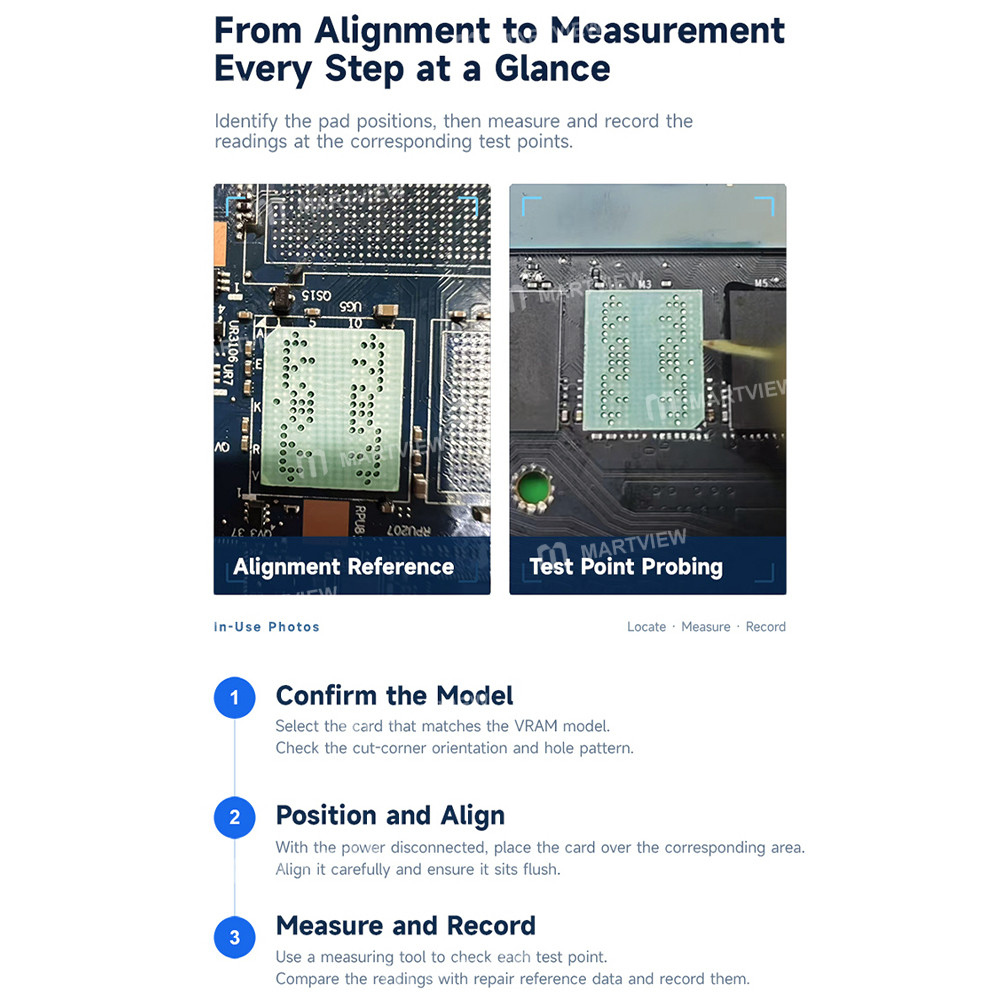

Steps:

• Verify Model: Select the appropriate card based on the video memory model. First, check the orientation of the notched corner and the pin layout

• Align and Insert: With the power off, insert the card, align it with the corresponding positions, and ensure it fits snugly

• Record Measurements: Use a measuring tool to check each point individually, verify the readings against the repair manual, and record the results

Package includes:

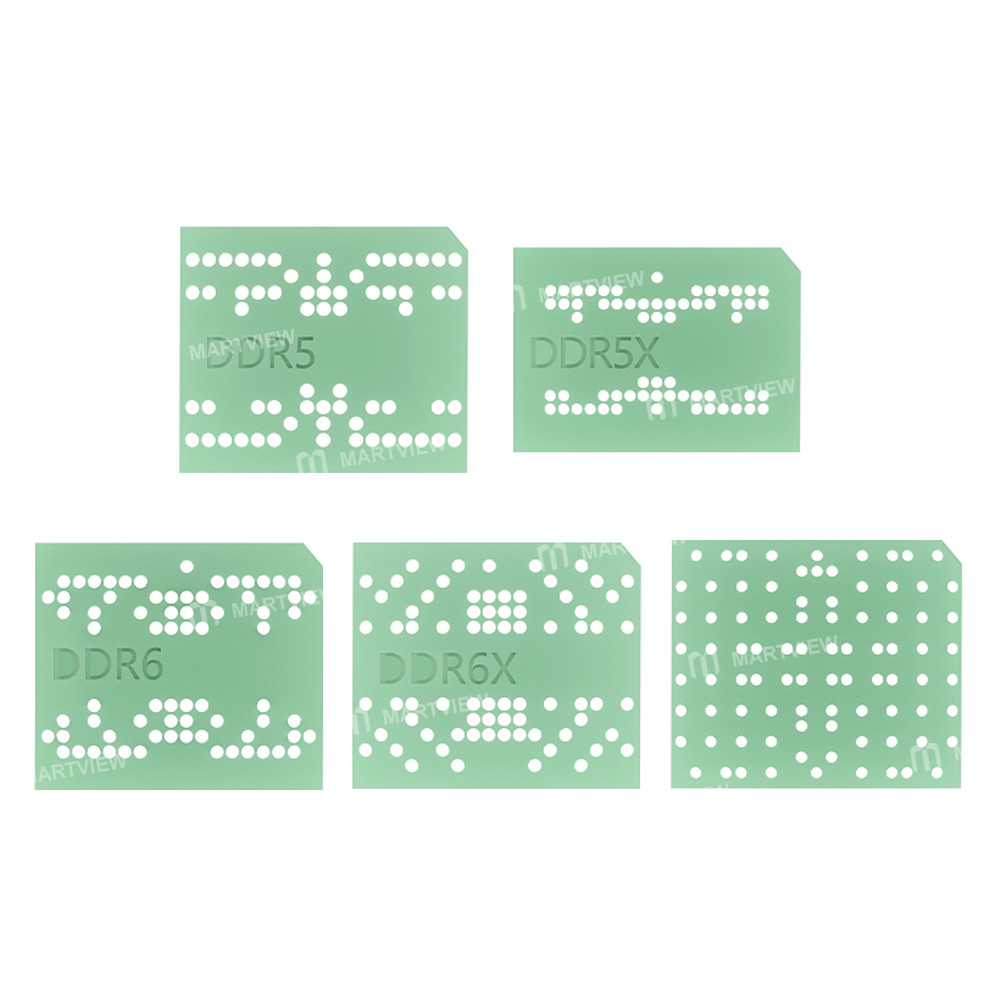

• 5 x Card
