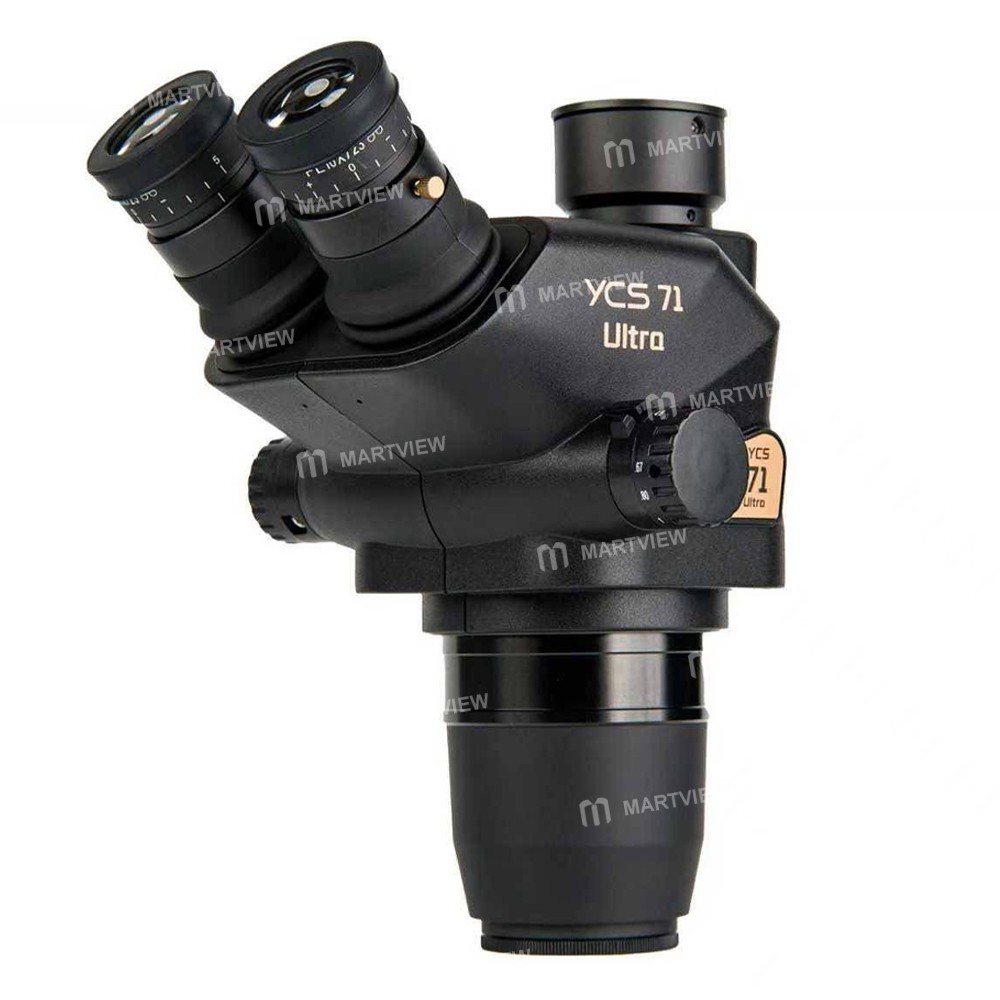

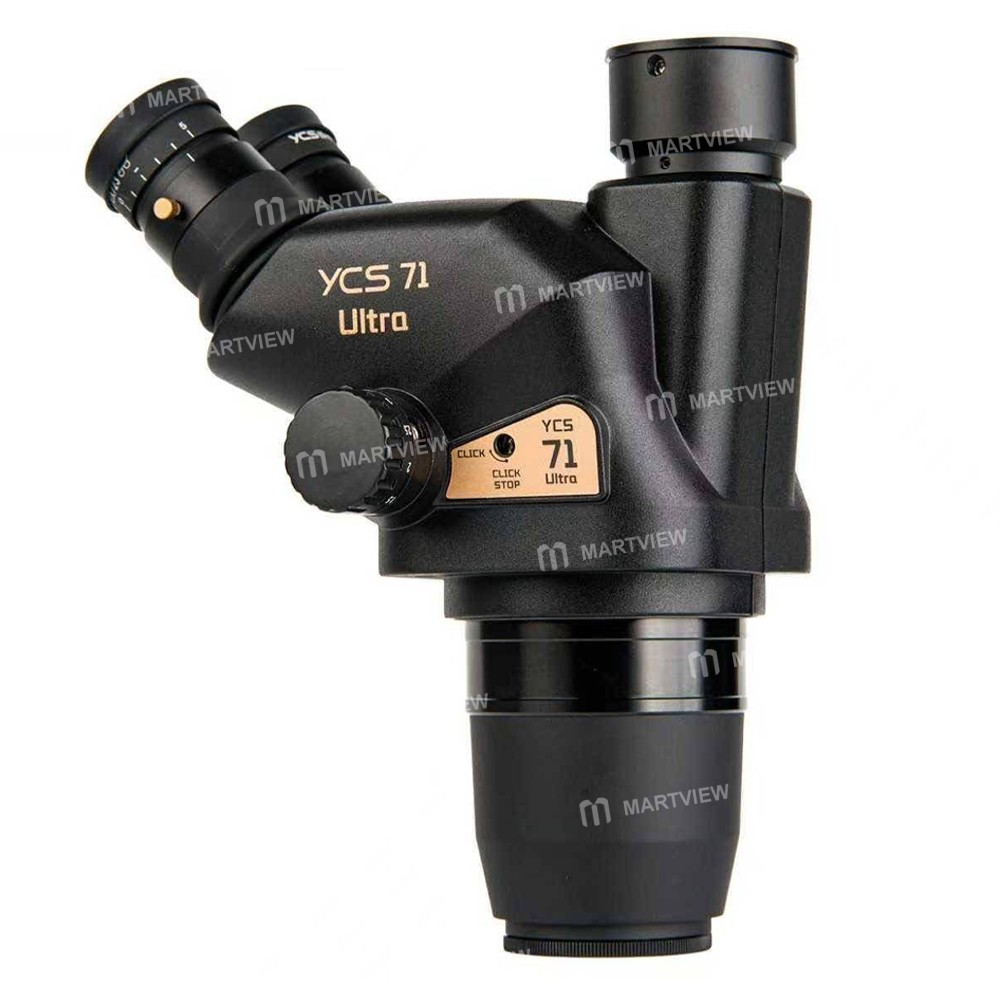

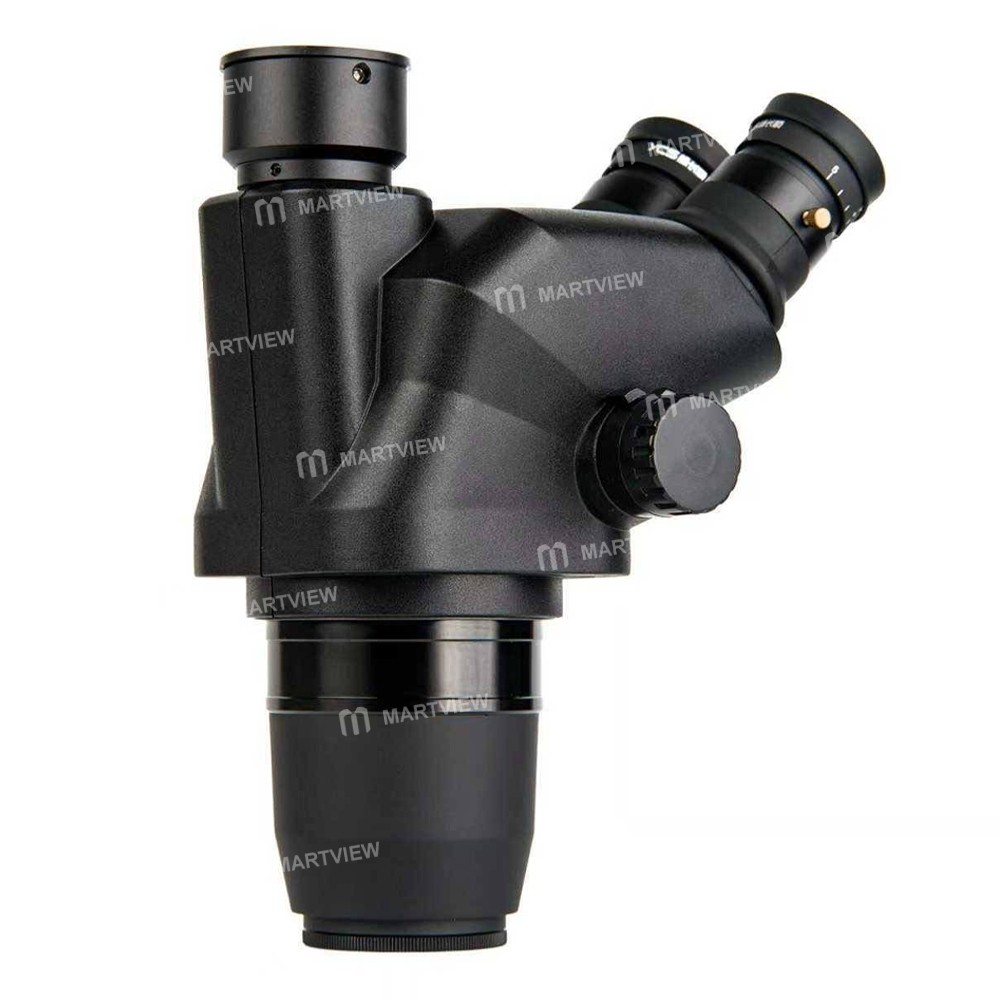

YCS 71 Ultra Trinocular Macroscopic Co-visual Stereo Microscope Head for Soldering Repair

YCS 71 Ultra Trinocular Macroscopic Co-visual Stereo Microscope Head for Soldering Repair

Features:

• It can be applied to the electronic industry production line inspection, and single-board PCB verification, and can also be used for the identification of paintings and calligraphy, as well as scientific research, teaching demonstration, archaeology, and other fields

• The 71Ultra has a broader field of view and a fixed frame and magnification limit function, which is suitable for PCB, LCD, and IC assembly and inspection.

• Innovative push-pull three-way switching lever, fixed-frame and fixed-magnification mechanism, and magnification-limiting function design, further ease the user's sense of long-time operation, in line with ergonomic principles

• The new main magnification fixed frame function can repeat the same magnification, a good solution to the problem of magnification calculation when observing objects

• The hand wheel is light and comfortable, effectively avoiding the fatigue caused by long-term operation

• Grignot optical system, 10° body vision convergence angle, large field of view of the flat field eyepiece, to ensure a large depth of field under the image of the flat field

• 45° tilt binocular observation head, fixed frame, fixed magnification mechanism, and the highest and lowest magnification adjustment lock function, high eye point, large field of view, flat field eyepiece

Specification:

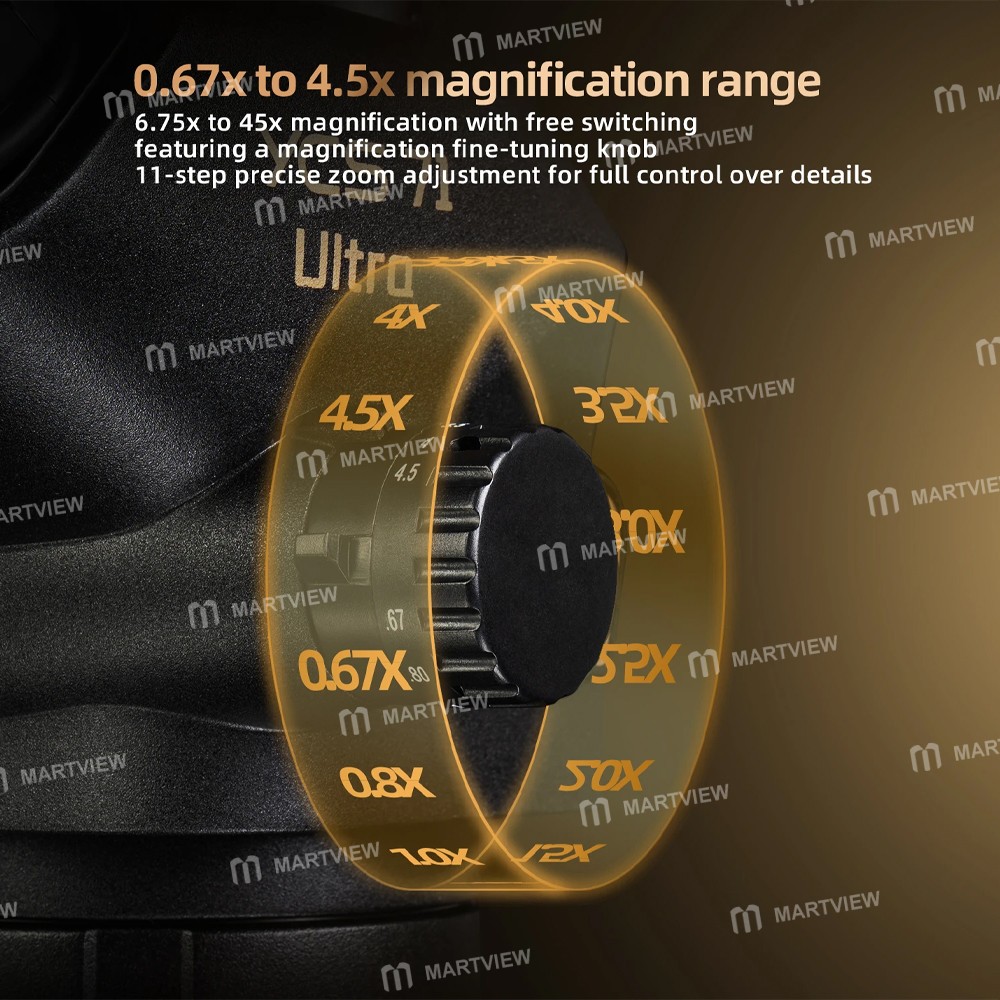

• Standard magnification 6.7X~45X continuous zoom, expandable to 2X~225X

• 0.67X~4.5X continuous zoom lens, zoom ratio 6.7:1

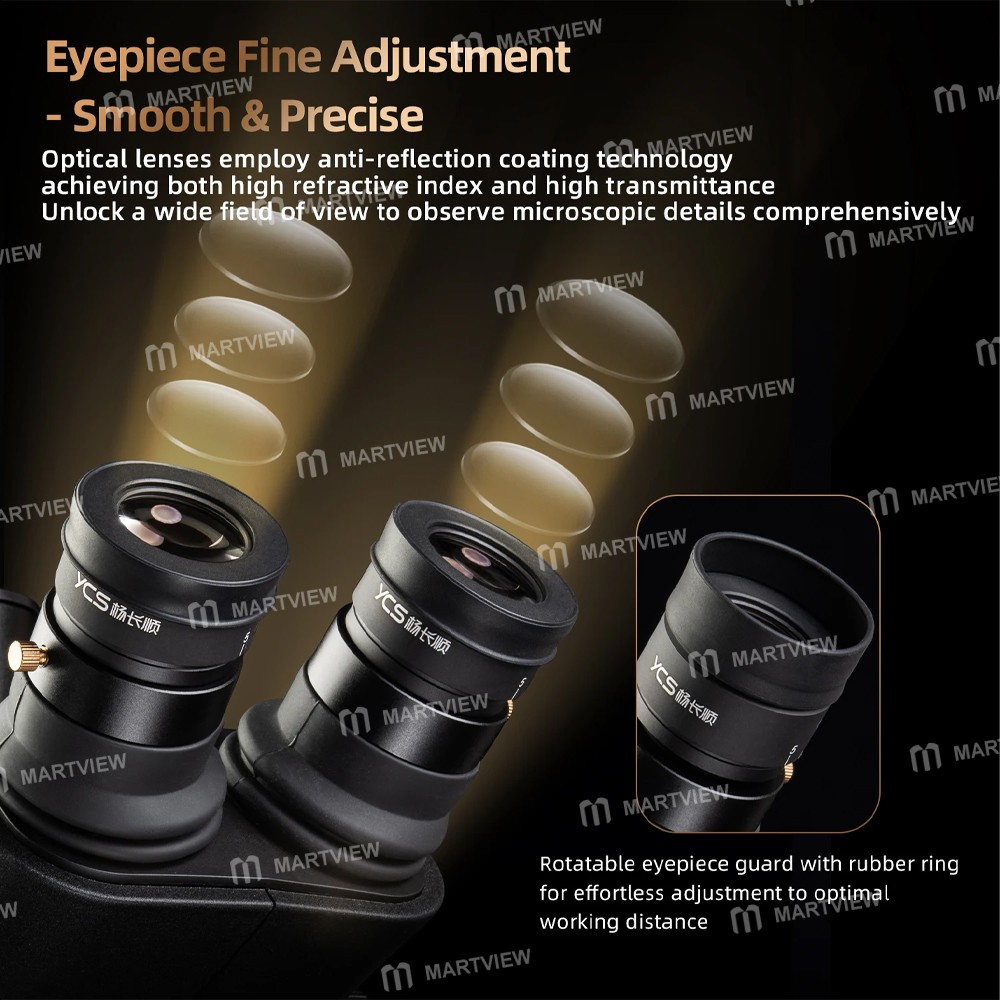

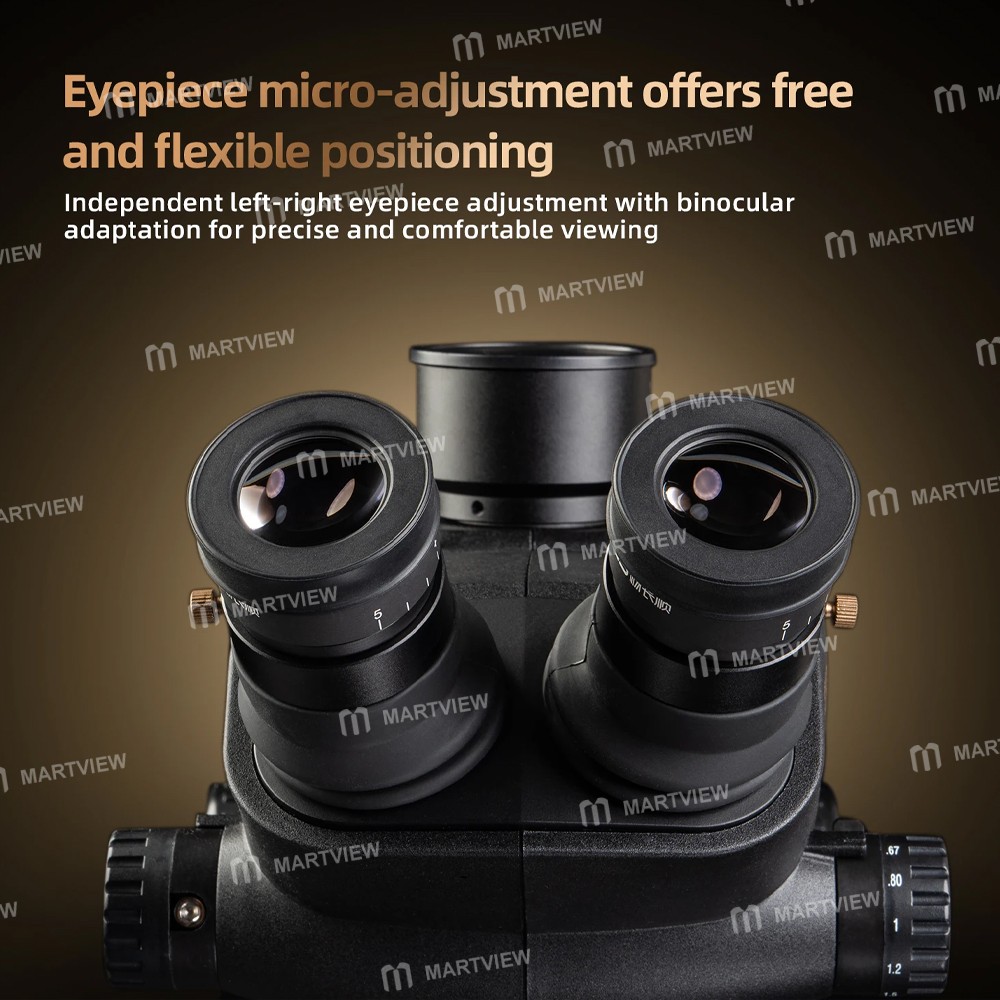

• Using the large field of view eyepiece PL10X/22mm, adjustable vision, adjustment range ± 5 diopters, ultra-wide field of view, and the high eye point

• Binocular head / trinocular head eyepiece barrel 45 ° tilt, the host head 360 ° rotation

• Binocular or trinocular beam splitting ratio 20% / 80%

• Pupil distance adjustment range 52mm~76mm

• Standard working distance 110mm

• Optional eyepieces: PL10X/22mm, PL15X/16mm, PL20X/12mm (adjustable visual acuity)

• Optional auxiliary objective: 0.3X/287mm, 0.4X/217mm, 0.5X/177mm, 0.7X/120mm, 1.5X/47mm, 2X/26mm

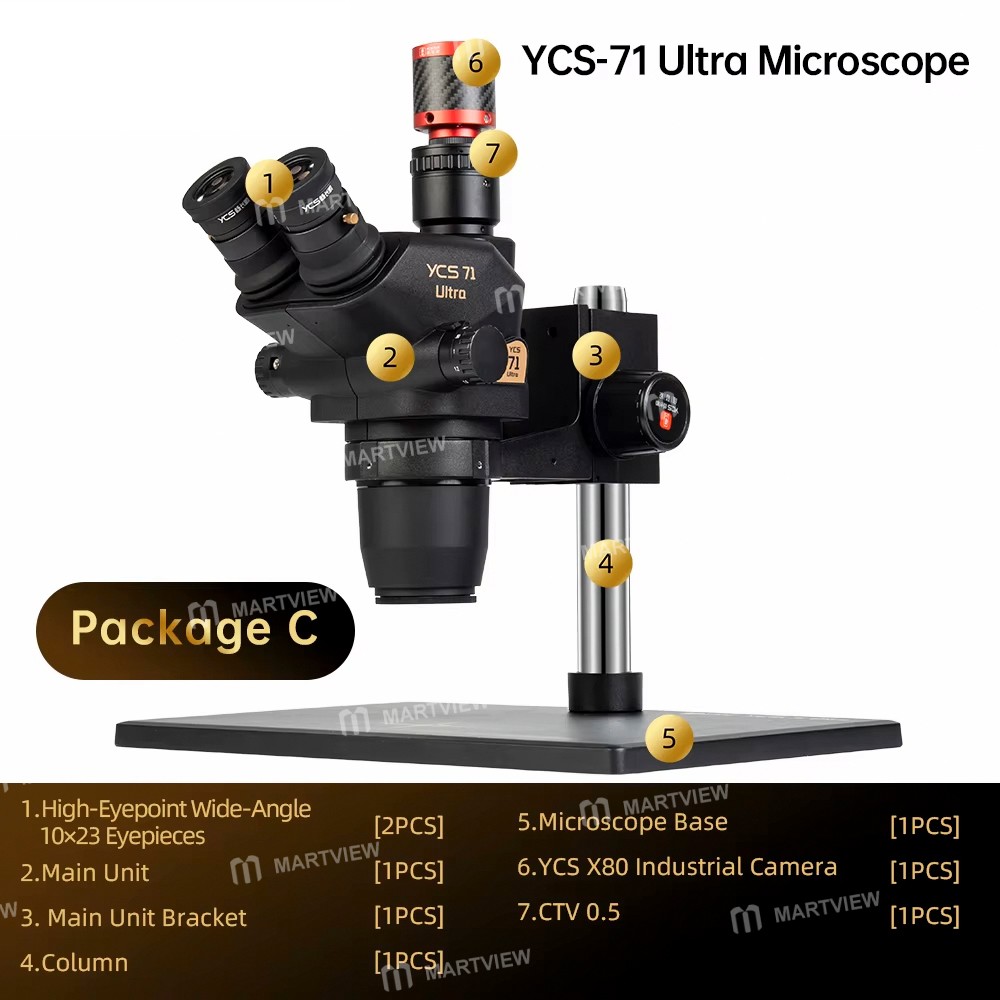

• Optional camera interface: 0.35X, 0.5X, 0.65X, 1X C-type interface, focusable

Package includes:

• 1 x Microscope Head
