YCS X10Pro 10.1-inch HD Microscope Camera All-in-One Display with Measurement and Calibration

YCS X10Pro 10.1-inch HD Microscope Camera All-in-One Display with Measurement and Calibration

Overview:
Elevate your electronics repair, soldering, and inspection workflow with the YCS X10Pro 10.1" HD Microscope Camera! Designed for precision, this tool combines a large high-definition display, advanced measurement capabilities, and versatile connectivity—making it an essential addition to any repair shop, lab, or hobbyist’s toolkit. Whether you’re repairing smartphone motherboards, soldering tiny SMD components, or inspecting circuit boards, the X10Pro delivers crystal-clear visuals and accurate measurements to streamline your work.

Features:

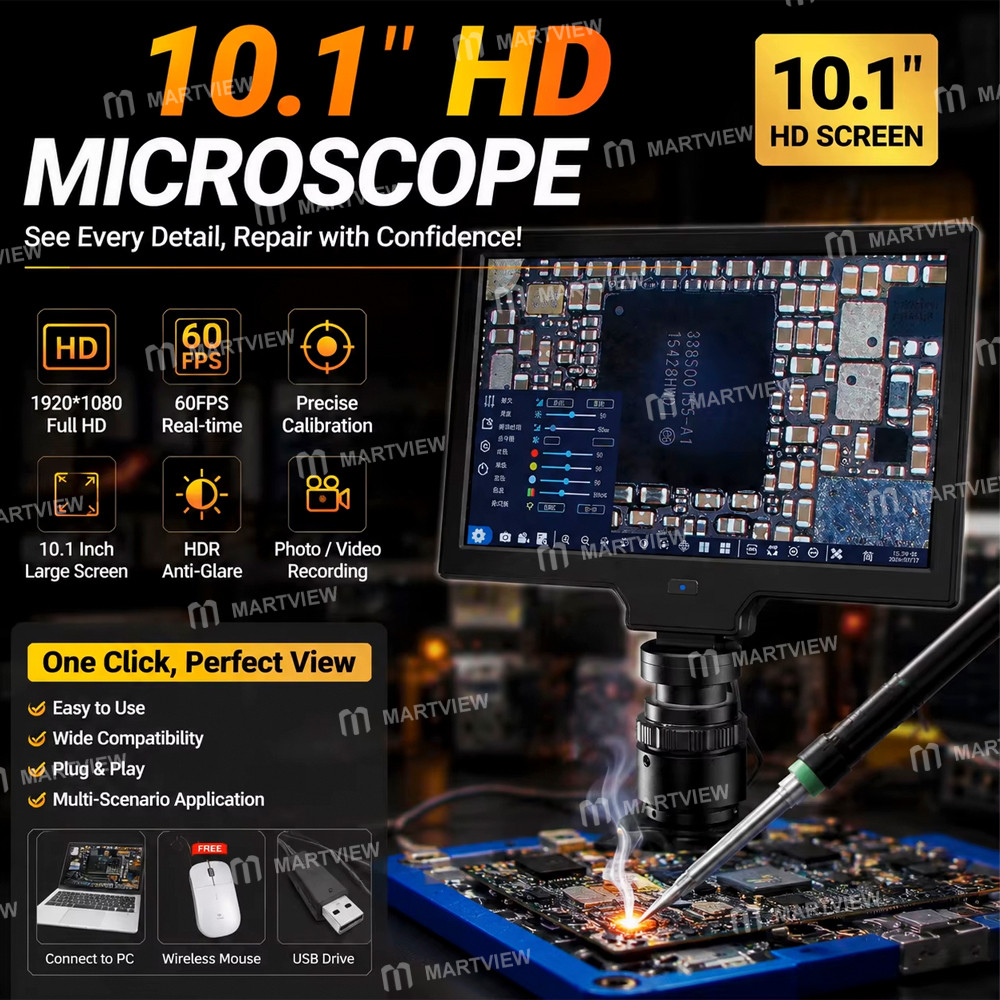

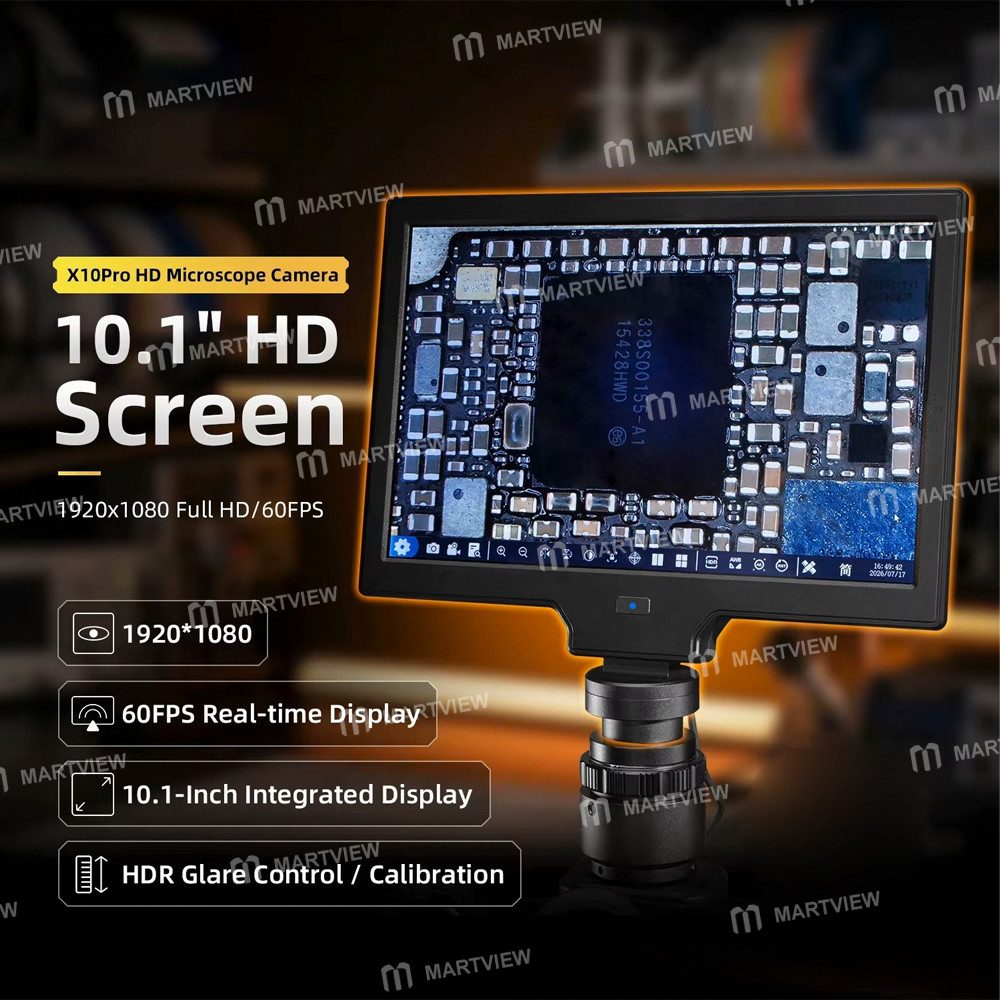

• 10.1" Full HD Display: A built-in 10.1-inch screen with 1920×1080 resolution ensures sharp, detailed views of even the tiniest components (e.g., ICs, resistors, capacitors). The large display reduces eye strain during long repair sessions.

• High-Speed 60FPS Imaging: Captures smooth, real-time video at 60 frames per second—critical for dynamic tasks like soldering or inspecting moving parts. No more laggy, blurry visuals!

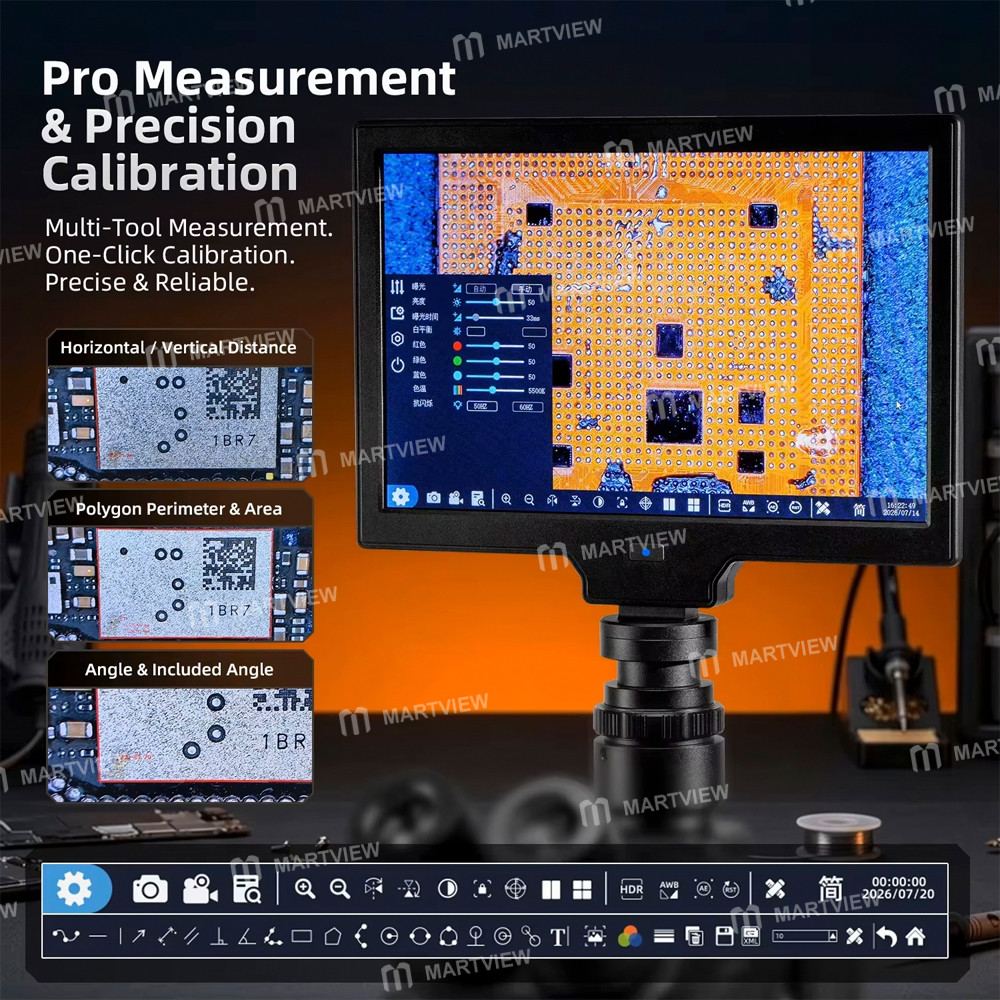

• Advanced Measurement Tools: Measure horizontal/vertical distances, polygon perimeters, areas, and angles with one-click calibration. Perfect for verifying component spacing, pad sizes, and circuit dimensions.

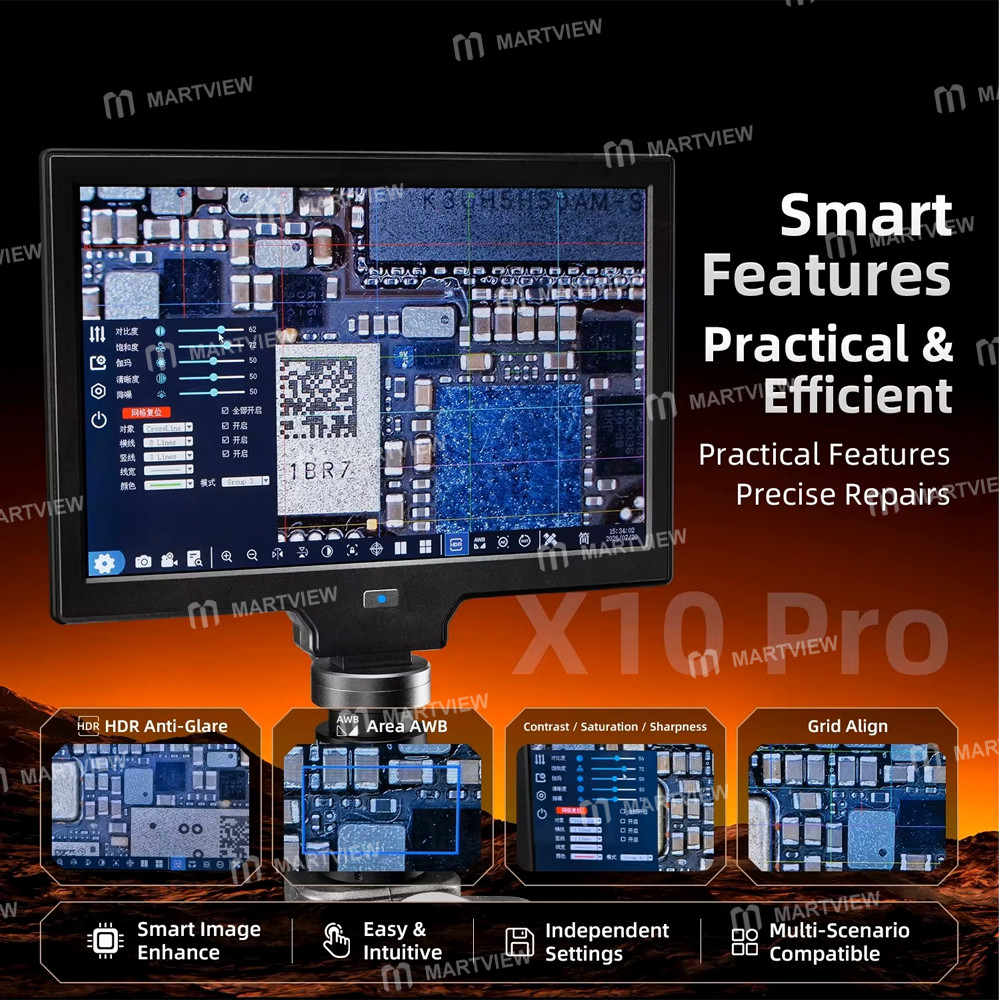

• Smart Image Optimization: Features HDR anti-glare, adjustable contrast/saturation/sharpness, grid alignment, and smart image enhancement. Customize visuals to suit any lighting condition or inspection task.

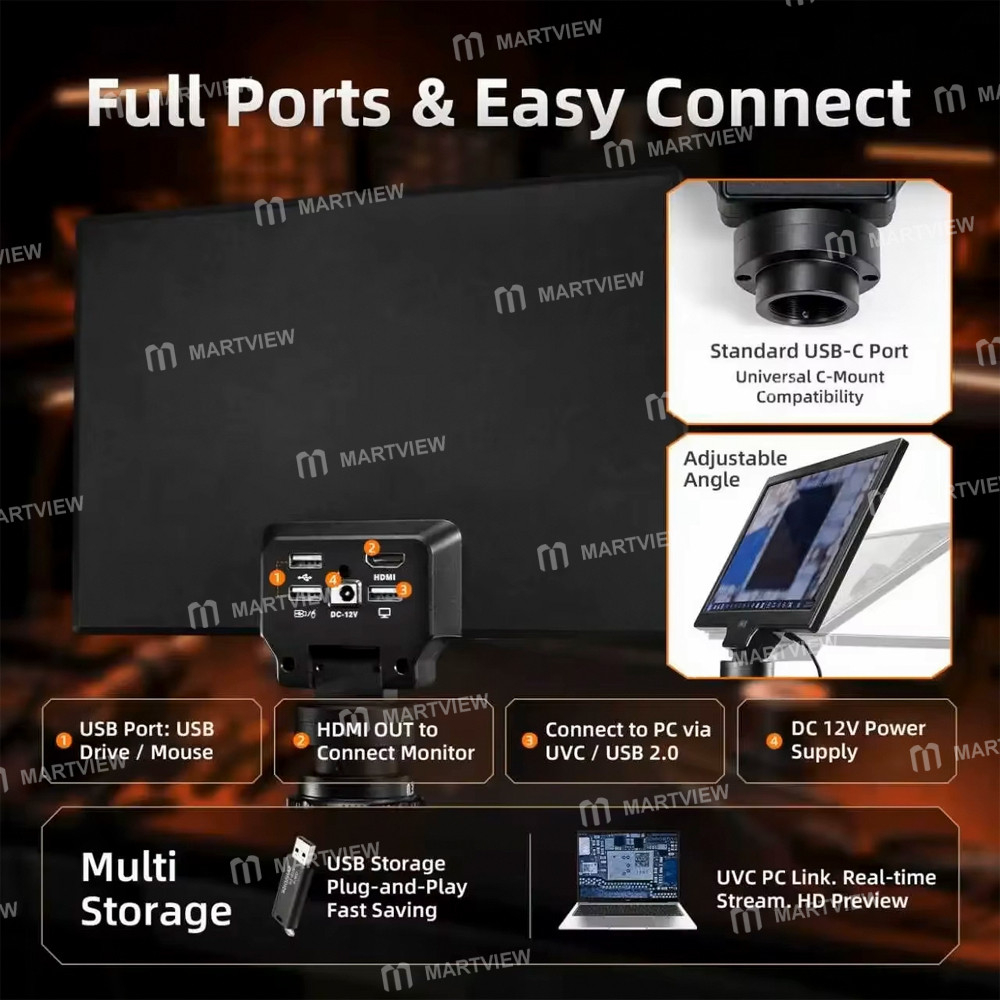

• Versatile Connectivity: USB-C Port: Universal compatibility with PCs, laptops, and UVC-enabled devices; HDMI Output: Connect to external monitors for larger, team-friendly viewing; DC 12V Power: Stable power supply for extended use.

• User-Friendly Design: An adjustable angle stand lets you position the camera perfectly. The intuitive on-screen menu simplifies parameter adjustments (exposure, white balance, etc.). Plus, a free wireless mouse is included for easy navigation!

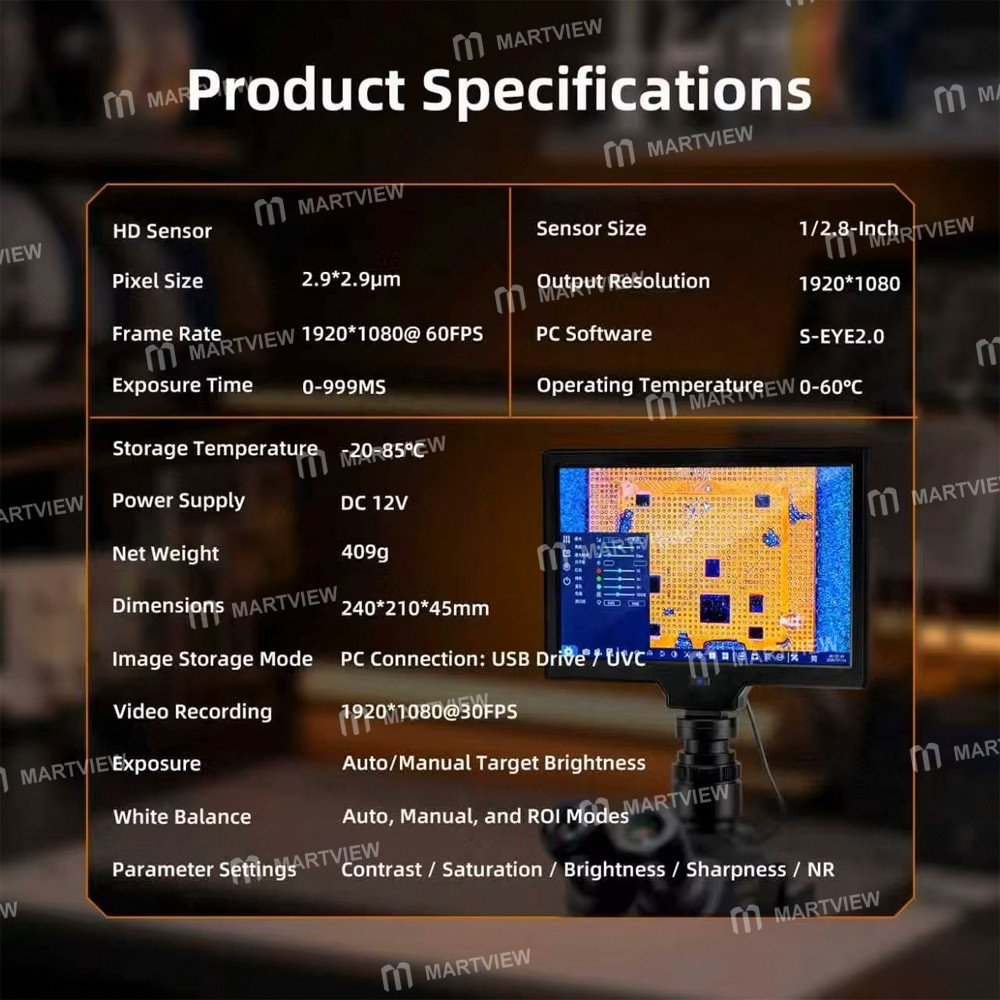

Specifications:

• HD Sensor: Sony

• Pixel Size: 2.9×2.9μm

• Frame Rate: 1920×1080 @ 60FPS

• Exposure Time: 0-999ms

• Output Resolution: 1920×1080

• PC Software: S-EYE2.0

• Sensor Size: 1/2.8-Inch

• Operating Temperature: 0~60℃

• Storage Temperature: -20~85℃

• Power Supply: DC 12V

• Net Weight: 409g

• Dimensions: 240×210×45mm

• Image Storage Mode: PC Connection: USB Drive/UVC

• Video Recording: 1920×1080@60FPS

• Exposure Modes: Auto/Manual Target Brightness

• White Balance: Auto, Manual, ROI Modes

• Parameter Settings: Contrast/Saturation/Brightness/Sharpeness/NR

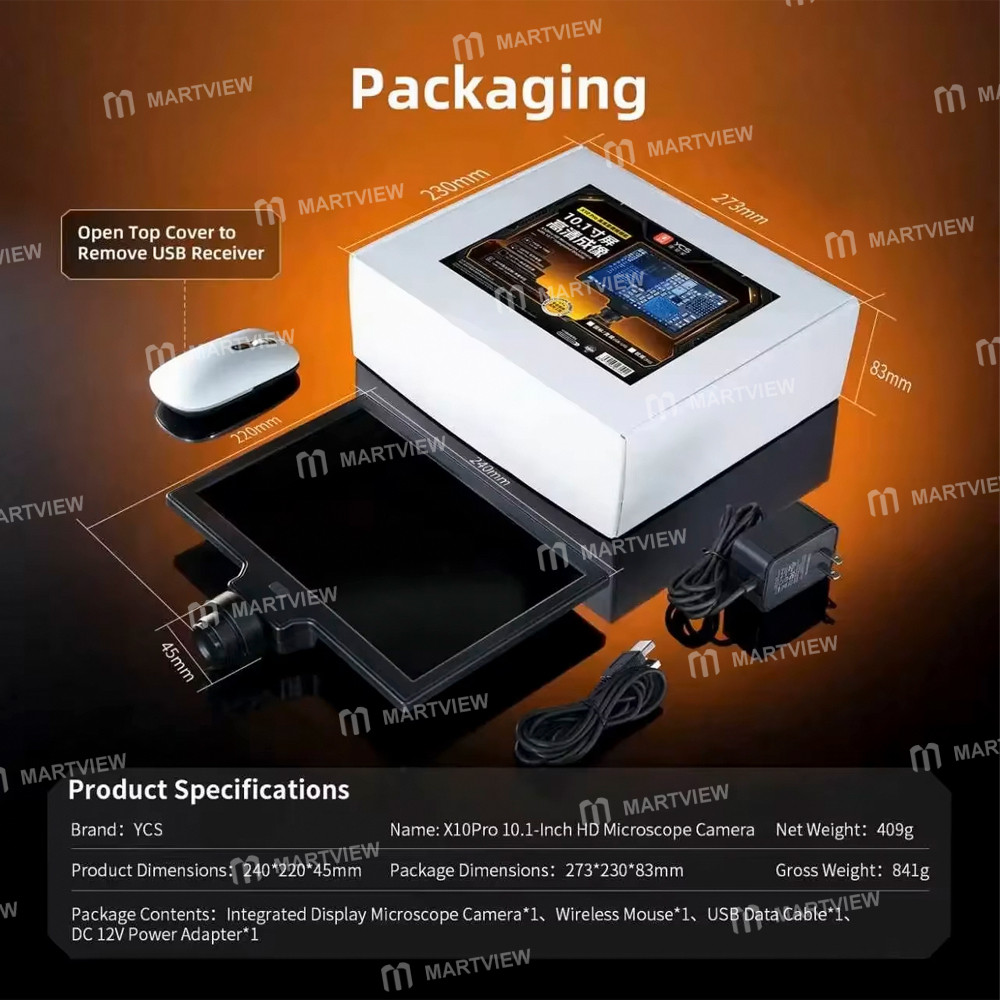

Package Includes:

• 1 × Integrated Display Microscope Camera

• 1 × Wireless Mouse

• 1 × USB Data Cable

• 1 × Power Adapter
