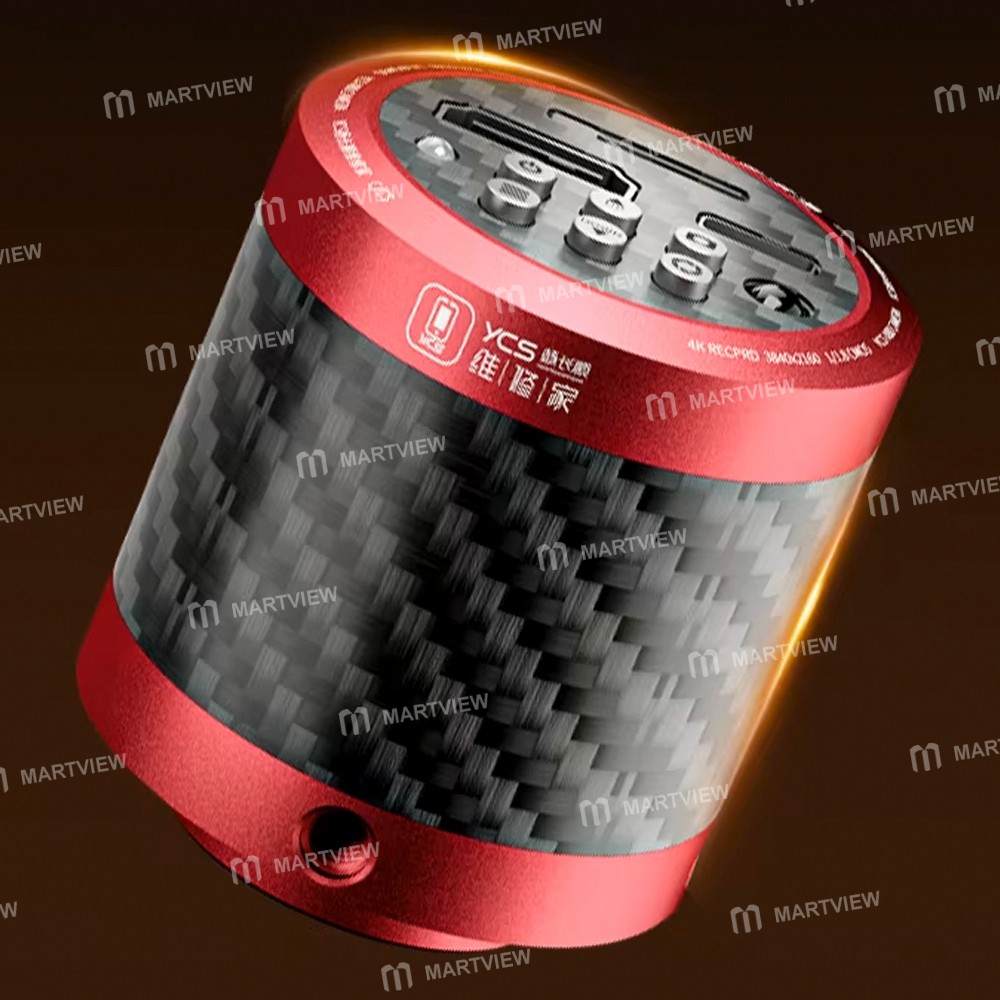

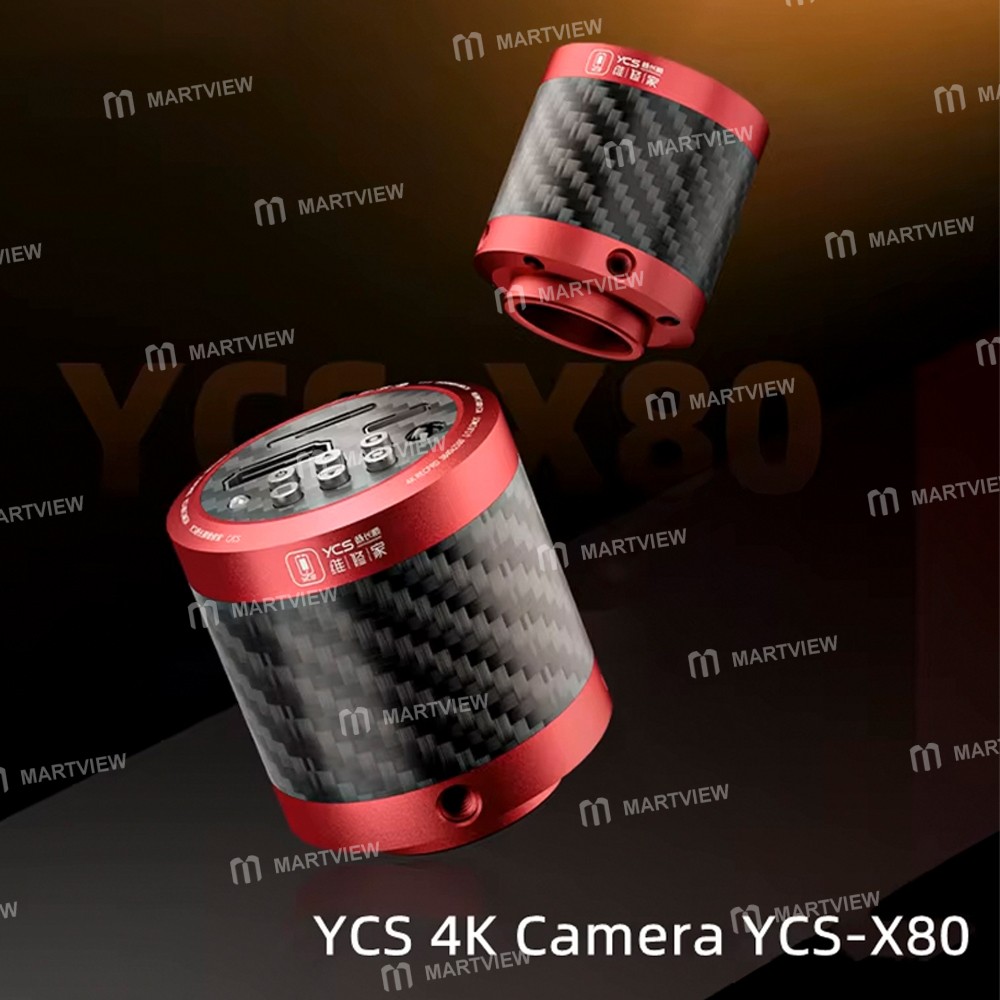

YCS-X80 Type-C / HDMI 4K Microscope Industrial Camera for Trinocular Microscope

YCS-X80 Type-C / HDMI 4K Microscope Industrial Camera for Trinocular Microscope

Features:

• YCS-X80 4K camera, enjoy a high-definition world, 1/1.8 CMOS field of view true 4K output clearer, smaller, more stable, and faster

• Adopting imported CMOS technology image sensor, Sony 1/1.8-inch 4K, 8 million pixel CMOS sensor

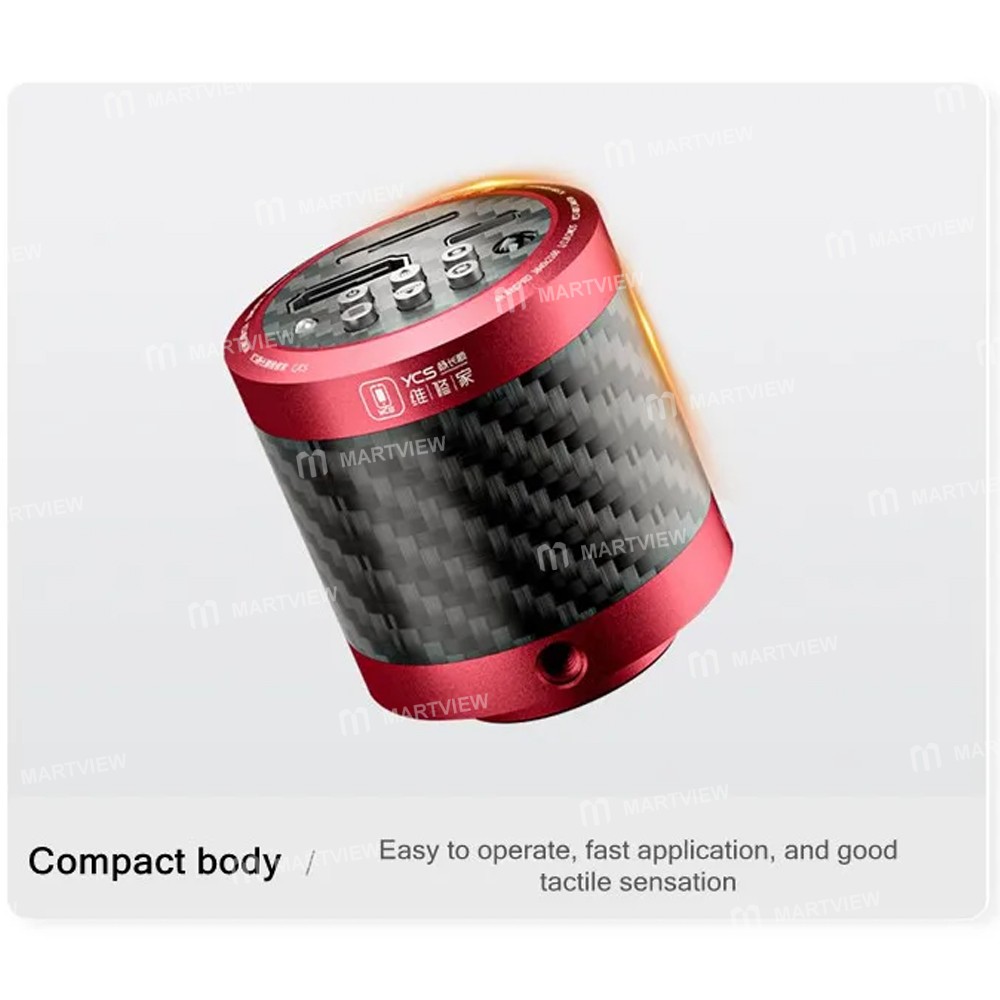

• Highly integrated and flexible to use, small stature brings great benefits, highly integrated panel, easy to operate

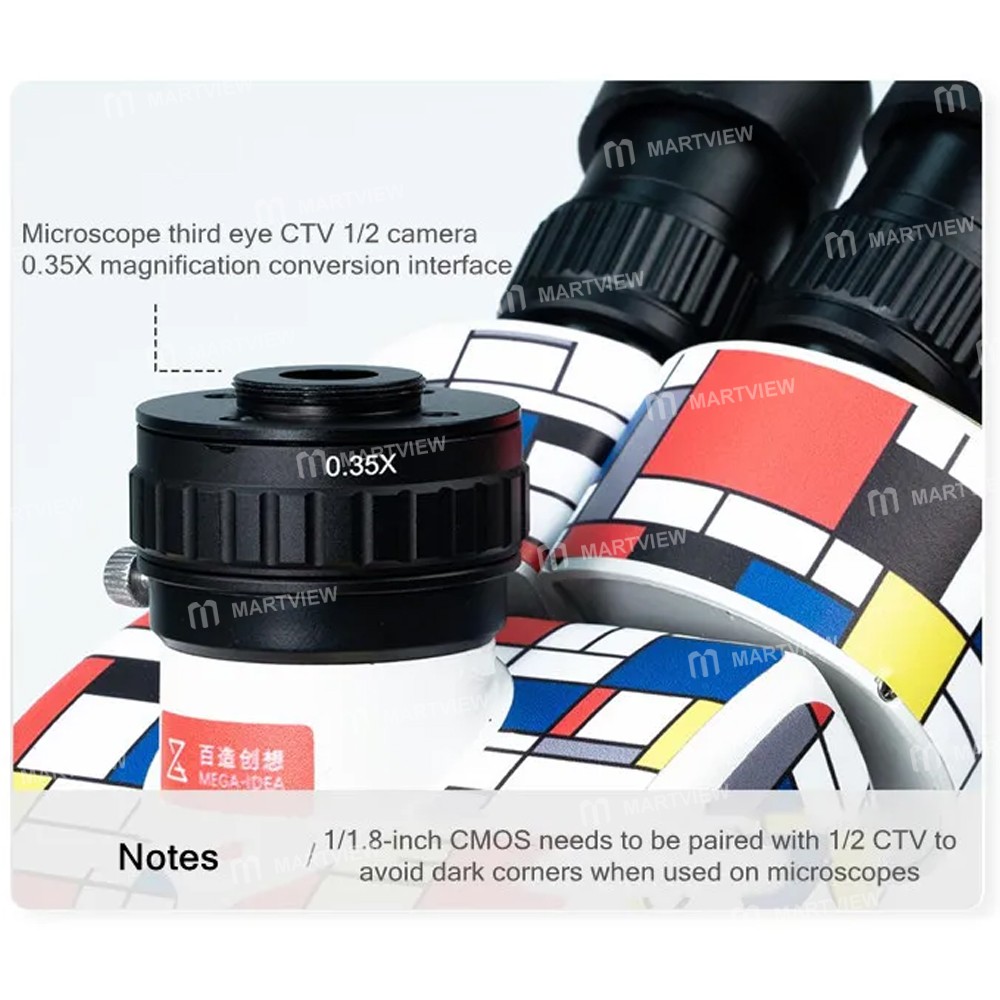

• Standard C/CS height adapter ring can be connected to a three-eye microscope, reserve 4 1/4 inch screw holes to accommodate monster hand brackets, etc; HDMI/USB: All support 4K@30FPS/1080P@60FPS

• Wide applicability: USB connectors, mobile devices, PC motherboards, etc. can all be used

Specification:

• HDMI output: 3840*2160@30FPS, 1920*1080@60FPS

• Type-C output: 3840*2160, 2560*1440, 1920*1080, 1280*720, 640*480, 424*240, 320*240(MJPG)

• Input voltage: DC 5V

• Operation mode: Mouse, remote control, keypad, computer software

• CMOS sensor: Sony 1/1.8 inch

• Pixel: 8 million

• Pixel size: 1.45μm*1.45μm

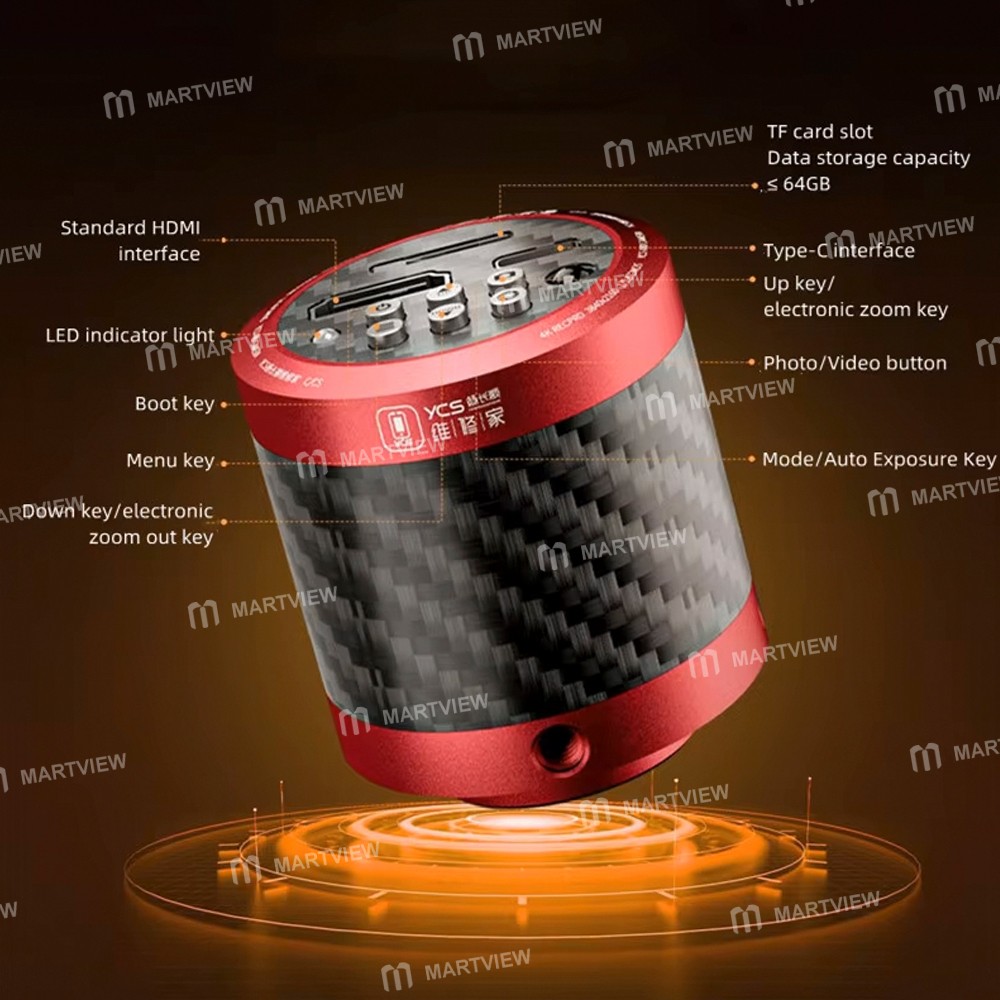

• Hardware Interface: Type-C*1, HDMI*1, TF*1

• Structure expansion interface: 1/4-inch bracket interface *1

• Status light: Power on orange and yellow light

• Lens interface: C/CS standard interface

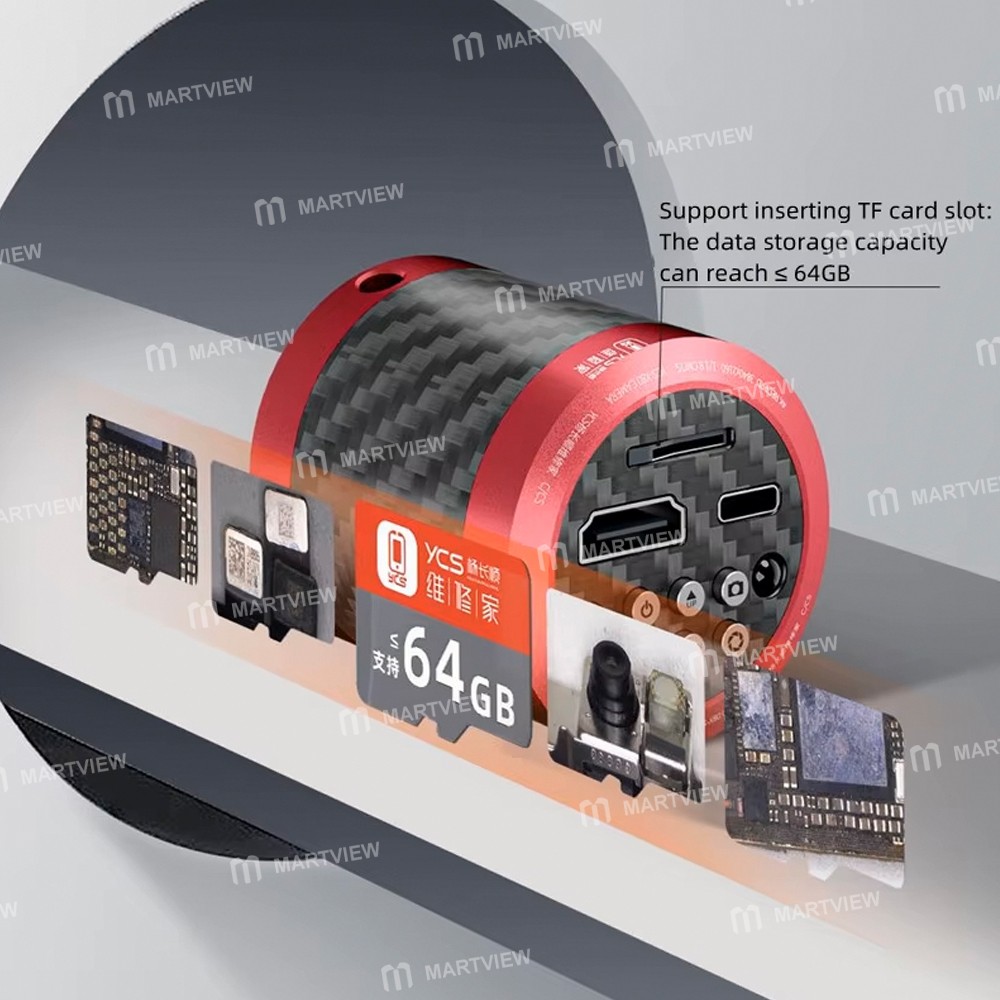

• Storage: TF card/computer software

• Buttons: Function buttons*6

• White Balance: Auto/Manual, support R, G, B adjustable

• Exposure: Auto/Manual

• Menu Language: Chinese/English/Traditional

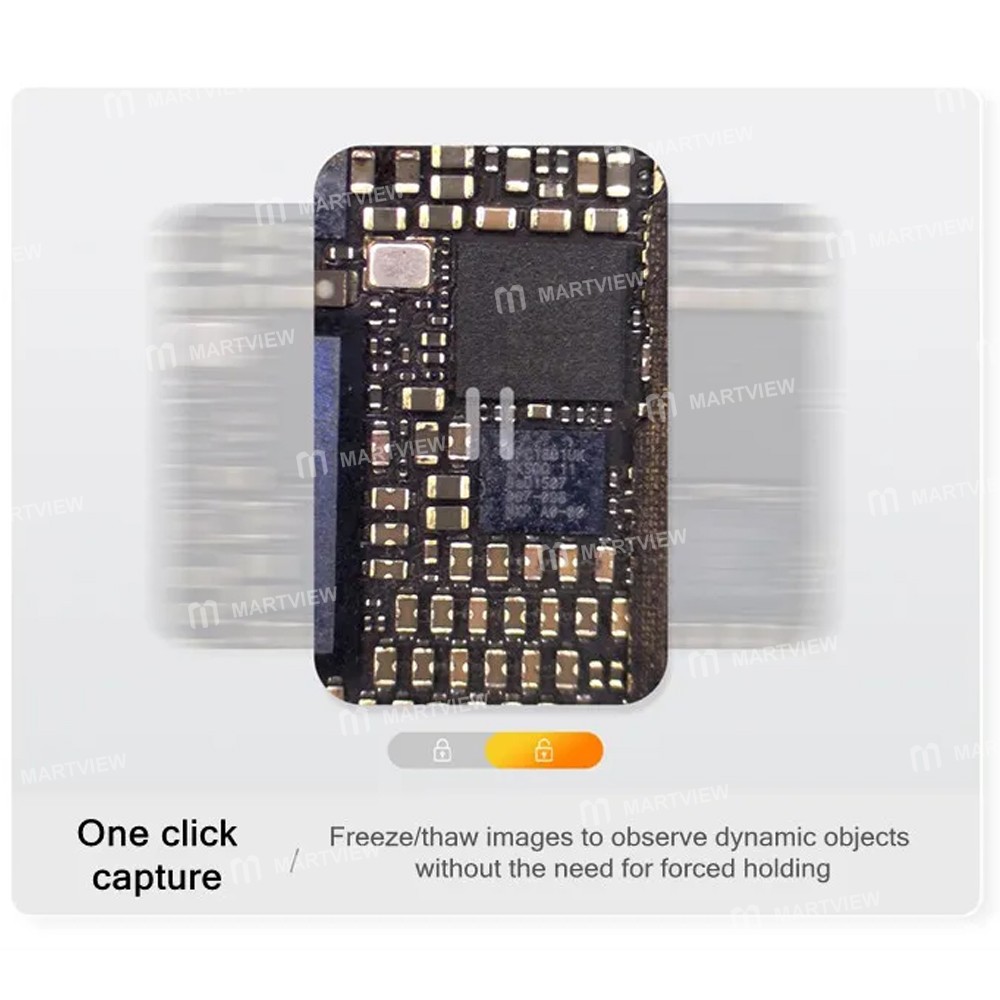

• Photo/video: automatic and manual naming, customize the save path

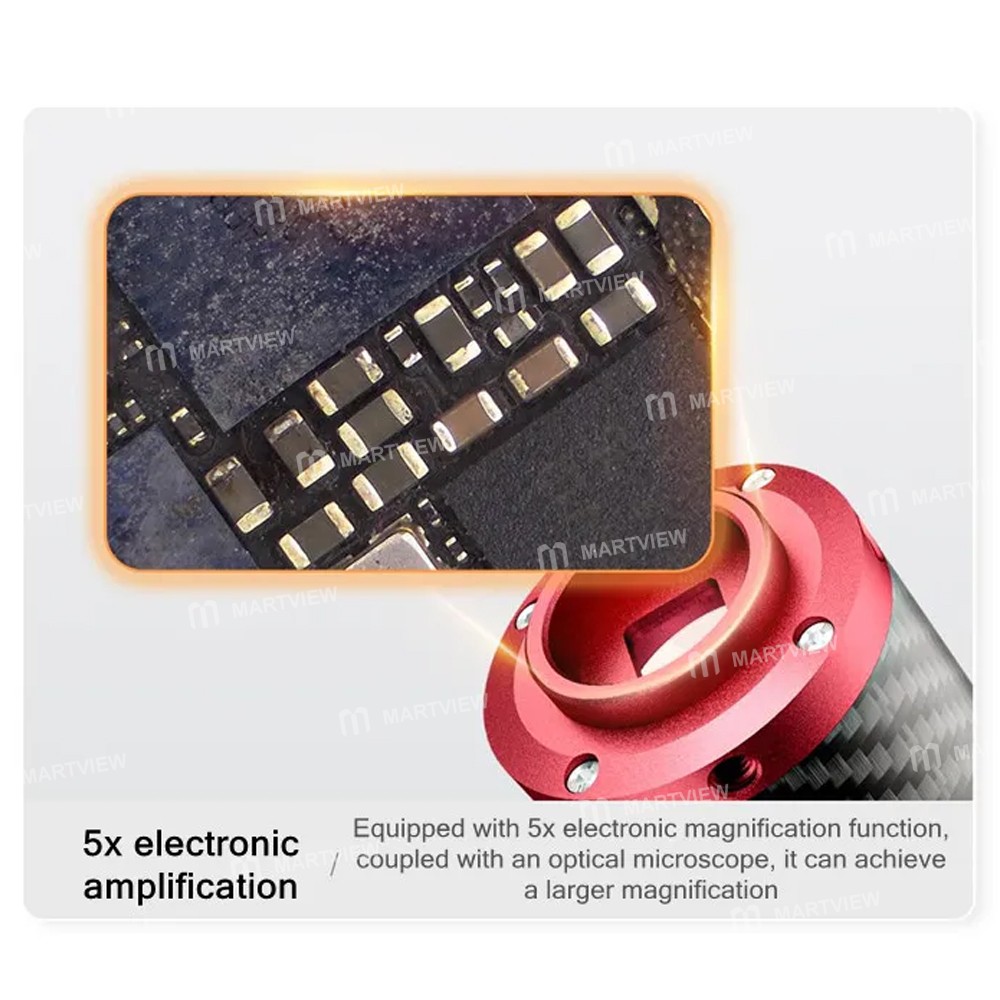

• Electronic magnification: 5 times electronic magnification

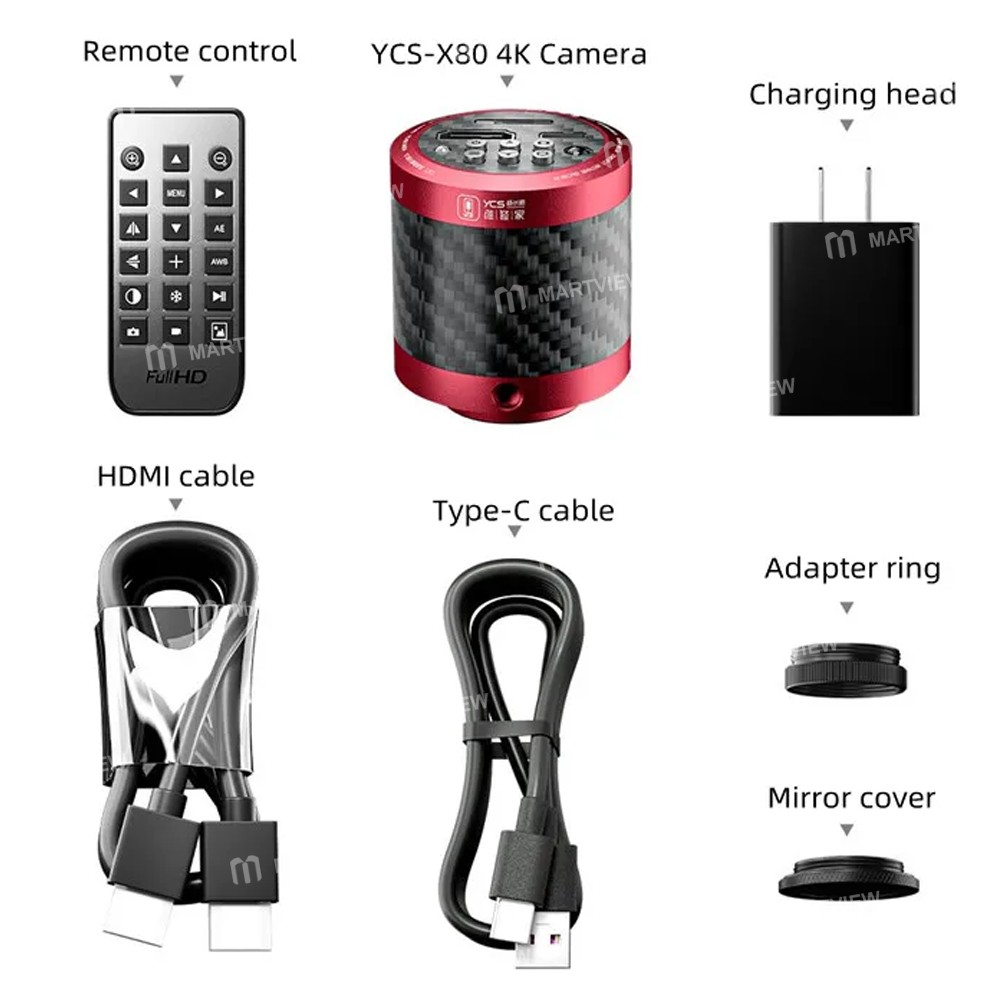

Package includes:

• 1 x 4K Camera

• 1 x Remote Control

• 1 x HDMI Cable

• 1 x Type-C Cable

• 1 x Adapter Ring

• 1 x Cover

• 1 x Charging Head
