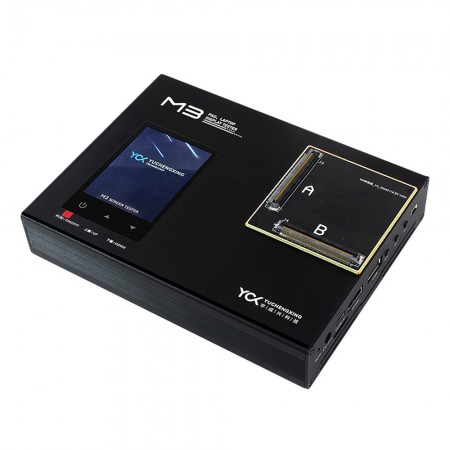

YCX M3 Tablet / Laptop Screen Tester Supports Multiple Interfaces

YCX M3 Tablet / Laptop Screen Tester Supports Multiple Interfaces

Function:

• Support multi-interface screen tester: support eDP, 8LAN, dual MIPI C/D PHY, HDMI2.1, SPI, IIC and other interfaces

• Support iPad, tablet, laptop, cell phone and other screen testing

• Support touch test, picture playback, video playback (up to 8K resolution)

• Support logic screen, BMP format picture, monochrome, grayscale, color bar, gradient, radiation, characters, crosshairs, checkerboard grid

• Provide logic screen, customized picture, and compression mode picture display to meet the test screen requirements of production line inspection and R&D experiment.

• Provide power supply for various displays (IOVCC, VCI, AVDD, DVDD, OTP, ELVDD/VSP, ELVSS,/NSN, etc.).

• As well as up to 5OV backlight power supply, each power supply provides high-precision voltage and current measurement, OVP, OCP, UVP, UCP, and other protection can be the user-programmable interface.

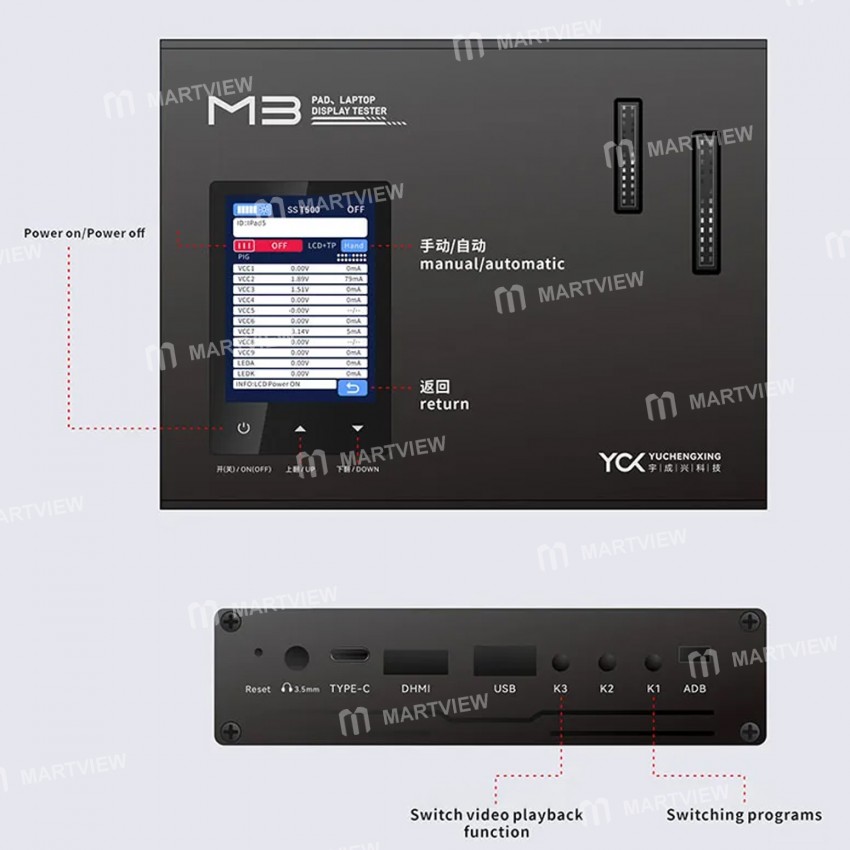

• The system integrates 6 buttons (3 buttons for display + 3 buttons for motherboard) and a screen touch function for human-computer interaction, and the buttons are respectively for module power-up switch, upward flip, downward flip, picture top, return to the system interface, system upgrade/automatic manual working mode.

• With a 2.8-inch LCD display (resolution 320 * 240), display and configure the relevant power supply, lighting, burning, and other parameter data and real-time data.

• Support EDID burning, comparison function, the system each way I2C supports a variety of EEPROM chip EDID burning/reading comparison functions

• Print debugging information window display and other functions, support for UART, USB, Ethernet (can be upgraded and configured), IIC, SPI communication, support for network MES systems / PLC / AOI and other equipment docking, interactive module detection information and control instructions

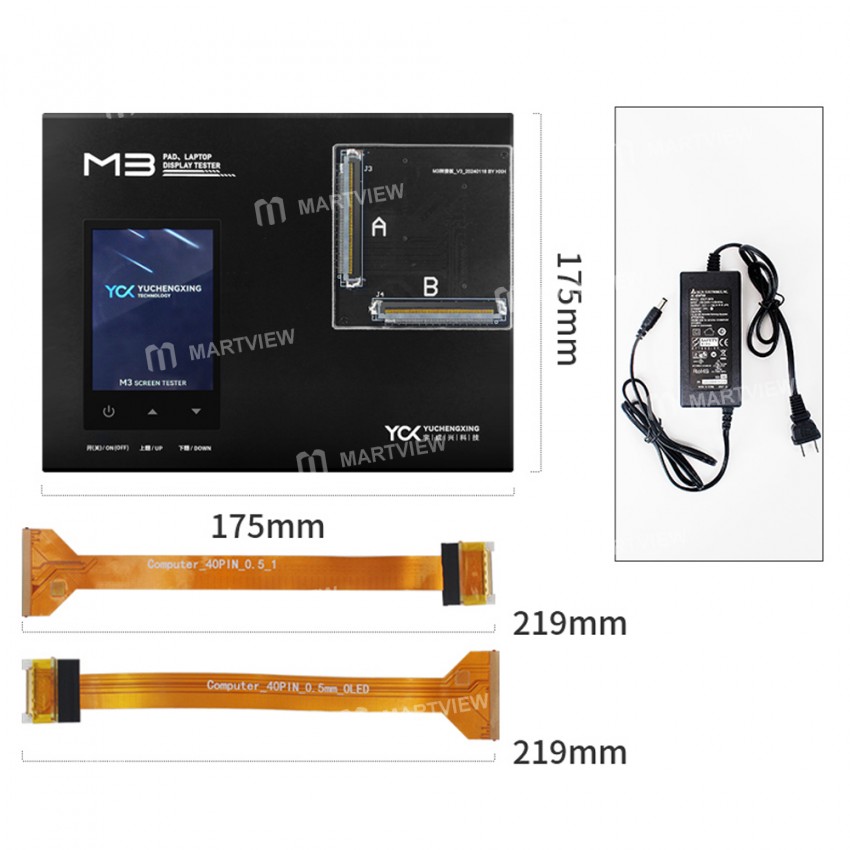

Package includes:

• 1 x Screen Tester
• 1 x Universal Flex Cable
• 1 x Power Adapter
