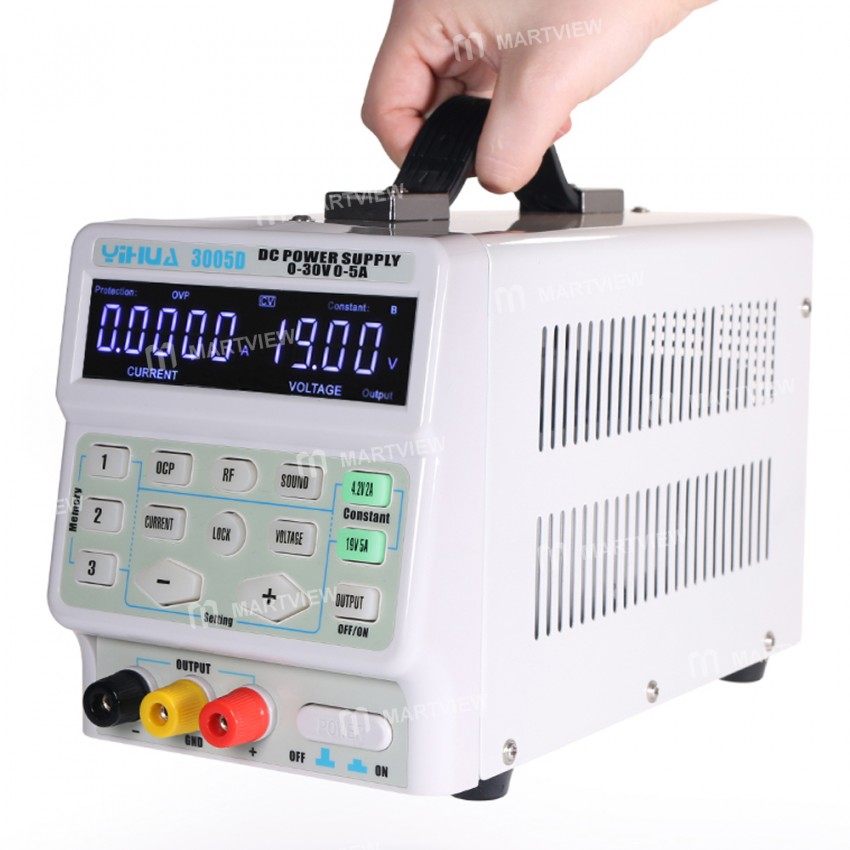

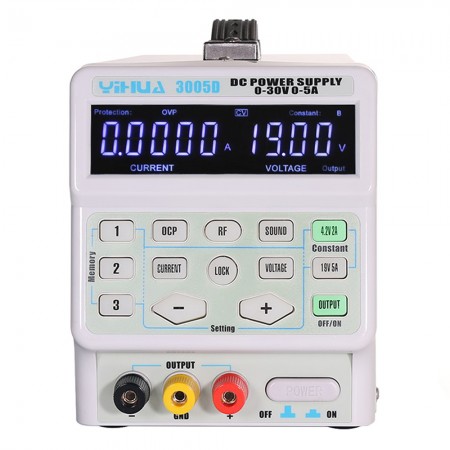

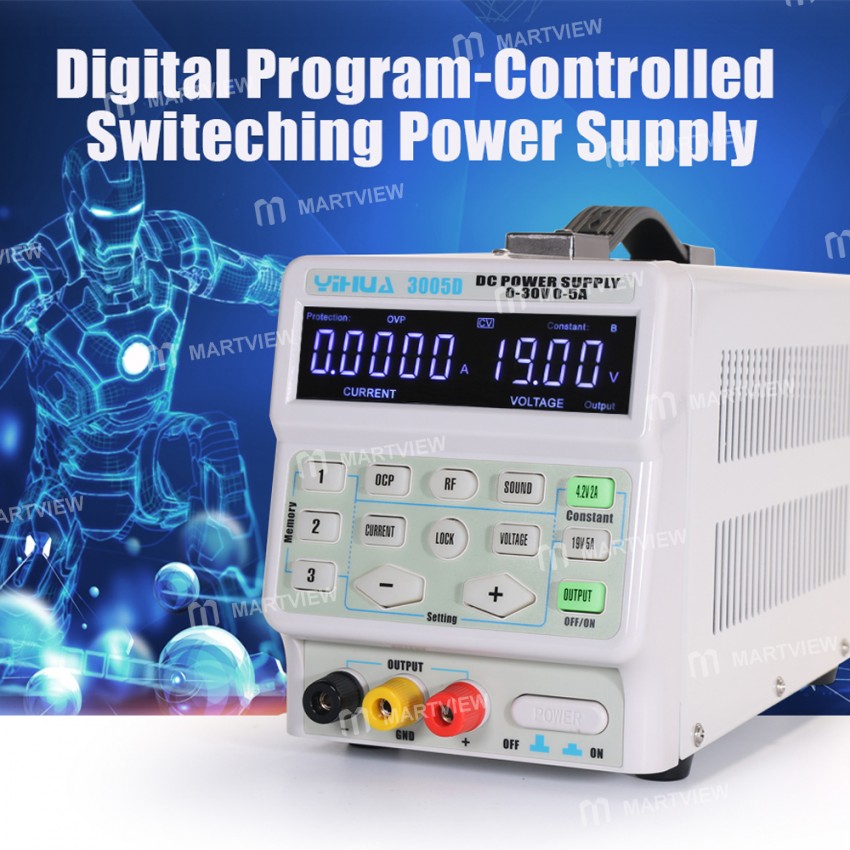

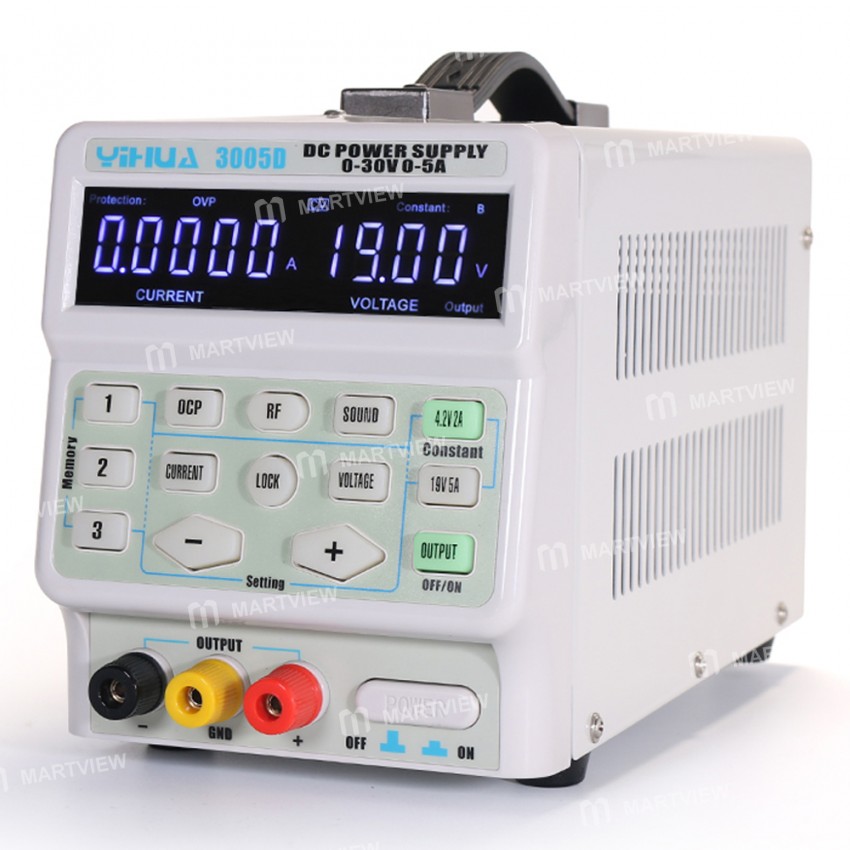

Yihua 3005D 5A / 30V DC Adjustable Digital Program Controlled Switching Power Supply

Yihua 3005D 5A/30V DC Adjustable Digital Program Controlled Switching Power Supply

Features:

• Designed specifically for scientific research, product development, lab testing, higher education practical applications, laptop repair, and electronic assembly line

• This unit comes with continuously adjustable voltage and current within the rated range, and the output is highly accurate and reliable

• The unit comes with a full set of overload protection circuits to protect your circuit board at work, making it an ideal choice for the industry

Specifications:

• Model: 3005D

• Output Power: 150W

• Power Supply Voltage: 220V/50Hz or 110V/60Hz

• Export voltage: Continuously adjustable from 0 to 30V

• Voltage export accuracy: ±0. 05V

• Recovery time: 100uS

• Constant current value: 0~5A; Accuracy: ±0. 01A

• Constant output current: Continuously adjustable from 0 to 5A

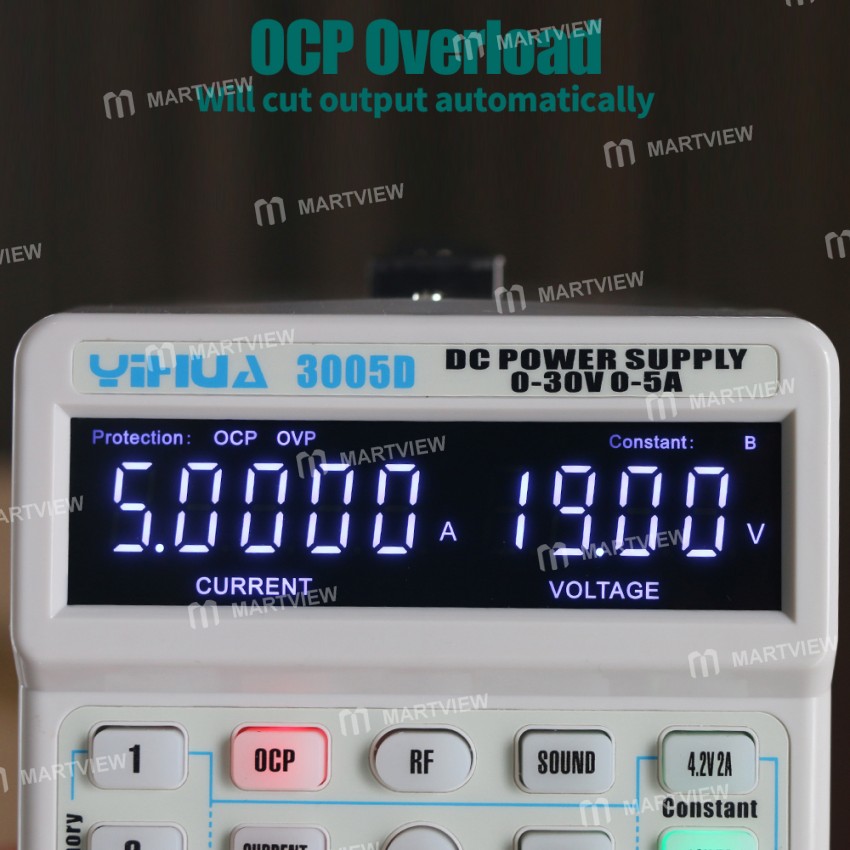

• OCP current value:  0-5A; Accuracy: ±0. 01A

• Signal test frequency  range: 30~1800MHZ including cell phone signal test

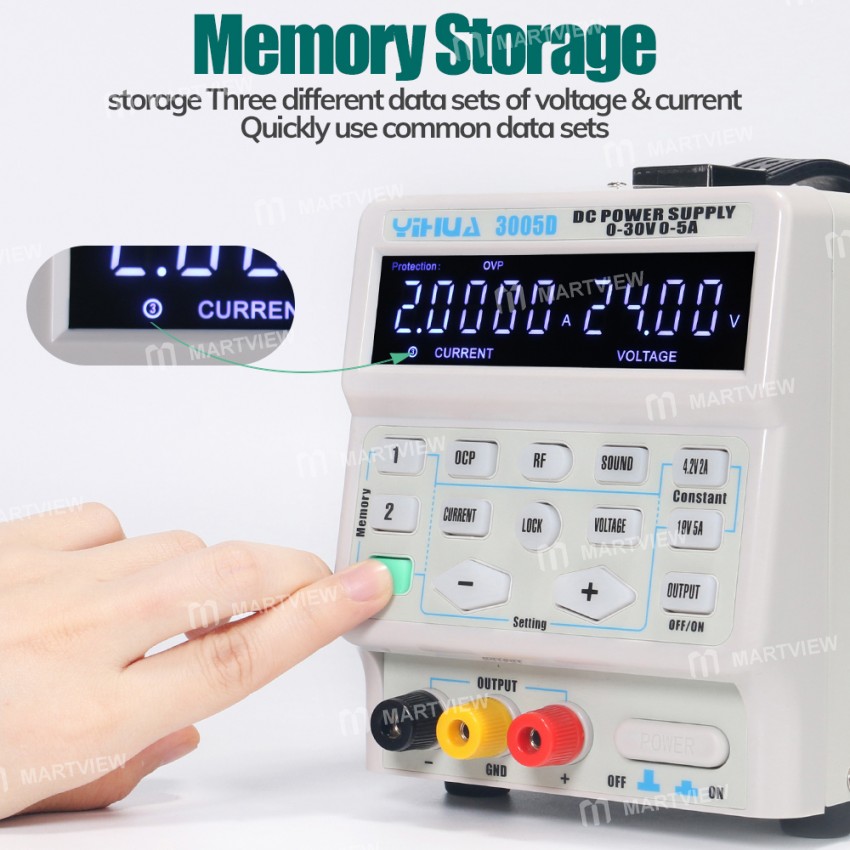

• Data storage: Yes

• Constant Output & Preset Channels: Yes

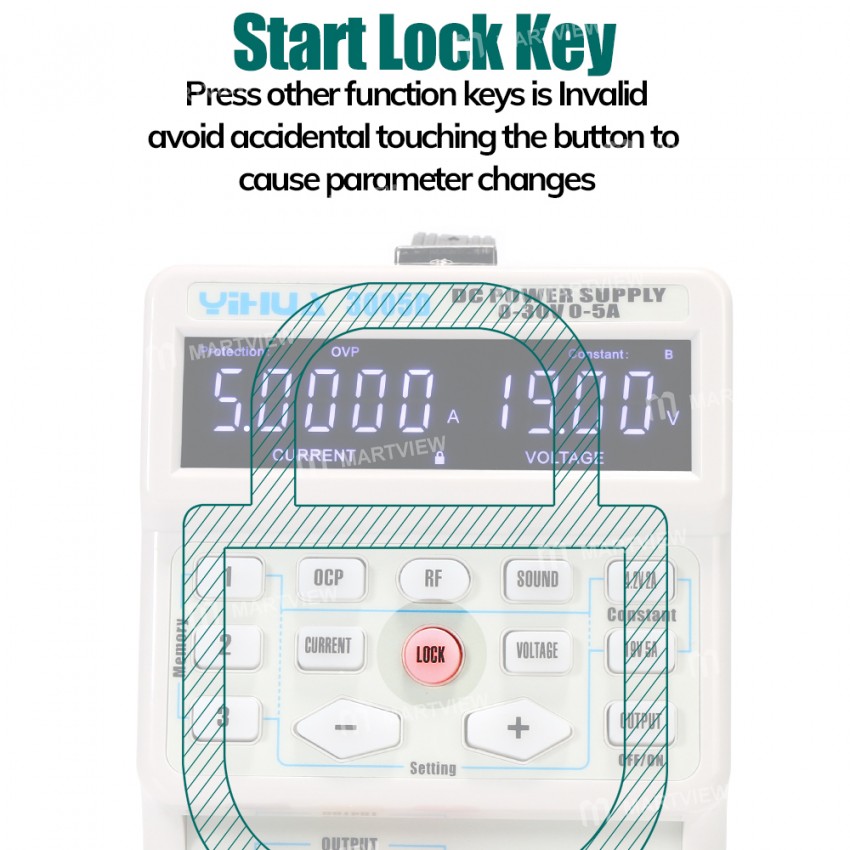

• Function Lock: Yes

• Memory Function (Previous Output Setting): Yes

• Current Protection Modes (Over-current Cut-Off or Constant Current Output): Yes

• Characteristics of Constant Voltage / Constant Current: Yes

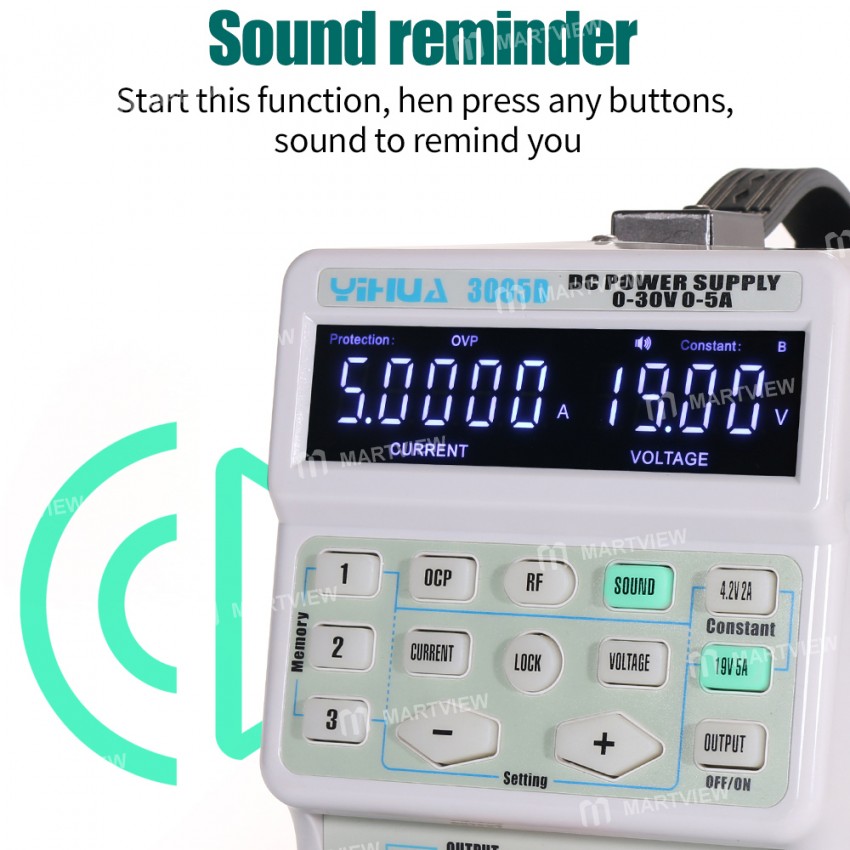

• Sound reminder: Yes

Package includes:

• 1 x Power supply

• 1 x Alligator clip line

• 1 x Power cable
