Yihua 305D-IV 30V / 5A 4-Digital Display High Precision Adjustable DC Power Supply

Yihua 305D-IV 30V / 5A 4-Digital Display High Precision Adjustable DC Power Supply

Specification:

• Rated Working Condition and Machine Appearance

• Input voltage: AC 110V/AC220V

• Frequency: 50Hz/60Hz

• Power: 194W

• Working environment: -10°C~40°℃

• Working environment humidity: ≤90%

• Storage condition: ~10°C~40°℃

• Storage environment humidity: <80%

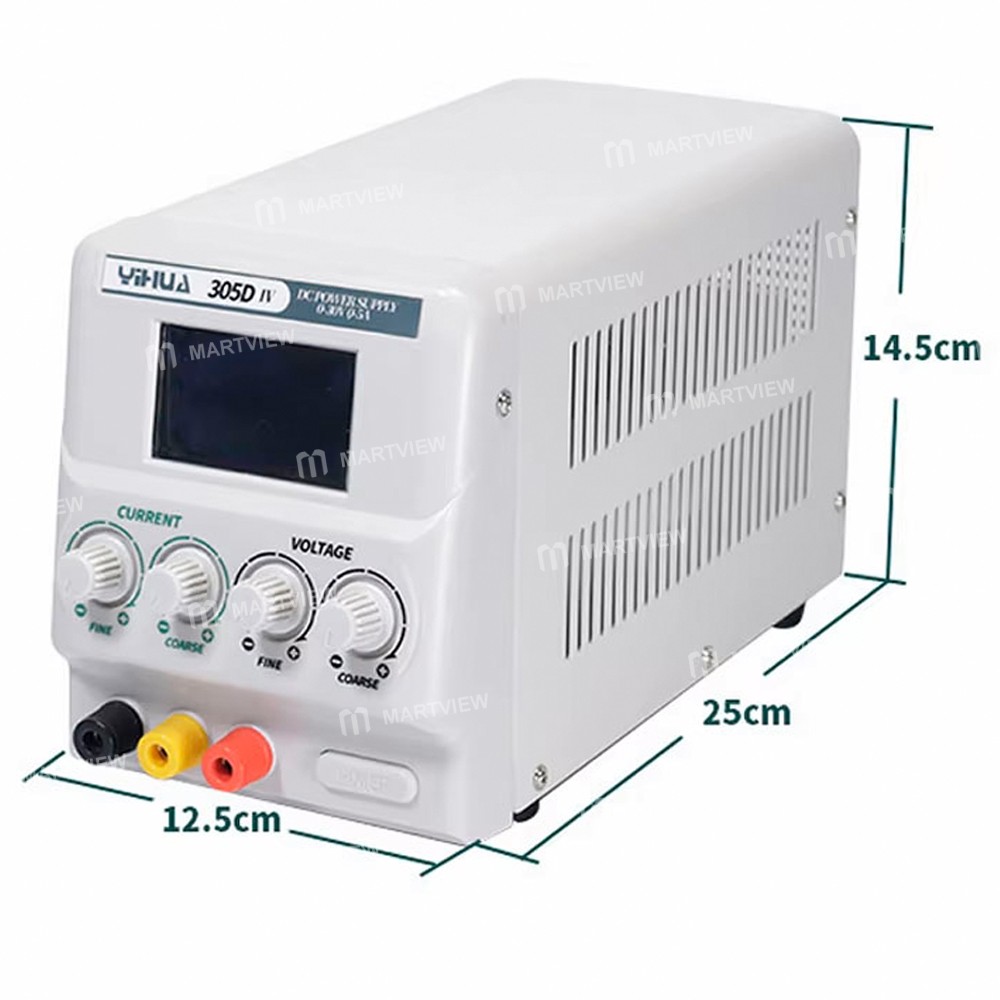

• Machine dimension: 282*125*156mm

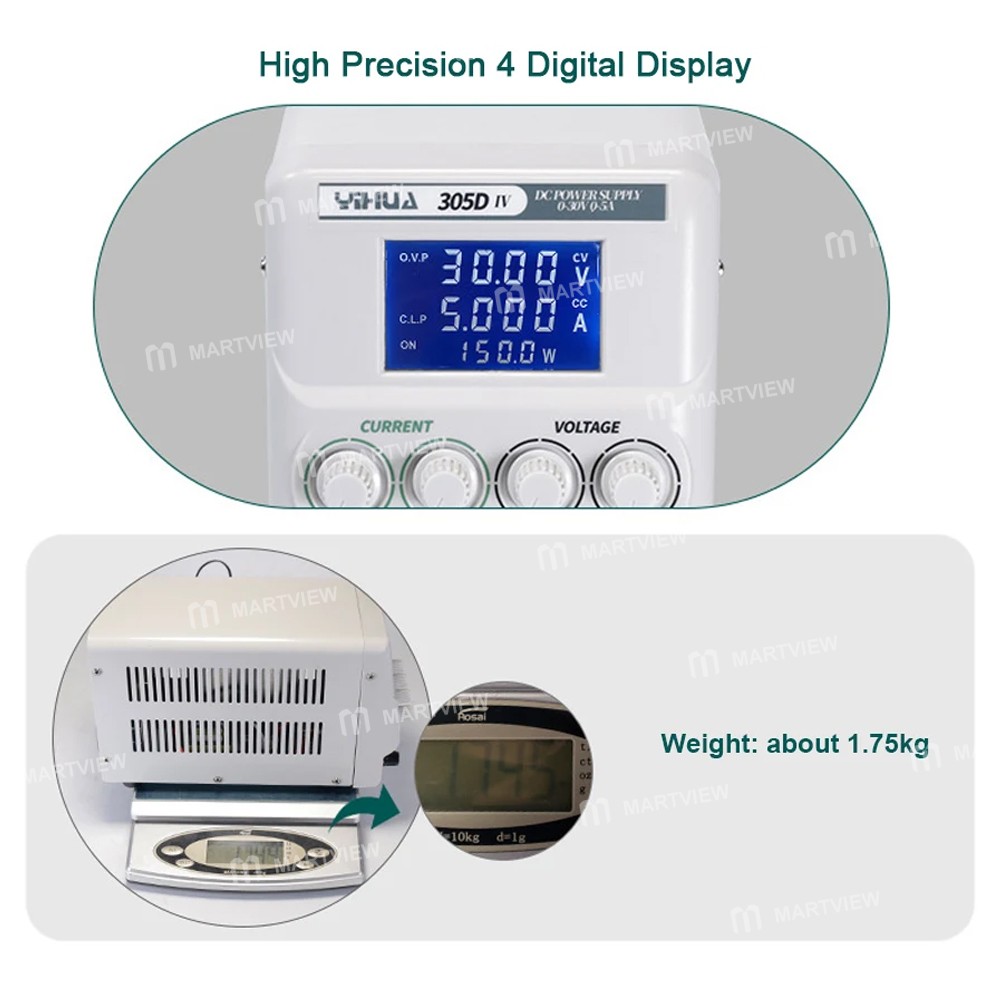

• Unit weight: 2.3kg

Regulation Voltage

• Output voltage: 0~30V

• Voltage stability: ≤0.01%±2mv

• Load stability: ≤0.2%±2mv

• Voltage display precision: Digital display of 1%±1 characters

• Ripple noise: <0.3%Vrms

• Temperature coefficient: ≤200PPM/PC

Regulation State:

• Output current: 0~5A

• Load stability: ≤0.01%±3mA

• Current stability: ≤0.2%±2mA

• Ripple noise: <1%Vrms

• Current display precise: Digital display of 1%+1 characters

Package includes:

• 1 x Power Supply

• 1 x Power Cable
• 1 x Test Cable
