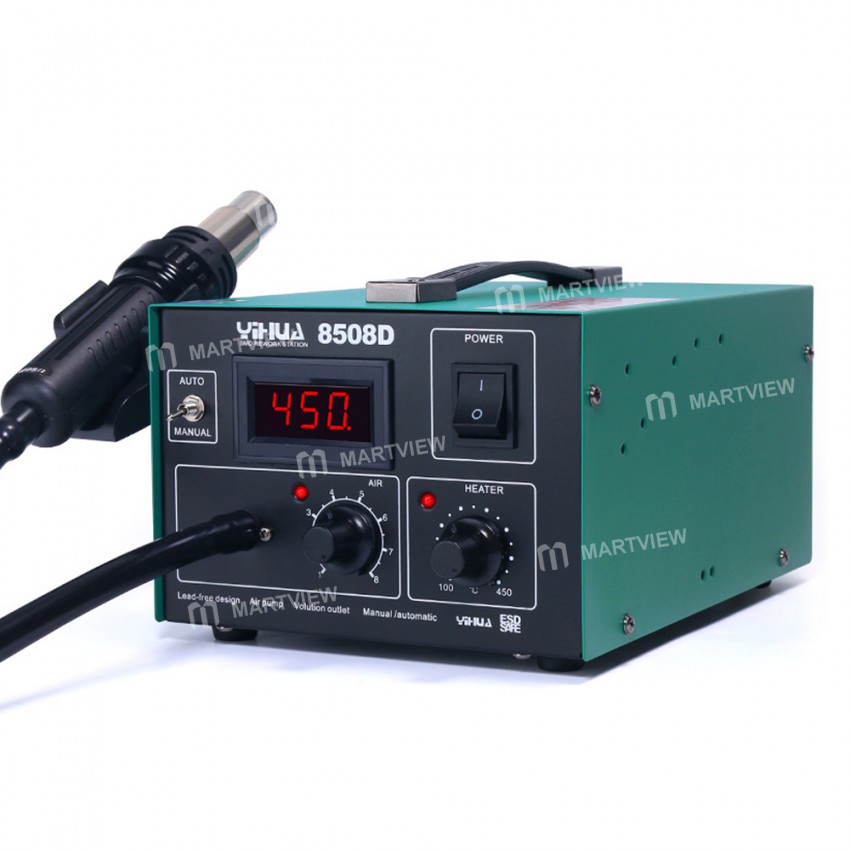

Yihua 8508D Air Pump Type Hot Air Desoldering Station for Mobile Phone SMD PCB BGA Repair

Yihua 8508D Air Pump Type Hot Air Desoldering Station for Mobile Phone SMD PCB BGA Repair

Features:

• The outer enclosure of the main machine is made of a superior iron alloy, which is immune to high-temperature damage and is durable

• Unique material resistant to temperature is adopted for the handle enclosure; striking appearance, wieldy and resistant to temperature

• The hot air gun’s heating element employs a brand new columned heating core developed with a ceramic process, having strong stability, resistance to impact and dropping, and extraordinarily vibration-mitigation ability

• The outlet steel cylinder of the handle is made of stainless steel with better thermal conductivity, resistant to rust and corrosion, and strong resistance to oxidation

• Spiral wind design with strong airflow through a high-quality diaphragm pump. Large air pressure, soft force, and uniform face area. Apart from normal desoldering, it is particularly suitable for desoldering SMD elements with small surface areas and high accuracy

• An LED shows the current operating temperature of the hot air gun; precise temperature control

• User-friendly design; hot air gun can be used with the manual/automatic function; can be set depending on the use environment; when the hot air gun is frequently used, choose the manual mode to save time for repetitive temperature rise, easy and convenient, improves work efficiency

• Applicable to desoldering of several types of elements: SOIC, CHIP, QFP, PLCC, BGA; the smaller the gun nozzle, the stronger the force; suitable for desoldering of single soldering spots

Specification:

• Voltage: AC 220V

• Total Power: 720W

• Operating Environment: 0~40℃

• Storage Temperature: -20~80℃

• Dimensions: 255*188*125mm

• Weight: 3.6KG

• Temperature Range: 100℃~450℃

• Display Mode: Red LED Digital Display

• Air supply mode: Pump air supply

• Air Flow: 24L/min(Max)

• Temperature stability: ±15℃(Static State)

• Heating Core: Ceramic skeleton heater

Package includes:

• 1 x Desoldering station

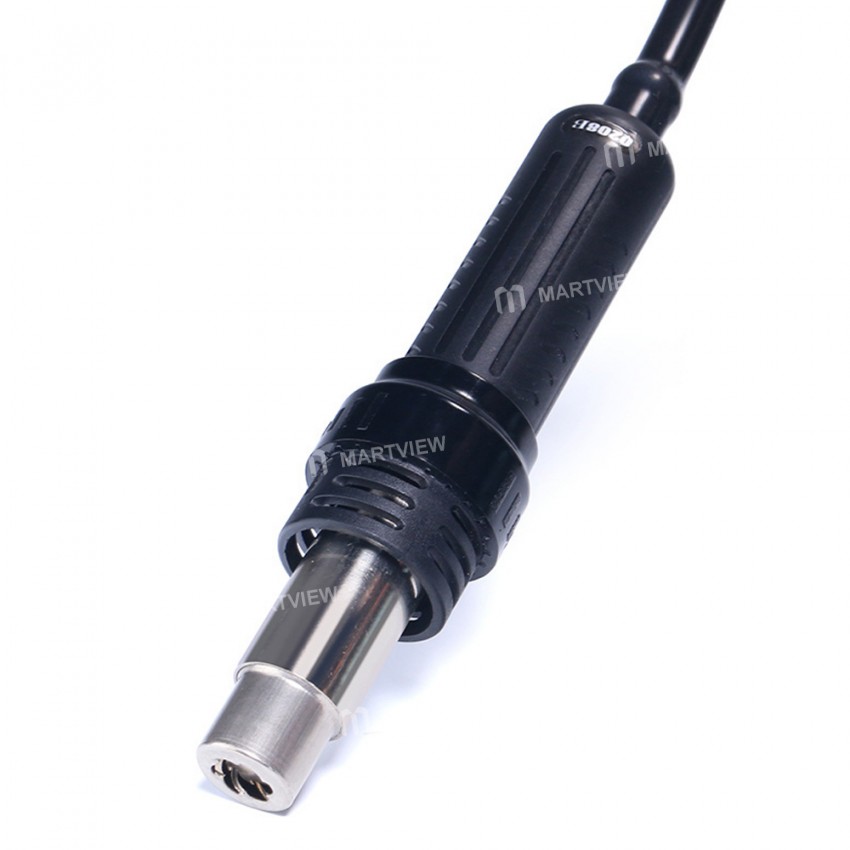

• 1 x Air gun Handle

• 1 x Handle Frame

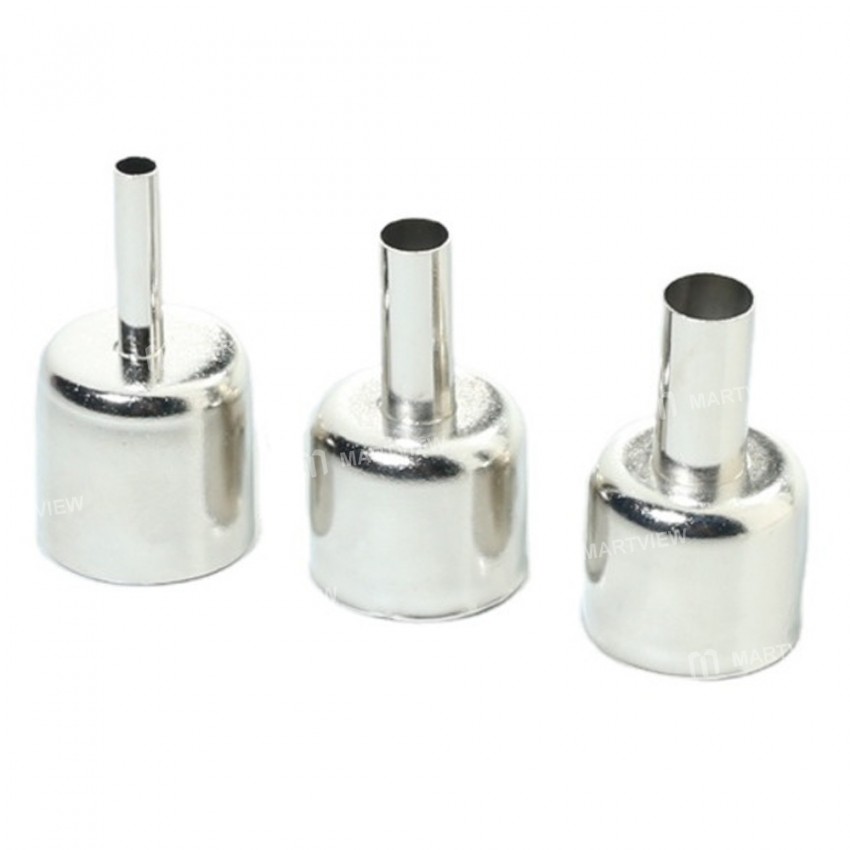

• 3 x Nozzles(5mm/8mm/10mm)
