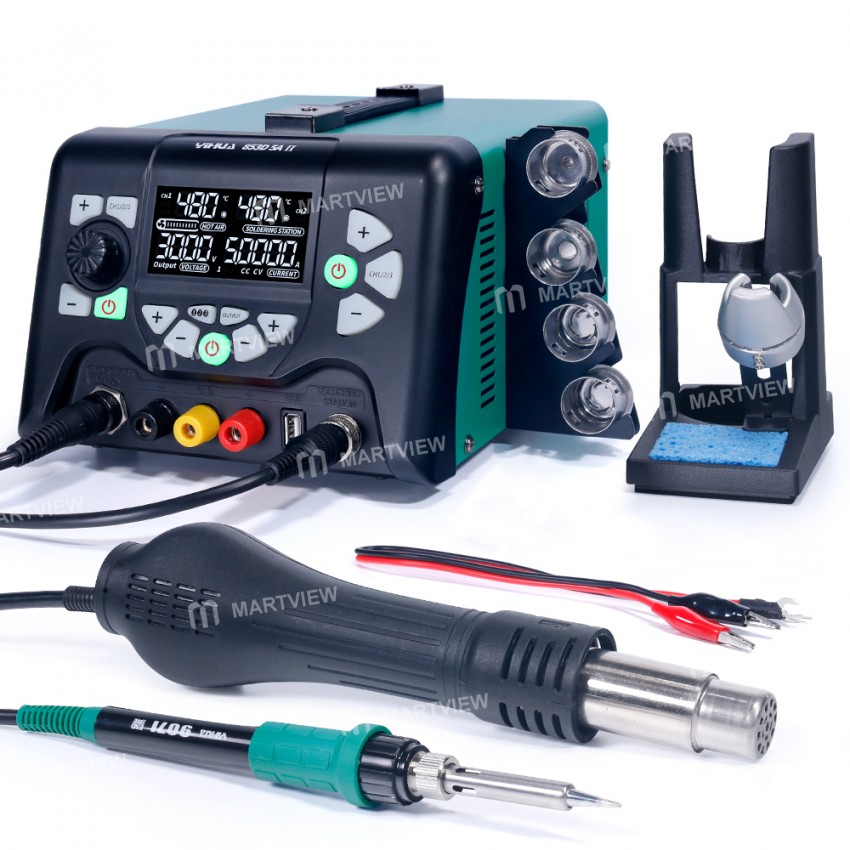

Yihua 853D 5A II 3-in-1 30V 5A DC Power Supply with Hot Air Gun Soldering Iron Rework Station

Yihua 853D 5A II 3-in-1 30V 5A DC Power Supply with Hot Air Gun Soldering Iron Rework Station

The Nozzle Holder in the picture is for reference only, the actual package does not include the Nozzle Holder, please buy your own if needed!!!

Features:

• Yihua 853D 5A II 3-in-1 station, Hot air gun + Soldering iron + Power supply one station do all deals

• This machine contains three functions the welding table / hot air gun / power supply, you can use one of the functions separately

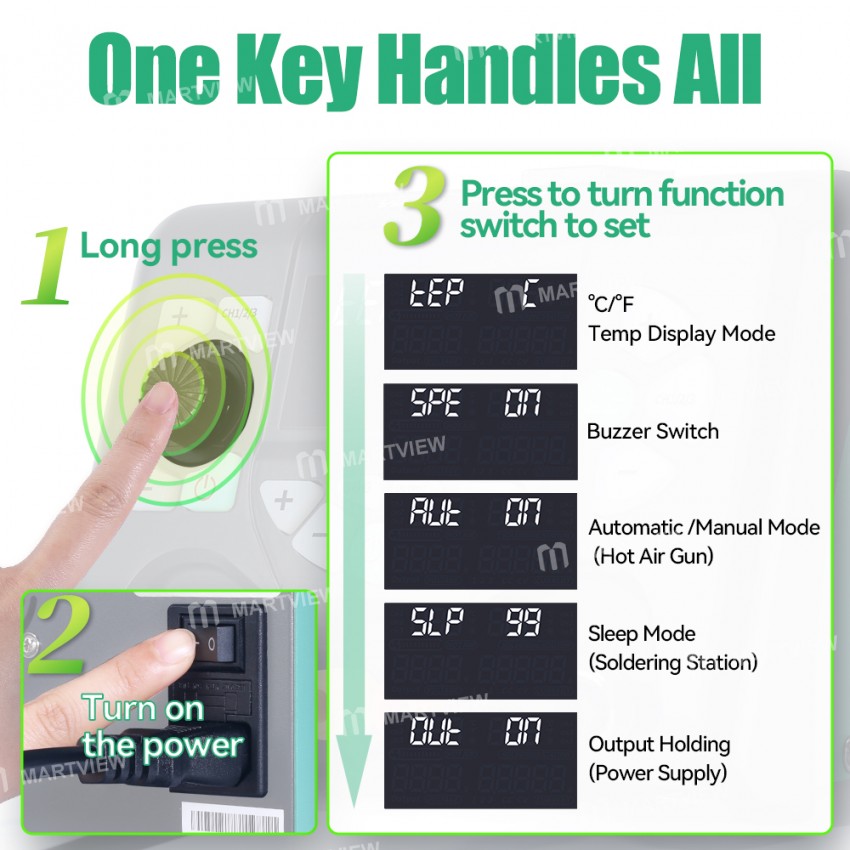

• Three commonly used temperatures can be pre-set Press the three-stage memory conversion key to switch CH1, CH2, and, CH3 channel

• Newly upgraded nozzles, easy plug-pull

• LCD display screen, master all storage and specification

• 5V USB for Phone charge/connect USB lamp

• Cool/hot air can one-button conversion

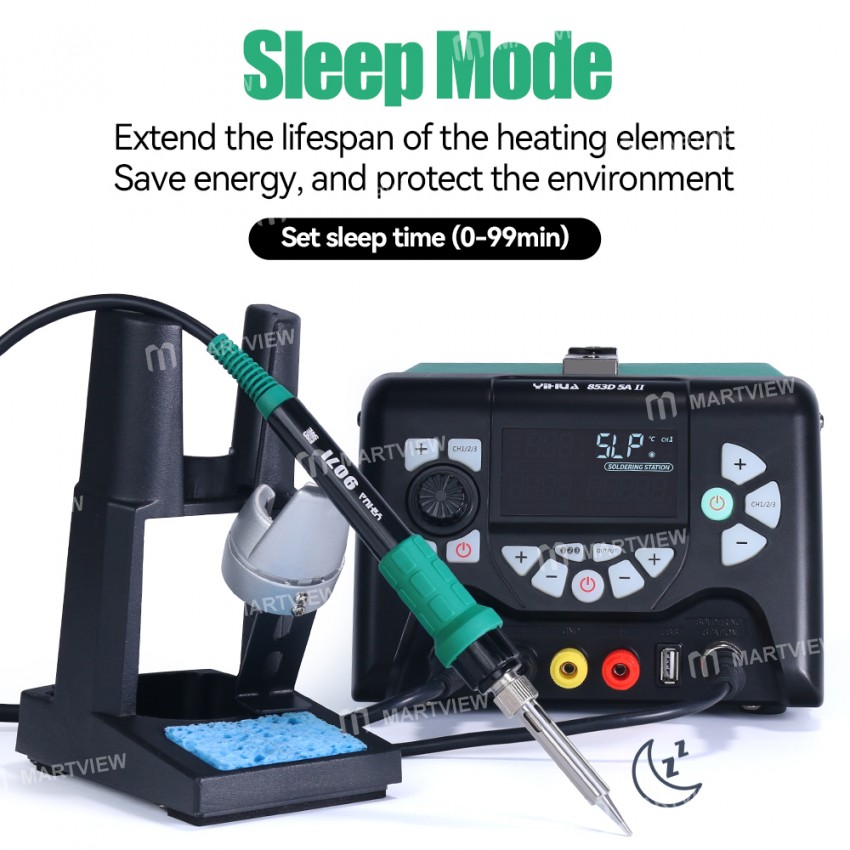

• Extend the lifespan of the heating element, save energy, and protect the environment

• Temperature correction, more accurate temperature for your soldering

• Three preset channels, convenient fast, save time considerate

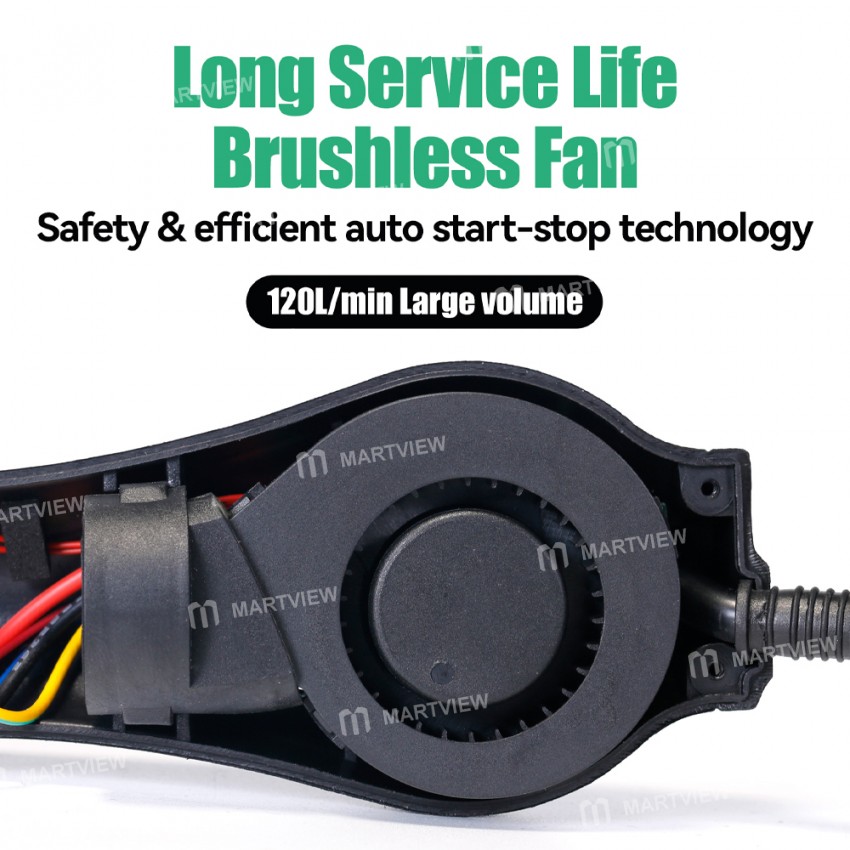

• Long service life, brushless fan, safety efficient auto start-stop technology

Specification:

• Model Number: 853D 5A II

• Rated Power: 970W

• Main Unit Size: 250*190*137mm

• Operating Ambient Temp: 0~40℃/32~104℉

• Airflow: Brushless Motor with smooth airflow

• Airflow volume: ≤120L/min

• Hot air Temperature Range: 100~480℃/212~896℉

• Soldering Iron Temperature Range: 200~480℃/392~896℉

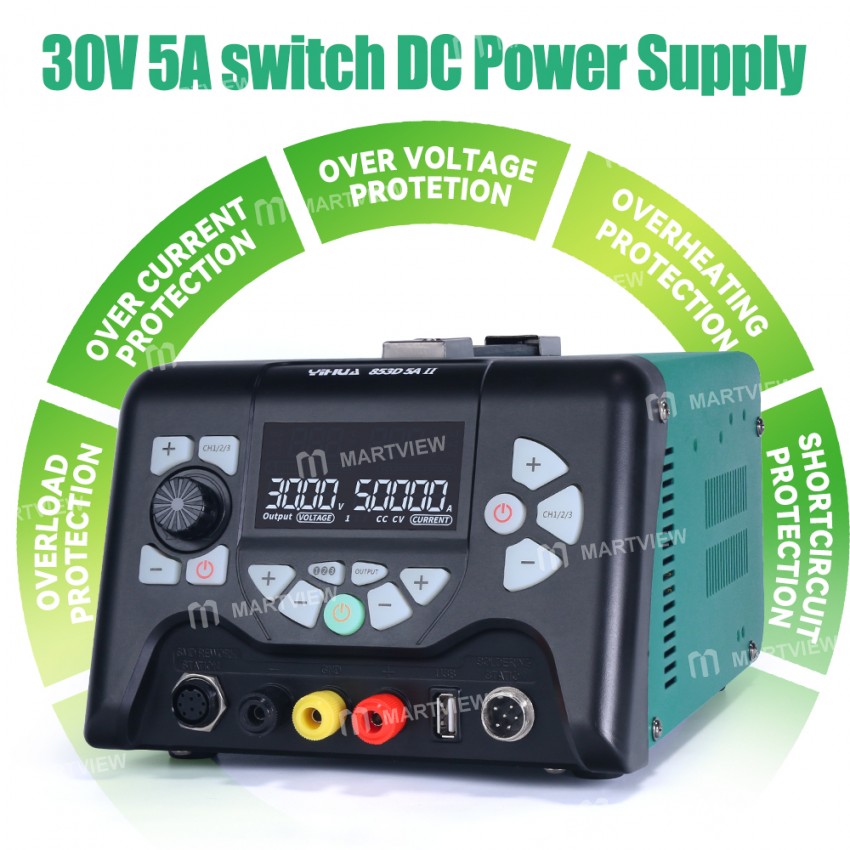

• DC Power Supply Output Voltage: DC0~30V±5%

• Output Current: 0~5A(Adjustable)

• Line Regulation: <0.067%±2mV

• Ripple & Noise: Vrms<0.1%

• Voltage Setting Accuracy: 0.1V

• Current setting Accuracy: 0.01A

• Voltage Display Accuracy: <0.6%±20mV

• Current Display Accuracy: <0.6%±0.2mA

Package includes:

• 1 x Main Machine

• 1 x Soldering Iron Handle

• 1 x Hot Air Gun Handle

• 1 x 2-in-1 Handle Holder

• 1 x Soldering Iron Head

• 4 x Nozzle

• 1 x Test Lead

• 1 x Power Cord
