YM119 Car OBD II Scanner Engine Fault Code Reader for 12V Gasoline Vehicles

Car OBD II Scanner Engine Fault Code Reader for 12V Gasoline Vehicles

Features:

• This OBD scanner supports nine standard OBDII/EOOBD protocols, allowing it to read and clear engine fault codes. The OBD II scanner also includes features such as vehicle fault freeze frame, I/M readiness status, and vehicle information

• The code reader & scan tool provide a real-time data stream and real-time data curve, giving you instant access to vital information about your vehicle's performance

• With features such as Mode 6 detection (component system testing), oxygen sensor testing, and component testing, our code reader for cars provides advanced testing capabilities that go beyond basic diagnostics

• The check engine code reader not only reads and monitors your vehicle's battery voltage but also evaluates its life expectancy, allowing you to keep track of your battery's health and replace it before it fails, preventing potential vehicle breakdowns

• This OBD scanner diagnostic tool supports most European models from 2003 onwards and most American models from 1996 onwards. Specifically, it is compatible with 12V gasoline vehicles, making it a versatile tool suitable for a diverse range of cars

Specifications:

• Item Name: Car OBDII Scanner

• Main Material: Plastic, Silicone

• Display: 1.8-inch, 160 x 128 pixel TFT display

• Working Voltage: 5-18V

• Working Current: 50ma

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: -20°C to 70°C (-4°F to 158°F)

• Power: 5.0V to 20.0V provided via vehicle battery

• Product Color: Black

• Product Size: 129*68*18mm

Scanning Functions:

• Supports reading of engine fault codes from 9 standard OBDII/EOBD protocols

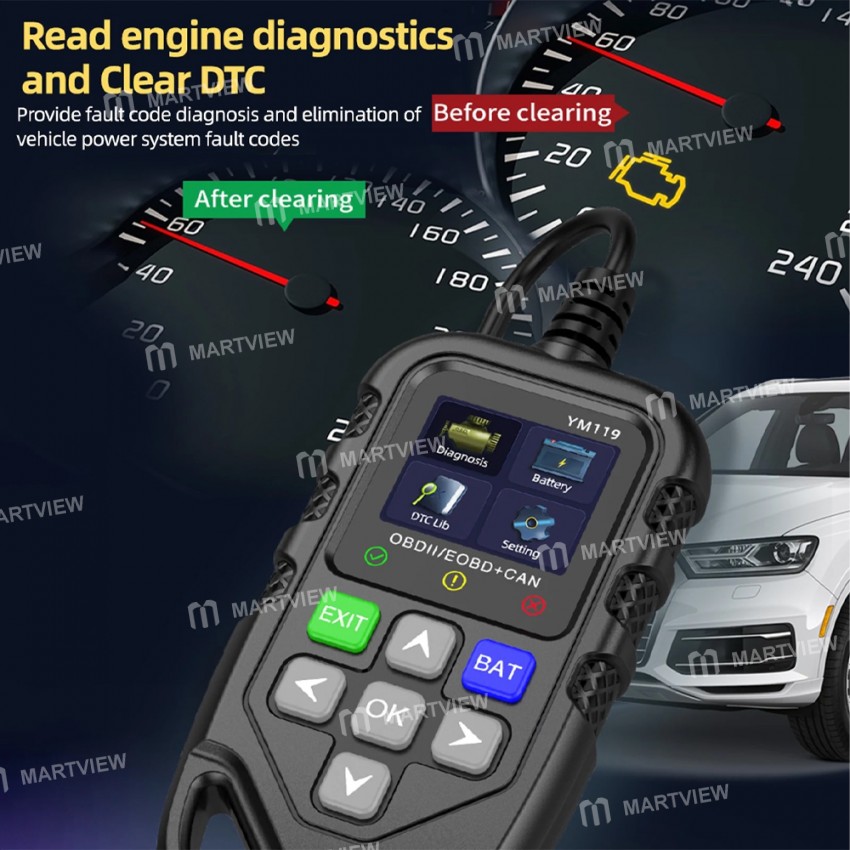

• Clears engine fault codes

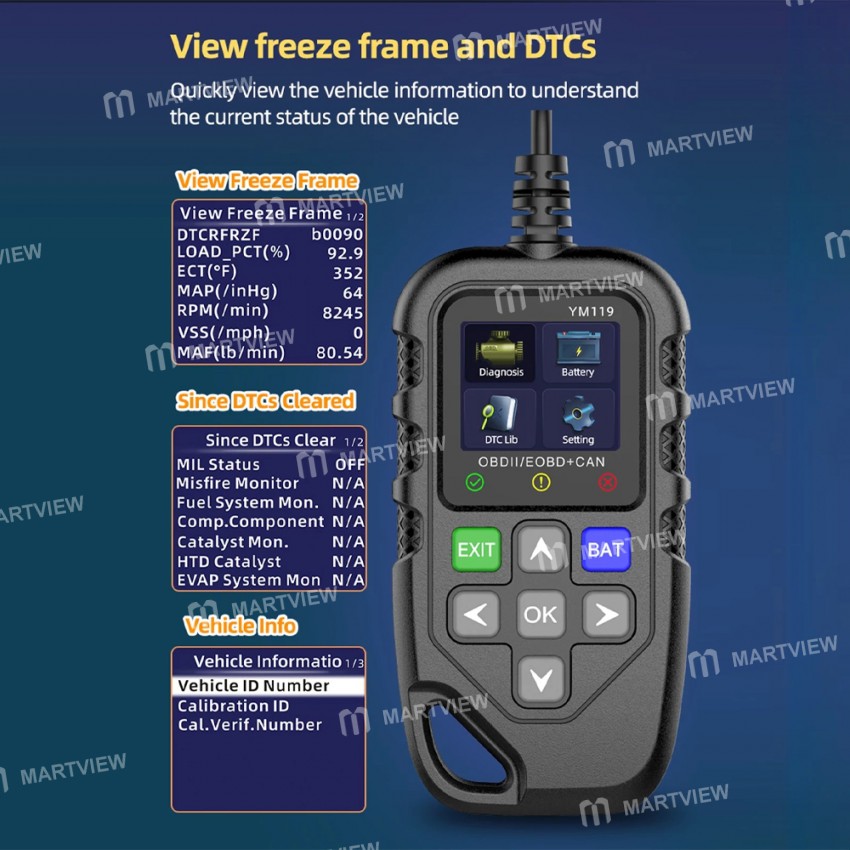

• Provides freeze frame of vehicle faults

• I/M readiness status

• Vehicle information

• Real-time vehicle data stream

• Real-time vehicle data graph

• Mode 6 detection (component system test)

• Oxygen sensor test

• Component test

• Fault code lookup

• Vehicle battery voltage reading

• Vehicle battery voltage monitoring

• Vehicle battery life assessment (exclusive feature)

• Built-in 13 languages (Chinese, English, Korean, Japanese, Russian, Polish, Portuguese, Finnish, Italian, French, Spanish, Dutch, German)

Support Protocol:

• SAE J1850 PWM (41.6Kbaud)

• SAE J1850 VPW (10.4Kbaud)

• ISO9141-2(5 baud init, 10.4Kbaud)

• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

• ISO14230-4 KWP (fast init, 10.4 Kbaud)

• ISO15765-4 CAN (11bit ID, 500 Kbaud)

• ISO15765-4 CAN (29bit ID, 500 Kbaud)

• ISO15765-4 CAN (11bit ID, 250 Kbaud)

• ISO15765-4 CAN (29bit ID, 251 Kbaud)

Package includes:

• 1 x OBD II Scanner
