Z3X Easy JTAG Plus Box eMMC Socket / UFS BGA95 / BGA153 / BGA254 Socket Adapter

Z3X Easy JTAG Plus Box eMMC Socket / UFS BGA95 / BGA153 / BGA254 Socket Adapter

This upgraded PLUS version delivers ultra‑fast data transfer and is future‑ready: the hardware is already prepared to support new protocols such as UFS* and NAND*.

Box Features

• One‑click device repair

• Boot repair

• Data recovery

• eMMC firmware repair

• Partition management

• eMMC service operations

• SPI memory programming

Summary: All‑in‑one solution for repair, recovery, and programming of mobile devices and storage chips.
Socket Features

• Top‑quality materials combined with elegant engineering for a powerful eMMC socket

• High‑quality construction for durability

• Over 10000 cycles of lifetime performance in service centres

• Supports a wide range of eMMC ICs: BGA153/169, BGA162/186, BGA221, BGA529

• High‑speed transfer up to 30 MB/s over an 8‑bit bus

• EMI‑resistant design with low‑noise components

• Integrated power logic – no external power source required

• Surge protection with smart fuse (0.5 A threshold)

Summary: Robust, high‑speed socket with built‑in protection and power management.
Software Features

• DUMP AND PINOUTS DATABASE

Free access to a large, constantly updated dump and pinouts database.

• EASY JTAG TOOL

The main application that unlocks most product functions – the most powerful tool in the suite.

• EASY JTAG PLUS TOOL

Lightweight software tailored for mobile‑phone repair, eMMC replacement, and user‑data recovery.

• EASY JTAG SPI FLASHER

Identify, read, write, verify, and erase flash chips; ideal for flashing BIOS images on mainboards, routers, etc.

• EASY JTAG SINGLE PACKAGE REPAIR

Create custom repair packages (partition layout, pinout, eMMC pre‑config, instructions).

• EASY JTAG API

Access core box functionality to develop your own solutions.

Summary: Comprehensive software ecosystem covering diagnostics, flashing, and custom automation.
Main Benefits of the New Z3x Easy Jtag Plus Box

• Upgraded CPU: SAM3X8E (replaces LPC1768)

• Upgraded FPGA: Spartan‑6 (replaces Spartan‑3)

• Full‑digital PWM power logic with ADC control

• Micro‑USB connector for optional external power

• VCC and VCCQ overload protection

• USB 2.0 Device/Mini‑Host interface – 480 Mbps

• Integrated Z3X High‑Power Pro ISP engine

• ISP support for 1‑bit and 4‑bit connections **

• eMMC 8‑bit high‑speed interface up to 48 MHz

• Integrated NAND engine (NFC) with 4 KB RAM buffer and ECC

• Integrated M‑PHY interface

• Integrated SPI/I²C engine – up to 65 MHz for HSMCI and SPI clocks

• Self‑Test Core that eliminates ~90 % of production faults

• Integrated CCID card reader for Z3X software use

Summary: Enhanced performance, reliability, and expanded protocol support.
What You Get with the New Hardware

• Box‑to‑PC transfer speed up to 35 MB/s

• JTAG interface speed increased by 20 %

• eMMC ISP speed up to 4 MB/s

• eMMC 8‑bit speed up to 26 MB/s

• 99.9 % compatibility with host PCs and operating systems

• Backwards compatibility with legacy Easy JTAG G1 ISP adapters (1‑bit)

• Adapter‑less ISP – all components integrated inside the box

• Compatibility with all popular market eMMC sockets (8‑bit)

• True plug‑and‑play for modern Windows (8, 8.1, 10)

• Full support for legacy OS such as Windows XP

Summary: Speedy, universal, and hassle‑free operation across old and new platforms.

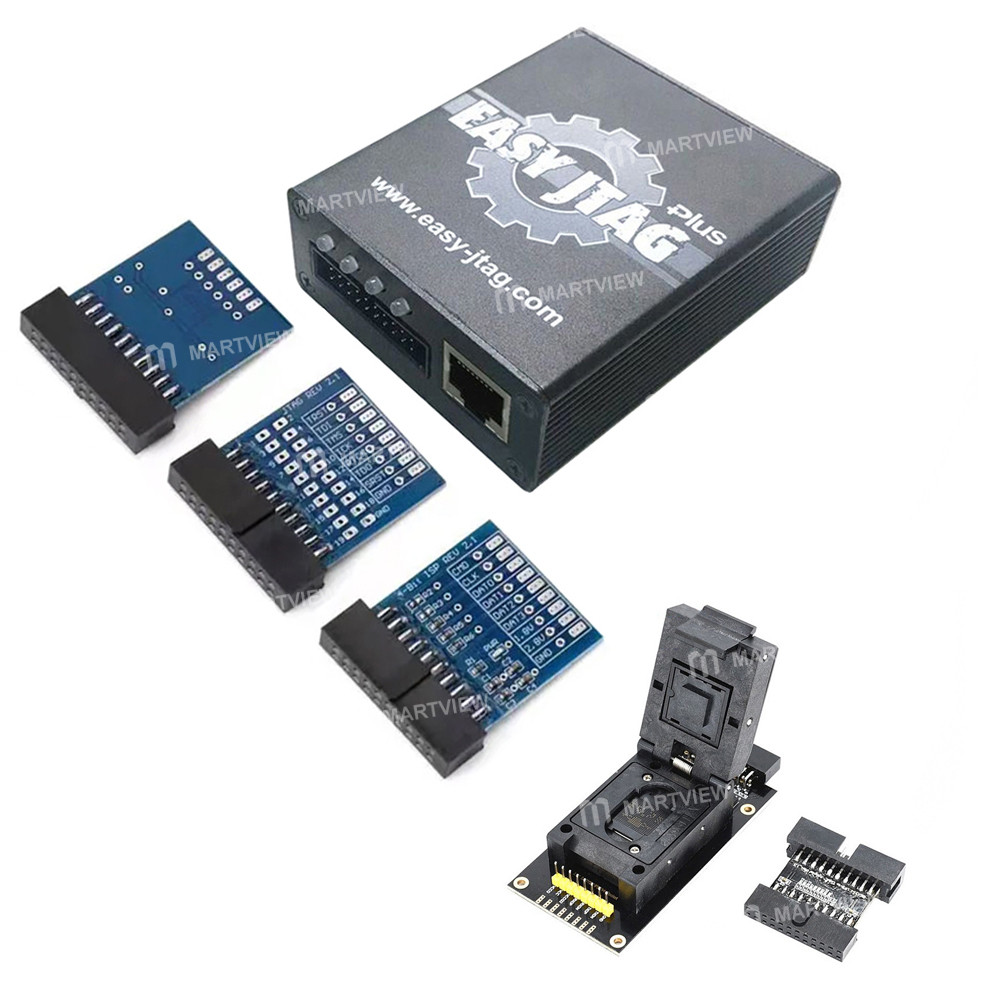

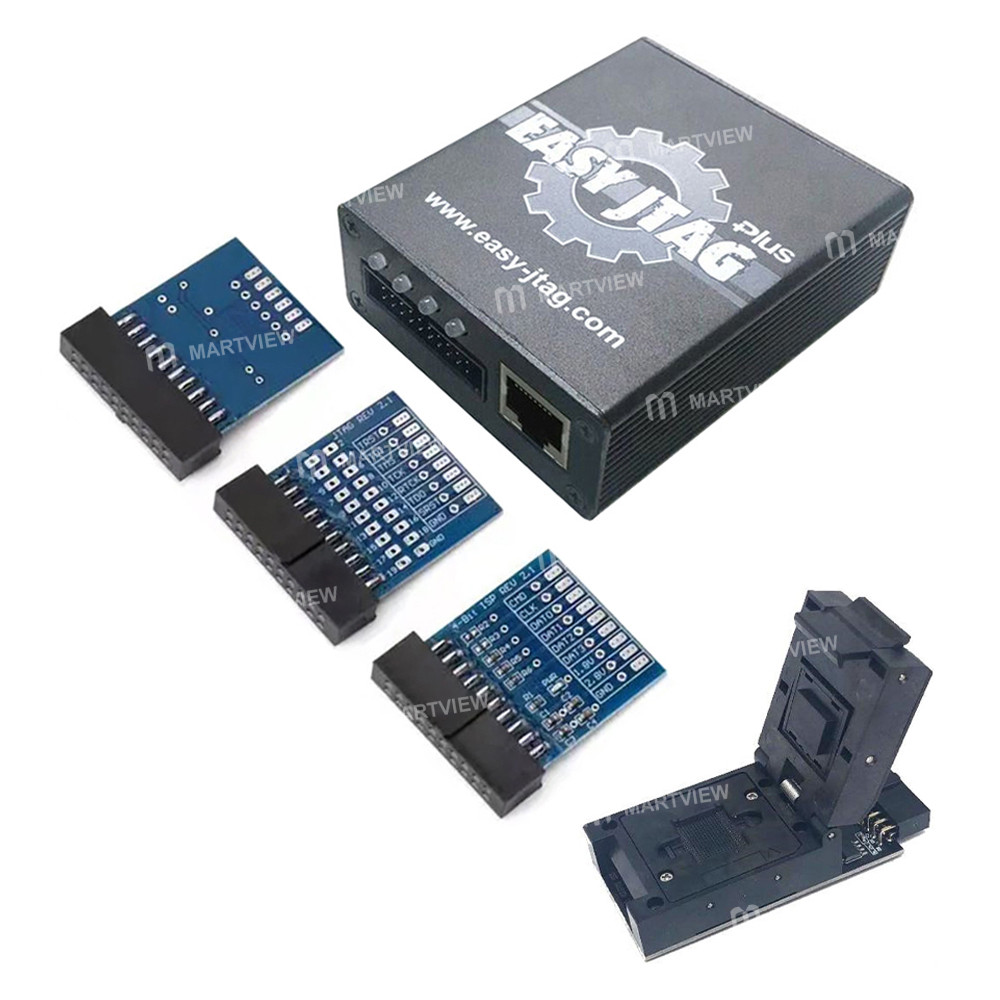

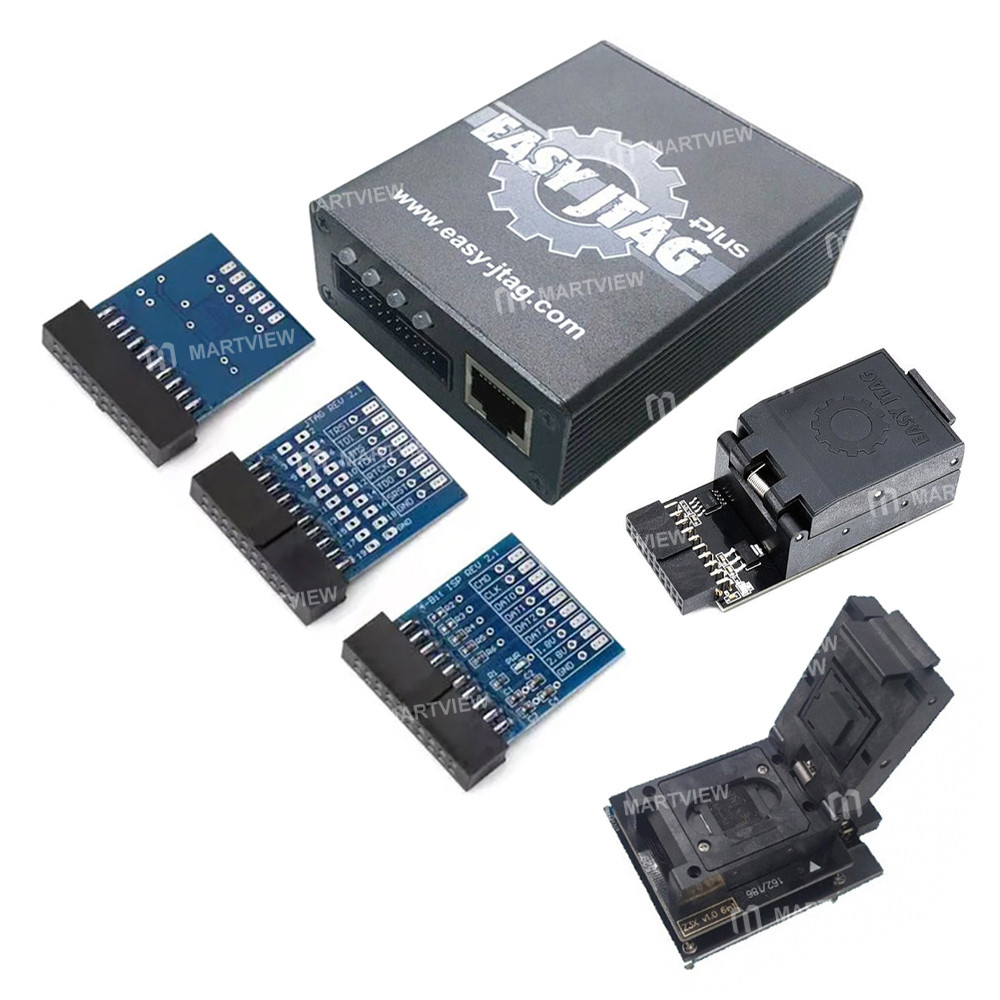

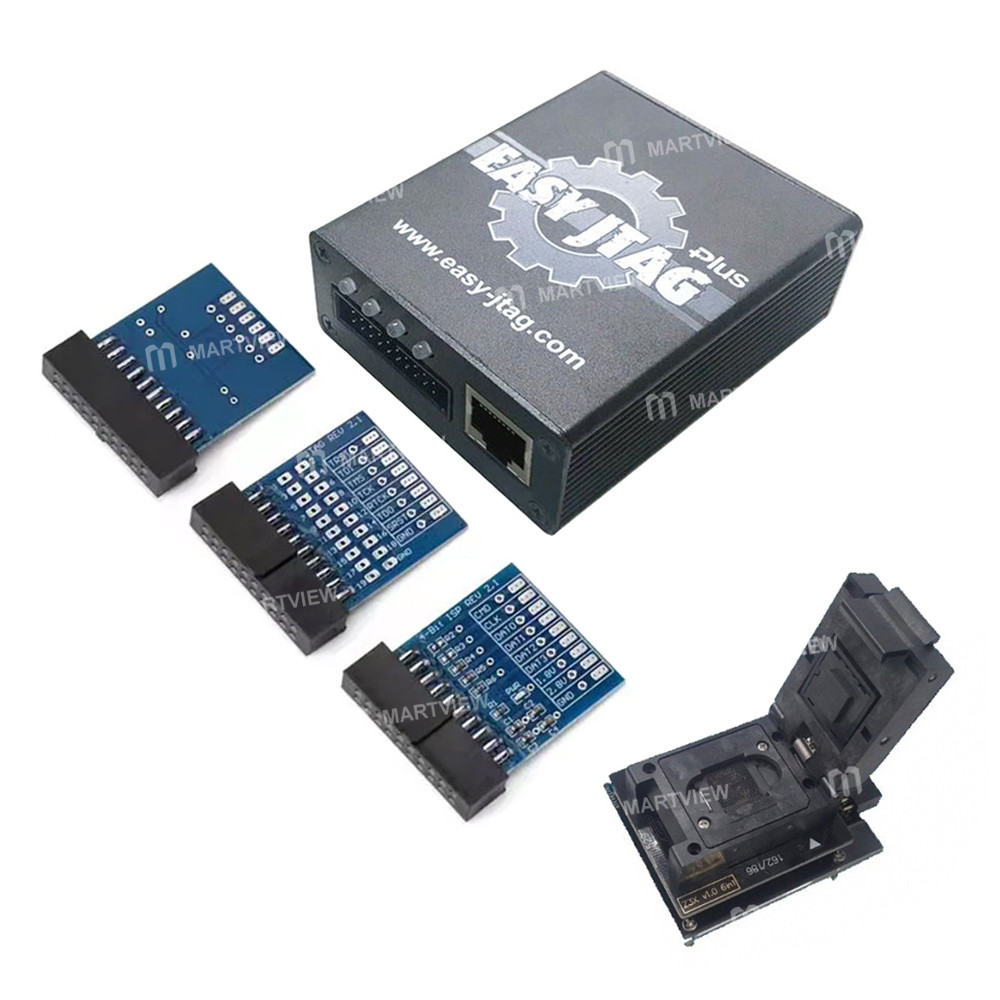

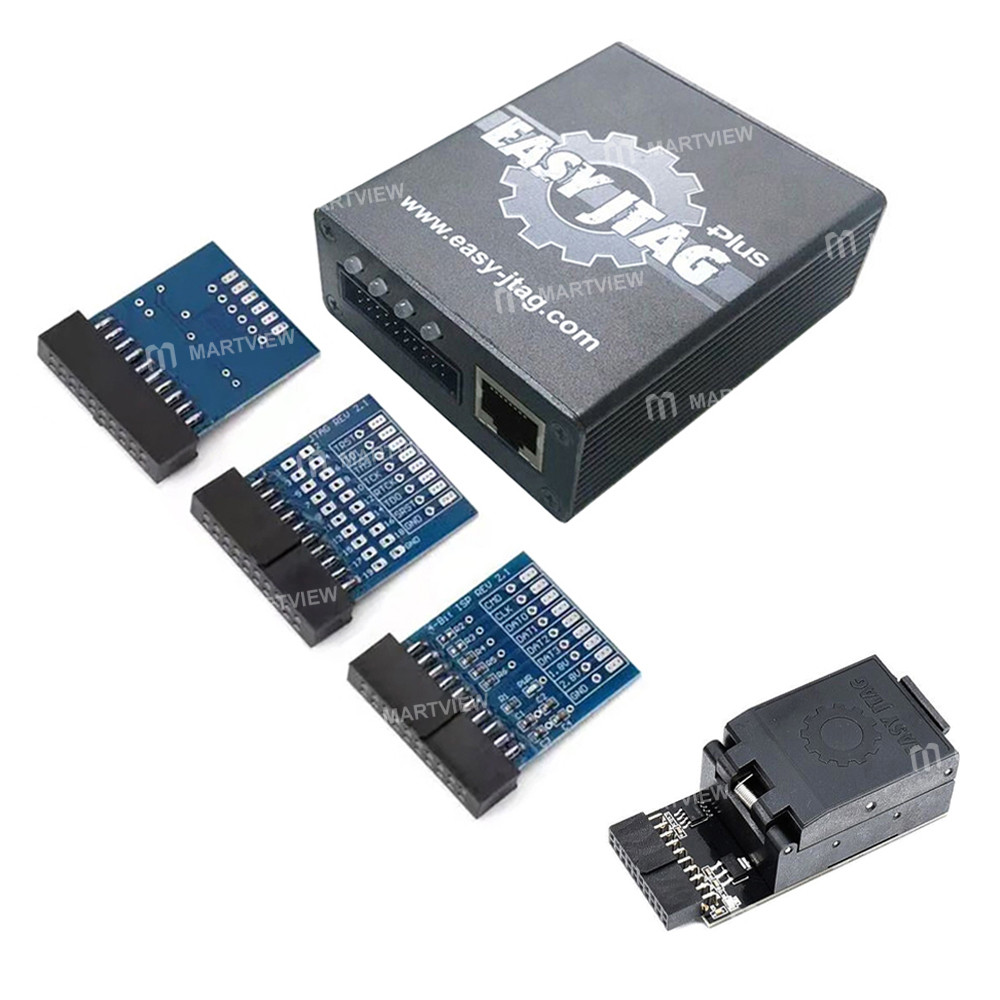

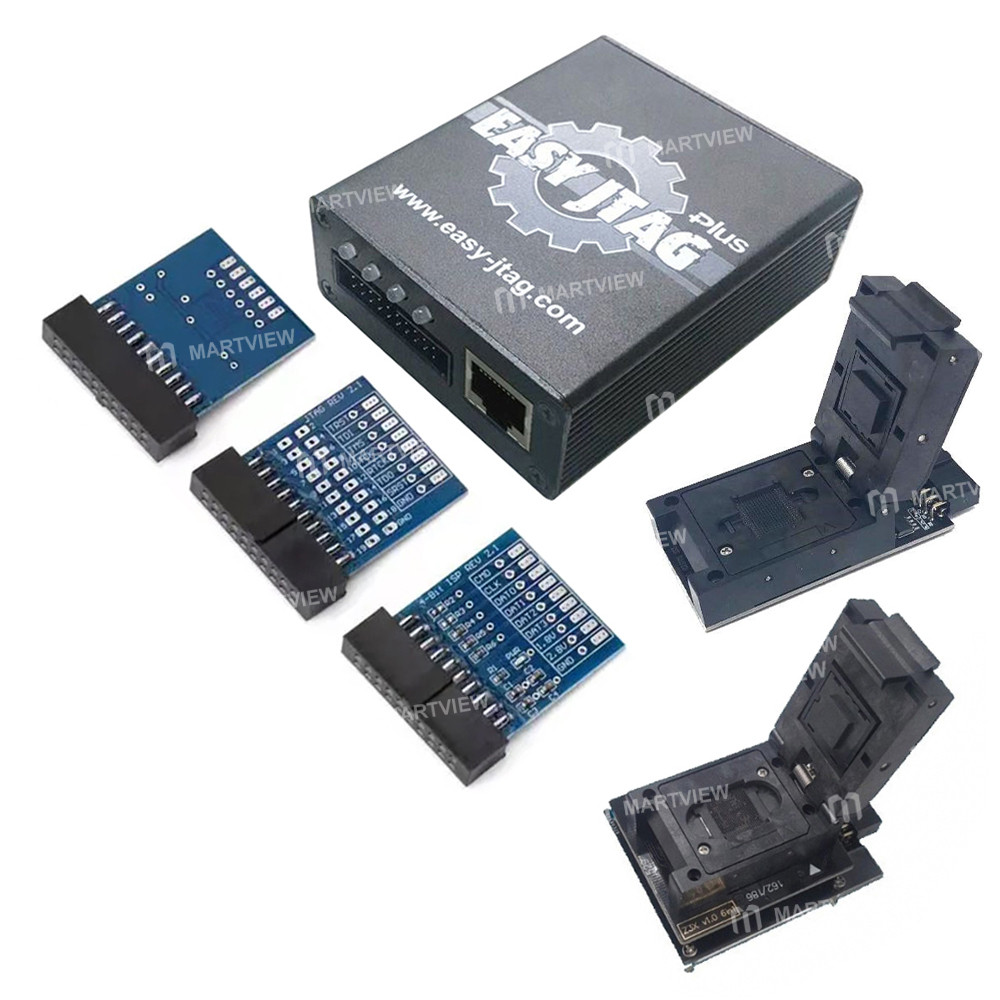

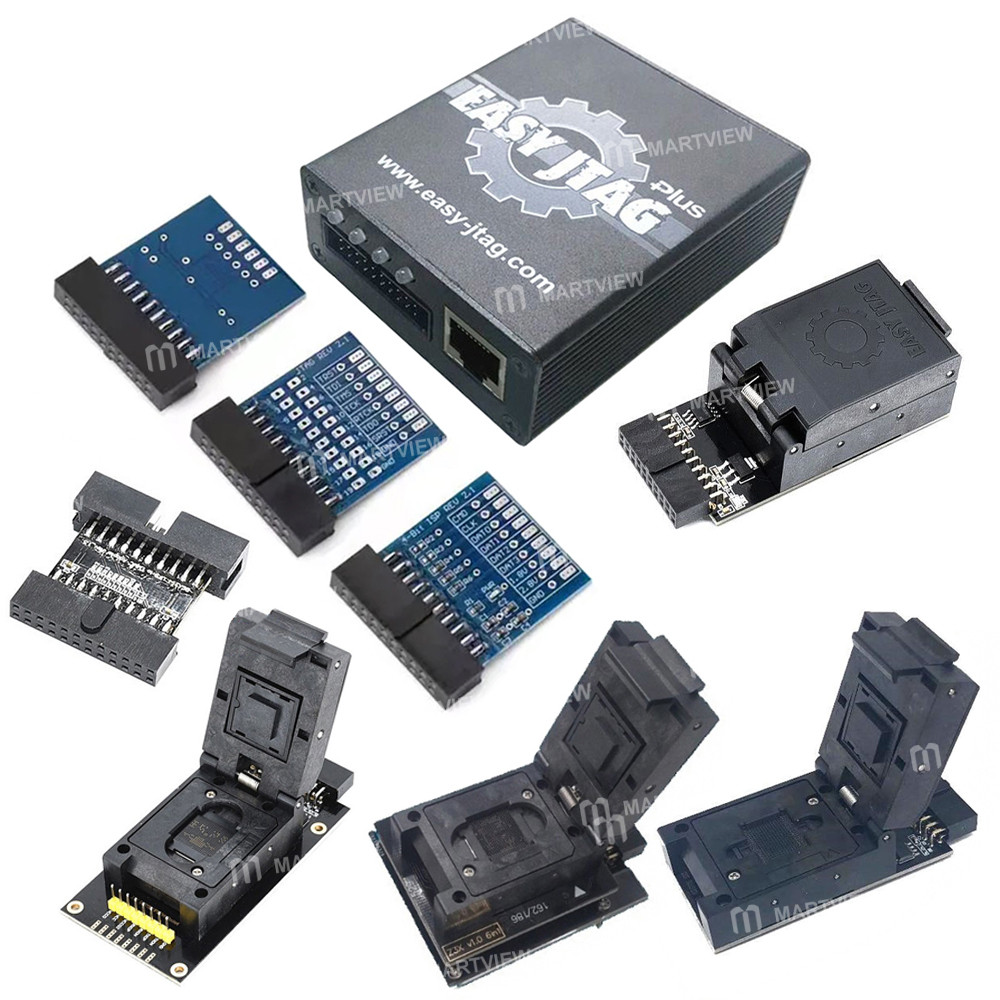

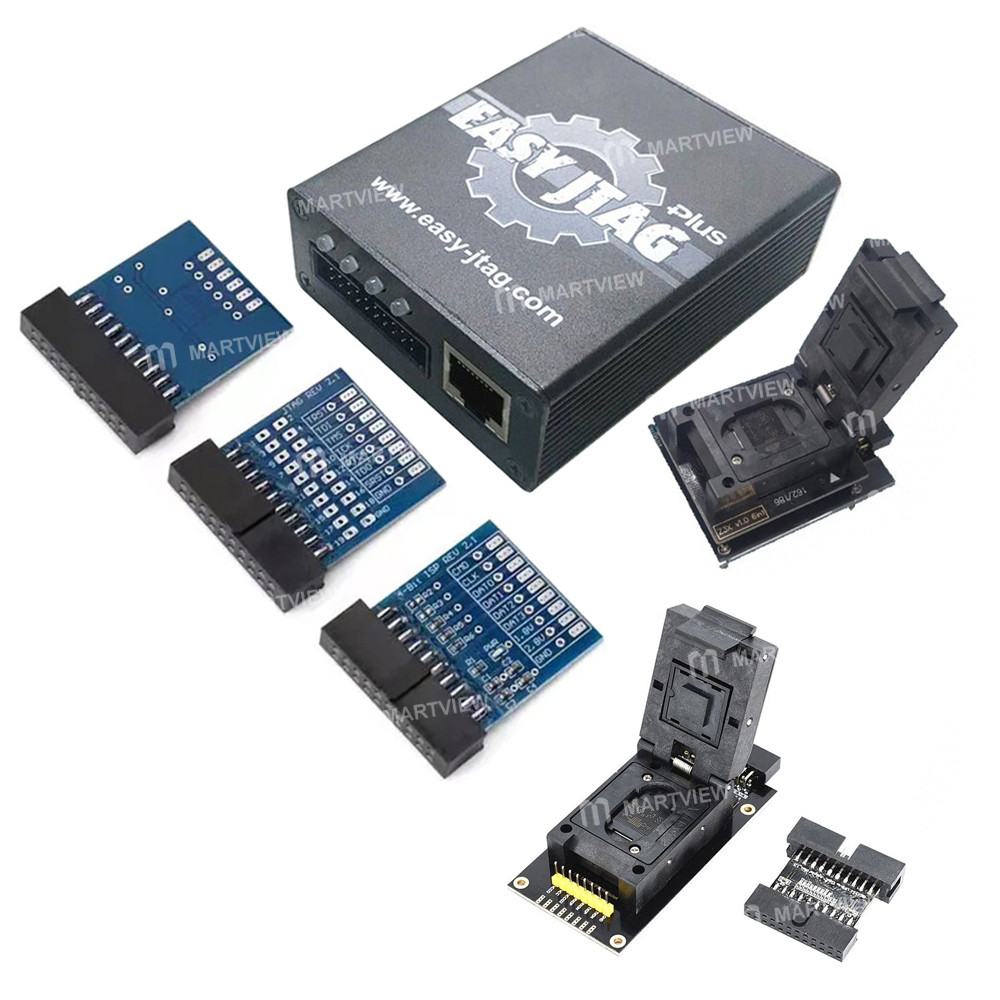

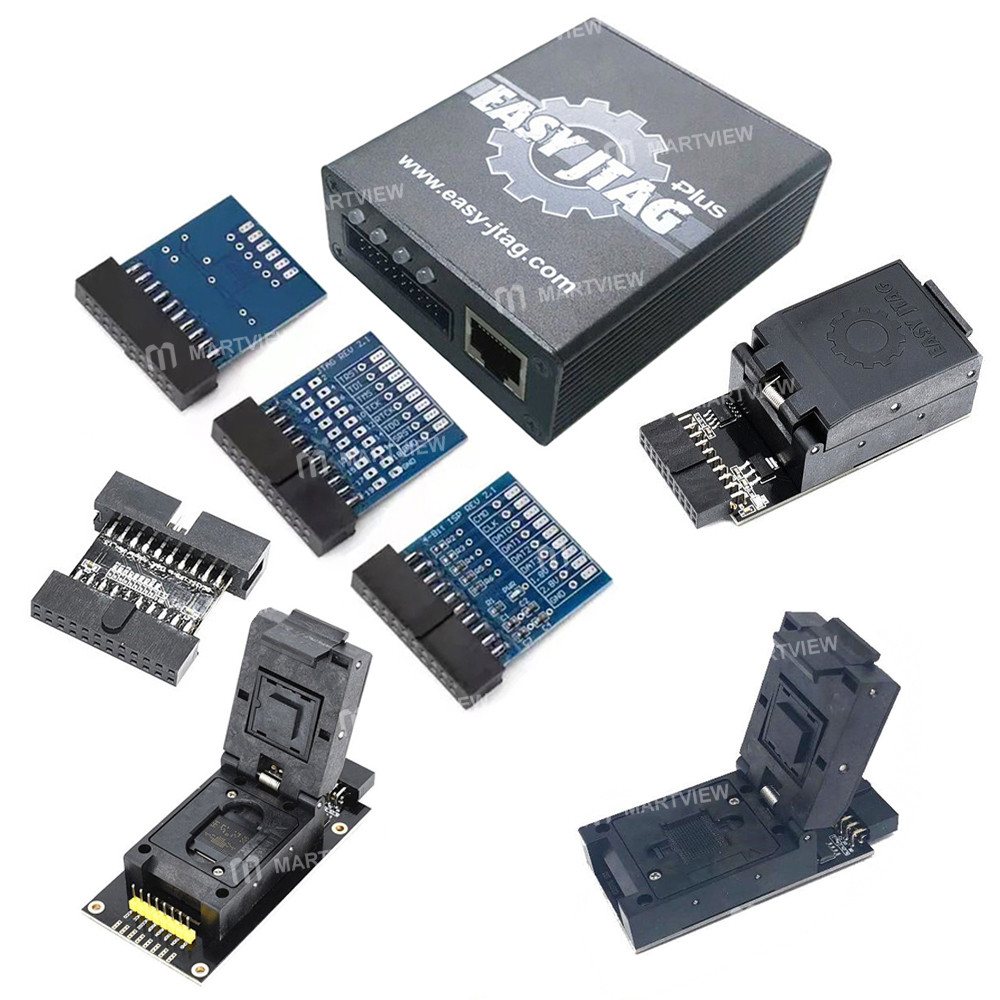

Z3x Easy JTAG Plus – Full Package Contents

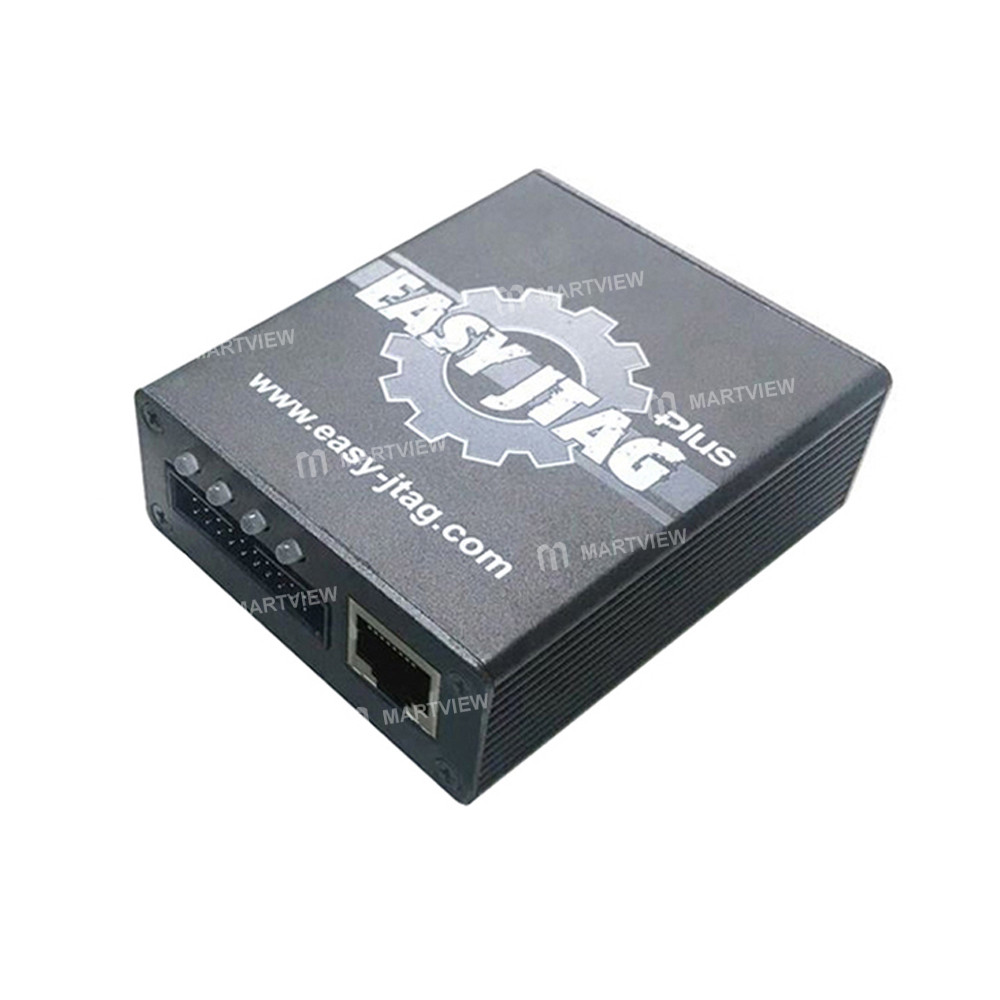

• Easy JTAG Plus Box main interface hardware

• Z3X Smart Card with Easy JTAG Plus activation

• Z3X certified eMMC socket (BGA153/169, BGA162/186, BGA221, BGA529)

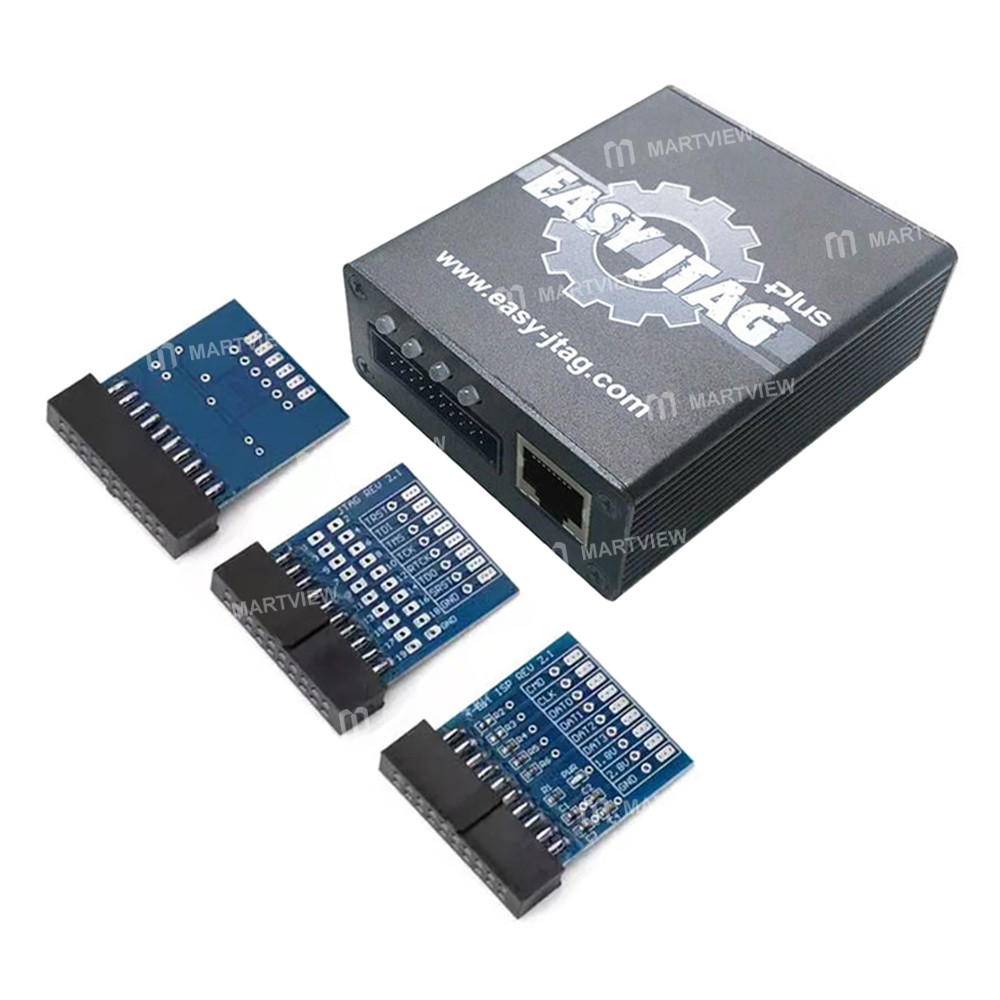

• 3‑piece adapter set:

•   1 x JTAG Pin‑20 standard cable

•   1 x ISP soldering connector (1‑bit)

•   1 x ISP soldering connector (4‑bit)
•   1 x UFS BGA95 Socket Adapter

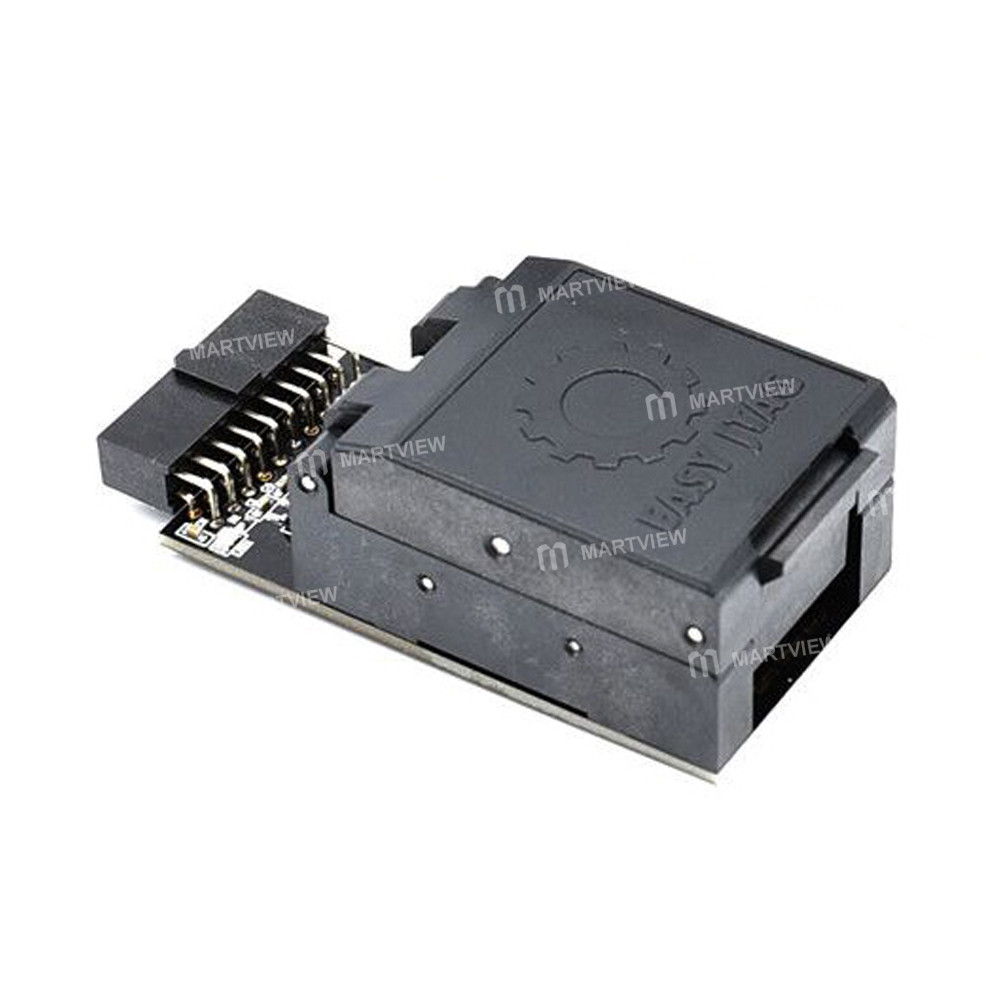

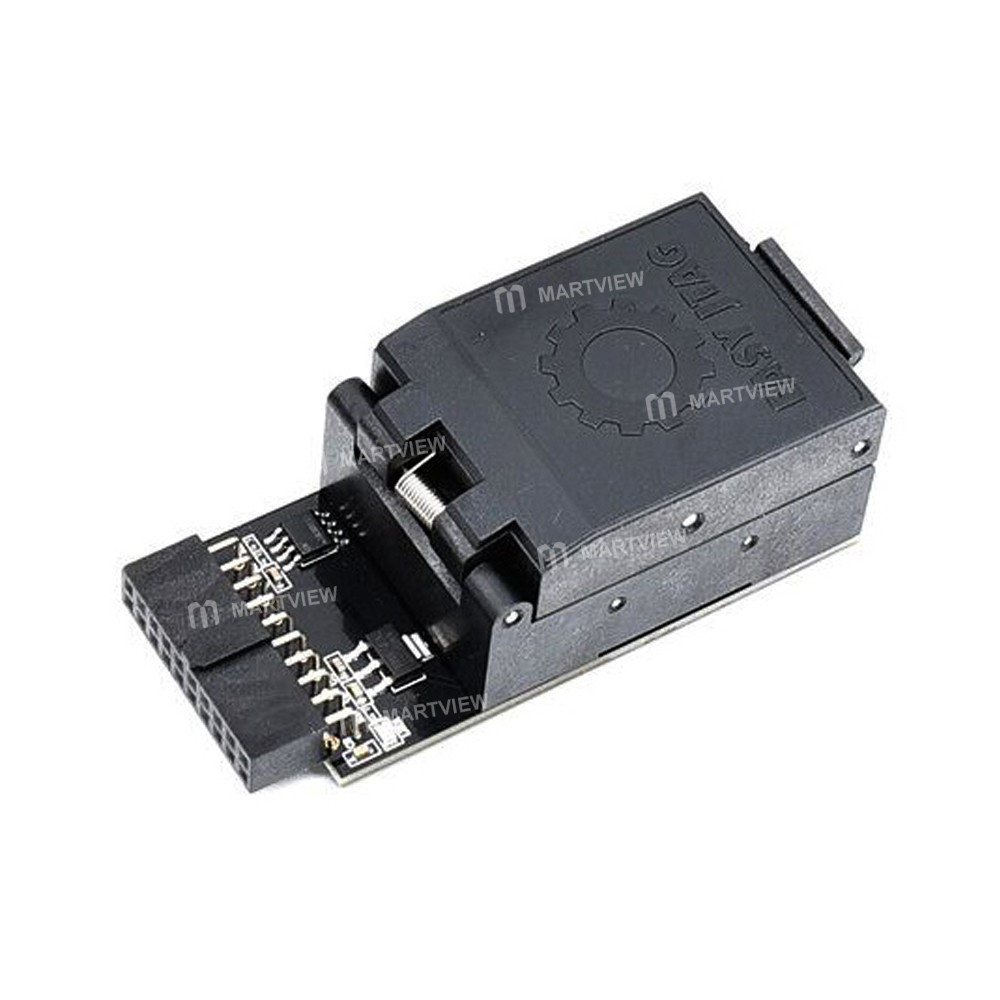

•   1 x UFS BGA153 Socket Adapter

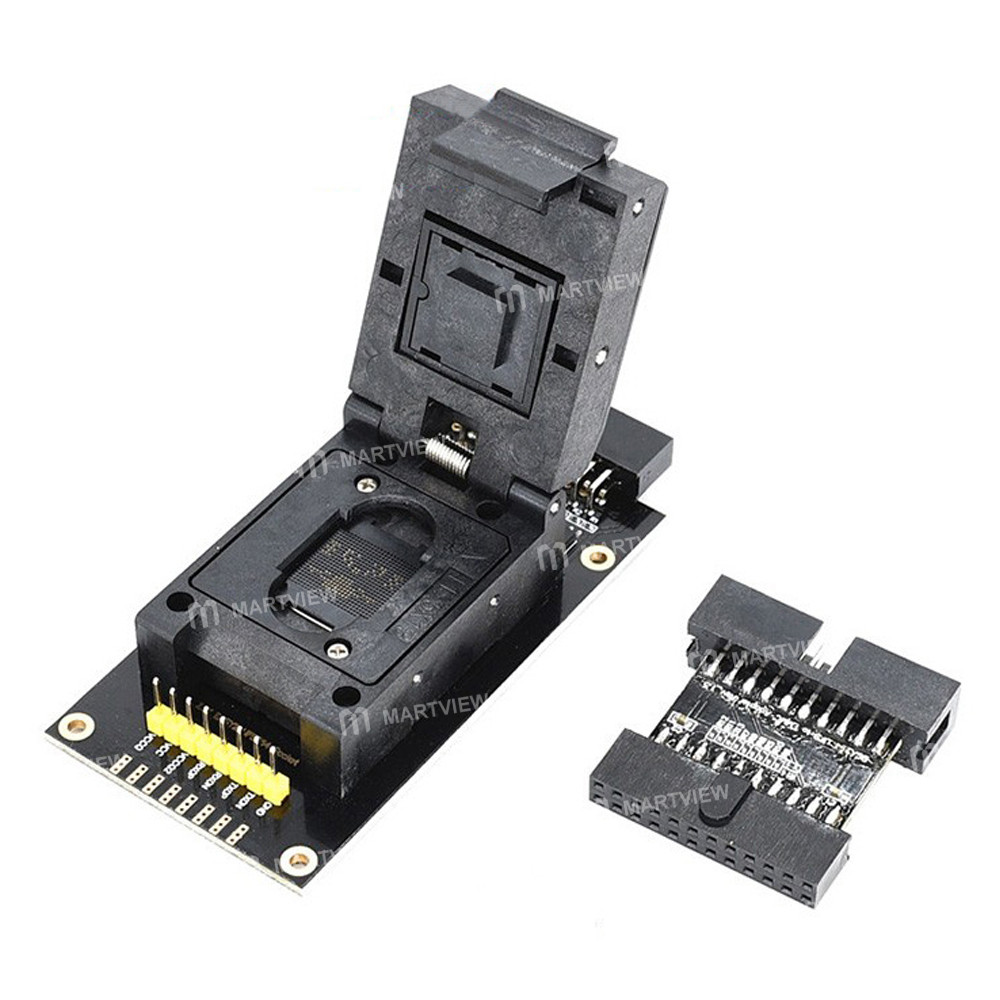

•   1 x UFS BGA254 Socket Adapter

• 1 year free support access to our file‑support servers

• USB A‑to‑B cable

Remarks
* UFS and NAND protocols require special sockets and will be released with future software/firmware updates.
** 4‑BIT ISP technology is currently under testing and will be added in a future firmware release.
NOTE: We do not provide usage instructions – ensure you are familiar with the device before purchase. Support and solutions are available on the official site or at https://www.martview-forum.com/forums/z3x-team.186/
