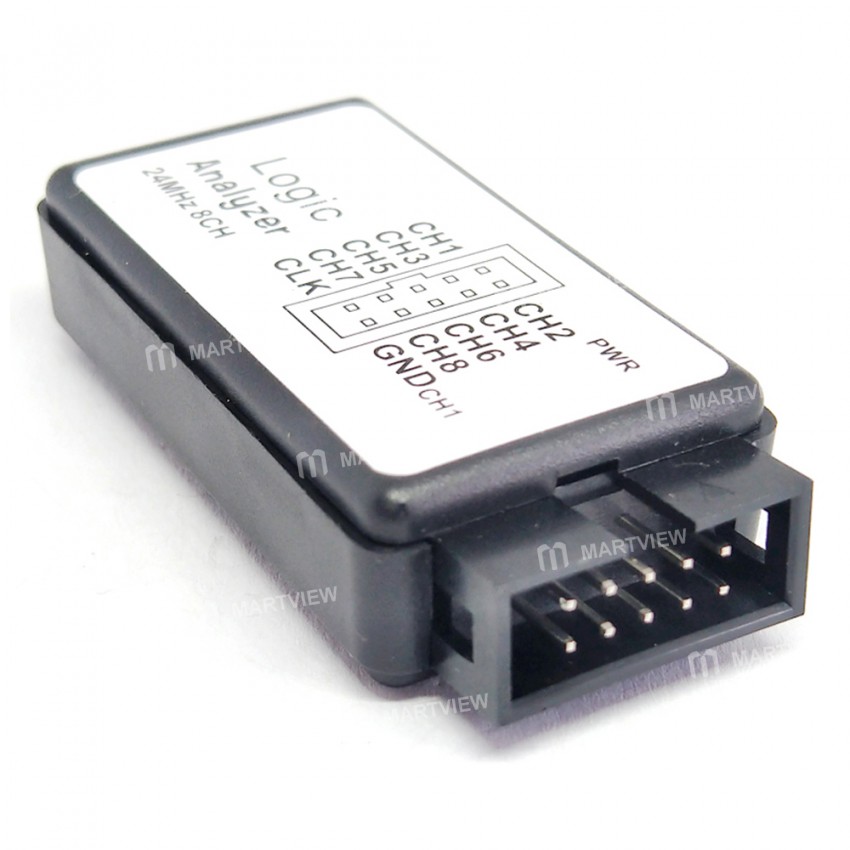

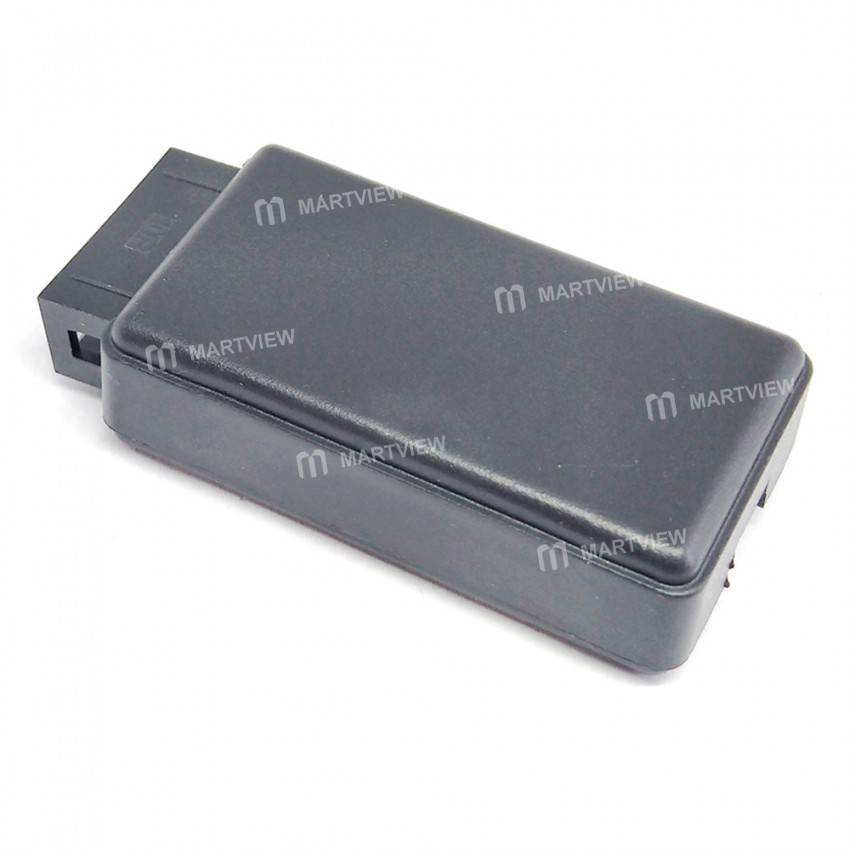

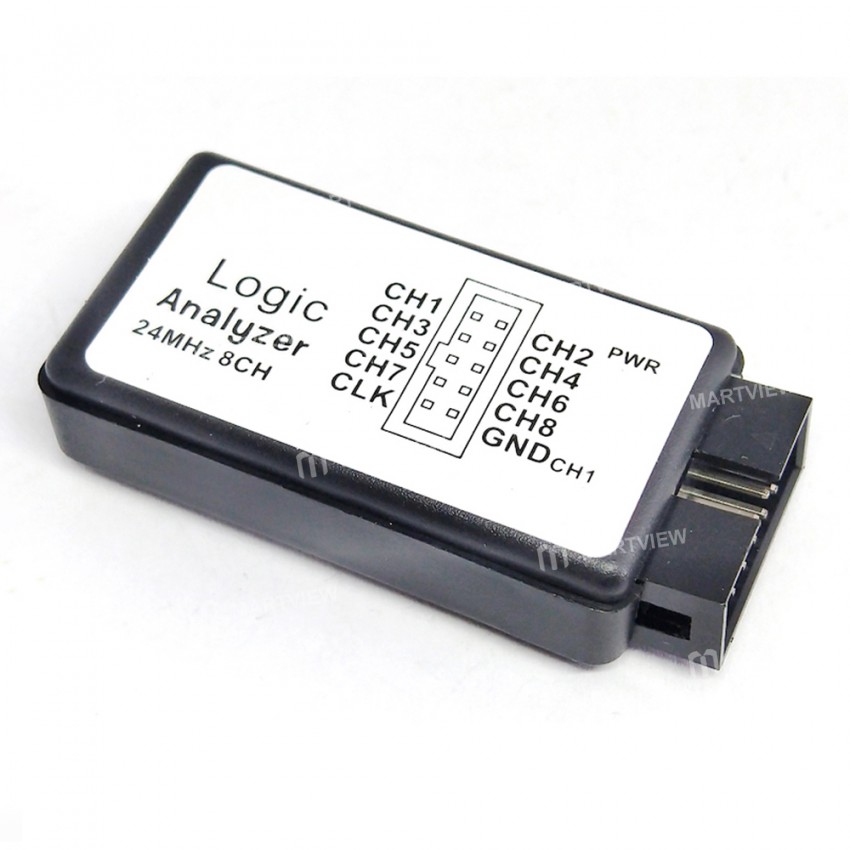

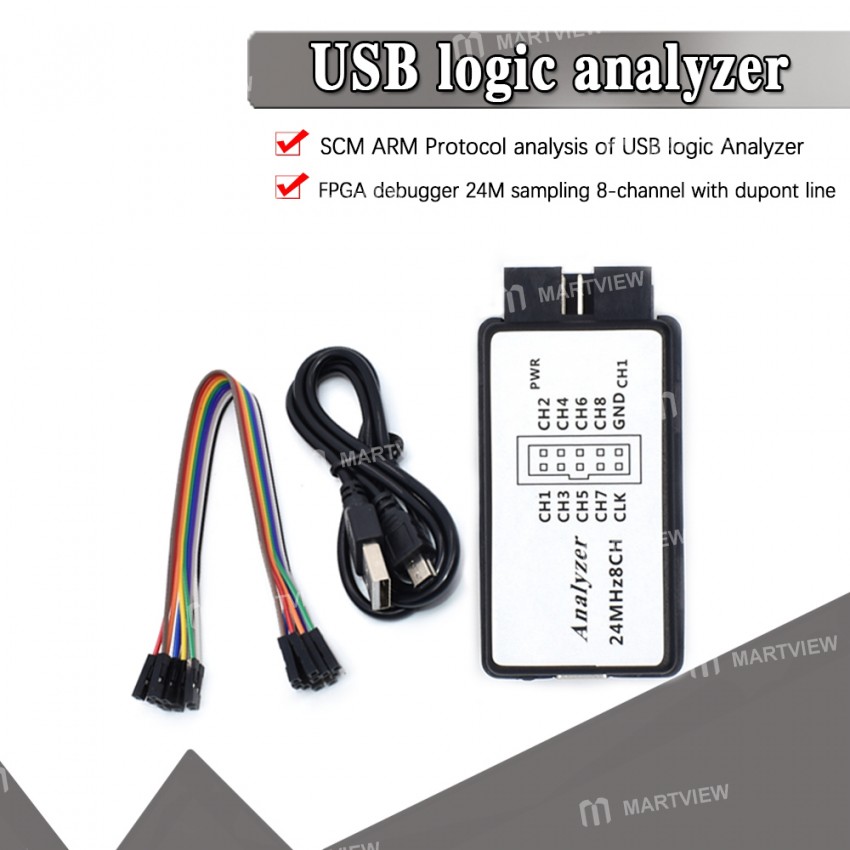

8-Channel 24MHz USB Logic Analyzer for ARM FPGA Develop

8-Channel 24MHz USB Logic Analyzer for ARM FPGA Develop

Features:

• 8 channels can gather at the same time, to signal analysis, such as UART

• The logic for each channel sampling speeds up to 24M/s

• General applications around 10M, enough to cope with a variety of occasions

• Large quantity sample collection, strong

• Equipped with overpressure protection, for safe working

• All the way logic pen indication: use a small light to indicate the level of CH1, intuitive and clear

• Input Characteristics: the capacitive reactance is 5PF, and the impedance is 100K ohms. This is a more reasonable impedance that we use after weighing, and it is only a mainstream parameter.

• VIH (input can recognize high level): higher than 1.6V is recognized as a high level. It can be used to stably collect signals at 5V, 3.3V, 2.5V, and 2.0V levels. Also works in 1.8V level systems, but not very recommended

• The data is uploaded in real-time, the host computer adopts compressed storage, and the maximum acquisition depth is 10T, which far exceeds the actual demand

• Perfect support for various trigger modes, rising edge, falling edge, high-level trigger, low-level trigger, and the combination of the above four basic methods to form a complex trigger

• Sampling speed can be set to: 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz

• Data upload in real-time, with depth collection, is far from a practical need

• Support WIN7(32 and 64), 2K, XP, LINUX

Specification:

• Name: USB Logic Analyzer

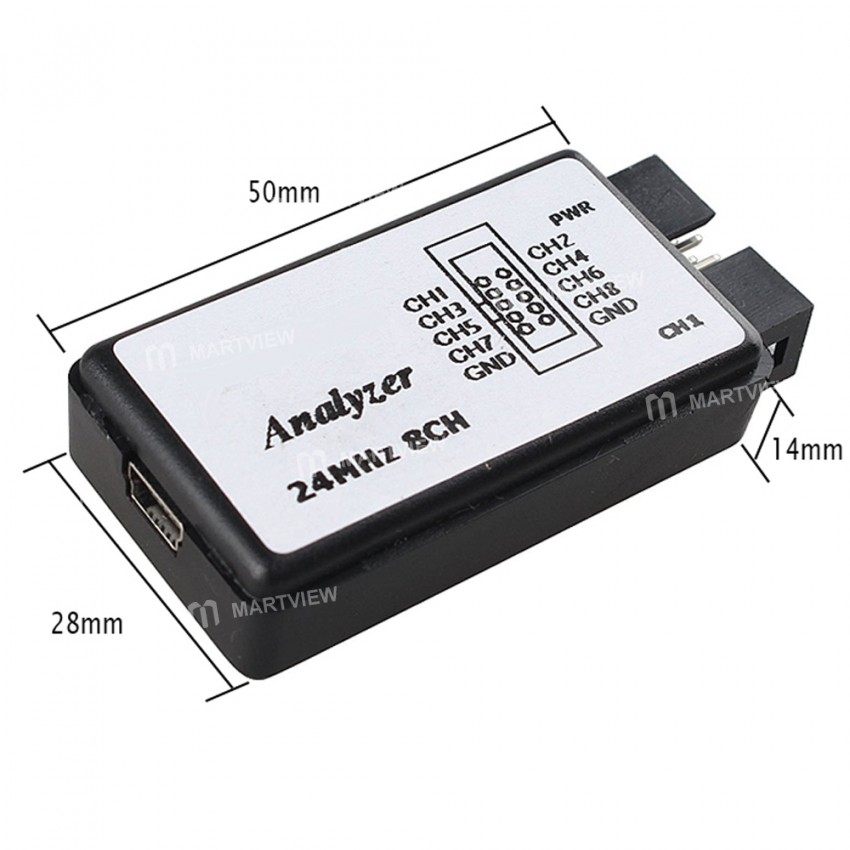

• Item size: 50 * 28 * 14mm

• Item weight: 50g

• Package size: 100 * 50 * 50mm

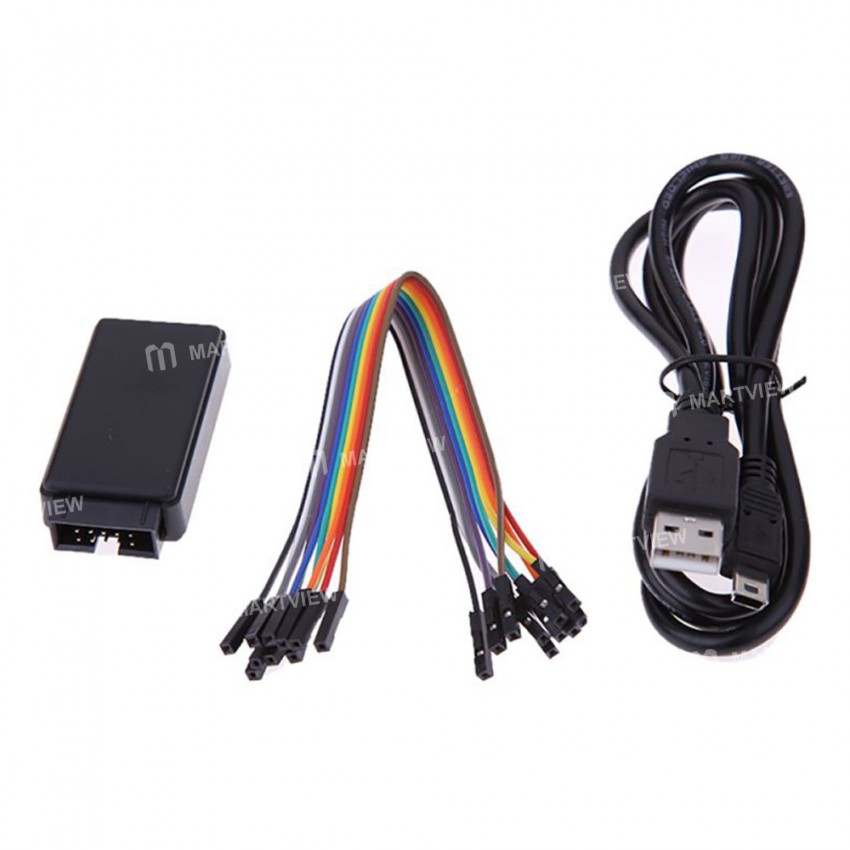

Package includes:

• 1 x Logic Analyzer

• 1 x USB Cable

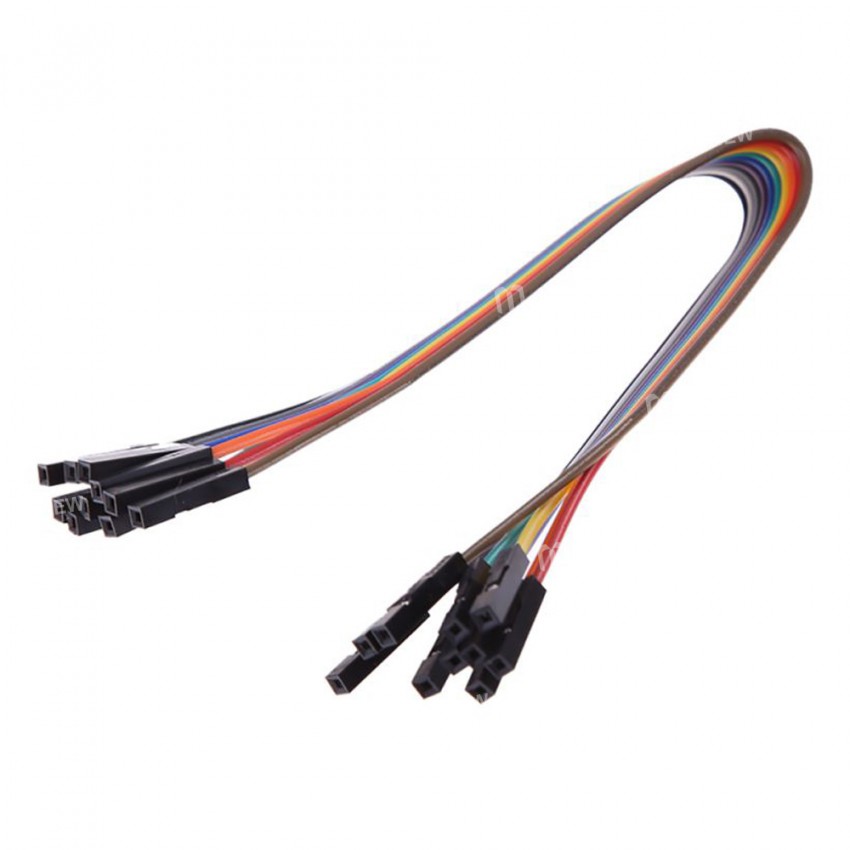

• 1 x Harness
