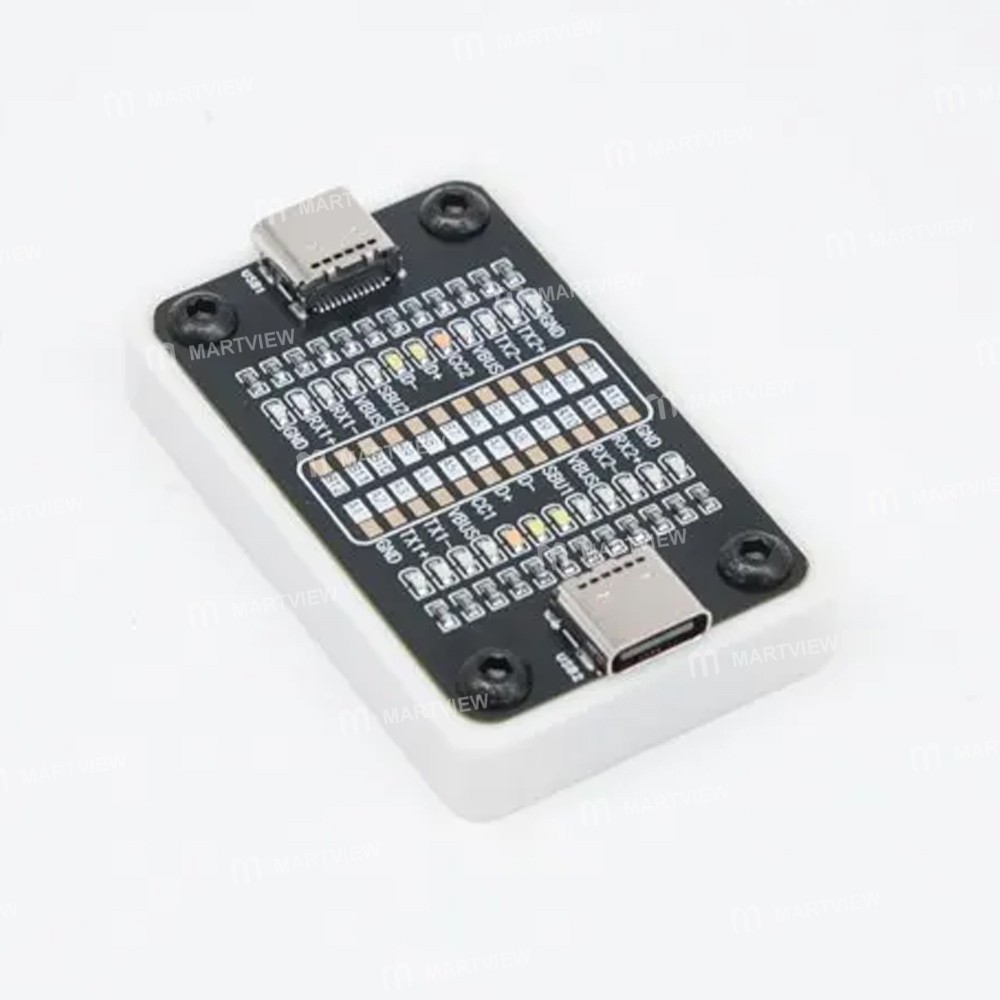

ChargerLAB Power-Z CT001 Dual-Ended Type-C Cable Continuity Tester for Apple and Android Phones

ChargerLAB Power-Z CT001 Dual-Ended Type-C Cable Continuity Tester for Apple and Android Phones

Features:

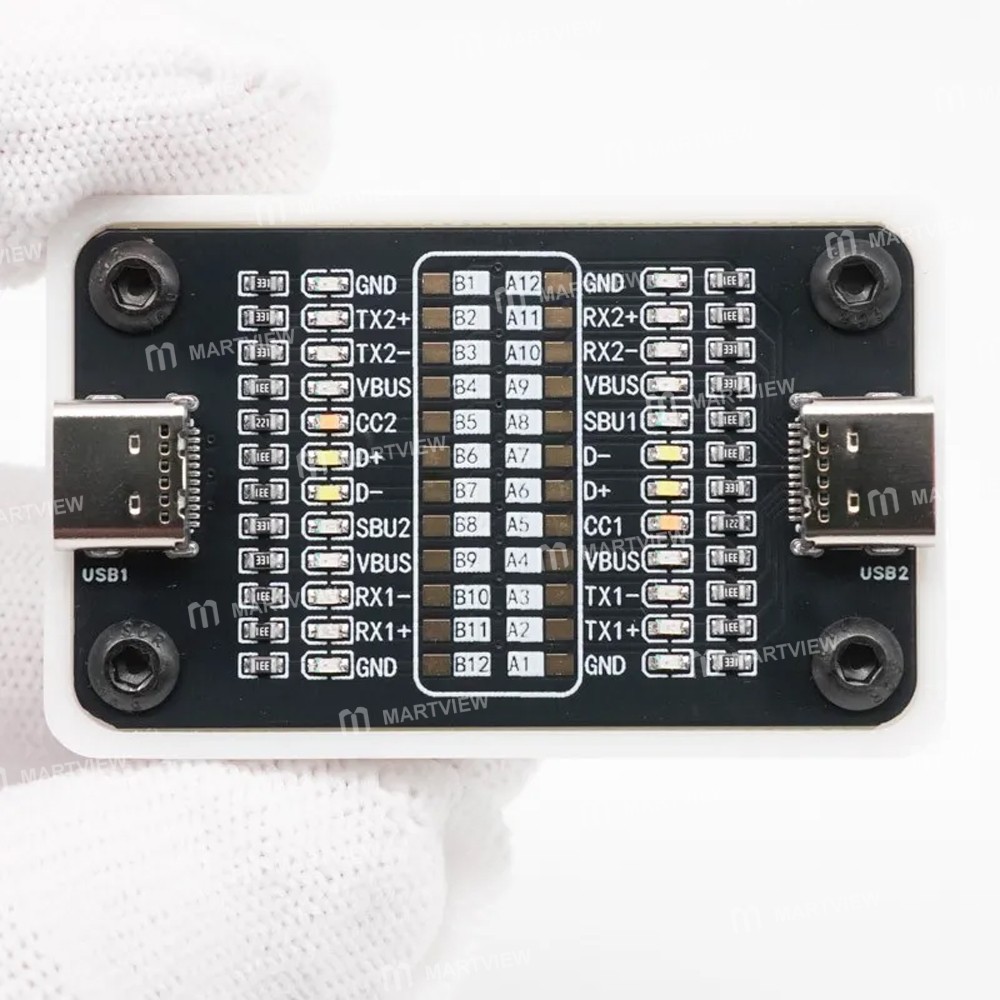

• Full 24-Pin Continuity Detection: Supports complete USB-C pin testing with 24 LED indicators, helping you instantly identify faulty or missing connections.

• Power Delivery Compatibility: Accurately checks cable continuity for charging pins, ensuring reliable charging performance.

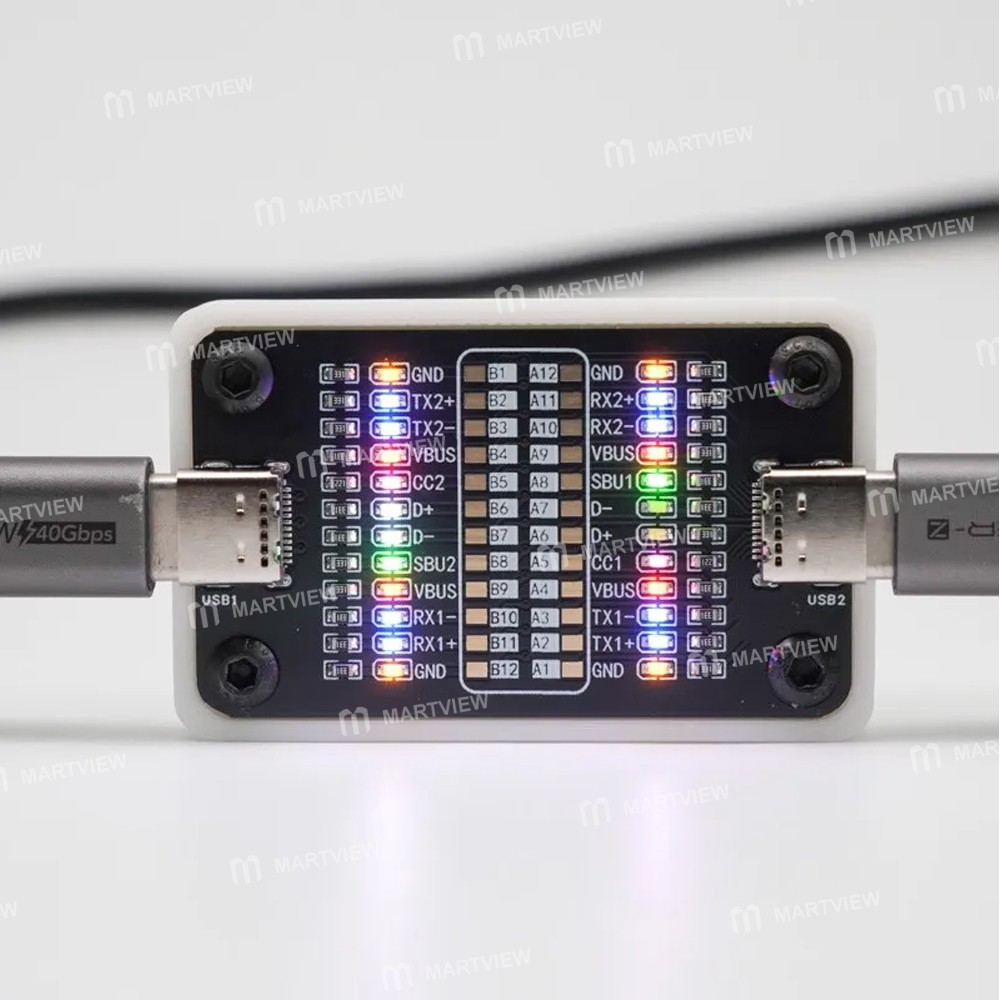

• Data Transfer Verification: Detects whether your cable supports data transmission and how fast can it be.

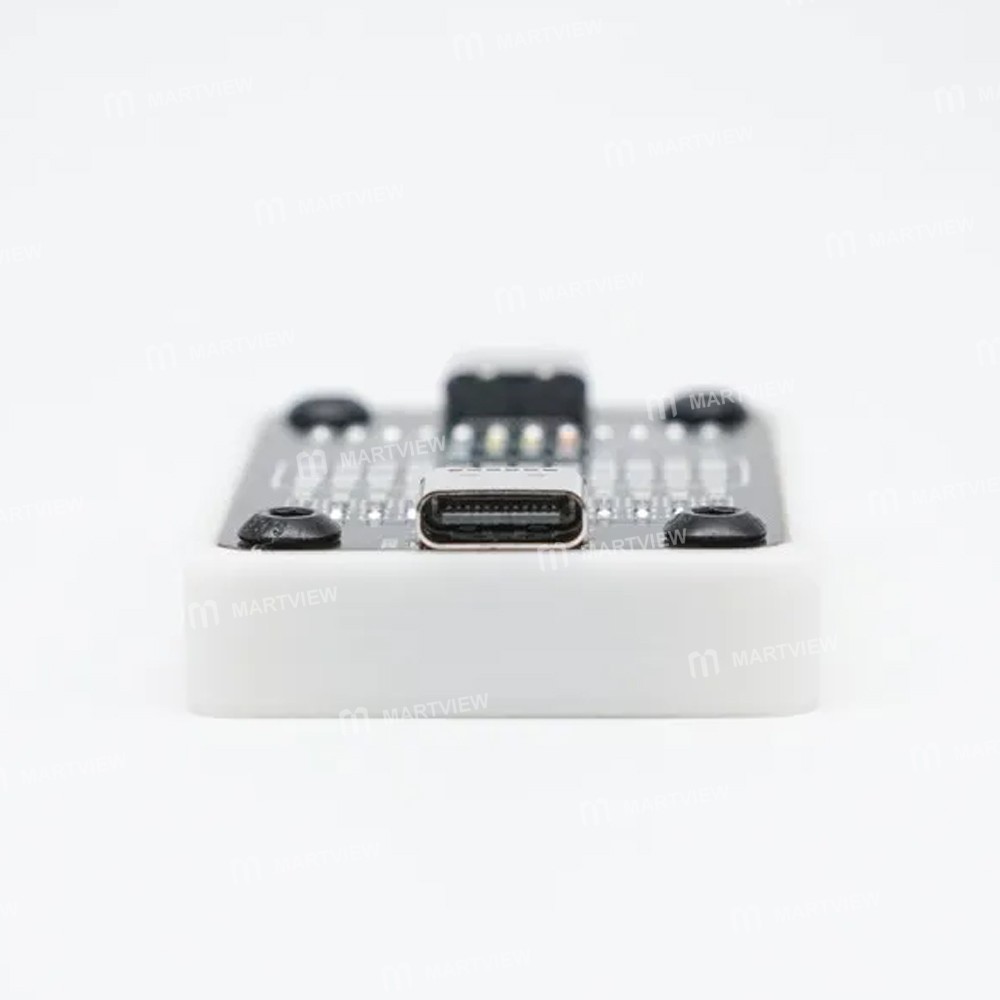

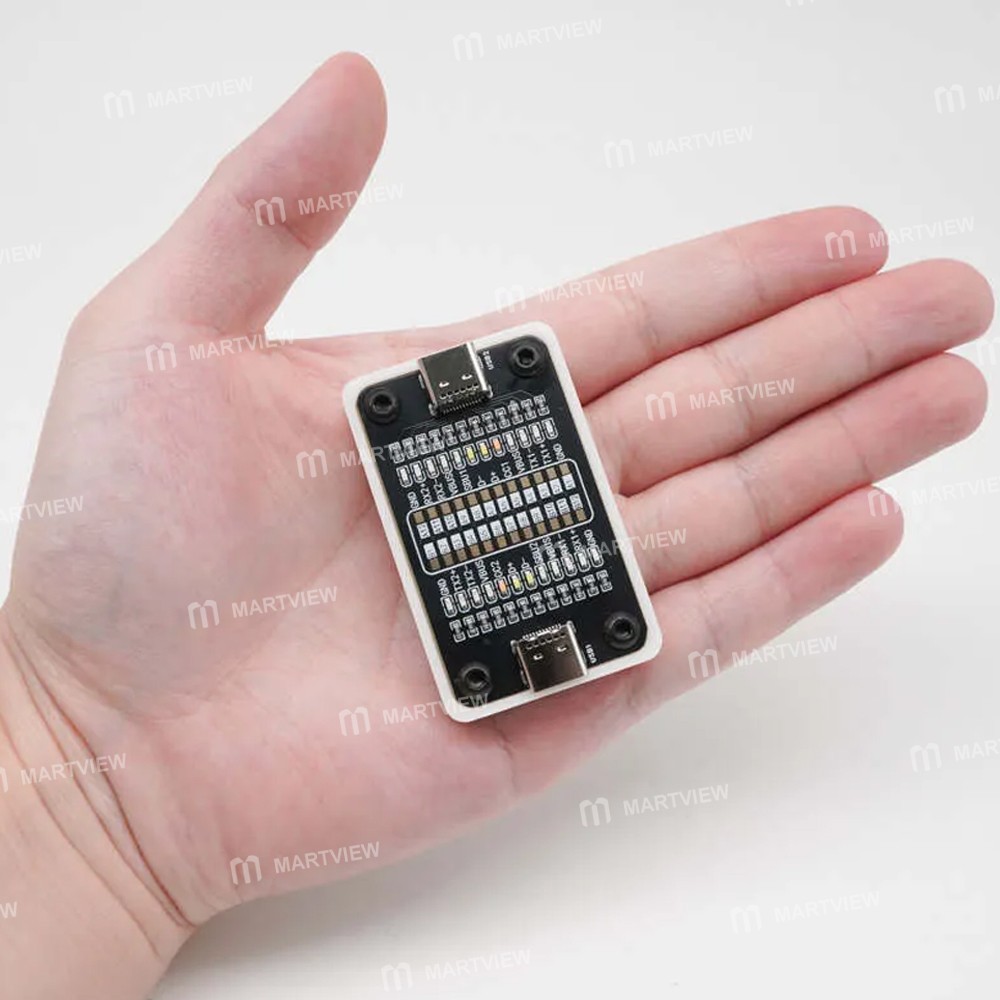

• Portable & Battery-Powered: Compact design (53*33*9mm, 17.8g) powered by a CR2032 button cell, no external power required — perfect for on-the-go cable testing.

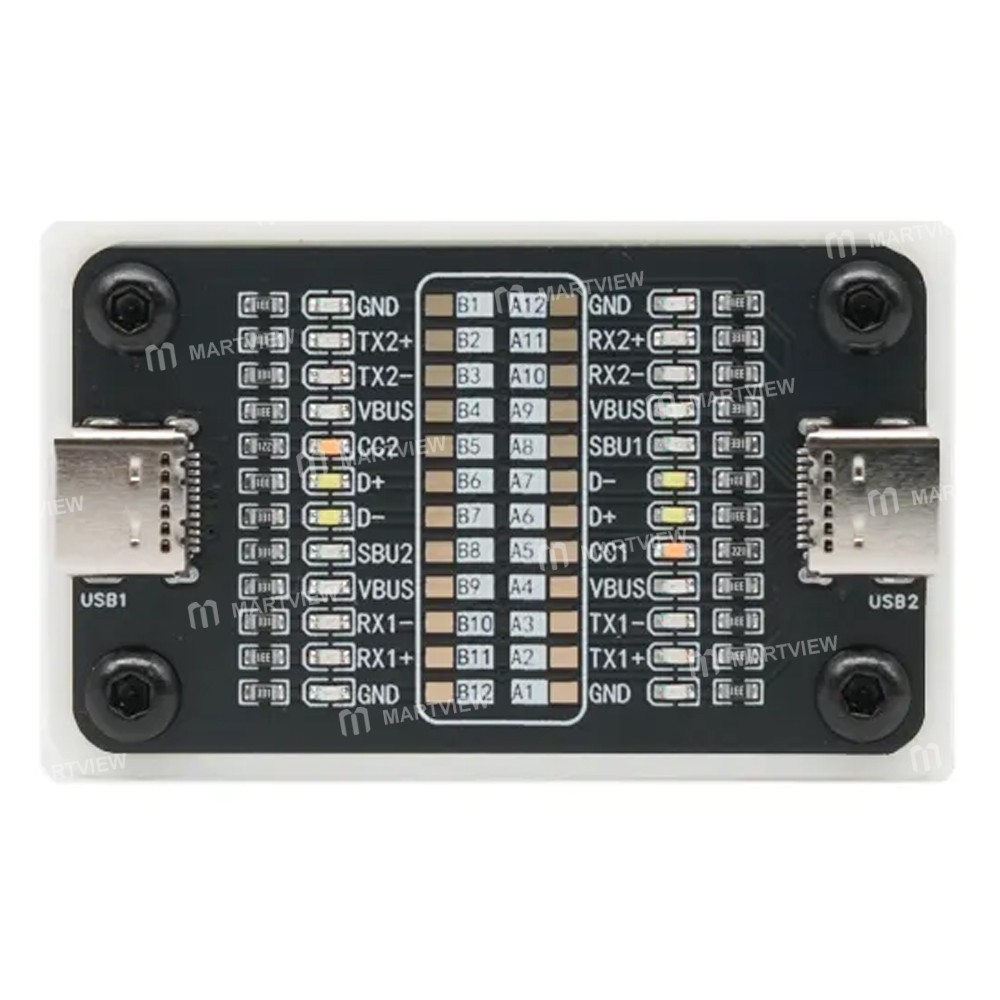

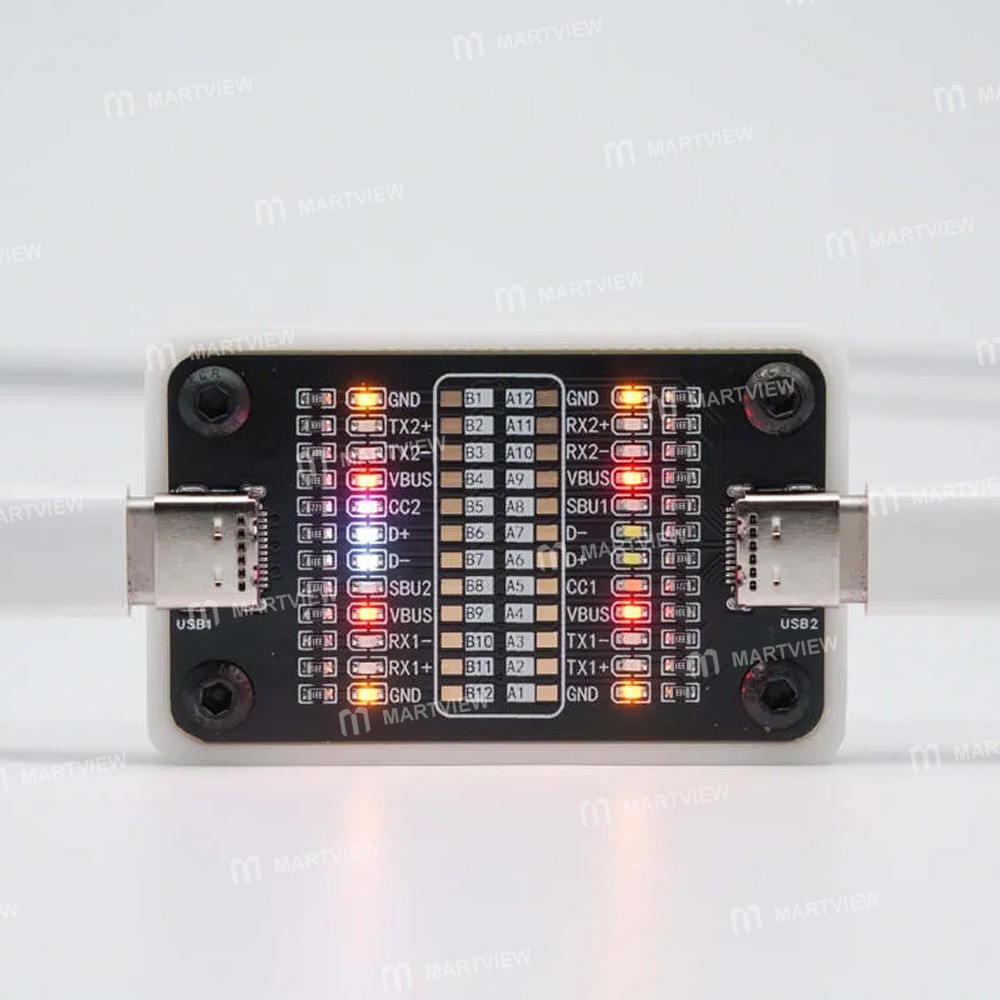

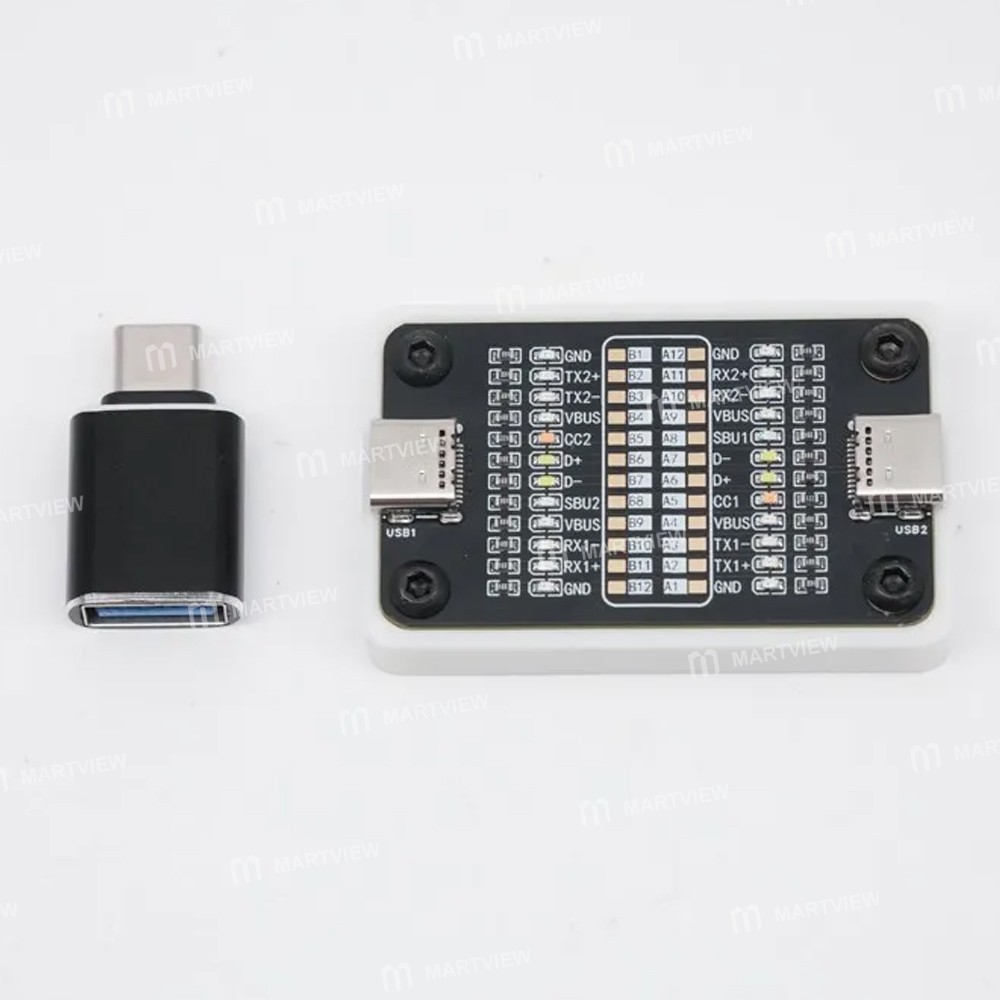

• Easy-to-Read LED Indicators: Independent LEDs for each pin group clearly display continuity results, allowing fast and intuitive diagnostics for both USB-C to USB-C and USB-A to USB-C cables

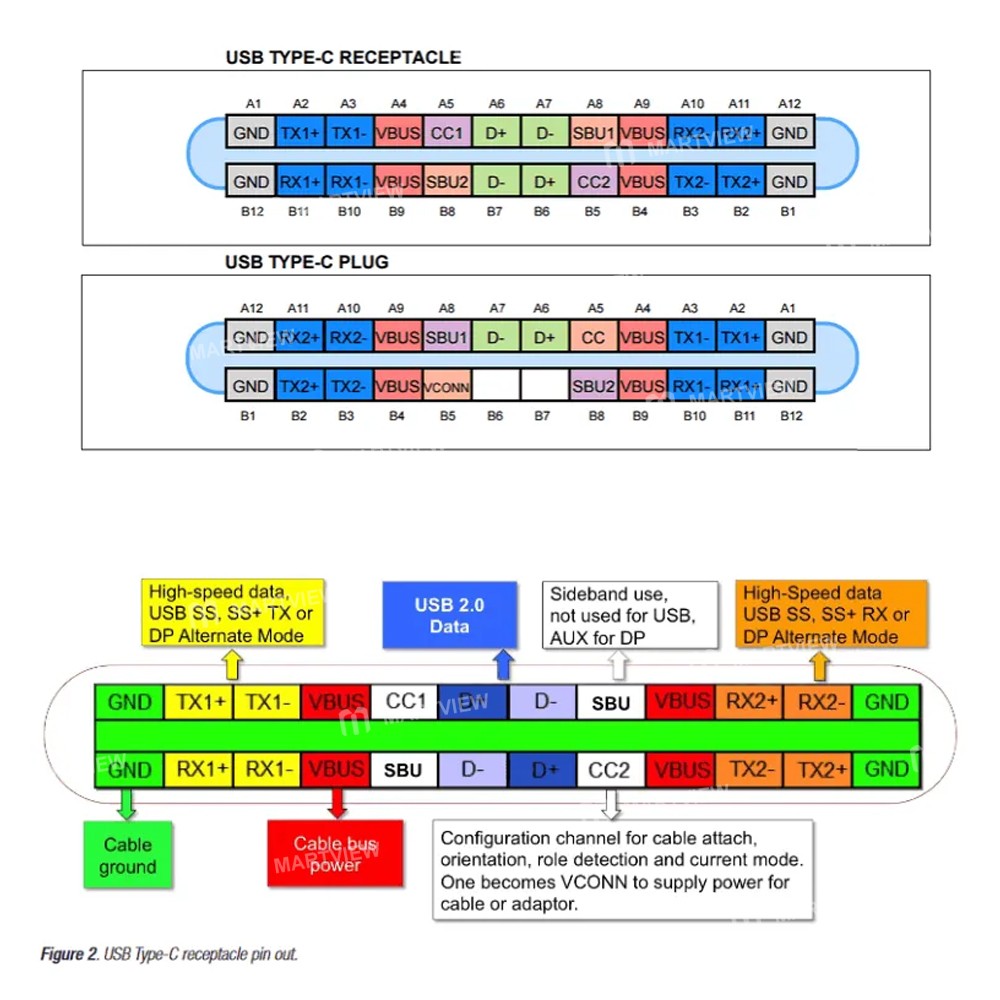

USB-C Interface Specification:

• VBUS: 4 pins in total, delivering bus voltage between devices. Regardless of orientation, all four provide power.

• GND: 4 pins in total, forming the return path for power. Again, all four are functional regardless of orientation.

• TX+/TX- and RX+/RX-: Four differential pairs used for USB 3.0 high-speed signals.

• D+/D-: Two pairs used for USB 2.0 signals. On the receptacle side, these are shorted into a single pair.

• CC / VCONN: CC pins are configuration channels used to detect device connection, cable orientation, and also carry USB PD communication. The opposite pin becomes VCONN, supplying power to eMarker cables.

• SBU1 / SBU2: Auxiliary pins used for functions like audio or video transmission.

Package includes:

• 1 x Tester
